Bently Nevada 330703-050-120-10-02-00

Product Details

330703-050-120-10-02-00 Product Description

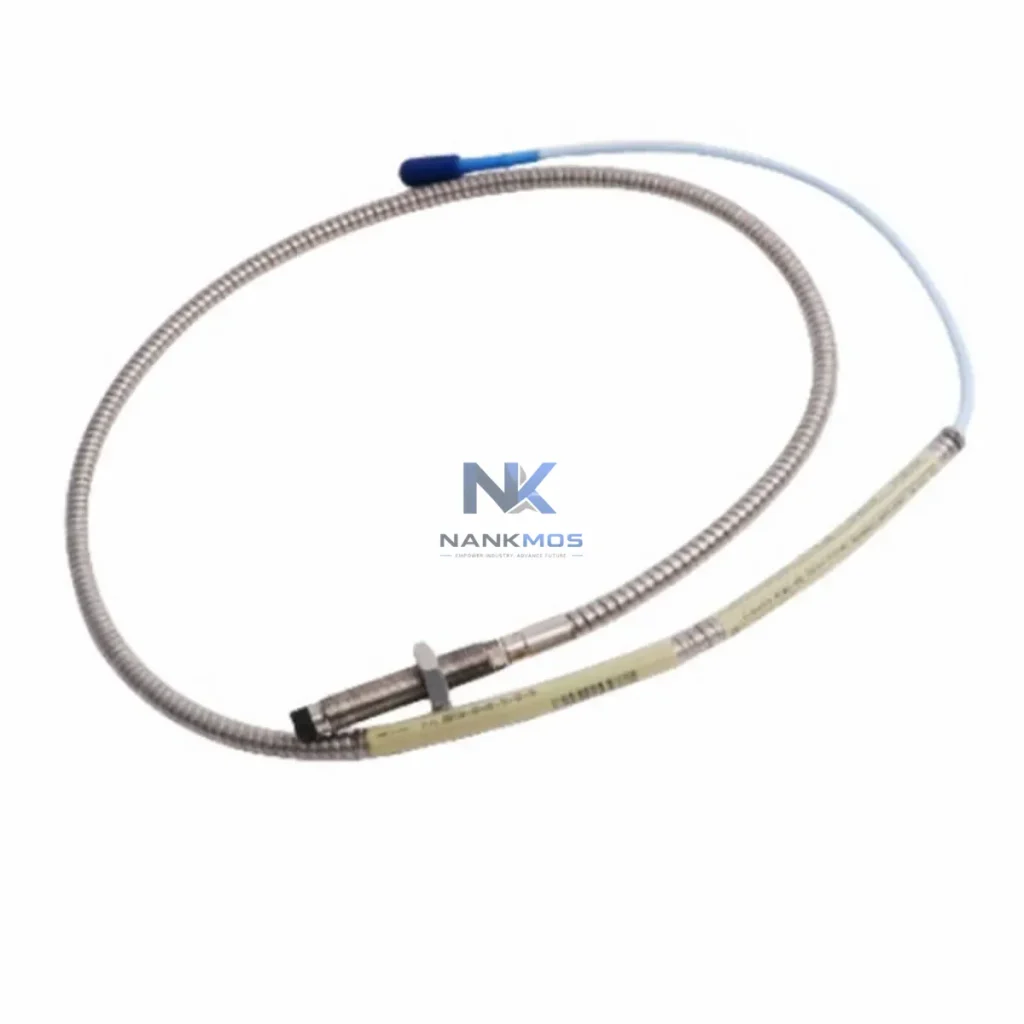

The Bently Nevada 330703-050-120-10-02-00 is an 8mm XL Series eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3300 Series continuous machinery monitoring architecture. Designed to deliver high-resolution, non-contact displacement and vibration measurements, this transducer serves as a foundational sensing element across rotating machinery protection systems in power generation, petrochemical, oil & gas, and heavy industrial environments. Its system-matched design ensures signal fidelity, architectural consistency, and long-term operational reliability across multi-channel monitoring platforms.

As a precision field device, the 330703-050-120-10-02-00 operates within a tightly integrated signal chain that spans from the machine shaft to the control room. Its role in the overall automation architecture is not limited to vibration sensing — it contributes directly to system-level redundancy, predictive maintenance workflows, and real-time diagnostic capability across the full machinery protection hierarchy.

The 330703-050-120-10-02-00 proximity transducer is not a standalone device — it is a precision sensing node within a layered, multi-tier machinery protection and condition monitoring architecture. Understanding its system role requires examining how it interacts with upstream and downstream components across the full control hierarchy.

At the sensing layer, the 330703-050-120-10-02-00 probe pairs with a compatible Bently Nevada 330130 or 330180 series extension cable and a 3300 XL proximitor/oscillator driver (such as the 330180-X1-05 or 330130-045-00-00) to form a complete transducer system. The proximitor converts the eddy-current field disturbance into a calibrated DC voltage signal proportional to shaft displacement — a signal that feeds directly into the 3300/16 Dual Vibration Monitor or 3300/20 Dual Vibration Monitor housed within the 3300 Series rack.

At the monitor and I/O layer, the 3300 rack architecture accommodates multiple channel cards — including the 3300/25 Keyphasor Module for phase reference and speed measurement, and the 3300/46 Dual Thrust Position Monitor for axial displacement monitoring. These modules share a common backplane and power infrastructure, enabling synchronized multi-parameter acquisition across radial vibration, axial position, and rotational speed channels simultaneously. The 3300/55 Overspeed Detection Module adds a critical protection layer, triggering emergency shutdown sequences when shaft speed exceeds safe operating thresholds.

At the power layer, the 3300 rack relies on the 3300/05 Power Supply Module or dual redundant power supply configurations to maintain uninterrupted signal conditioning and monitor operation. Power redundancy is essential in continuous process environments where machinery protection must remain active during planned maintenance or partial rack servicing.

At the communication and integration layer, the 3300 Series interfaces with Bently Nevada System 1 condition monitoring software via Ethernet or serial communication gateways. System 1 aggregates vibration, position, and speed data from multiple 3300 racks across a plant, enabling fleet-wide machinery health dashboards, alarm management, and predictive maintenance scheduling. For DCS integration, the 3300 rack outputs 4–20 mA analog signals or digital relay contacts that interface directly with ABB, Emerson DeltaV, Honeywell Experion, or Siemens PCS 7 distributed control systems.

At the HMI and supervisory layer, operators interact with machinery protection data through System 1 workstations or integrated DCS operator stations. Alarm setpoints configured within the 3300 monitor cards — including Alert, Danger, and Trip thresholds — are reflected in real time on HMI screens, enabling rapid operator response to developing machinery faults.

At the protection and relay layer, the 3300 Series monitor outputs drive safety relay modules and emergency shutdown (ESD) systems. When vibration or position measurements exceed Danger setpoints, the monitor activates relay contacts that initiate controlled machinery shutdown sequences, protecting rotating assets from catastrophic failure. This relay architecture integrates with plant-wide safety instrumented systems (SIS) compliant with IEC 61511 functional safety standards.

The 330703-050-120-10-02-00 thus serves as the critical first link in a signal chain that spans from the rotating shaft surface through signal conditioning, monitor processing, DCS integration, HMI visualization, and safety shutdown — a complete, architecturally coherent machinery protection ecosystem.

Power Generation: In steam turbine and gas turbine applications, the 330703-050-120-10-02-00 monitors journal bearing radial vibration and shaft centerline position. Paired with Keyphasor modules and System 1 software, it enables real-time rotor dynamic analysis, unbalance detection, and bearing wear trending — critical for maintaining turbine availability in baseload and peaking power plants.

Petrochemical and Refinery: Centrifugal compressors in ethylene, ammonia, and LNG plants operate continuously under high-pressure, high-speed conditions. The 330703-050-120-10-02-00 provides the vibration sensing foundation for API 670-compliant machinery protection systems, monitoring compressor rotor dynamics and detecting surge, rub, and bearing degradation before they escalate to forced outages.

Oil & Gas Upstream and Midstream: Pipeline compressor stations and offshore platform turbomachinery require robust, environmentally hardened monitoring solutions. The 330703-050-120-10-02-00's wide operating temperature range and sealed construction make it suitable for outdoor and classified hazardous area installations, supporting continuous monitoring of gas injection compressors, booster compressors, and main oil line pumps.

Water and Wastewater Treatment: Large vertical turbine pumps and horizontal centrifugal pumps in water treatment facilities benefit from proximity transducer-based vibration monitoring to detect impeller imbalance, cavitation, and bearing wear. The 3300 Series architecture enables early fault detection that reduces unplanned pump failures and extends maintenance intervals.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate significant vibration signatures that correlate with liner wear, bearing condition, and process loading. The 330703-050-120-10-02-00 provides the high-frequency, high-resolution displacement data needed to distinguish normal operational vibration from developing mechanical faults in these high-value, hard-to-access assets.

Marine and Offshore: Ship propulsion systems, diesel generator sets, and offshore platform rotating equipment require compact, vibration-resistant monitoring solutions. The 330703-050-120-10-02-00's robust construction and compatibility with the 3300 Series rack architecture support marine classification society requirements for continuous machinery monitoring on vessels and floating production units.

Q1: Is the 330703-050-120-10-02-00 compatible with all 3300 Series monitor modules, and what extension cable configuration is required? The 330703-050-120-10-02-00 is designed for use within the Bently Nevada 3300 XL 8mm Proximity Transducer System and is compatible with all standard 3300 Series monitor modules, including the 3300/16, 3300/20, 3300/25, 3300/46, and 3300/55. The complete transducer system requires a matched 3300 XL proximitor/oscillator (such as the 330180 series) and an appropriate extension cable to achieve the specified 12.0m overall system cable length. Mixing components from different Bently Nevada transducer series (e.g., 7200 Series or 3300 NSv) is not recommended, as sensitivity and linear range calibration are system-matched. Always verify the complete part number configuration — probe, extension cable, and proximitor — before installation to ensure architectural compatibility and measurement accuracy.

Q2: How does the 330703-050-120-10-02-00 integrate with DCS platforms and System 1 condition monitoring software for long-term maintenance planning? The 330703-050-120-10-02-00 outputs a calibrated analog voltage signal to the 3300 Series monitor, which in turn provides 4–20 mA analog outputs and relay contacts for DCS integration. For advanced condition monitoring, the 3300 rack communicates with Bently Nevada System 1 software via Ethernet or serial gateways, enabling continuous data historian logging, alarm management, and predictive maintenance analytics. System 1 supports trend analysis, spectrum analysis, and orbit plot generation — tools that transform raw vibration data into actionable maintenance intelligence. This Contextual Integration capability allows maintenance teams to correlate machinery health data with process variables, enabling condition-based maintenance strategies that reduce both planned and unplanned downtime.

Q3: What warranty coverage and supply chain support does NANKMOS provide for the 330703-050-120-10-02-00? NANKMOS provides a 12-Month Warranty on the 330703-050-120-10-02-00, covering manufacturing defects and functional performance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify sensitivity, linear range, and connector integrity before dispatch. NANKMOS maintains inventory of 3300 XL Series proximity transducer components to support urgent replacement requirements, with global shipping capabilities to minimize machinery downtime. For critical applications requiring rapid turnaround, NANKMOS can coordinate expedited logistics to ensure replacement components reach site within the shortest possible timeframe. Contact our technical team at [email protected] or +86 18359268345 for availability confirmation, technical consultation, and volume pricing.
