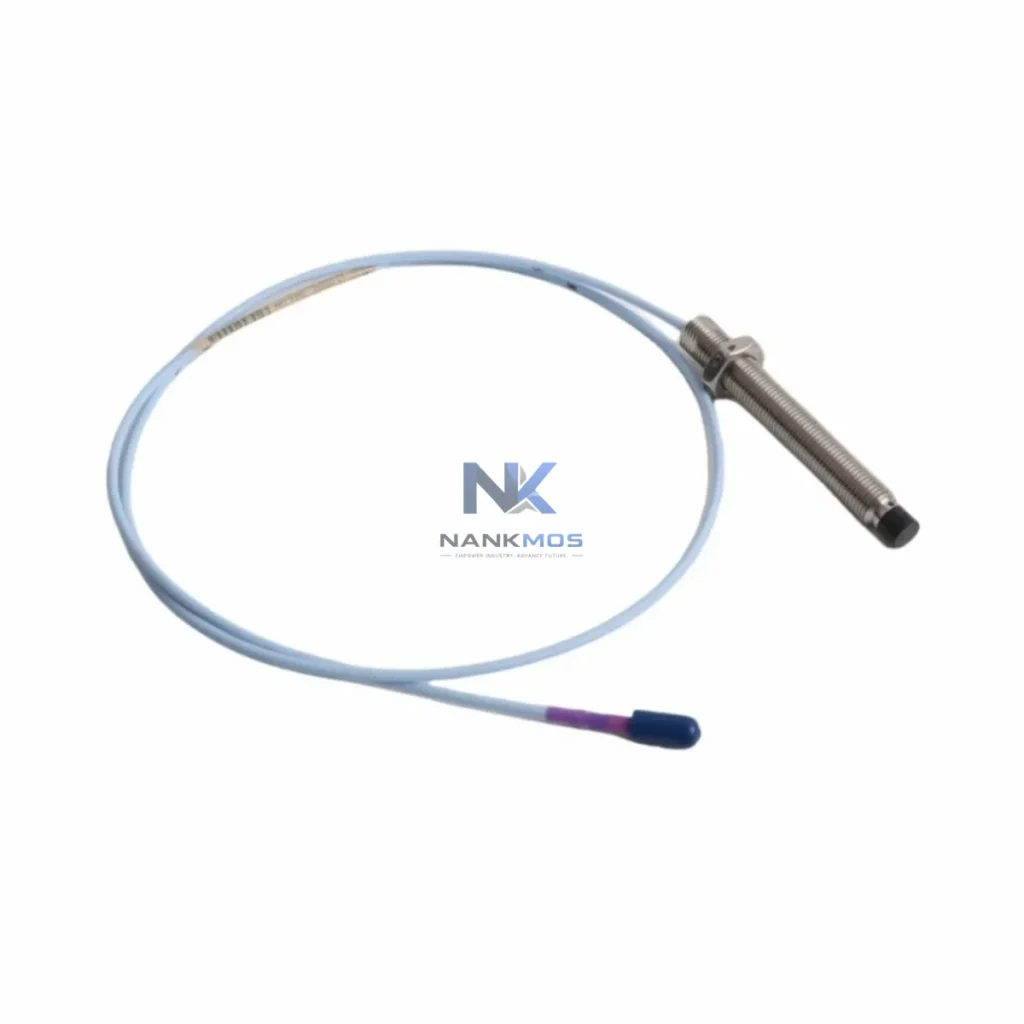

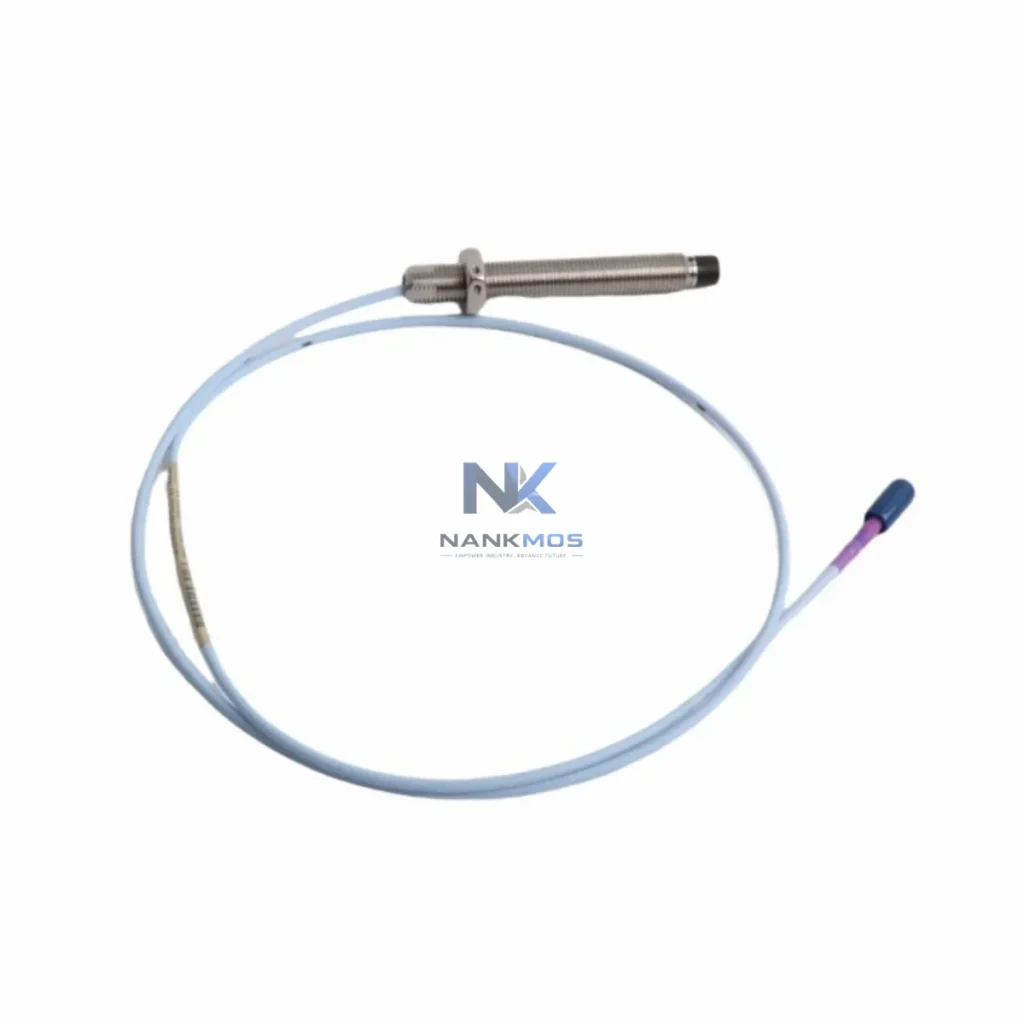

Bently Nevada 330704-00-60-10-02-CN Proximity Transducer

Product Details

330704-00-60-10-02-CN Product Description

The Bently Nevada 330704-00-60-10-02-CN is a high-precision eddy-current proximity transducer engineered for the 3300 XL Series monitoring platform. Designed to operate at the intersection of rotating machinery protection and industrial data communication, this transducer delivers continuous, real-time vibration and position signals that feed directly into plant-wide SCADA systems, DCS controllers, and edge computing gateways. In modern smart factory environments where every millisecond of machine data matters, the 330704-00-60-10-02-CN serves as a critical sensing node in the industrial data chain — from raw signal acquisition at the shaft to actionable analytics at the control room level.

Built to the demanding specifications of the Bently Nevada 3300 XL architecture, this transducer integrates seamlessly with the 3300 XL 8mm Extension Cable system and the 3300 XL Proximitor Sensor, forming a complete eddy-current measurement loop. The analog output signal — typically a -24 VDC bias voltage with a sensitivity of 7.87 V/mm — is conditioned and transmitted to the 3500 Series Machinery Protection System rack, where it is digitized, processed, and made available to upstream communication layers including Modbus RTU, Modbus TCP/IP, and OPC UA protocols. This multi-protocol compatibility ensures that vibration data captured by the 330704-00-60-10-02-CN can be consumed by virtually any SCADA platform, historian, or MES system in the plant.

In a connected factory data flow design, the 330704-00-60-10-02-CN sits at the field device layer, sensing radial shaft displacement and axial position on critical rotating assets such as compressors, turbines, pumps, and fans. The transducer signal travels through the 3300 XL Proximitor to the 3500/40M Proximitor I/O Module housed in the 3500 rack. From there, the 3500 Communication Gateway Module bridges the machinery protection data to the plant Ethernet backbone, enabling integration with Emerson Ovation DCS, Honeywell Experion PKS, or third-party SCADA platforms via standard industrial protocols. Alongside the 330704-00-60-10-02-CN, complementary devices such as the Bently Nevada 3300 XL Proximitor Sensor (330180-91-00), the 3500/22M Transient Data Interface, and the 3500/92 Communication Gateway are commonly deployed to complete the data acquisition and transmission chain.

Remote diagnostics capability is a defining advantage of deploying the 330704-00-60-10-02-CN within a 3500 Series architecture. Plant engineers can access live gap voltage readings, vibration amplitude trends, and alarm states from any networked HMI or remote workstation without physical access to the machine. When integrated with System 1 Evolution software — Bently Nevada's condition monitoring and diagnostics platform — the transducer data enables predictive maintenance workflows, automated alarm routing, and long-term trend analysis. This eliminates data silos between the machinery protection layer and the plant information layer, giving operations teams a unified view of asset health across the entire facility.

Deploying the Bently Nevada 330704-00-60-10-02-CN within a smart factory requires a clear understanding of the complete data flow from field sensor to enterprise system. At the machine level, the transducer mounts adjacent to the rotating shaft, with the eddy-current field detecting gap changes as small as a few microns. The conditioned signal passes through the 3300 XL Proximitor Sensor — typically the 330180-91-00 or 330180-51-05 variant — which converts the raw eddy-current response into a calibrated DC voltage proportional to shaft displacement.

This voltage signal feeds into the 3500/40M Proximitor I/O Module within the 3500 rack, where it is digitized and subjected to configurable alarm logic — including Alert and Danger setpoints for radial vibration, gap, and 1X/2X vector components. The 3500/22M Transient Data Interface captures startup and shutdown transient data, enabling engineers to analyze critical speed behavior and resonance characteristics. All of this machine data is then aggregated by the 3500/92 Communication Gateway, which publishes structured data packets to the plant Ethernet network using Modbus TCP/IP or OPC UA.

On the network layer, an industrial managed Ethernet switch — such as those from the Hirschmann MACH or Cisco IE series — routes the machinery protection data to the plant SCADA server and historian. Integration with platforms such as OSIsoft PI System, Wonderware System Platform, or Emerson Ovation allows the 330704-00-60-10-02-CN vibration data to be trended, alarmed, and visualized alongside process variables from PLCs, remote I/O modules, and variable frequency drives. In facilities running Siemens S7-300/400 or Allen-Bradley ControlLogix PLCs, the 3500 gateway data can be mapped into the PLC data table via EtherNet/IP or Profibus DP adapters, enabling coordinated machine protection and process control responses within a single automation architecture.

For edge computing deployments, the 330704-00-60-10-02-CN data stream can be directed to an industrial edge gateway — such as the Emerson Edge Gateway or a Moxa UC-8100 series device — where local analytics, anomaly detection, and data compression are performed before forwarding to cloud-based asset management platforms. This architecture reduces network bandwidth consumption while ensuring that critical alarm events are acted upon at the edge without cloud round-trip latency.

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy machinery protection systems often output analog signals that cannot be directly consumed by modern SCADA or MES platforms without protocol conversion. The Bently Nevada 330704-00-60-10-02-CN, when deployed within the 3500 Series architecture, resolves this by providing a structured digital data pathway from the sensor to any networked system that supports Modbus or OPC UA.

Data island problems — where vibration data exists only within the machinery protection system and is invisible to the plant historian or ERP — are eliminated through the 3500/92 Communication Gateway's ability to publish real-time and historical data to multiple concurrent clients. Alarm tracking becomes systematic: rather than relying on local panel indicators, alarm events from the 330704-00-60-10-02-CN are time-stamped, logged, and forwarded to the SCADA alarm management system, where they can be correlated with process upsets, operator actions, and maintenance records.

Production line transparency is enhanced when the 330704-00-60-10-02-CN data is integrated into a unified dashboard alongside PLC outputs, drive status signals from variable frequency drives, and flow/pressure readings from field transmitters. Remote monitoring capabilities allow maintenance engineers to assess machine condition from off-site locations, reducing the need for physical inspections and enabling condition-based maintenance scheduling. System scalability is inherent in the 3500 rack architecture — additional I/O modules and transducer channels can be added without disrupting existing network configurations, supporting phased smart factory expansion programs.

Every 330704-00-60-10-02-CN unit supplied by NANKMOS undergoes pre-shipment functional testing, including gap voltage verification, sensitivity calibration check, and connector integrity inspection, ensuring that the device performs to Bently Nevada factory specifications from the moment it is installed.

Q1: What communication protocols does the Bently Nevada 330704-00-60-10-02-CN support when integrated with the 3500 Series system?The 330704-00-60-10-02-CN itself outputs an analog DC voltage signal. When connected to the 3500 Machinery Protection System with the 3500/92 Communication Gateway Module, the system supports Modbus RTU, Modbus TCP/IP, and OPC UA, enabling direct integration with SCADA platforms, DCS systems, and industrial historians without additional protocol converters.

Q2: How does the 330704-00-60-10-02-CN ensure network stability and data continuity in a 24/7 production environment?The 3300 XL transducer system is designed for continuous operation in harsh industrial environments, with an operating temperature range of –35°C to +121°C and robust connector design. The 3500 rack architecture provides redundant power supply options and watchdog monitoring, ensuring that vibration data transmission to the SCADA or DCS layer is maintained without interruption even during partial system faults.

Q3: Can the 330704-00-60-10-02-CN be integrated with third-party SCADA or HMI systems, and how is remote diagnostics access configured?Yes. Through the 3500/92 Communication Gateway, the transducer data is published as standard Modbus registers or OPC UA nodes, which can be consumed by any compliant SCADA or HMI platform including Wonderware, iFIX, Ignition, and Emerson Ovation. Remote diagnostics access is configured through the System 1 Evolution software client, which provides live gap voltage, vibration spectrum, and alarm state visibility from any networked workstation.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 330704-00-60-10-02-CN?NANKMOS provides a 12-month warranty on all Bently Nevada 330704-00-60-10-02-CN units. Each unit undergoes pre-shipment testing including gap voltage output verification, sensitivity calibration confirmation, and physical connector inspection. In-stock units are available for immediate dispatch with global shipping support, and our technical team can provide installation guidance and system integration consultation upon request.
