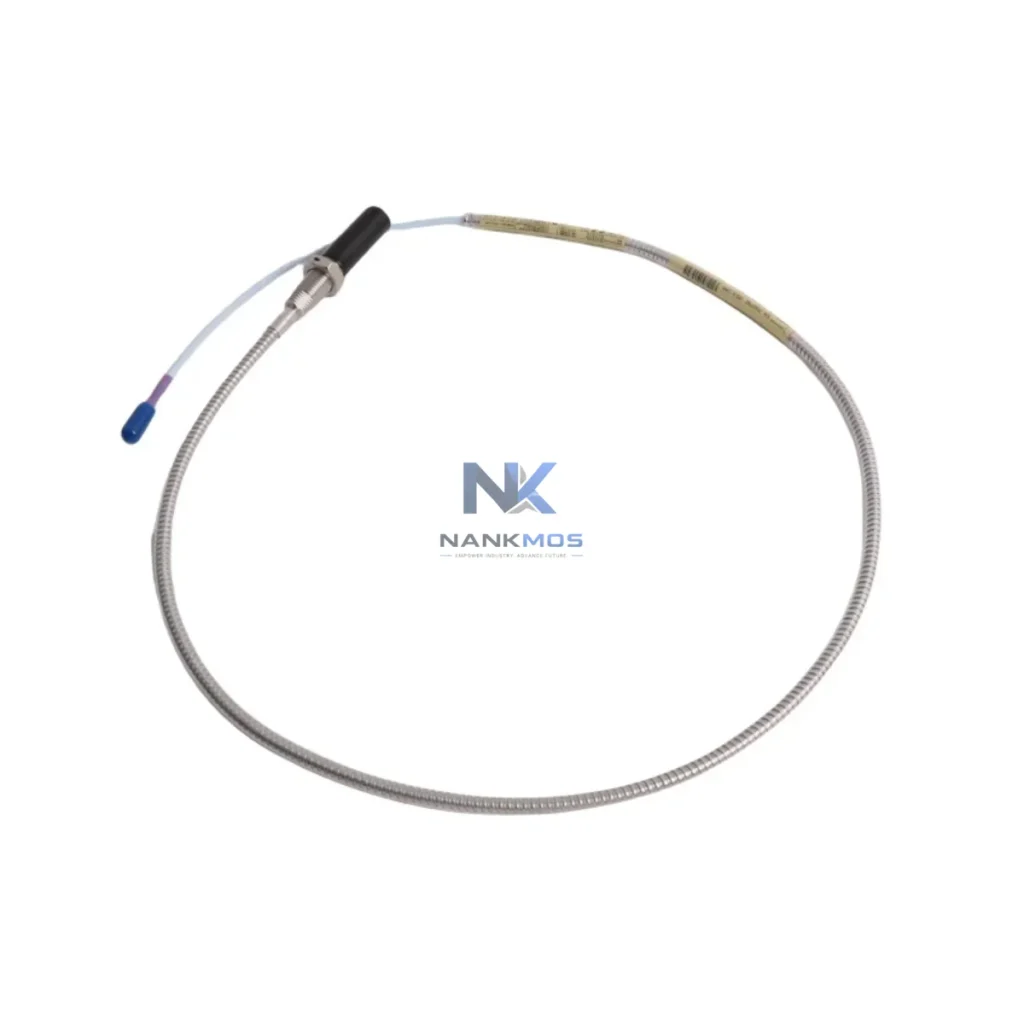

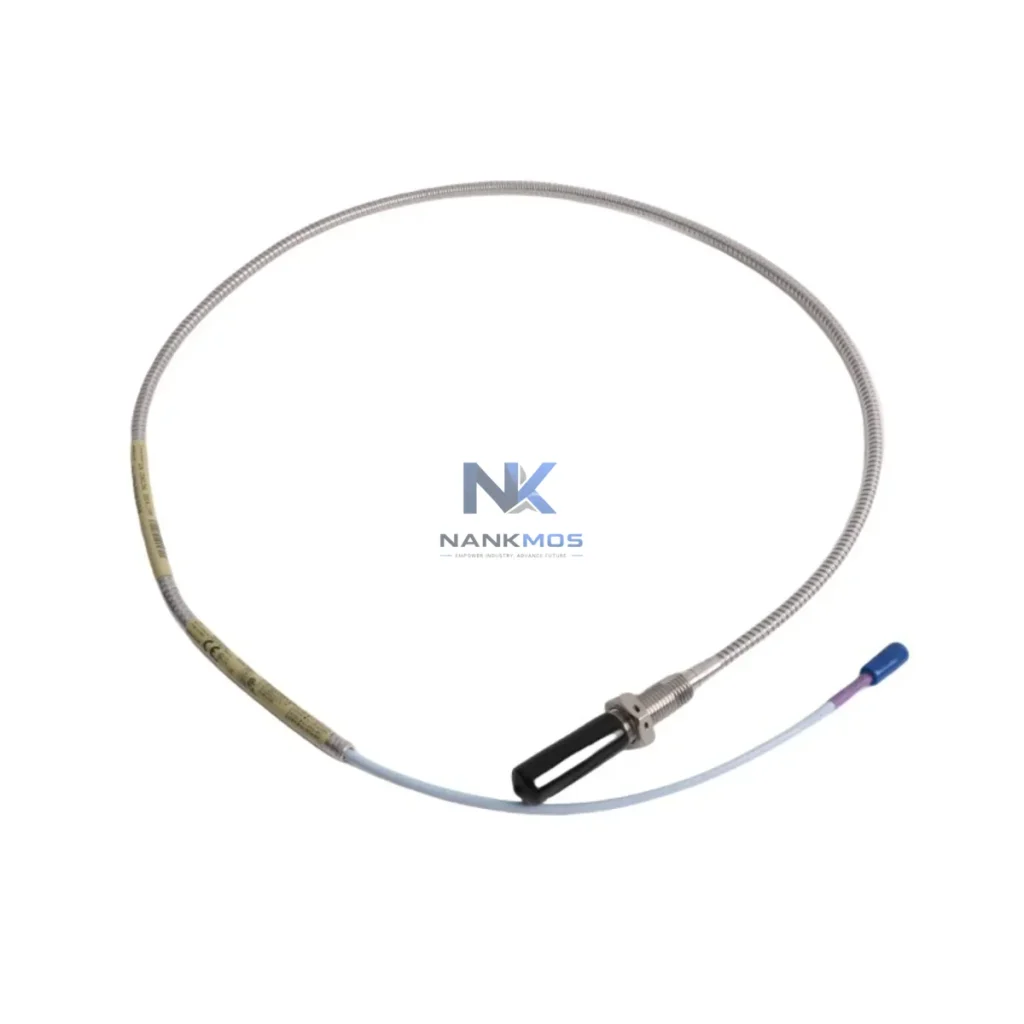

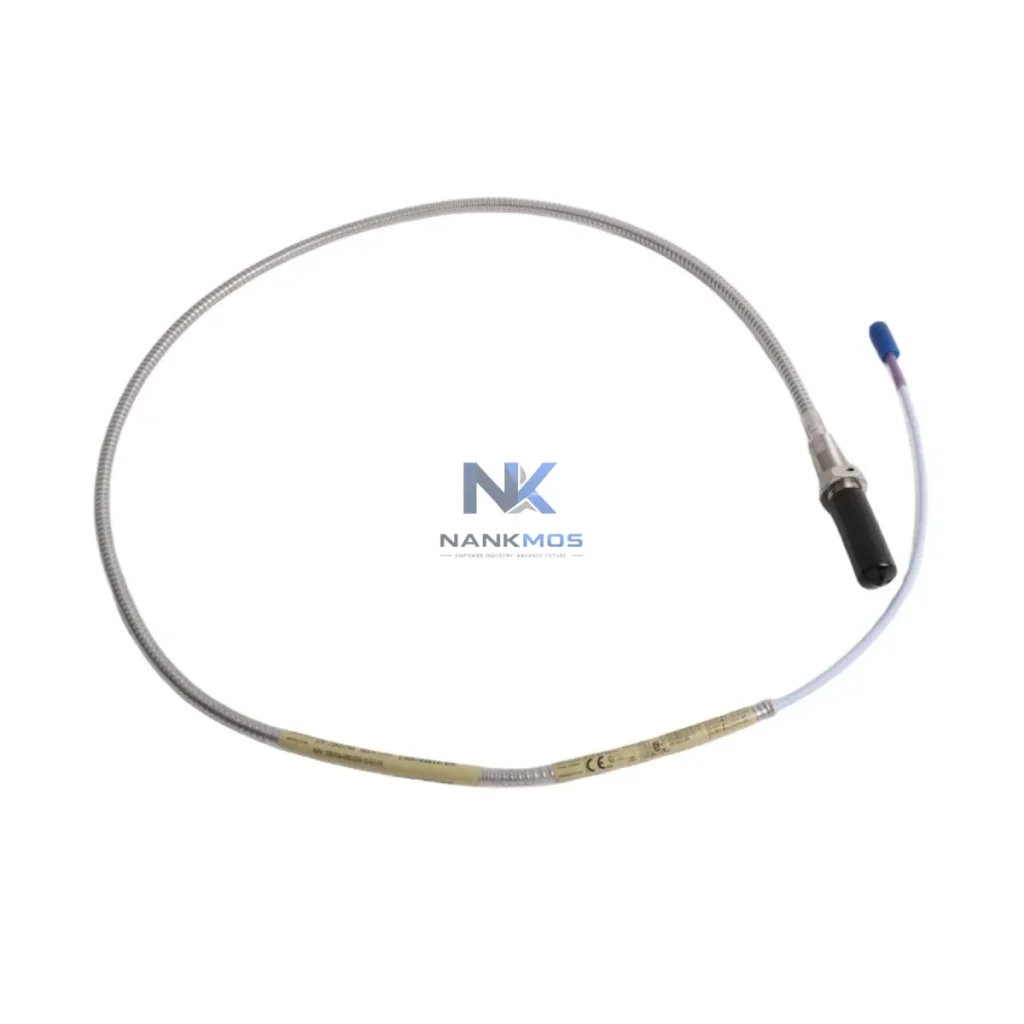

Bently Nevada 330704-000-030-50-02-00 Proximity Probe

Product Details

330704-000-030-50-02-00 Product Description

The Bently Nevada 330704-000-030-50-02-00 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL machinery protection and monitoring architecture. Designed to deliver continuous, high-fidelity radial vibration and position signals, this probe serves as the primary sensing element in a layered industrial control system — connecting the physical rotating machinery to the signal conditioning, monitoring, and supervisory layers that govern plant-wide protection strategies.

In modern rotating equipment protection systems, the proximity probe is not a standalone device. It operates as the foundational sensing node within a tightly coupled signal chain: the 330704-000-030-50-02-00 probe interfaces directly with a compatible Bently Nevada 3300 XL Proximitor® sensor (such as the 330180 or 330130 series), which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal is then routed to a 3500 Series monitoring rack — for example, the 3500/42M Proximitor®/Seismic Monitor module — where it is processed against user-defined alert and danger setpoints. The result is a deterministic, architecture-consistent signal path from the shaft surface to the control room, with no ambiguity in signal scaling or system compatibility.

Within the broader automation platform, the 330704-000-030-50-02-00 supports multi-layer system coherence. At the control layer, the 3500 rack communicates via Modbus RTU, Modbus TCP/IP, or Profibus DP to the plant DCS or SCADA platform — enabling real-time vibration data to be integrated into process control logic, historian databases, and alarm management systems. At the I/O layer, the probe's analog output (typically –24 VDC gap voltage) is compatible with standard 4–20 mA transmitter interfaces when routed through appropriate signal isolators or barriers, ensuring safe integration in hazardous area installations classified under ATEX or IECEx Zone 1/Zone 2 requirements. At the power layer, the Proximitor® sensor requires a regulated –24 VDC supply, typically sourced from a dedicated instrument power distribution module within the control cabinet, ensuring signal stability and noise immunity across long cable runs.

The probe's 5 mm tip diameter and 30 mm cable length configuration (as encoded in the part number) make it suitable for installation in tight bearing housing geometries common in steam turbines, gas compressors, centrifugal pumps, and large induction motors. The 50 Ω coaxial cable assembly and standard TNC connector ensure low-signal-loss transmission over the specified cable run, maintaining the –200 mV/mil (–7.87 V/mm) sensitivity standard required for accurate gap measurement and vibration amplitude reporting. Pre-shipment testing against Bently Nevada factory calibration standards ensures that each unit shipped meets the full sensitivity and linearity specification before installation.

From a redundancy and system resilience perspective, the 330704-000-030-50-02-00 is commonly deployed in dual-probe configurations — one probe per measurement plane — to support XY radial vibration monitoring per API 670 requirements. In critical machinery trains, this dual-probe arrangement feeds redundant 3500 rack channels, enabling the protection system to maintain continuous monitoring even during single-channel maintenance or calibration events. The 3500/20 rack power supply module, combined with the 3500/15 I/O module and the 3500/42M monitor, forms the backbone of this redundant architecture, with the proximity probe serving as the field-level sensing element that anchors the entire protection strategy.

For HMI and supervisory integration, vibration data from the 3500 rack is typically surfaced through Bently Nevada System 1® software, which provides trend analysis, waveform capture, orbit plots, and alarm event logging. This integration allows maintenance engineers to correlate proximity probe readings with process variables — such as bearing temperature from a 3500/60 Temperature Monitor or shaft speed from a 3500/25 keyphasor module — enabling root-cause analysis and predictive maintenance scheduling without requiring physical access to the field instrumentation. The 330704-000-030-50-02-00 thus contributes directly to the diagnostic efficiency and long-term maintenance economy of the overall machinery protection system.

In engineering commissioning workflows, the probe is installed and gapped to the manufacturer-specified linear range (typically 10–90 mil or 0.25–2.29 mm gap), verified using a calibrated gap tool or oscilloscope, and documented in the site acceptance test (SAT) record. The Proximitor® output voltage is confirmed against the calibration curve before the monitoring rack is placed in service. This pre-commissioning validation, combined with the 12-Month Warranty coverage provided on every unit, ensures that the installed system meets the reliability and availability targets required for continuous-duty industrial operation.

All units are in stock and available for immediate dispatch. Each 330704-000-030-50-02-00 probe is pre-shipment tested and supplied with documentation supporting traceability to factory calibration standards.

The 330704-000-030-50-02-00 proximity probe achieves its full system value when deployed within a coherent Bently Nevada automation architecture. At the signal conditioning layer, the 330180-A1-ZI-000-000 Proximitor® sensor converts the probe's eddy-current field into a calibrated voltage signal, maintaining the –200 mV/mil sensitivity standard across the full linear range. This signal is routed to the 3500/42M Proximitor®/Seismic Monitor within a 3500 Series rack, where it is processed alongside inputs from the 3500/25 Keyphasor® Module — providing shaft speed and phase reference data essential for synchronous vibration analysis and balancing diagnostics.

Power integrity for the sensing chain is maintained by the 3500/20 Rack Power Supply Module, which delivers regulated –24 VDC to all installed Proximitor® sensors and monitor modules. In redundant configurations, a dual 3500/20 power supply arrangement ensures uninterrupted monitoring during power supply maintenance events. The 3500/15 I/O Module provides the physical terminal interface between the rack and the field wiring, supporting both standard and intrinsically safe wiring configurations.

At the communication layer, the 3500 rack's gateway module supports Modbus TCP/IP and Profibus DP connectivity, enabling real-time vibration data from the 330704-000-030-50-02-00 probe to be integrated into plant DCS platforms — such as those running on Allen-Bradley ControlLogix or Siemens S7-400 architectures — as well as SCADA historians and OPC-UA data aggregation servers. For temperature co-monitoring, the 3500/60 Temperature Monitor module can be installed in the same rack, correlating bearing temperature trends with radial vibration data from the proximity probe to support early fault detection algorithms.

At the HMI and supervisory layer, Bently Nevada System 1® software aggregates all rack outputs — including proximity probe vibration, Keyphasor® speed, and temperature data — into a unified machinery health dashboard. Maintenance engineers can configure alert and danger setpoints, review historical trend data, and generate compliance reports without leaving the System 1® environment. For installations requiring signal isolation or long-distance transmission, DIN-rail-mounted signal isolators (such as Phoenix Contact MACX or Pepperl+Fuchs KFD series) can be inserted between the Proximitor® output and the DCS analog input card, ensuring galvanic isolation and noise immunity across the full signal path.

The 330704-000-030-50-02-00 proximity probe is deployed across a broad range of heavy industrial applications where continuous shaft monitoring is a regulatory or operational requirement. In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the probe monitors radial vibration on turbine rotors and generator shafts, providing the primary input to the 3500 Series trip system that protects against catastrophic bearing failure. In petrochemical and refinery environments, the probe is installed on centrifugal compressors and reactor agitators, where API 670-compliant monitoring is mandated by process safety management (PSM) regulations.

In water treatment and municipal utility plants, the 330704-000-030-50-02-00 supports continuous monitoring of large vertical pump shafts and blower rotors, where vibration excursions can indicate impeller imbalance, cavitation, or bearing wear before visible damage occurs. In mining and mineral processing operations, the probe is used on SAG mill pinion drives, slurry pump shafts, and conveyor drive motors, where the harsh environment demands the robust coaxial cable construction and sealed tip geometry of the 3300 XL probe series. In marine propulsion systems, the probe monitors main propulsion shaft vibration and auxiliary machinery, supporting classification society requirements for continuous condition monitoring on vessels operating under ABS, DNV, or Lloyd's Register rules.

In packaging and discrete manufacturing lines, the probe is integrated into high-speed spindle monitoring systems on CNC machining centers and precision grinding machines, where sub-micron radial runout detection is required to maintain product quality and tool life. In metallurgical and steel mill applications, the probe monitors rolling mill drive shafts and continuous caster pinch roll drives, where shock loading and thermal cycling demand a sensing element with proven long-term stability and repeatable calibration performance.

Q1: Is the 330704-000-030-50-02-00 directly compatible with the 3500 Series monitoring rack without additional signal conditioning?A: No — the proximity probe requires a compatible Bently Nevada Proximitor® sensor (such as the 330180 or 330130 series) to condition the eddy-current signal into a calibrated DC voltage output before it can be accepted by the 3500/42M monitor module. The Proximitor® sensor is a mandatory intermediate component in the signal chain and must be matched to the probe's tip diameter and cable length for correct sensitivity calibration. All three components — probe, Proximitor®, and monitor module — should be ordered and commissioned as a matched set to ensure system-level accuracy and warranty coverage.

Q2: Can this probe be used in a dual-redundant XY monitoring configuration per API 670, and how does this affect rack slot allocation?A: Yes. API 670-compliant XY radial vibration monitoring requires two probes per measurement plane, mounted 90° apart. Each probe requires a dedicated Proximitor® sensor and a dedicated monitor channel within the 3500/42M module. A single 3500/42M module supports up to four measurement channels (two XY pairs), so a single bearing plane with XY redundancy consumes two channels. For a four-bearing machine train with full XY coverage, a minimum of two 3500/42M modules are required, plus corresponding Proximitor® sensors and a 3500/15 I/O module for field wiring termination. Rack slot planning should account for future expansion channels during initial engineering.

Q3: What is the recommended maintenance interval for the 330704-000-030-50-02-00, and how does the 12-Month Warranty apply to installed units?A: Bently Nevada recommends verifying probe gap voltage and sensitivity calibration during each scheduled plant turnaround or at a minimum of every 24 months for continuously operating machinery. The 12-Month Warranty covers manufacturing defects in materials and workmanship from the date of shipment. For installed units, warranty claims require documentation of correct installation gap (within the specified linear range), correct Proximitor® pairing, and absence of mechanical damage to the cable or tip. Units supplied by NANKMOS are pre-shipment tested against factory calibration standards, and test records are available upon request to support warranty baseline documentation.
