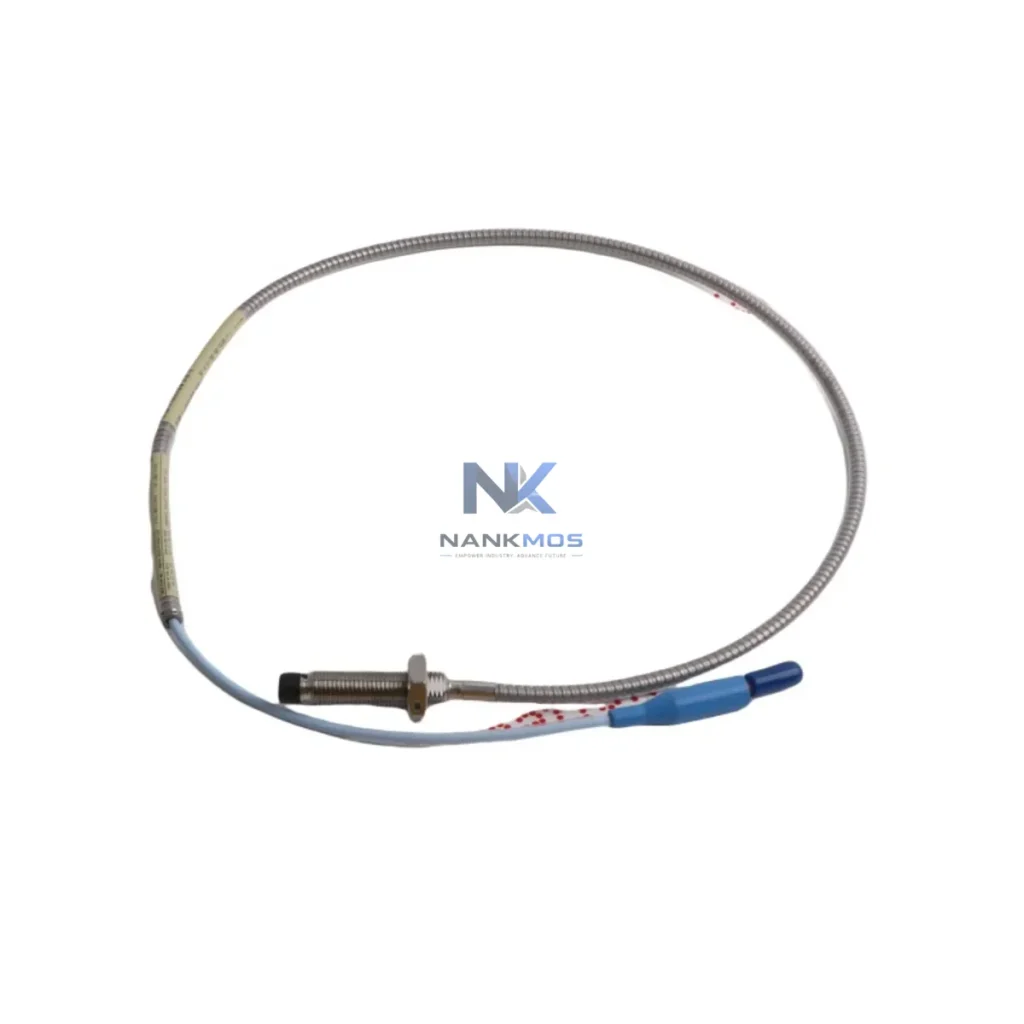

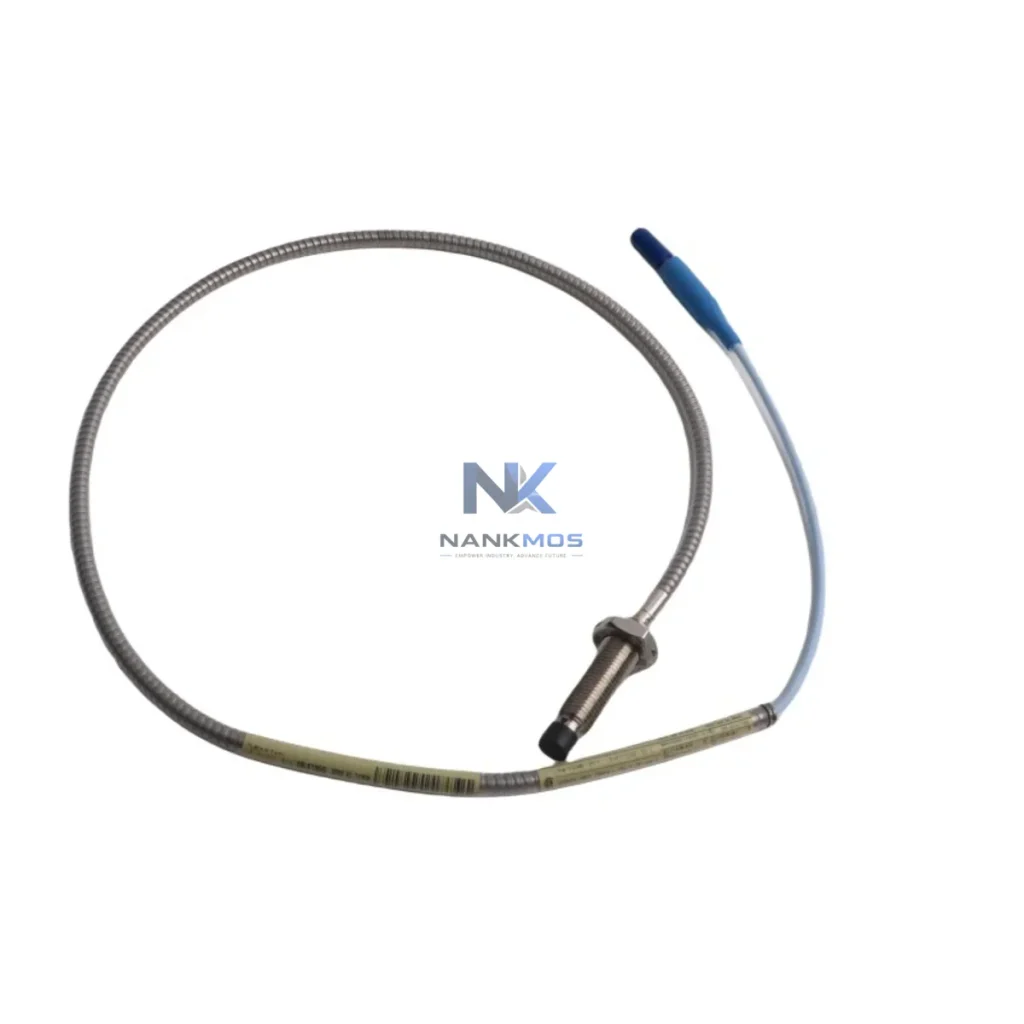

Bently Nevada 330704-000-050-10-01-00 Proximity Probe

Product Details

330704-000-050-10-01-00 Product Description

The Bently Nevada 330704-000-050-10-01-00 is an 11mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous, non-contact displacement and vibration measurement on rotating machinery. In modern smart factory environments, this probe is not merely a sensing element — it is the first node in a precision industrial data chain that connects field-level machinery health signals to plant-wide SCADA, DCS, and predictive maintenance platforms.

Designed to operate with the Bently Nevada 3300 XL Proximitor® Driver (such as the 330180 series), the 330704-000-050-10-01-00 converts shaft displacement into a calibrated -24 VDC output signal. This analog signal is then routed into the Bently Nevada 3500 Series Machinery Protection System rack — a modular, rack-mounted monitoring platform that digitizes, processes, and transmits vibration, position, and speed data across industrial communication networks. The 3500 rack supports integration with Modbus RTU/TCP, OPC-UA, and Ethernet/IP protocols, enabling seamless data handoff to Siemens S7-300/S7-400 PLCs, Allen-Bradley ControlLogix controllers, and distributed control systems from Honeywell, Emerson, or ABB.

Once digitized within the 3500 rack, real-time vibration and displacement data from the 330704-000-050-10-01-00 probe flows upstream through industrial Ethernet switches — such as managed Layer 2/3 switches supporting PROFINET or EtherNet/IP — into the plant's SCADA or DCS backbone. Operators monitoring GE iFIX, Wonderware InTouch, or Ignition SCADA HMI screens receive live shaft orbit plots, gap voltage trends, and alarm states without manual intervention. This closed-loop data path eliminates the analog signal degradation and data latency that plague legacy wiring architectures.

For facilities deploying remote I/O modules or edge computing gateways — such as Moxa MGate protocol converters or Advantech ADAM-6000 series data acquisition modules — the 330704-000-050-10-01-00 integrates naturally into distributed sensing architectures. The Proximitor output can be wired to remote I/O terminals, converted to digital Modbus registers, and polled by a central PLC or edge gateway at configurable scan rates. This architecture supports multi-machine monitoring across compressor trains, turbine generators, pump stations, and gearbox assemblies from a single network segment.

In predictive maintenance workflows, the probe's displacement data feeds directly into Bently Nevada System 1 software — a condition monitoring and diagnostics platform that applies machine learning algorithms to vibration signatures, enabling early detection of rotor imbalance, misalignment, bearing wear, and oil whirl instability. System 1 communicates with plant historians such as OSIsoft PI or Aspentech IP.21, archiving time-stamped vibration records for trend analysis, regulatory compliance, and root-cause investigation. This data continuity — from the 330704-000-050-10-01-00 probe tip to the historian database — is the backbone of a truly transparent, data-driven maintenance strategy.

Variable frequency drives (VFDs) controlling the motors coupled to monitored shafts can also be integrated into this data ecosystem. By correlating VFD speed references and load feedback with proximity probe gap voltage and vibration amplitude from the 3300 XL system, engineers can identify resonance conditions, critical speed crossings, and load-induced vibration patterns in real time. This cross-system correlation is only possible when the proximity probe data is network-accessible — a capability the 330704-000-050-10-01-00, paired with the 3500 rack and appropriate communication modules, fully enables.

Every unit of the Bently Nevada 330704-000-050-10-01-00 supplied by NANKMOS is pre-shipment tested against OEM specifications, verifying gap voltage linearity, sensitivity (7.87 V/mm nominal), and cable continuity before dispatch. Stock is maintained for immediate fulfillment, supporting urgent maintenance windows and planned turnaround schedules across power generation, petrochemical, oil and gas, water treatment, and marine propulsion industries. A 12-month warranty is included with every unit.

The 330704-000-050-10-01-00 proximity probe anchors a multi-layer industrial data architecture. At the field level, the probe's coaxial cable connects to the Bently Nevada 330180 Proximitor® Driver, which conditions the eddy-current signal and outputs a calibrated DC voltage proportional to shaft gap. This signal enters the Bently Nevada 3500/40M Proximitor® Monitor module seated in the 3500 rack, where it is digitized, alarm-compared, and formatted for network transmission.

The 3500 rack's communication gateway module — such as the 3500/92 Communication Gateway — bridges the rack's internal data bus to plant Ethernet via Modbus TCP or OPC-UA. An industrial managed Ethernet switch (e.g., Hirschmann MACH series or Phoenix Contact FL SWITCH) aggregates data from multiple 3500 racks and routes it to the plant's DCS or SCADA server. Siemens S7-400H PLCs or Emerson DeltaV DCS nodes subscribe to the OPC-UA data feed, enabling automated alarm response — such as tripping a VFD or activating a lube oil system — based on real-time proximity probe readings.

At the monitoring layer, Bently Nevada System 1 software collects continuous waveform data from the 3500 rack, rendering shaft orbit displays, Bode plots, and waterfall spectra on operator HMI screens. Remote engineers access the same data through secure VPN tunnels to the plant historian, enabling off-site diagnostics without physical site visits. Moxa MGate MB3480 or similar Modbus-to-Ethernet gateways can extend connectivity to legacy analog instruments still present in older plant sections, ensuring no data gap in the monitoring chain.

For edge computing deployments, Advantech ADAM-6717 intelligent edge gateways can subscribe to the 3500 rack's Modbus TCP feed, apply local analytics, and push condensed health indices to cloud platforms or MES systems — completing the data journey from the 330704-000-050-10-01-00 probe tip to enterprise dashboards.

Industrial plants operating mixed-generation equipment frequently encounter protocol fragmentation: legacy 4–20 mA loops from older proximity probe installations cannot natively communicate with modern Modbus TCP or OPC-UA networks. The 330704-000-050-10-01-00, integrated with the 3500 rack and its communication gateway, resolves this by providing a standardized digital output that any modern PLC, DCS, or SCADA platform can consume — eliminating the need for parallel analog wiring infrastructure.

Data silos are another persistent challenge. When vibration data from rotating machinery is isolated in a standalone protection system with no network connectivity, maintenance teams rely on manual rounds and periodic downloads — introducing latency between fault onset and corrective action. By connecting the 3300 XL probe system to the plant network via the 3500/92 gateway, vibration alarms propagate instantly to SCADA alarm management systems, triggering automated notifications to maintenance personnel via email, SMS, or MES work order generation.

Remote monitoring requirements — increasingly mandated for unmanned substations, offshore platforms, and remote pump stations — are fully addressed by the network-connected 3300 XL architecture. Engineers at central control rooms or remote operations centers receive the same real-time shaft displacement and vibration data as on-site operators, enabling remote diagnostics, alarm acknowledgment, and trend review without travel costs or safety exposure.

Production line transparency is enhanced when proximity probe data is correlated with process variables — flow rates, pressures, temperatures — from other field instruments. The 330704-000-050-10-01-00's network-accessible data enables this cross-parameter correlation in SCADA or MES dashboards, giving operations teams a complete picture of machine health in the context of process performance. System expansion is straightforward: additional 3300 XL probes and 3500 rack modules can be added to the existing network segment without rewiring the communication infrastructure.

Q1: What communication protocols does the Bently Nevada 330704-000-050-10-01-00 system support for SCADA integration?The 330704-000-050-10-01-00 probe outputs an analog DC signal to the Bently Nevada 3300 XL Proximitor® Driver. When integrated with the 3500 Series rack and its 3500/92 Communication Gateway module, the system supports Modbus RTU, Modbus TCP/IP, OPC-UA, and Ethernet/IP — enabling direct integration with Siemens, Allen-Bradley, Emerson, and Honeywell SCADA/DCS platforms.

Q2: How is network stability ensured when transmitting real-time vibration data from the 3300 XL system?The 3500 rack's communication gateway uses deterministic Modbus TCP polling or OPC-UA subscription models, both of which support configurable scan rates and watchdog timers. Managed industrial Ethernet switches with RSTP/MSTP redundancy protocols ensure network path failover in under 50 ms, maintaining continuous data flow even during switch or cable failures.

Q3: Can the 330704-000-050-10-01-00 be used in a remote diagnostics architecture without on-site personnel?Yes. When connected through the 3500 rack and plant Ethernet to a historian or cloud-accessible SCADA platform, all proximity probe data — gap voltage, vibration amplitude, alarm states — is available remotely. Bently Nevada System 1 software supports remote session access, enabling off-site engineers to perform full diagnostic reviews, trend analysis, and alarm management without physical presence.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 330704-000-050-10-01-00?Every Bently Nevada 330704-000-050-10-01-00 unit supplied by NANKMOS undergoes pre-shipment functional testing — verifying gap voltage linearity, sensitivity calibration, and cable/connector integrity — before dispatch. All units carry a 12-month warranty from the date of shipment. In-stock inventory ensures rapid fulfillment for both planned maintenance and emergency replacement requirements.
