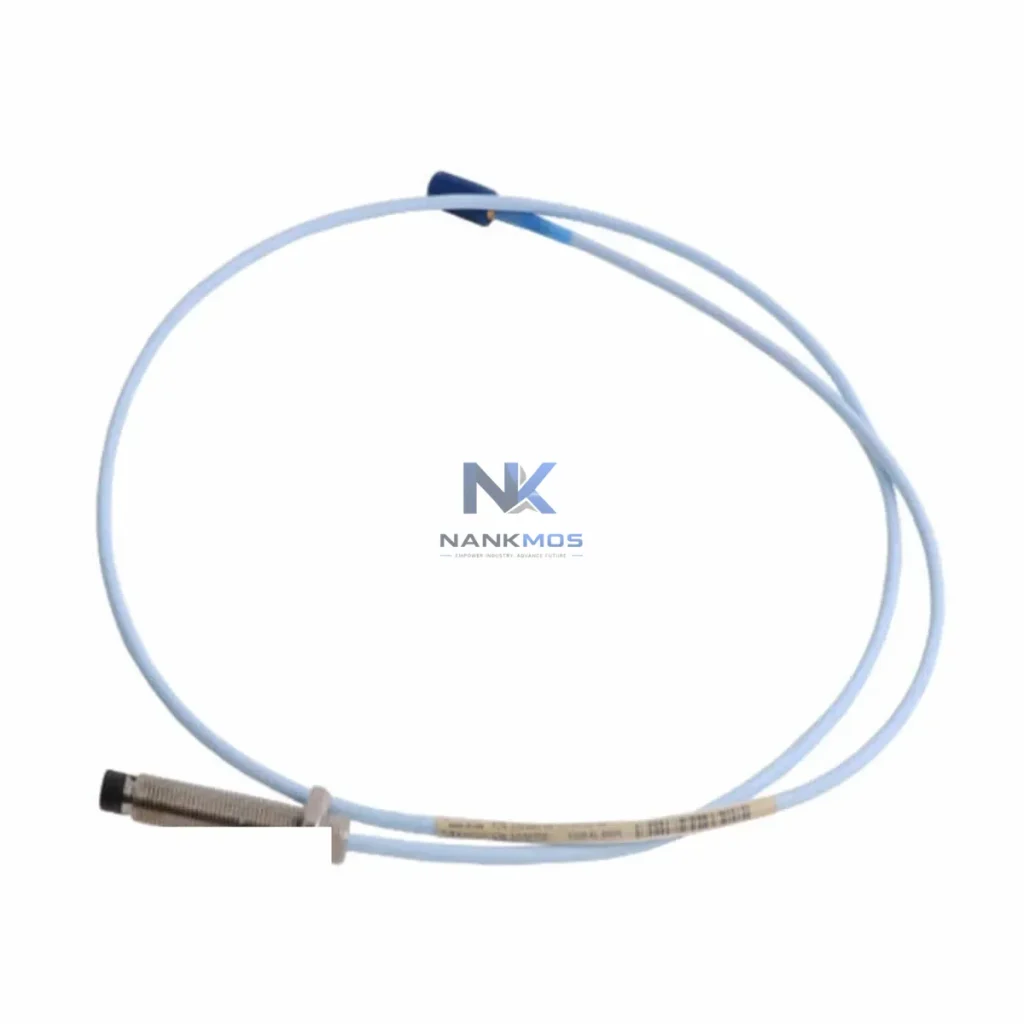

Bently Nevada 330704-000-060-10-02-00 Proximity Probe

Product Details

330704-000-060-10-02-00 Product Description

The Bently Nevada 330704-000-060-10-02-00 is a high-precision eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery environments. In modern smart factory architectures, this probe serves as the critical front-end sensing node in a multi-layer industrial data chain — converting mechanical displacement signals into real-time analog outputs that feed directly into condition monitoring systems, DCS platforms, and SCADA networks. Its 5-metre armored cable assembly and standardized -24 VDC driver compatibility make it a plug-and-play component within Bently Nevada's 3300 XL ecosystem, enabling seamless integration with the 3300/16 Proximitor Seismic Monitor, the 3500/42M Proximitor Seismic Monitor Module, and the 3500 Rack-based machinery protection system.

From signal acquisition to enterprise-level visualization, the 330704-000-060-10-02-00 anchors the data flow that drives predictive maintenance decisions. The probe's output — a linear DC voltage proportional to gap distance — is conditioned by the paired Proximitor sensor (such as the 330180-91-05 or 330130-080-00-00 driver), then transmitted via shielded twisted-pair cabling to the 3500 rack's I/O modules. From there, digitized vibration data is routed through Modbus RTU or Modbus TCP/IP gateways, OPC-UA servers, or Ethernet/IP adapters into plant-level SCADA systems such as GE iFIX, Honeywell Experion PKS, or Siemens WinCC. This end-to-end connectivity transforms raw shaft displacement readings into actionable KPIs on operator HMI dashboards and historian databases.

In a fully connected smart factory deployment, the 330704-000-060-10-02-00 proximity probe operates as the first node in a layered industrial data architecture. Mounted radially against a rotating shaft — typically on compressors, turbines, pumps, or gearboxes — the probe continuously measures the gap between its tip and the shaft surface. This analog signal is routed through the integral 5-metre cable to a Bently Nevada 330180-91-05 Proximitor Sensor, which conditions and amplifies the output before passing it to the 3500/42M Proximitor Seismic Monitor Module seated in the 3500 Rack.

Within the 3500 Rack, the 3500/20 Communication Gateway Module bridges the machinery protection system to the plant network. Using Modbus TCP/IP or OPC-UA, vibration amplitude, phase, and gap data are published to the plant's DCS — for example, a Honeywell Experion PKS controller or an ABB System 800xA node — where process engineers correlate vibration trends with flow rates, temperatures, and load conditions. Simultaneously, the data stream feeds a Siemens S7-300 or S7-1500 PLC via PROFIBUS DP for interlock logic: if 1X vibration exceeds the alert setpoint, the PLC triggers an alarm relay and logs the event timestamp to the historian.

At the edge layer, an industrial Ethernet switch — such as a managed 8-port DIN-rail switch with PROFINET support — aggregates data from multiple 3500 racks across the machinery train and forwards packets to the plant SCADA server running GE iFIX or Wonderware System Platform. Remote I/O modules and edge gateways with 4G/LTE or fiber uplinks extend monitoring capability to unmanned compressor stations or offshore platforms, enabling remote diagnostics without on-site intervention. The complete data chain — from eddy-current signal at the probe tip to a trend chart on the SCADA HMI — typically completes in under 500 milliseconds, supporting real-time alarm response and predictive maintenance scheduling.

For multi-machine monitoring arrays, the 330704-000-060-10-02-00 is commonly deployed alongside the 330705-000-050-10-02-00 (2-metre cable variant) and the 330730-040-00-00 extension cable to accommodate varying machine geometries. Data from all probes converges at the 3500 rack's backplane, ensuring synchronized sampling across all measurement channels and eliminating the data latency that undermines alarm credibility in legacy wired systems.

Protocol Fragmentation: Many rotating machinery sites operate legacy 4–20 mA vibration transmitters alongside newer digital systems, creating protocol islands that prevent unified monitoring. The 330704-000-060-10-02-00, integrated with the 3500/20 Communication Gateway, resolves this by publishing standardized OPC-UA data objects that any modern SCADA or MES platform can consume — eliminating custom driver development and reducing integration timelines from weeks to days.

Data Silos and Blind Spots: Standalone vibration monitors that lack network connectivity produce data that never reaches the control room historian. By connecting the 330704-000-060-10-02-00 through the 3500 rack's Ethernet gateway, all vibration, position, and phase data is continuously archived in the plant historian (OSIsoft PI, Aspentech IP.21, or equivalent), making it available for long-term trend analysis, regulatory compliance reporting, and machine learning-based anomaly detection.

Remote Monitoring Gaps: For unmanned or remote installations, the absence of real-time vibration data forces reactive maintenance — machines run to failure rather than being serviced at optimal intervals. The 330704-000-060-10-02-00's integration with 4G/LTE edge gateways and cloud-based condition monitoring platforms closes this gap, delivering SMS and email alerts to maintenance teams the moment vibration levels approach danger thresholds.

Production Line Transparency: Plant managers require a single-pane-of-glass view of all rotating equipment health. The 330704-000-060-10-02-00's data, aggregated with outputs from temperature sensors, flow transmitters, and motor current analyzers via the SCADA layer, contributes to a unified equipment health dashboard — enabling shift supervisors to prioritize maintenance work orders based on real-time risk scores rather than fixed-interval schedules.

System Scalability: As production capacity expands, adding new measurement points is straightforward: additional 330704-000-060-10-02-00 probes and Proximitor sensors slot into spare 3500 rack channels without requiring new communication infrastructure, preserving the existing Modbus/OPC-UA network topology and minimizing capital expenditure on system expansion.

Q1: What communication protocols does the Bently Nevada 3500 system support when using the 330704-000-060-10-02-00 probe?A: The 3500 rack's communication gateway supports Modbus RTU (RS-485), Modbus TCP/IP, OPC-DA, OPC-UA, Ethernet/IP, and PROFIBUS DP. This allows the proximity probe data to be consumed by virtually any modern DCS, SCADA, or MES platform without protocol conversion middleware.

Q2: How is network stability ensured in high-vibration or electrically noisy industrial environments?A: The 330704-000-060-10-02-00 uses a fully shielded, armored integral cable that attenuates electromagnetic interference from VFDs, motor starters, and high-voltage bus bars. The 3500 rack's isolated analog inputs and differential signal conditioning further reject common-mode noise, ensuring data integrity even in the most electrically challenging plant environments.

Q3: Can the system support remote diagnostics and firmware updates without on-site access?A: Yes. The Bently Nevada System 1 software platform, connected to the 3500 rack via Ethernet, supports remote configuration, setpoint adjustment, and diagnostic data retrieval over a secure VPN connection. Maintenance engineers can review vibration spectra, adjust alert thresholds, and export trend data from any location with network access.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?A: Every 330704-000-060-10-02-00 unit shipped by NANKMOS undergoes pre-shipment functional testing — including gap sensitivity verification, cable continuity check, and output linearity validation — before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair support coordinated through our technical team at [email protected].
