Bently Nevada 330704-000-060-10-02-CN Proximity Probe

Product Details

330704-000-060-10-02-CN Product Description

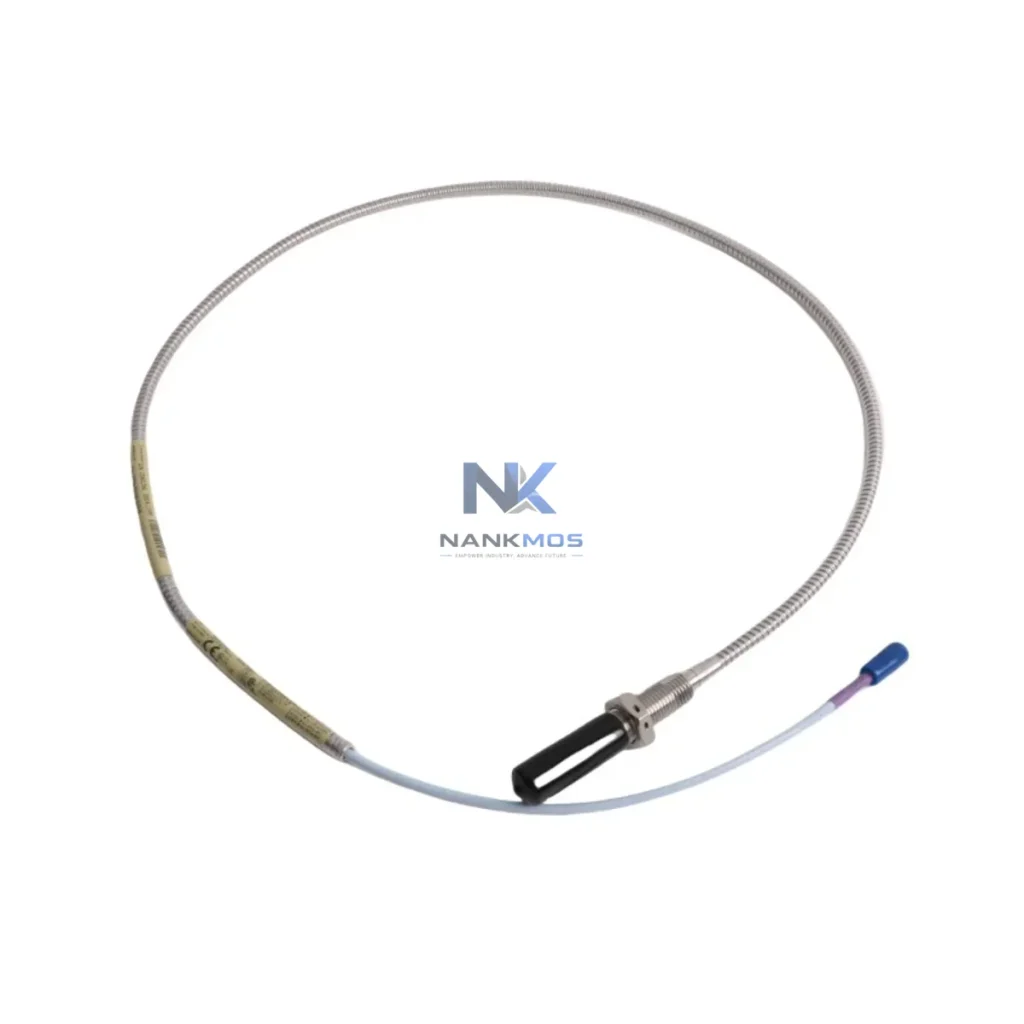

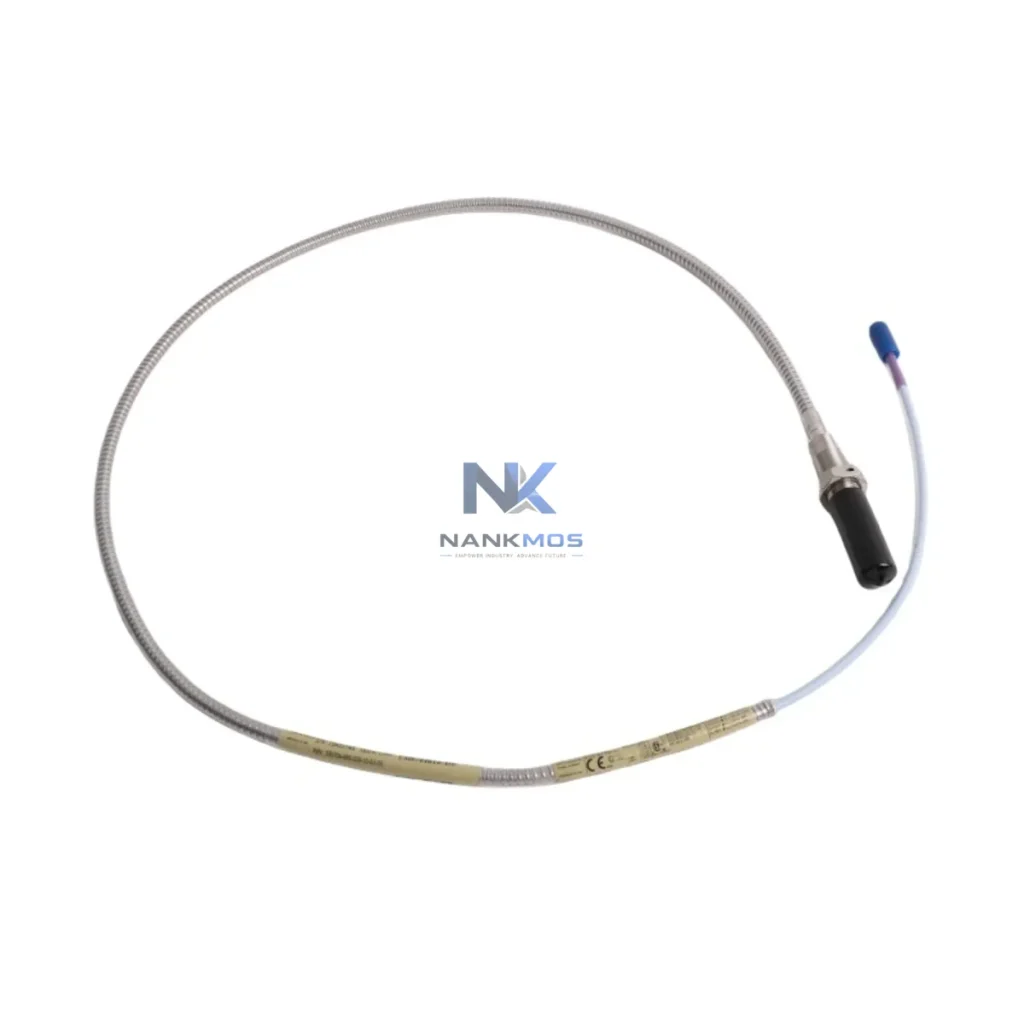

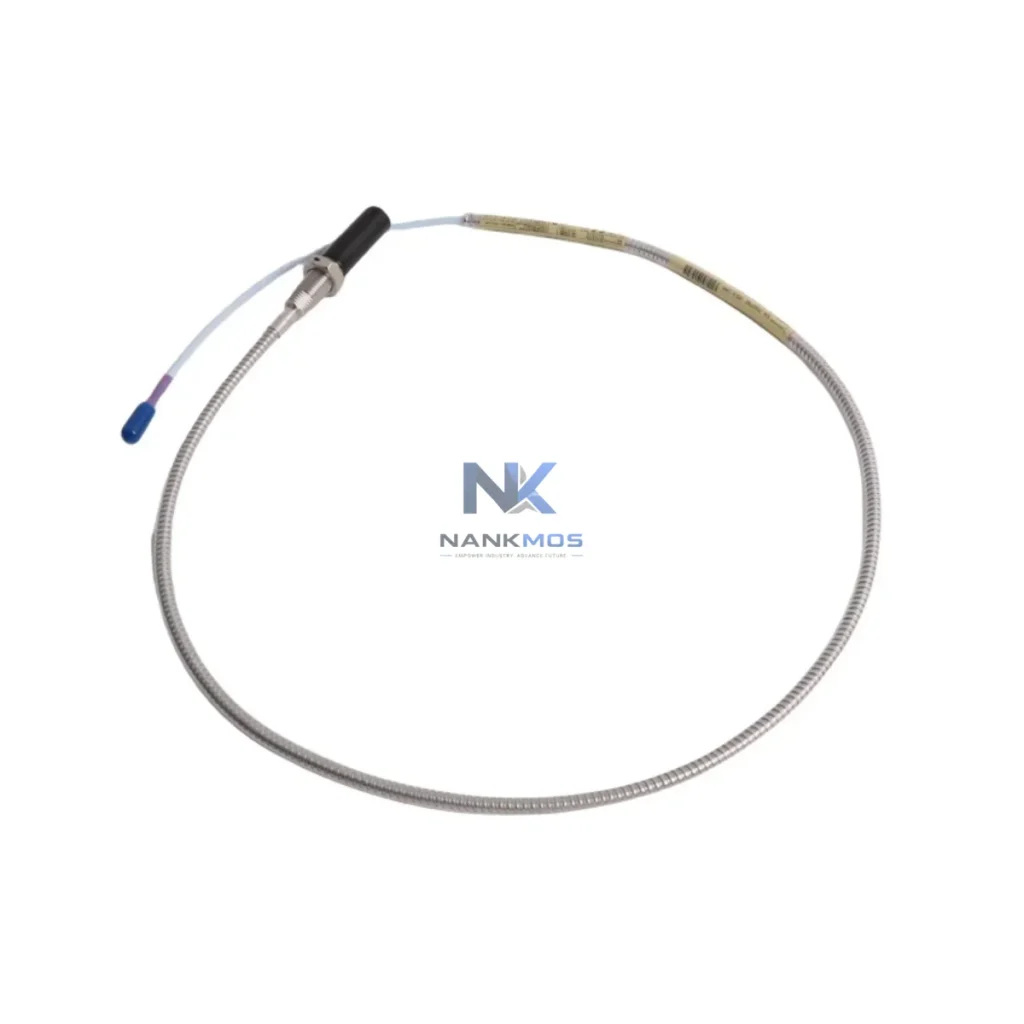

The Bently Nevada 330704-000-060-10-02-CN is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series vibration monitoring architecture. Designed to deliver continuous, high-resolution radial shaft displacement measurements on rotating machinery, this probe serves as the primary sensing element in a layered industrial protection and condition monitoring system. Its role spans the sensing layer through to the control and protection layers, feeding critical vibration data to monitors, safety logic solvers, and plant-wide SCADA platforms.

With a 10 mm tip diameter, 60-inch (approximately 1524 mm) armored extension cable, and a standard -CN connector configuration, the 330704-000-060-10-02-CN is optimized for installation in tight bearing housings, compressor casings, steam turbine pedestals, and pump bearing brackets where cable routing demands flexibility and mechanical robustness. Every unit shipped by NANKMOS is pre-shipment tested against Bently Nevada factory calibration standards and covered by a 12-Month Warranty, ensuring measurement-grade reliability from day one of commissioning.

The 330704-000-060-10-02-CN does not operate in isolation. Its true value is realized when deployed as part of a fully integrated Bently Nevada 3300 XL proximity system and broader plant automation architecture. At the sensing layer, the probe pairs directly with the Bently Nevada 3300 XL 8 mm Proximitor Driver (e.g., 330180-91-00), which conditions the raw eddy-current signal into a calibrated analog voltage output. This signal is then routed to a 3300 XL Monitor — such as the 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor — housed within a 3300 XL Rack that provides the structural and power backbone for the entire monitoring system.

At the power layer, the rack draws from a 3300/05 Power Supply Module or a redundant dual-supply configuration, ensuring uninterrupted monitoring even during single-supply failures — a critical requirement in continuous-process industries. The monitor outputs — both analog 4–20 mA and relay contact signals — interface with the plant's DCS or Safety Instrumented System (SIS), such as a Honeywell Experion PKS controller or an Emerson DeltaV SIS logic solver, enabling automated trip and alarm responses without operator intervention.

For facilities running System 1 Evolution (Bently Nevada's condition monitoring software platform), the 3300 XL monitor communicates over Modbus TCP/IP or OPC-DA/UA gateways, feeding vibration trend data, gap voltage readings, and alarm states into the plant historian and predictive maintenance dashboards. This Contextual Integration capability allows maintenance engineers to correlate shaft displacement trends from the 330704-000-060-10-02-CN with process variables — flow, pressure, temperature — sourced from the DCS, enabling root-cause analysis without leaving the control room.

In redundant architectures, the probe channel can be paired with a 3300/55 Keyphasor Module to provide phase-referenced vibration data, enabling advanced diagnostics such as orbit plots, Bode plots, and waterfall spectra. For installations requiring SIL-rated protection, the 3300 XL system supports voting logic configurations (1oo2, 2oo3) across multiple probe channels, with the 330704-000-060-10-02-CN serving as one leg of the redundant sensing array. Terminal blocks, cable junction boxes, and 3300 XL Field Wiring Termination Assemblies complete the field-side installation, ensuring clean signal paths from the bearing housing to the monitor rack.

Power Generation: Steam turbines and gas turbines in combined-cycle power plants rely on the 330704-000-060-10-02-CN for continuous shaft radial vibration monitoring at journal bearings. The probe's high-temperature rating and armored cable construction withstand the thermal and mechanical stresses of turbine pedestals, while its integration with the 3300 XL rack enables automatic turbine trip on high-vibration events, protecting multi-million-dollar rotating assets.

Petrochemical and Refining: In centrifugal compressor trains — including barrel compressors, integrally geared compressors, and expander-compressor sets — the 330704-000-060-10-02-CN monitors shaft displacement at each bearing location. Paired with Keyphasor probes and System 1 software, it supports API 670 compliance for machinery protection in hazardous-area classified zones, including hydrogen service and hydrocarbon processing environments.

Oil and Gas — Upstream and Midstream: Pipeline compressor stations and offshore platform gas lift compressors deploy the 3300 XL proximity system for continuous, unmanned monitoring. The probe's compatibility with intrinsically safe Proximitor drivers enables installation in Zone 1 / Division 1 hazardous areas without additional barriers, simplifying the field wiring architecture and reducing installation cost.

Water Treatment and Pumping Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure use proximity probes to detect bearing wear and rotor imbalance before catastrophic failure. The 330704-000-060-10-02-CN's long-term stability and low drift characteristics make it suitable for installations where calibration access is infrequent and measurement continuity is essential.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mineral processing plants operate in high-vibration, high-contamination environments. The armored extension cable of the 330704-000-060-10-02-CN provides mechanical protection against abrasion and impact, while the 3300 XL monitor's relay outputs integrate directly with the plant's PLC-based interlock system to initiate controlled shutdowns on vibration exceedance.

Q1: Is the 330704-000-060-10-02-CN compatible with both the 3300 XL and 3500 Series monitor racks? The 330704-000-060-10-02-CN is natively designed for the Bently Nevada 3300 XL proximity system, where it operates as a matched set with the 3300 XL Proximitor driver. It can also be used with the 3500 Series rack when paired with the appropriate 3500/42M Proximitor/Seismic Monitor module and a compatible 3500 XL Proximitor driver, provided the scale factor and gap voltage specifications are verified during commissioning. NANKMOS technical support can assist with cross-series compatibility verification prior to order placement.

Q2: How does this probe support redundant and SIL-rated protection architectures? In SIL-rated machinery protection applications, the 330704-000-060-10-02-CN can be deployed in multi-channel voting configurations (1oo2 or 2oo3) within the 3300 XL rack. Each probe channel feeds an independent monitor module, and the rack's voting logic compares channel outputs before issuing a trip relay. This architecture eliminates single-point-of-failure risk at the sensing layer. For SIL 2 applications, the system should be validated against IEC 61511 requirements, including proof-test intervals and diagnostic coverage calculations for the full probe-driver-monitor chain.

Q3: What is the lead time, warranty coverage, and post-installation support policy for this probe? All 330704-000-060-10-02-CN units stocked by NANKMOS are available for immediate dispatch from verified inventory. Each unit undergoes pre-shipment functional testing — including gap voltage verification, cable continuity, and connector integrity checks — before packaging. A 12-Month Warranty covers manufacturing defects and measurement performance under normal operating conditions. Post-installation technical support, including commissioning guidance, calibration reference data, and system integration advice, is available through NANKMOS at [email protected] or +86 18359268345.
