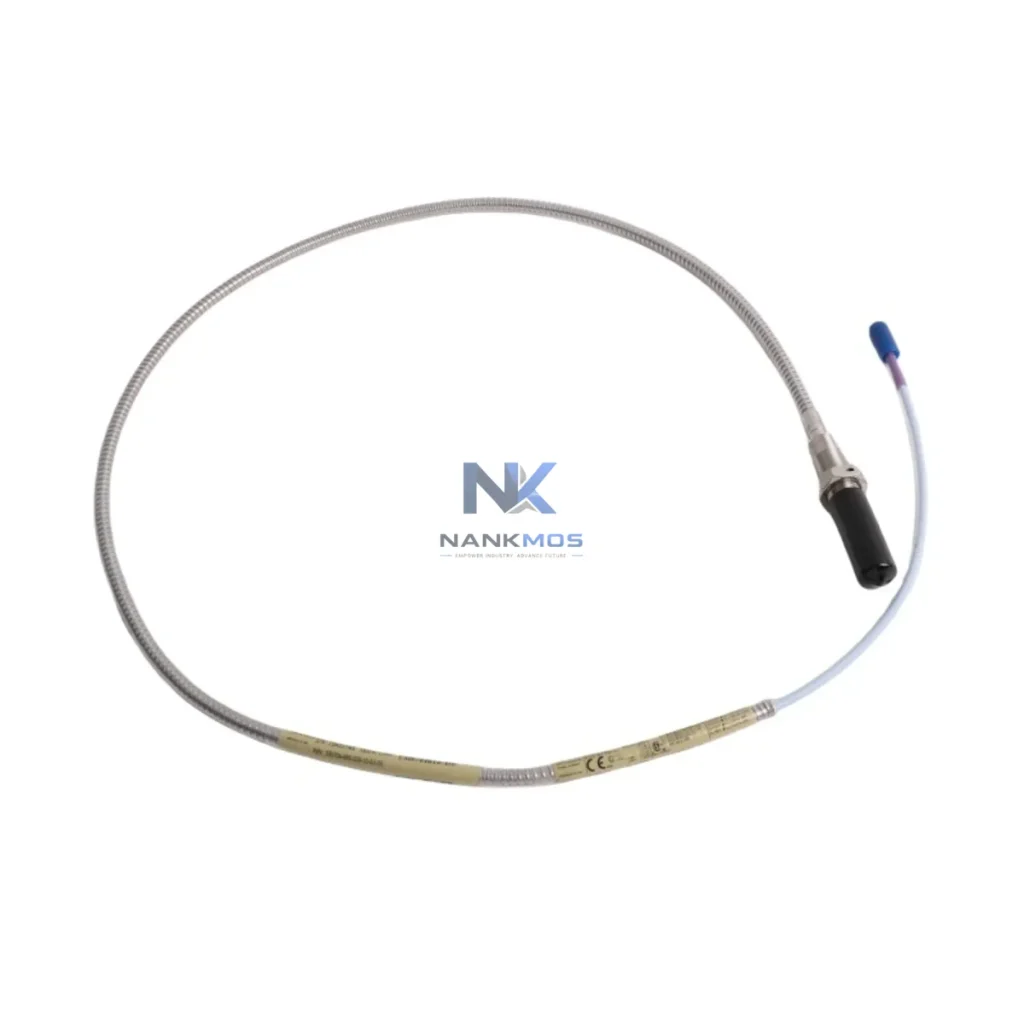

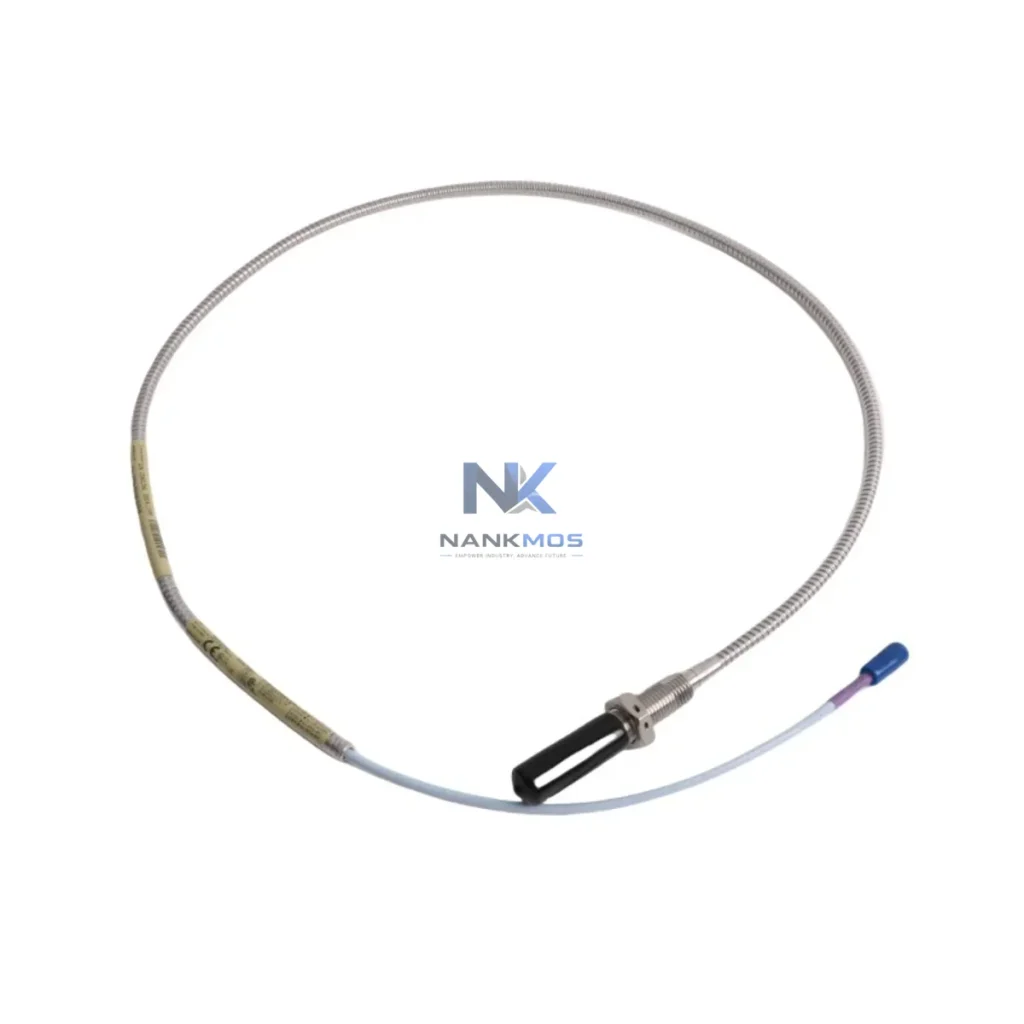

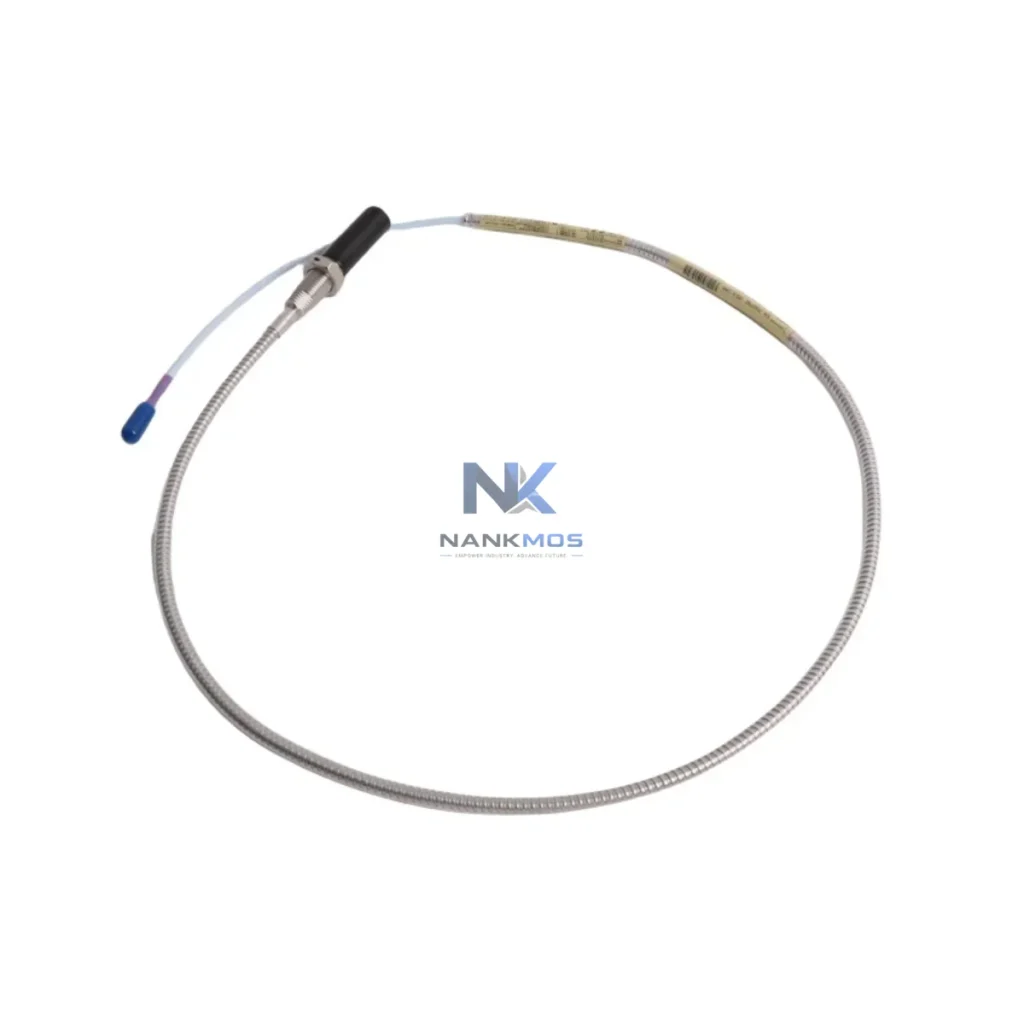

Bently Nevada 330704-000-080-10-02-CN Proximity Probe

Product Details

330704-000-080-10-02-CN Product Description

The Bently Nevada 330704-000-080-10-02-CN is an 11 mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. Designed to operate within high-demand rotating equipment environments — including gas turbines, steam turbines, centrifugal compressors, and large induction motors — this probe delivers sub-micron displacement resolution that forms the foundation of a plant-wide industrial data chain. From raw shaft-gap signal acquisition at the machine casing to real-time alarm escalation inside a SCADA control room, the 330704-000-080-10-02-CN occupies the critical first node in a smart factory connectivity architecture.

In a modern automated facility, vibration data does not stop at the probe tip. The analog output of the 330704-000-080-10-02-CN feeds directly into a Bently Nevada 3300 XL Proximitor® Driver — typically the 330180 or 330130 series — which conditions the raw eddy-current signal into a calibrated DC voltage proportional to rotor displacement. That conditioned signal is then routed into a Bently Nevada 3500 Series Monitoring Rack, where dedicated I/O modules digitize, timestamp, and classify the vibration data against user-defined alert and danger thresholds. The 3500 rack communicates upstream via Modbus TCP/IP or OPC-UA to plant-level SCADA systems such as GE iFIX, Wonderware AVEVA, or Emerson DeltaV, enabling operators to visualize shaft centerline plots, Bode diagrams, and trend histories on HMI screens without leaving the control room.

For facilities integrating legacy analog infrastructure with modern digital networks, the 330704-000-080-10-02-CN pairs seamlessly with protocol gateway modules — such as a Moxa MGate MB3270 or equivalent Modbus-to-Ethernet gateway — that bridge the 4–20 mA or ±24 VDC analog outputs of the 3300 XL system into structured Ethernet data packets. These packets traverse managed industrial Ethernet switches (e.g., Hirschmann MICE or Phoenix Contact FL SWITCH series) operating on ring-redundancy topologies, ensuring zero data loss even during network segment failures. Edge computing nodes — such as a Siemens SIMATIC IPC427E or a Beckhoff CX2040 embedded PC — can then apply local analytics, compress historical waveform buffers, and forward exception-based reports to cloud SCADA or MES platforms, completing the Industry 4.0 data loop.

Within the PLC control layer, the digitized vibration values from the 3500 rack are consumed by Allen-Bradley ControlLogix or Siemens S7-1500 controllers via EtherNet/IP or PROFINET respectively. These controllers execute protective interlock logic — automatically triggering variable-frequency drives (VFDs) to ramp down motor speed or initiating emergency shutdown sequences when vibration amplitude exceeds danger setpoints. The tight coupling between the 330704-000-080-10-02-CN probe signal and the PLC interlock layer is what transforms passive condition monitoring into active machine protection, reducing unplanned downtime and extending mean time between failures (MTBF) across the rotating equipment fleet.

Remote diagnostics capability is a key value driver of deploying the 330704-000-080-10-02-CN within a networked architecture. Maintenance engineers can interrogate probe gap voltage, signal noise floor, and cable continuity from a remote HMI terminal or a mobile dashboard connected to the plant SCADA. Anomalies such as probe-to-target gap drift, connector corrosion, or extension cable degradation are surfaced as diagnostic alarms before they escalate into measurement failures. This predictive maintenance posture — enabled by the probe's stable eddy-current output and the 3300 XL system's self-diagnostic registers — directly reduces the cost of scheduled outages and eliminates reactive maintenance cycles.

Every Bently Nevada 330704-000-080-10-02-CN unit supplied by NANKMOS is sourced from verified distribution channels, pre-shipment tested against Bently Nevada factory calibration specifications, and covered by a 12-month warranty. In-stock inventory ensures short lead times for both single-unit replacement orders and bulk procurement programs supporting multi-site plant rollouts.

The data journey originating at the 330704-000-080-10-02-CN probe tip follows a structured, multi-layer path through the smart factory architecture. At Layer 0 (Field Level), the probe's eddy-current coil detects shaft displacement and outputs a raw high-frequency signal to the paired Bently Nevada 330180 Proximitor Driver mounted in the junction box. The driver linearizes and scales the signal to a ±24 VDC analog range, which is then cabled to the Bently Nevada 3500/40M Proximitor I/O Module installed in the 3500 rack chassis.

At Layer 1 (Control Network), the 3500 rack's communication gateway card — such as the 3500/92 Communication Gateway — publishes real-time vibration vectors, gap voltages, and alarm states over Modbus TCP/IP to the plant DCS or PLC. A Siemens S7-1500 PLC with a PROFINET interface card reads these values at 100 ms scan cycles, executing protective interlock logic and forwarding normalized data tags to the WinCC SCADA historian. Simultaneously, an Allen-Bradley ControlLogix L85E on an EtherNet/IP segment receives the same vibration data via an adapter module, enabling cross-platform redundancy in mixed-vendor plant environments.

At Layer 2 (Supervisory Network), an OSIsoft PI Data Historian or AVEVA PI Server archives every vibration sample with microsecond timestamps, enabling long-term trend analysis and ISO 10816 compliance reporting. HMI panels — such as Siemens SIMATIC TP1500 or Rockwell PanelView Plus 7 — display live shaft centerline plots and Bode diagrams, giving operators immediate visual confirmation of machine health status. Remote access is secured through a Moxa EDR-810 industrial firewall/router, allowing off-site engineers to connect to the SCADA historian and review waveform data without compromising plant network security.

At Layer 3 (Enterprise / Cloud), edge gateway nodes running MQTT or OPC-UA pub/sub compress and forward exception-based vibration reports to cloud MES or EAM platforms, closing the loop between field sensor data and enterprise maintenance scheduling systems.

Protocol Fragmentation: Many brownfield plants operate mixed analog and digital networks where legacy 4–20 mA vibration signals cannot be natively consumed by modern Modbus TCP or OPC-UA SCADA systems. The 330704-000-080-10-02-CN, when paired with the 3500 rack's communication gateway, eliminates this fragmentation by providing a single, protocol-agnostic digital output that any standards-compliant SCADA or DCS can consume without custom middleware.

Data Silos: Vibration data isolated within a standalone condition monitoring system cannot contribute to plant-wide OEE calculations or predictive maintenance scheduling. By routing 330704-000-080-10-02-CN data through the 3500/92 gateway into a PI Historian, maintenance teams gain cross-asset correlation — linking vibration trends on a compressor train to process variables such as suction pressure, discharge temperature, and motor current drawn from adjacent field instruments.

Remote Monitoring Gaps: In unmanned substations or offshore platforms, physical inspection of probe gap voltage is impractical. The networked 3300 XL / 3500 architecture enables continuous remote health checks — gap voltage, noise floor, and cable resistance — accessible from any SCADA client on the plant WAN, reducing the need for costly site visits.

Alarm Traceability: Without timestamped, network-synchronized alarm logs, root-cause analysis after a trip event is guesswork. The 3500 rack's SOE (Sequence of Events) logging, combined with PI Historian archiving, creates an immutable audit trail of every vibration alarm triggered by the 330704-000-080-10-02-CN, supporting both regulatory compliance and insurance documentation.

System Scalability: As plant capacity expands, additional 330704-000-080-10-02-CN probes can be added to the existing 3500 rack chassis without network reconfiguration — the rack's modular I/O architecture supports up to 16 monitor modules per chassis, and multiple chassis can be daisy-chained on the same Modbus TCP segment, making the system linearly scalable with zero disruption to live monitoring channels.

Q1: What communication protocols does the Bently Nevada 3500 rack support when used with the 330704-000-080-10-02-CN probe?The 3500 Series rack, when equipped with the 3500/92 Communication Gateway, supports Modbus RTU, Modbus TCP/IP, and OPC-DA/OPC-UA. For EtherNet/IP integration with Allen-Bradley ControlLogix systems, an optional EtherNet/IP adapter card is available. This multi-protocol capability ensures the 330704-000-080-10-02-CN vibration data can be consumed by virtually any modern SCADA, DCS, or PLC platform without custom protocol converters.

Q2: How is network stability maintained in high-EMI industrial environments where the 330704-000-080-10-02-CN is deployed?The 3300 XL probe cable uses a double-shielded coaxial construction that rejects electromagnetic interference from VFDs, high-voltage bus bars, and RF sources common in industrial plants. At the network layer, managed industrial Ethernet switches with ring-redundancy protocols (e.g., RSTP or MRP) ensure that a single cable fault does not interrupt data flow to the SCADA historian, maintaining continuous vibration monitoring even during network maintenance windows.

Q3: Can the 330704-000-080-10-02-CN be integrated into an existing SCADA system without replacing the current monitoring rack?Yes. If the existing plant already operates a Bently Nevada 3500 rack with a communication gateway card, the 330704-000-080-10-02-CN can be connected to any available Proximitor I/O slot and immediately appears as a new data tag in the SCADA historian. No rack replacement or network reconfiguration is required — only a new I/O module slot assignment and tag mapping in the SCADA engineering workstation.

Q4: What pre-shipment testing and warranty coverage does NANKMOS provide for the 330704-000-080-10-02-CN?Every unit is tested against Bently Nevada factory calibration specifications prior to dispatch, including gap voltage linearity verification, cable continuity check, and connector integrity inspection. NANKMOS provides a 12-month warranty covering manufacturing defects and calibration drift. In-stock availability supports urgent replacement orders with short lead times for both single units and bulk procurement programs.
