Bently Nevada 330704-000-080-50-02-00 Proximity Probe

Product Details

330704-000-080-50-02-00 Product Description

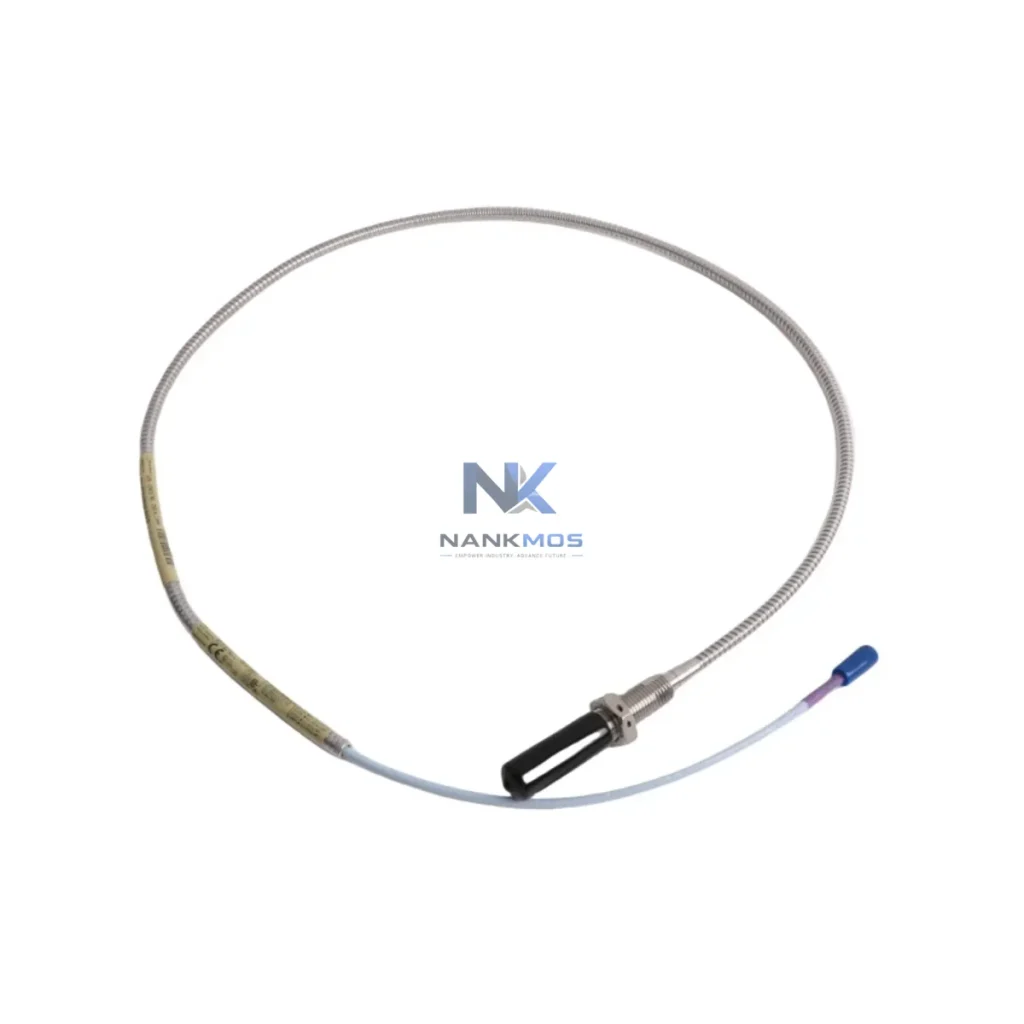

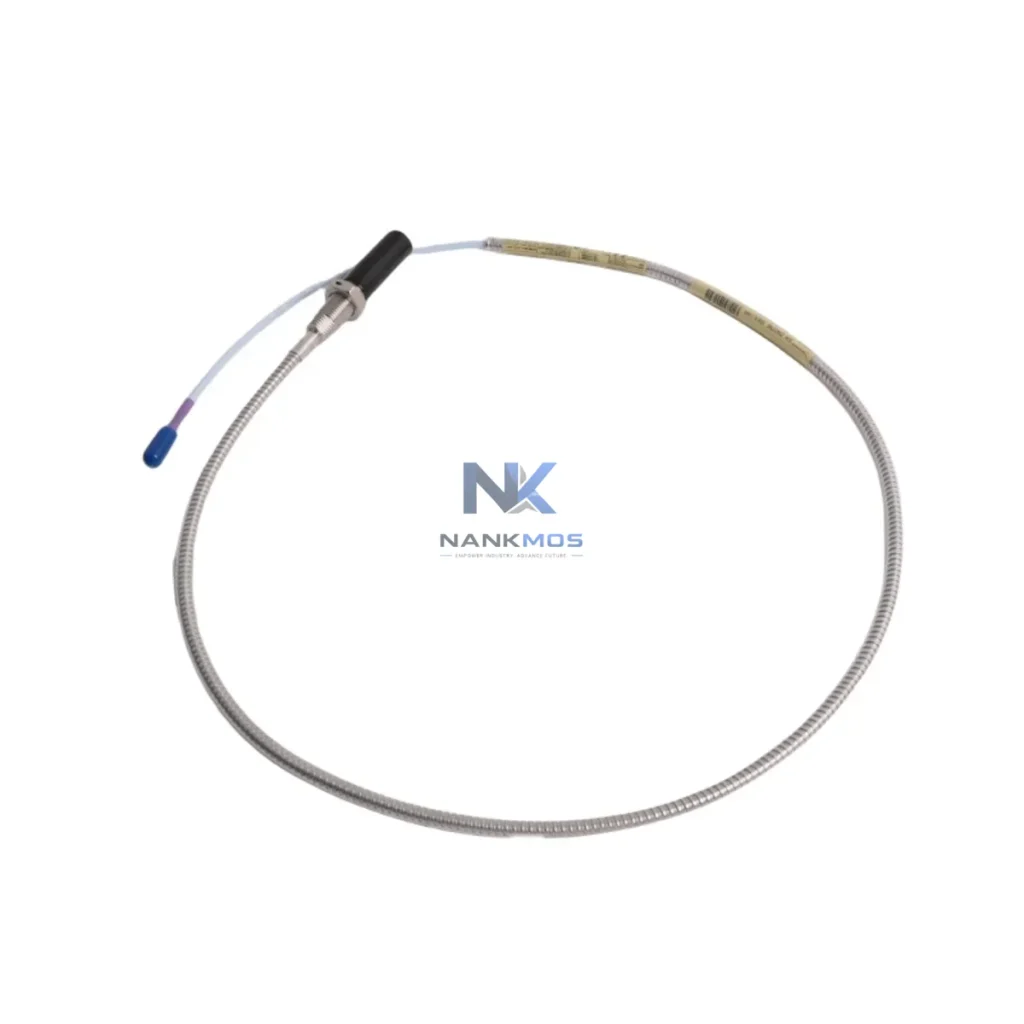

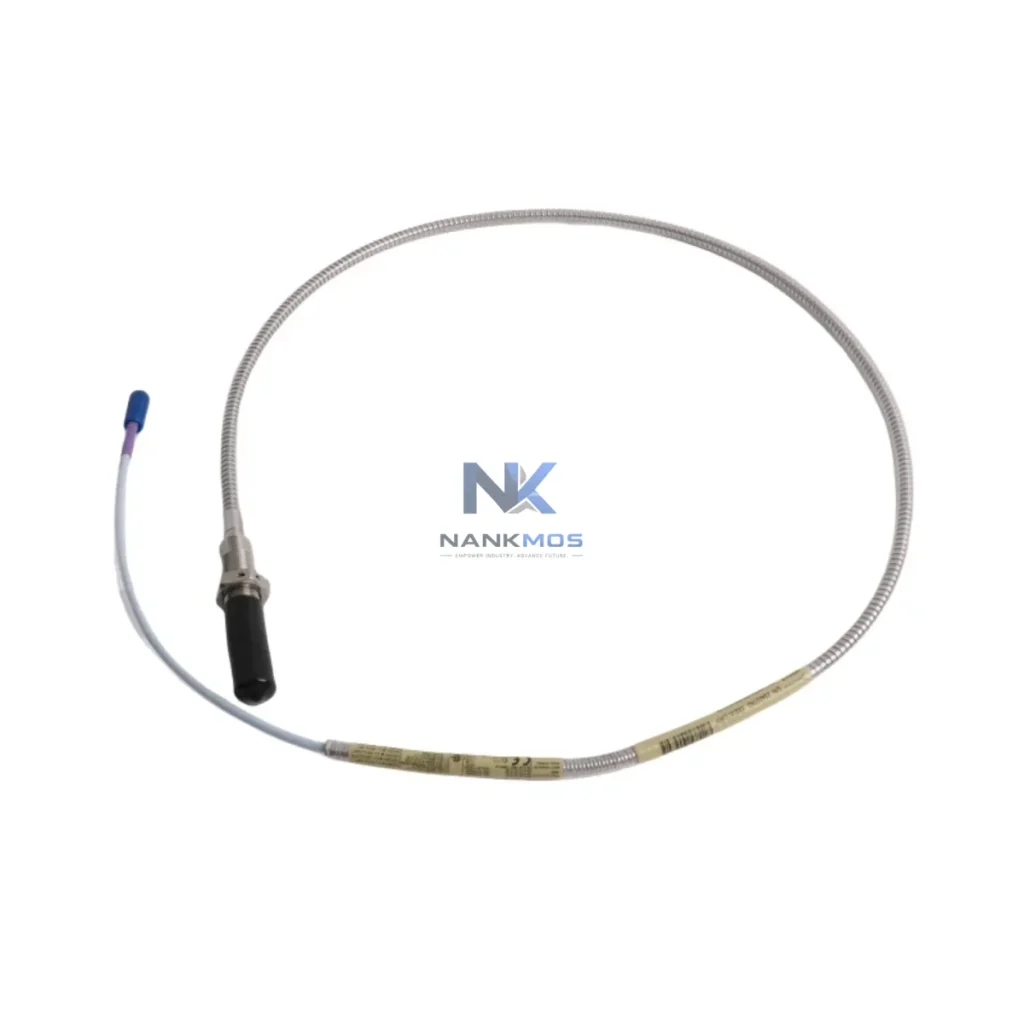

The Bently Nevada 330704-000-080-50-02-00 is an 11 mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous, high-resolution shaft displacement and vibration measurement on rotating machinery. In modern smart factory environments, this probe is not simply a sensor — it is the first node in a complete industrial data chain that connects field-level mechanical signals to plant-wide SCADA platforms, DCS controllers, and remote diagnostic systems.

Designed to operate with the Bently Nevada 3300 XL Proximitor driver module, the 330704-000-080-50-02-00 converts mechanical shaft motion into a calibrated analog voltage signal (typically –24 VDC bias, with a sensitivity of 200 mV/mil). This analog output feeds directly into the Bently Nevada 3500 Series Machinery Protection System rack, where it is digitized, conditioned, and made available for real-time monitoring, alarm management, and trip logic. The 3500 rack's communication modules — including Modbus RTU, Modbus TCP/IP, and OPC-UA gateway cards — then relay live vibration data upstream to plant historians, HMI panels, and SCADA servers without signal degradation or latency gaps.

In a typical smart factory deployment, the 330704-000-080-50-02-00 probe is mounted radially on a turbine, compressor, pump, or motor shaft. Its signal travels through a matched 3300 XL Extension Cable to the proximitor driver, which is housed in a field junction box or marshalling cabinet. From there, the conditioned output enters the 3500 rack's I/O module, where it is processed alongside data from complementary sensors — including Bently Nevada 330180 velocity transducers for seismic vibration, 330130 series thrust position probes for axial displacement, and 190501 keyphasor probes for phase reference and rotational speed. Together, these instruments form a complete machinery health dataset that the 3500 rack aggregates and transmits to the control room.

The data journey initiated by the 330704-000-080-50-02-00 probe illustrates the full depth of an Industry 4.0 connectivity architecture. At the field level, the probe's analog output is received by the 3300 XL Proximitor driver, which provides the required –24 VDC excitation and outputs a buffered, linearized signal. This signal enters the Bently Nevada 3500/42M four-channel position monitor card within the 3500 rack, where it is compared against user-configured alert and danger setpoints in real time.

The 3500 rack's 3500/92 Communication Gateway Module bridges the analog machinery protection layer to the plant's digital network infrastructure. Using Modbus TCP/IP over Industrial Ethernet, the gateway publishes live vibration amplitude, gap voltage, and alarm status registers to the plant's Emerson Ovation DCS or third-party SCADA servers such as Wonderware InTouch, Ignition by Inductive Automation, or GE iFIX. Operators at the control room HMI can view real-time trend plots, historical waveforms, and alarm logs without leaving the SCADA environment.

For facilities implementing edge computing, an industrial edge gateway — such as a Moxa MGate or Advantech ADAM-3600 — can subscribe to the 3500 rack's OPC-UA server, pre-process vibration data locally, and forward compressed analytics packets to cloud-based asset performance management (APM) platforms. This edge-to-cloud pipeline enables predictive maintenance algorithms to flag bearing wear, rotor imbalance, or misalignment weeks before a failure event, dramatically reducing unplanned downtime.

Remote I/O modules and industrial managed Ethernet switches — such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH families — ensure that the network segment connecting the 3500 rack to the control room maintains deterministic latency and redundant ring topology (IEC 62439-2 MRP). This network resilience is critical in power generation and petrochemical plants where continuous monitoring is a regulatory requirement. The Bently Nevada System 1 software platform further aggregates data from multiple 3500 racks across the plant, providing a unified dashboard for fleet-wide machinery health, trend analysis, and maintenance scheduling.

Many industrial sites still operate with fragmented monitoring architectures — standalone vibration analyzers that log data locally, legacy 4–20 mA loops with no digital readback, or proprietary protocols that cannot communicate with modern SCADA systems. The 330704-000-080-50-02-00, when integrated into a Bently Nevada 3500 rack with a Modbus TCP/IP or OPC-UA gateway card, directly resolves these data silos.

Protocol unification: The 3500 rack's communication gateway translates the probe's analog signal into standard industrial protocols, allowing any Modbus-capable PLC — including Siemens S7-300/400, Allen-Bradley ControlLogix, or Schneider Electric Modicon M340 — to read live vibration values as holding registers. This eliminates the need for proprietary software bridges and reduces integration engineering time.

Production line transparency: By feeding vibration data into the plant SCADA, maintenance teams gain visibility into machinery health trends across shifts and production campaigns. Alarm events are time-stamped and logged to the historian, enabling root-cause analysis and compliance reporting without manual data collection.

Remote diagnostics: With OPC-UA connectivity, remote engineers can access live and historical vibration data through a secure VPN tunnel, perform spectrum analysis, and adjust alarm setpoints without traveling to site. This capability is especially valuable for offshore platforms, remote pumping stations, and multi-site power generation fleets.

System scalability: The 3500 rack architecture supports expansion from a single monitor card to a full 19-slot chassis, accommodating additional probes, velocity transducers, temperature inputs, and speed sensors as the monitoring scope grows. The 330704-000-080-50-02-00 probe is fully compatible with this scalable framework, protecting the initial investment as plant requirements evolve.

Q1: What communication protocols does the Bently Nevada 3500 rack support when used with the 330704-000-080-50-02-00 probe? The 3500 rack supports Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), and OPC-UA via the 3500/92 Communication Gateway Module. These protocols allow direct integration with Siemens, Rockwell, Schneider, and Emerson DCS/SCADA platforms, as well as third-party HMI and historian systems. Communication latency is typically under 100 ms for Modbus polling cycles, suitable for real-time alarm monitoring.

Q2: Is the 330704-000-080-50-02-00 compatible with existing 3300 XL Proximitor drivers and 3500 rack I/O modules? Yes. The 330704-000-080-50-02-00 is a factory-matched component of the Bently Nevada 3300 XL system. It is designed to operate with 3300 XL Proximitor drivers (including the 3300/16 and 3300/25 series) and interfaces directly with 3500/40M and 3500/42M monitor cards. No additional signal conditioning or adapter hardware is required for standard installations.

Q3: How does this probe support remote diagnostics and predictive maintenance in a smart factory? The probe's continuous analog output, digitized by the 3500 rack, is available to remote diagnostic platforms via OPC-UA or Modbus TCP/IP. Engineers can monitor gap voltage trends, vibration amplitude, and alarm history from any networked workstation or cloud APM platform. Pre-shipment testing ensures the probe meets factory calibration standards before deployment, reducing commissioning time and baseline uncertainty.

Q4: What warranty and supply assurance does NANKMOS provide for the 330704-000-080-50-02-00? NANKMOS provides a 12-month warranty on the 330704-000-080-50-02-00 Proximity Probe. All units are pre-shipment tested for electrical continuity, sensitivity calibration, and mechanical integrity. In-stock inventory is maintained to support urgent replacement and planned maintenance schedules. Contact [email protected] or +86 18359268345 for lead time and bulk pricing inquiries.
