Bently Nevada 330704-000-100-10-01-RU Proximity Probe

Product Details

330704-000-100-10-01-RU Product Description

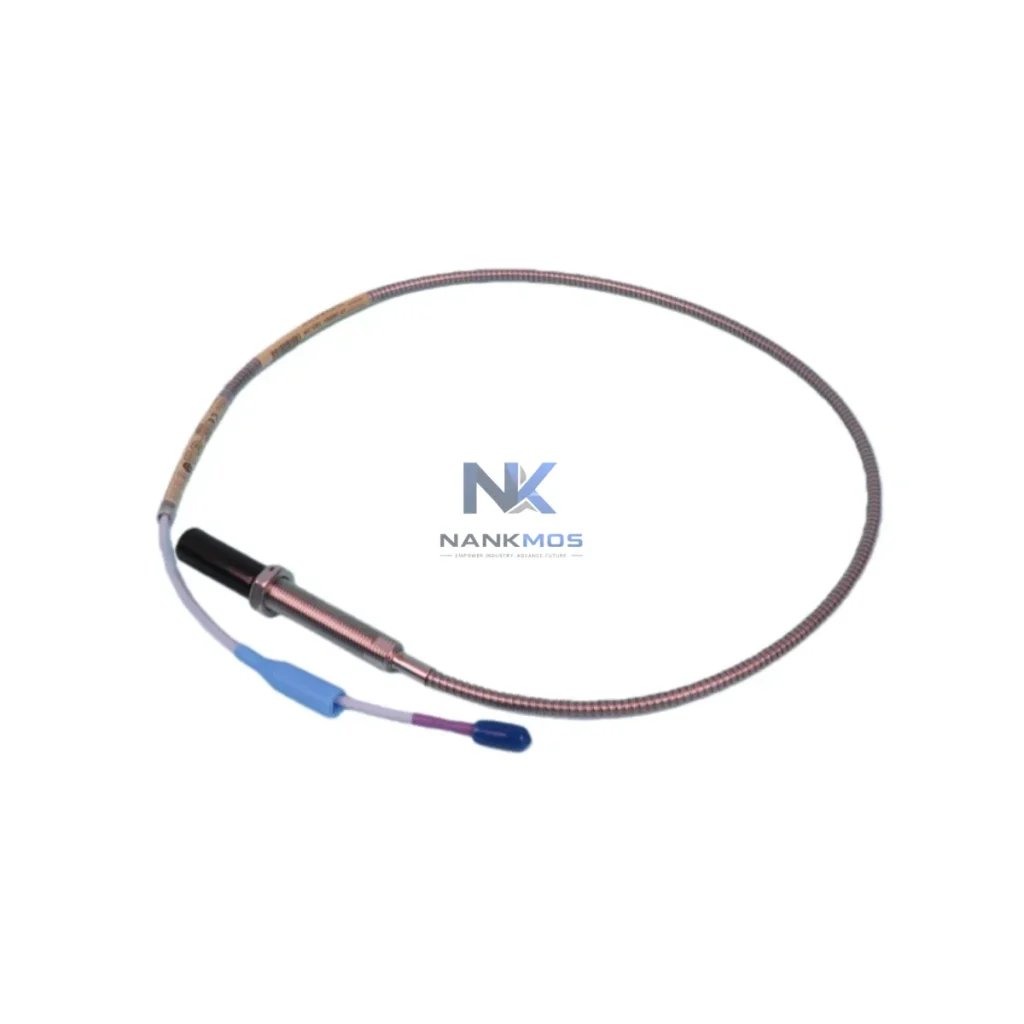

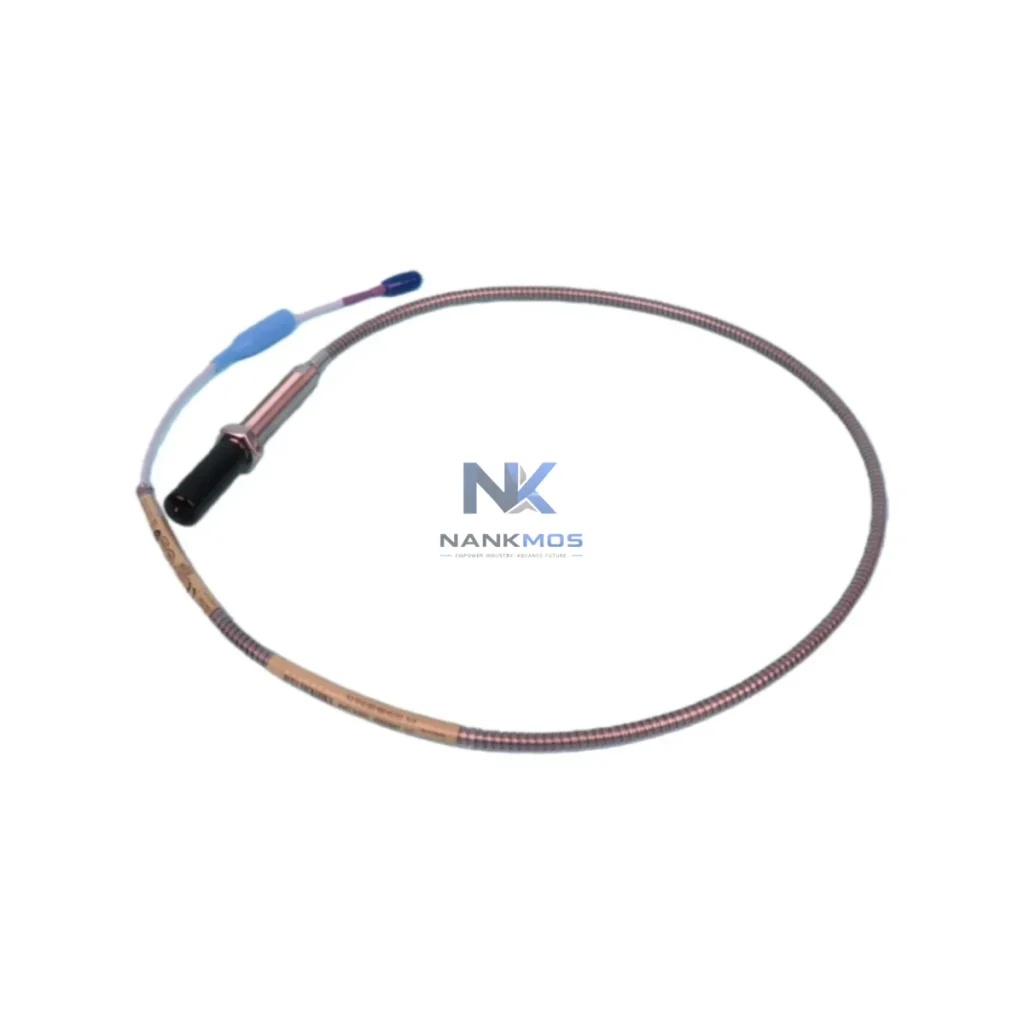

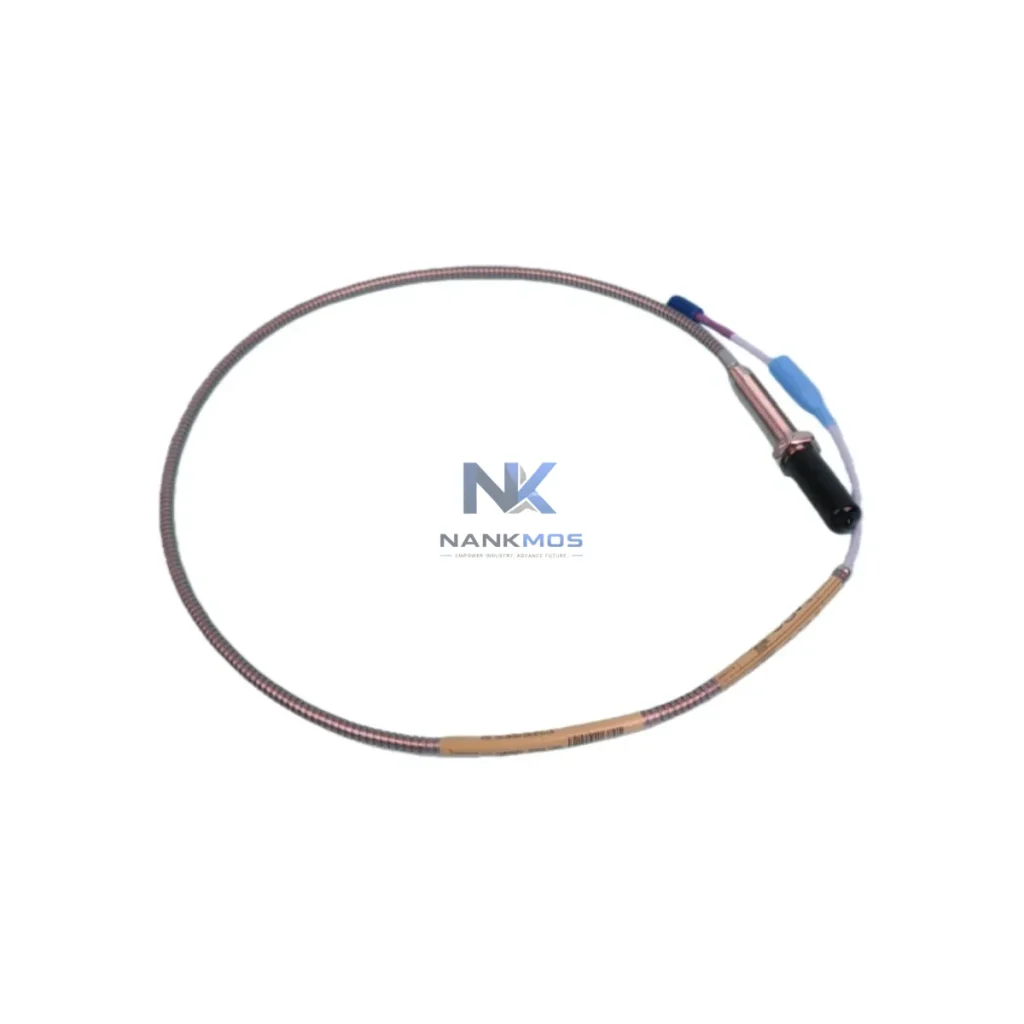

The Bently Nevada 330704-000-100-10-01-RU is a precision eddy-current proximity probe engineered for seamless deployment within the 3300 XL machinery protection and condition monitoring architecture. Designed to deliver continuous, high-fidelity radial vibration and position signals, this probe serves as the primary sensing element at the field layer of a multi-tier industrial control system. Its role extends far beyond simple signal acquisition — it is the foundational data source upon which the entire machinery protection hierarchy depends, from raw signal conditioning through to DCS alarm integration and plant-level asset management.

In modern industrial automation environments, no sensor operates in isolation. The 330704-000-100-10-01-RU is factory-matched to the 3300 XL monitor system, ensuring that signal chain integrity is maintained from the probe tip through the extension cable, into the proximitor/driver, and ultimately to the monitor module. This system-matched approach eliminates calibration uncertainty, reduces commissioning time, and guarantees that the full dynamic range of the eddy-current measurement is preserved across the entire signal path. For rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this level of signal fidelity is non-negotiable.

The 330704-000-100-10-01-RU achieves its full performance potential when deployed as part of a coherent, layered automation architecture. At the signal conditioning layer, the probe pairs directly with the Bently Nevada 3300 XL 8mm Proximitor (series 330180), which provides the regulated oscillator drive signal and converts the probe's impedance variation into a calibrated DC voltage output. This voltage is then routed to a 3300 XL Dual Vibration Monitor (such as the 3300/16 or 3300/20 series), where configurable alarm and danger setpoints are applied in accordance with API 670 machinery protection standards.

At the I/O and communication layer, the monitor's relay outputs and 4–20 mA analog retransmission signals interface directly with plant-level DCS platforms — including Emerson DeltaV, Honeywell Experion PKS, or ABB System 800xA — via hardwired analog input cards or FOUNDATION Fieldbus/PROFIBUS gateway modules. This integration ensures that vibration alarm states are visible at the operator workstation in real time, enabling rapid response to developing machinery faults without requiring separate SCADA polling cycles.

For installations requiring enhanced redundancy, the 330704-000-100-10-01-RU can be deployed in a dual-probe, dual-channel configuration alongside a second matched probe and a 3300 XL Dual Channel Monitor with voting logic. This architecture satisfies SIL 2 machinery protection requirements for critical rotating equipment in petrochemical and power generation facilities. The Bently Nevada 3500 Series Rack provides an alternative platform for applications demanding higher channel density and integrated Modbus TCP or OPC-UA communication without additional gateway hardware.

At the power layer, the 3300 XL monitor system is typically powered from a Bently Nevada 3300 XL Power Supply or a dedicated 24 VDC instrument bus, often sourced through a Phoenix Contact QUINT Power or Siemens SITOP regulated power supply with redundant feed capability. Stable, clean DC power is essential to maintaining the probe's oscillator frequency stability and preventing spurious alarm trips caused by power rail noise.

At the HMI and asset management layer, vibration trend data collected through the 330704-000-100-10-01-RU signal chain is typically archived in Bently Nevada System 1 condition monitoring software, where spectral analysis, waveform capture, and long-term trend visualization support predictive maintenance decision-making. Integration with Emerson AMS Device Manager or OSIsoft PI historian further extends the diagnostic value of the probe's continuous output across the plant asset management ecosystem.

Power Generation (Steam & Gas Turbines): In combined-cycle power plants, the 330704-000-100-10-01-RU is mounted at the journal bearings of HP and LP turbine rotors to provide continuous shaft radial vibration monitoring. The probe's non-contact measurement principle eliminates mechanical wear at the sensing point, ensuring reliable operation across extended maintenance intervals between major overhauls. Alarm outputs from the associated 3300 XL monitor are hardwired to the turbine control system's emergency trip logic, providing a direct hardware protection path independent of the DCS communication network.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressor trains in ethylene, ammonia, and LNG facilities rely on proximity probe arrays to detect shaft orbit changes indicative of rotor instability, bearing wear, or process-induced surge events. The 330704-000-100-10-01-RU, deployed in X-Y probe pairs at each bearing location, provides the orthogonal vibration data required for full shaft orbit analysis. This data feeds directly into the plant's safety instrumented system (SIS) via hardwired relay contacts, ensuring that compressor trip logic operates independently of the process control network.

Water & Wastewater Treatment: Large vertical turbine pumps and horizontal centrifugal pumps in municipal water treatment facilities benefit from proximity probe monitoring to detect impeller imbalance, cavitation-induced vibration, and bearing degradation before catastrophic failure. The 330704-000-100-10-01-RU's robust armored cable construction withstands the humid, chemically aggressive environments typical of pump station installations, while its system-matched calibration ensures alarm setpoints remain accurate without field recalibration.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations present extreme vibration environments that challenge conventional sensor technologies. The eddy-current principle of the 330704-000-100-10-01-RU is immune to the acoustic noise, dust, and mechanical shock that degrade accelerometer-based monitoring systems, making it the preferred technology for mill trunnion bearing monitoring and large drive shaft position measurement in mineral processing applications.

Marine & Offshore: Shipboard propulsion turbines, main engine crankshaft monitoring, and offshore platform gas compression systems require machinery protection sensors certified for marine environments. The 330704-000-100-10-01-RU's temperature range and sealed construction support deployment in engine room and machinery space environments, where ambient temperatures, vibration, and humidity levels exceed the tolerance of standard industrial sensors.

Q1: Is the 330704-000-100-10-01-RU directly interchangeable with other 3300 XL probe configurations, and what system compatibility checks are required before installation?

The 330704-000-100-10-01-RU is a specific configuration within the 3300 XL probe family, defined by its 100 mm probe length, 10 ft cable, and 01 connector type. Before installation, engineers must verify that the paired proximitor/driver (typically the 330180 series) is calibrated for the same probe-cable combination and that the target shaft material matches the calibration standard (AISI 4140 steel). Substituting probes with different length or cable configurations without recalibrating the proximitor will introduce measurement errors that invalidate alarm setpoints. Always confirm the complete probe-cable-proximitor system part numbers against the original engineering documentation before replacement.

Q2: How does the 330704-000-100-10-01-RU integrate with modern DCS and safety systems, and what signal interface standards are supported?

The probe itself outputs an analog voltage signal to the 3300 XL monitor, which then provides multiple integration paths to plant control and safety systems: configurable relay outputs (SPDT, rated for 24 VDC or 120/240 VAC loads) for hardwired trip and alarm logic; 4–20 mA analog retransmission for DCS analog input cards; and optional Modbus RTU or TCP communication via gateway modules for integration with SCADA and asset management platforms. For SIL-rated applications, the relay output path is the preferred integration method, as it provides a hardware-independent protection channel that remains active regardless of communication network status.

Q3: What does the 12-Month Warranty cover, and what long-term supply and maintenance support is available for the 330704-000-100-10-01-RU?

The 12-Month Warranty covers manufacturing defects, calibration accuracy, and electrical performance under normal operating conditions as specified in the product datasheet. It does not cover damage resulting from installation errors, target material incompatibility, or operation outside the specified temperature and cable bend radius limits. For long-term maintenance planning, NANKMOS maintains inventory of the 330704-000-100-10-01-RU and compatible 3300 XL system components, supporting both emergency replacement and scheduled spare parts programs. All units undergo pre-shipment functional testing and calibration verification before dispatch, ensuring that replacement probes are ready for immediate installation without field calibration delays.
