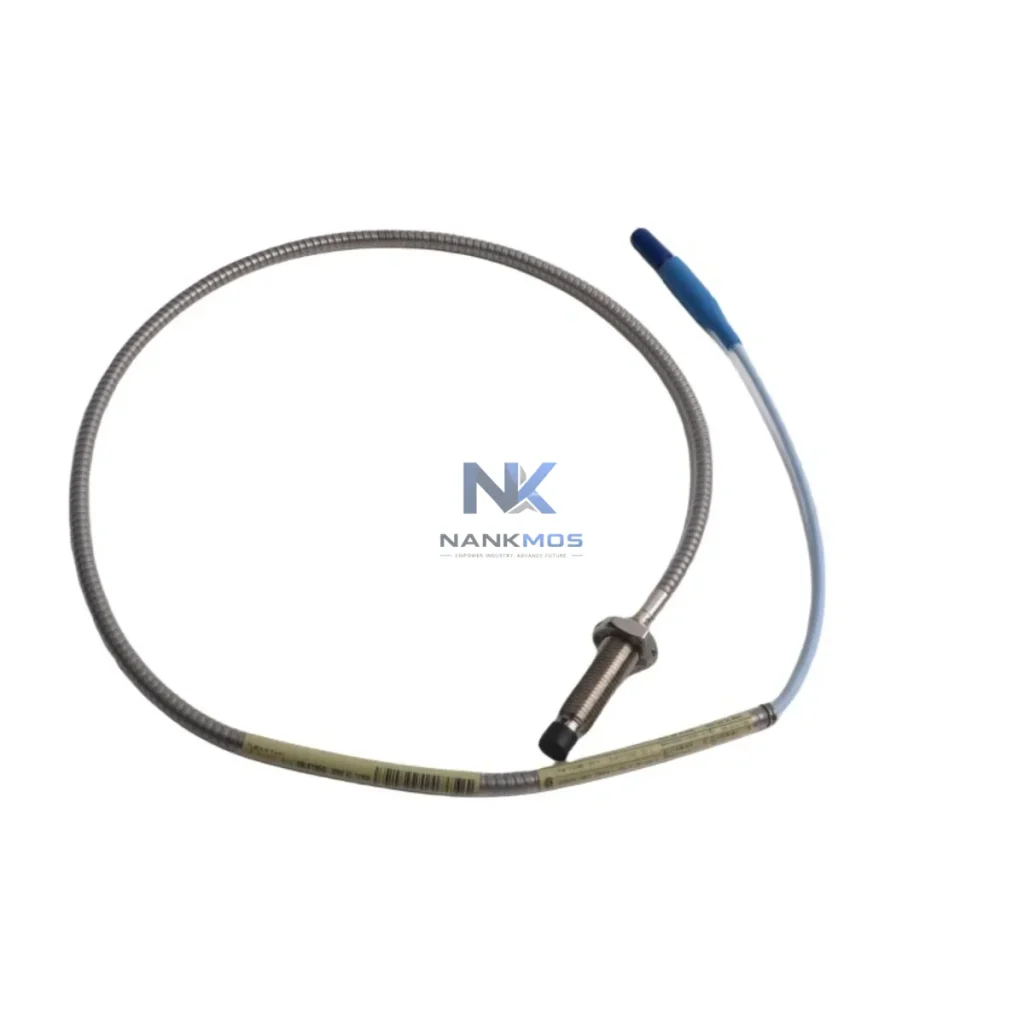

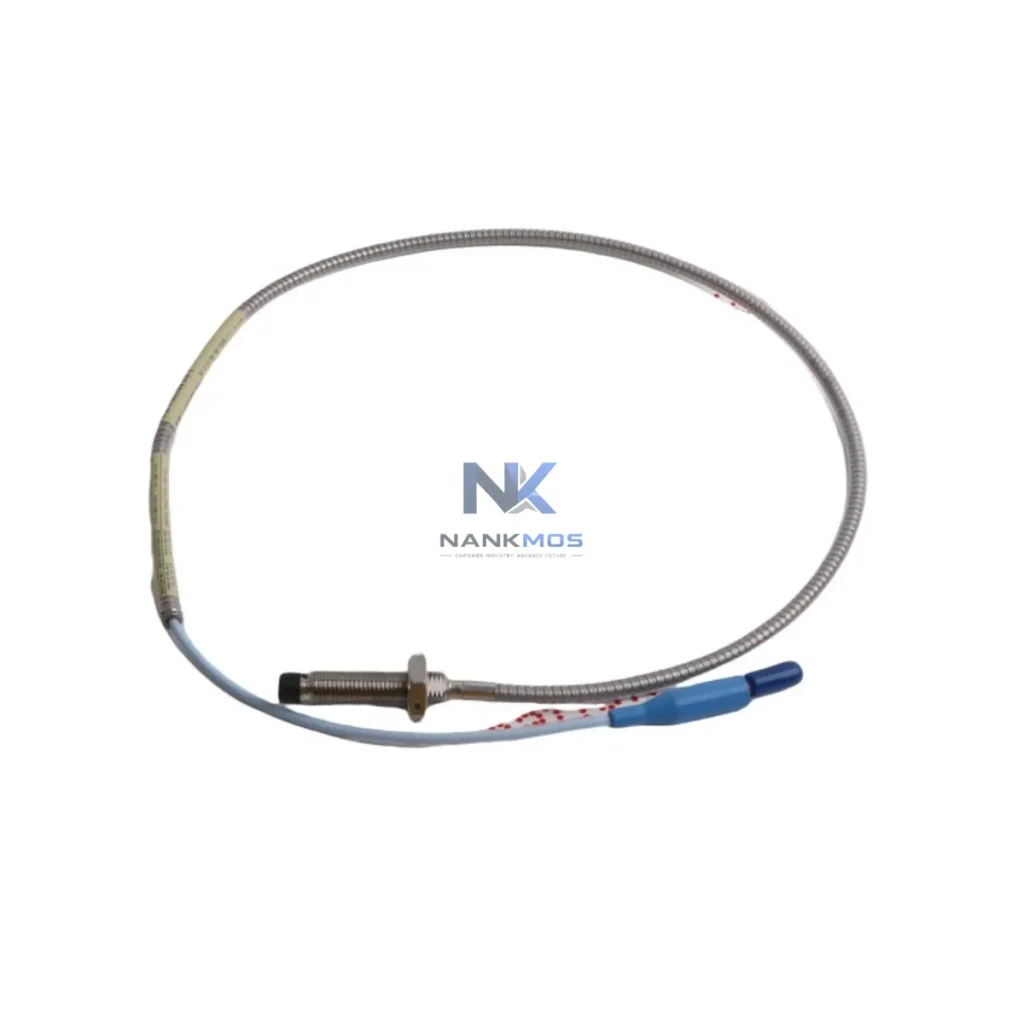

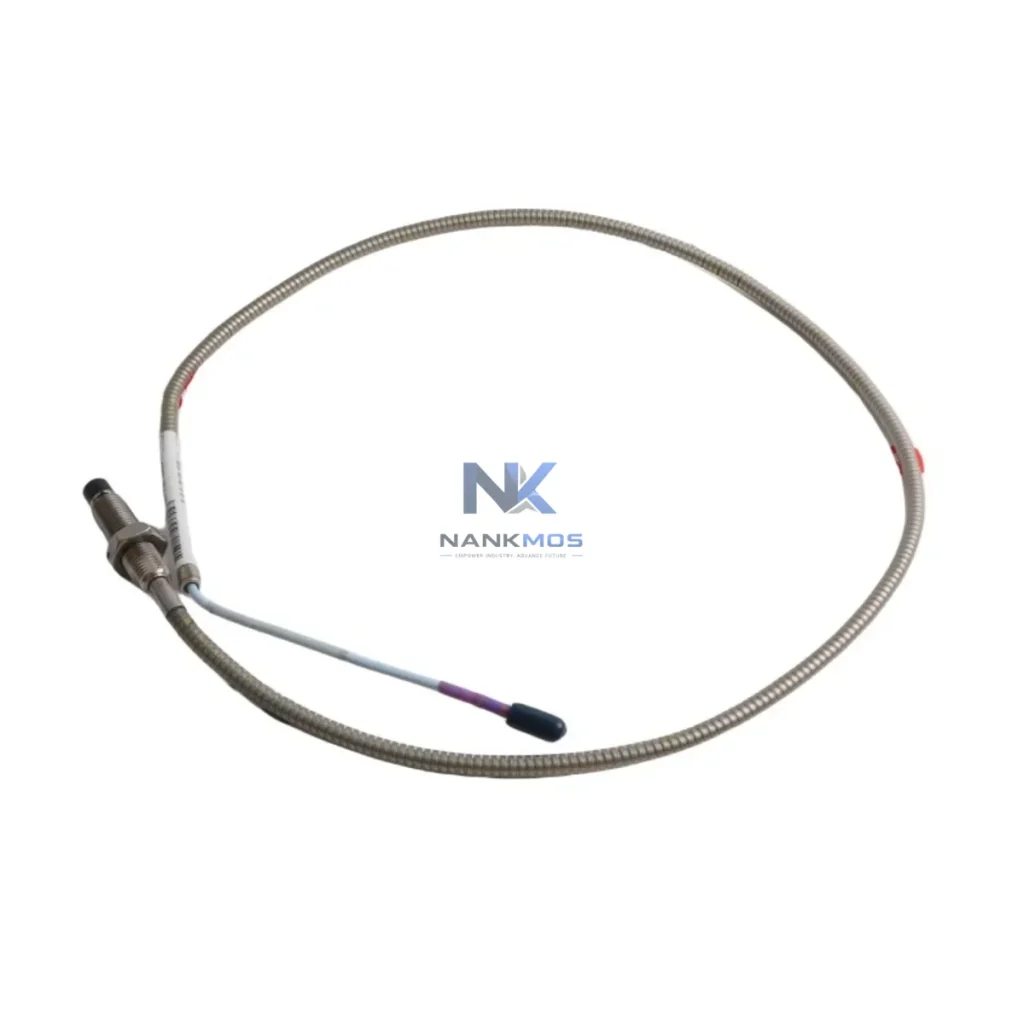

Bently Nevada 330704-000-100-10-11-CN Proximity Probe

Product Details

330704-000-100-10-11-CN Product Description

The Bently Nevada 330704-000-100-10-11-CN is a high-precision eddy-current proximity probe engineered for the 3300 XL Series monitoring system. Designed for continuous, non-contact measurement of shaft displacement and vibration in rotating machinery, this probe serves as the critical sensing node in a fully connected smart factory data chain — from raw signal acquisition at the machine shaft all the way to SCADA dashboards, historian databases, and remote diagnostic platforms.

In modern industrial environments — including power generation turbines, petrochemical compressors, oil & gas pumping stations, water treatment blowers, and marine propulsion drives — real-time vibration data is the foundation of predictive maintenance. The 330704-000-100-10-11-CN integrates seamlessly into the Bently Nevada 3300 XL rack-based monitoring architecture, where its analog output is conditioned by a paired proximitor driver (such as the 3300 XL 8mm Proximitor) before being digitized and transmitted upstream through protocol gateways to plant-level control networks.

The 330704-000-100-10-11-CN sits at the very beginning of the industrial data chain. Mounted at the bearing housing of a rotating machine — a gas turbine, centrifugal compressor, or boiler feed pump — the probe's eddy-current tip generates a continuous analog voltage proportional to the gap between probe tip and shaft surface. This raw signal is routed through a dedicated extension cable to a 3300 XL 8mm Proximitor driver module, which conditions and scales the signal to a standardized DC output range.

The conditioned signal enters the Bently Nevada 3300 XL monitoring rack, where dedicated I/O cards digitize the vibration and position data. Within the same rack, a 3300 XL Communication Gateway module bridges the rack's internal data bus to plant-level fieldbus networks — supporting Modbus RTU over RS-485 for legacy DCS connections, or Modbus TCP over Ethernet for modern SCADA integration. For plants running PROFIBUS DP architectures, a PROFIBUS-to-Ethernet gateway (such as an HMS Anybus or equivalent industrial gateway) can be inserted between the rack output and the plant backbone, ensuring full protocol transparency.

Upstream, a Siemens S7-300 or S7-1500 PLC (or equivalent Allen-Bradley ControlLogix controller) receives the digitized vibration registers via Modbus TCP polling. The PLC logic evaluates alarm thresholds — overall vibration amplitude, 1X and 2X harmonic components, and DC gap voltage — and triggers relay outputs or sends alarm tags to the plant HMI panel (typically a Siemens TP1200 or Rockwell PanelView). Simultaneously, the data stream is forwarded to a SCADA server running Wonderware InTouch, Ignition, or OSIsoft PI, where long-term trending, alarm journaling, and KPI dashboards are maintained.

For remote diagnostic capability, an industrial edge gateway — such as a Moxa UC-8100 or Advantech WISE-5000 — aggregates the Modbus TCP data from multiple 3300 XL racks across the plant floor and publishes it via OPC-UA to cloud-based asset performance management platforms. This enables maintenance engineers to monitor shaft vibration trends, bearing wear indicators, and rotor balance conditions from any location, without physical access to the control room.

Remote I/O modules (such as Phoenix Contact Axioline or Beckhoff EtherCAT I/O terminals) can extend the monitoring network to auxiliary equipment — lube oil pumps, seal gas panels, and cooling fans — feeding additional analog inputs back into the same SCADA historian. The result is a fully transparent, plant-wide vibration and machinery health dataset, anchored by the 330704-000-100-10-11-CN probe at every critical rotating asset.

All units are pre-shipment tested against Bently Nevada factory calibration standards, verified for gap voltage linearity and sensitivity, and shipped with full documentation. In-stock availability ensures minimal lead time for maintenance shutdowns and emergency replacements. Every unit carries a 12-month warranty.

Many industrial plants still operate with fragmented monitoring architectures: standalone vibration analyzers that log data locally, legacy 4–20 mA loops with no digital readback, and paper-based maintenance logs that cannot feed predictive analytics engines. The 330704-000-100-10-11-CN, deployed within the 3300 XL rack system, directly addresses these data gaps.

Protocol fragmentation is resolved by the 3300 XL rack's built-in gateway capability, which translates proprietary rack data into standard Modbus RTU or TCP registers readable by any modern PLC, DCS, or SCADA platform — eliminating the need for custom middleware or OPC bridges. Data islands are eliminated by connecting multiple 3300 XL racks across a single Modbus TCP subnet, allowing a central SCADA server to poll all vibration channels from a unified tag database.

Remote monitoring is enabled through the edge gateway layer: maintenance teams receive push notifications via email or SMS when vibration amplitude exceeds alarm setpoints, with full waveform snapshots stored in the historian for post-event analysis. Production line transparency is achieved by integrating vibration KPIs — bearing condition index, overall vibration trend, and gap DC voltage — directly into the plant's MES or ERP dashboard, giving operations managers real-time visibility into machinery health alongside production throughput metrics.

Alarm traceability is maintained through the SCADA alarm journal, which timestamps every threshold crossing, operator acknowledgment, and maintenance action — providing a complete audit trail for regulatory compliance and root-cause analysis. System expansion is straightforward: additional 330704-series probes and 3300 XL rack slots can be added without reconfiguring the network, as each new channel appears automatically as a new Modbus register address in the existing polling table.

Q1: What communication protocols does the 330704-000-100-10-11-CN support for SCADA integration? The probe itself outputs an analog DC voltage signal, which is digitized by the 3300 XL rack and transmitted via Modbus RTU (RS-485) or Modbus TCP (Ethernet) to SCADA, DCS, or PLC systems. For OPC-UA or PROFIBUS DP integration, a compatible protocol gateway module is used between the rack output and the plant network. This ensures compatibility with Wonderware, Ignition, OSIsoft PI, Siemens WinCC, and all major SCADA platforms.

Q2: How is network stability and data latency managed in high-vibration environments? The 3300 XL rack architecture uses dedicated shielded cabling between the proximity probe and the proximitor driver, minimizing electromagnetic interference from variable-frequency drives, motor starters, and high-current bus bars. The Modbus TCP polling cycle is configurable from 100 ms to several seconds, allowing engineers to balance network bandwidth against data resolution requirements. Industrial-grade managed switches with VLAN segmentation are recommended to isolate vibration monitoring traffic from general plant Ethernet.

Q3: Can the system be expanded to monitor additional machines without redesigning the network? Yes. The 3300 XL rack is modular: additional I/O cards and proximitor channels can be inserted into available rack slots, and each new channel is automatically assigned a sequential Modbus register address. Multiple racks can be daisy-chained on the same RS-485 bus (up to 32 nodes) or connected as individual Modbus TCP devices on the plant Ethernet subnet. No changes to the SCADA tag database structure are required — only new tag mappings for the additional register addresses.

Q4: What pre-shipment testing and warranty coverage is provided? Every 330704-000-100-10-11-CN unit is tested prior to shipment for gap voltage linearity, sensitivity (V/mm), and frequency response in accordance with Bently Nevada factory calibration procedures. Units are verified against the full operating temperature range and confirmed free of mechanical damage or connector corrosion. A 12-month warranty covers manufacturing defects and performance deviations from published specifications. In-stock units are available for immediate dispatch to support planned maintenance outages and emergency replacement requirements.
