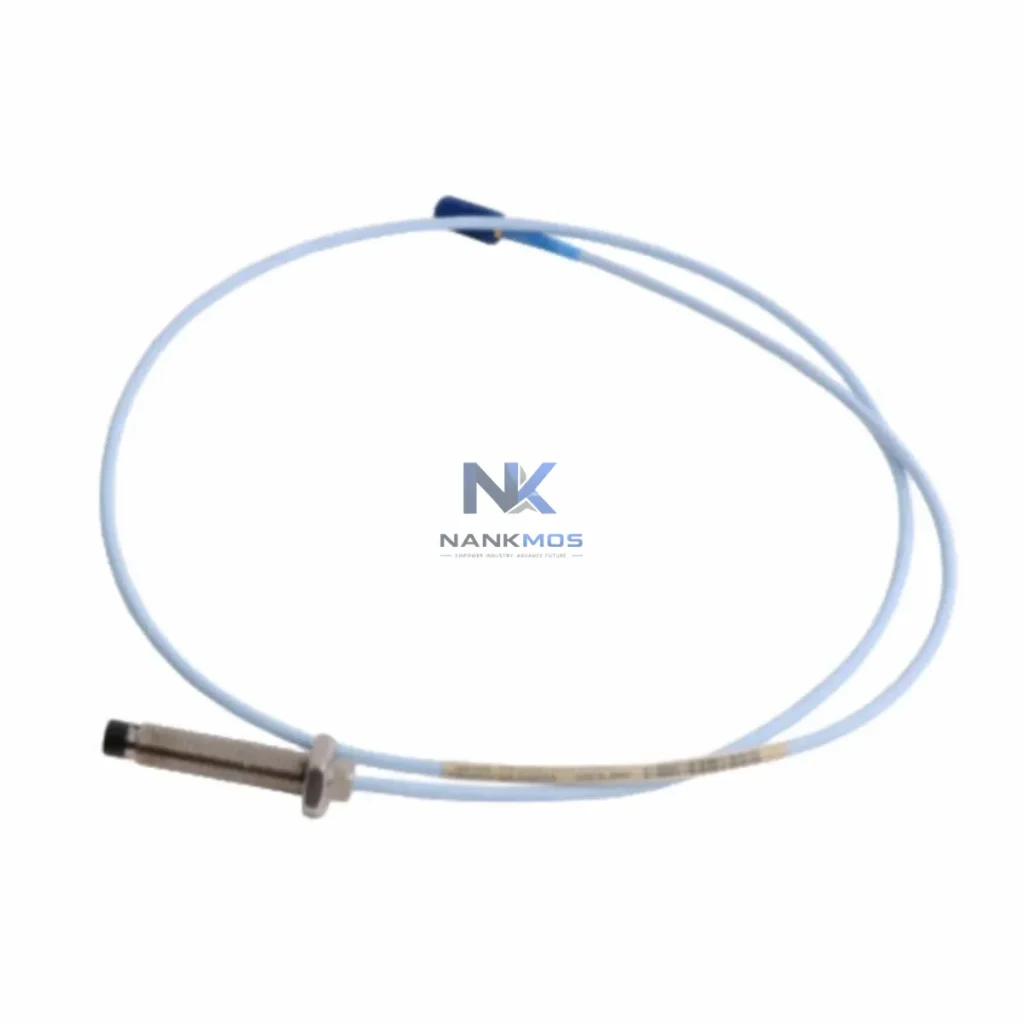

Bently Nevada 330705-02-18-10-02-00 Proximity Probe

Product Details

330705-02-18-10-02-00 Product Description

The Bently Nevada 330705-02-18-10-02-00 is an eddy-current proximity probe engineered for seamless deployment within the 3300 XL Series machinery protection architecture. Designed to deliver continuous, high-resolution radial vibration and position measurements on rotating machinery, this probe integrates directly with the 3300 XL proximitor/extension cable system to form a complete, calibrated sensing chain. Its role within a broader control architecture extends well beyond simple vibration detection — it serves as the foundational signal source for machinery health monitoring, trip logic, alarm management, and predictive maintenance workflows across turbines, compressors, pumps, and motors in demanding industrial environments.

In a fully realized automation architecture, the 330705-02-18-10-02-00 operates at the field sensing layer, feeding conditioned analog signals into the 3300 XL monitor rack. These signals are then processed by monitor modules such as the Bently Nevada 3300/16-02-01-01-00-00 dual-channel vibration monitor, which converts raw proximity data into engineering units for display, alarming, and relay output. The monitor rack communicates upstream via the System 1 Evolution software platform, enabling real-time trending, spectrum analysis, and integration with DCS or SCADA systems through standard communication protocols including Modbus TCP and OPC-UA. This layered architecture — from probe to monitor to communication gateway to control room — ensures that machinery protection decisions are grounded in accurate, low-latency field data.

System consistency is a critical design consideration when specifying proximity probes for the 3300 XL platform. The 330705-02-18-10-02-00 is factory-calibrated as part of a matched probe/extension cable/proximitor set, ensuring that the entire sensing chain operates within the API 670 standard's linearity and sensitivity specifications. Pairing this probe with the correct Bently Nevada 330130-045-00-00 extension cable and a 3300 XL proximitor such as the 330180-X1-05 ensures a system-verified output of 200 mV/mil (7.87 V/mm), maintaining signal integrity across the full measurement range. Substituting unmatched components from other manufacturers risks calibration drift, false alarms, and potential machinery damage — making component-level system matching a non-negotiable engineering requirement.

The 330705-02-18-10-02-00 achieves its full engineering value when deployed as part of a coherent, multi-layer automation architecture. At the monitor layer, the Bently Nevada 3300/16-02-01-01-00-00 dual-channel vibration monitor receives the probe's analog output and applies configurable alarm and trip setpoints, providing relay outputs to the machine's safety interlock system. For installations requiring redundant vibration monitoring, the 3300 XL rack supports dual-voting configurations where two probes — such as a second 330705-series unit — monitor the same shaft plane, with the monitor module performing 1oo2 or 2oo2 voting logic to prevent spurious trips while maintaining protection integrity.

At the communication and integration layer, the Bently Nevada 3500/92 communication gateway bridges the 3300 XL monitor rack to plant-level DCS platforms, transmitting vibration, position, and alarm data over Modbus RTU or Ethernet/IP. This enables the control room operator to view real-time machinery health data alongside process variables from Honeywell Experion PKS or ABB System 800xA DCS controllers, creating a unified operational picture. For facilities running Emerson DeltaV or Yokogawa CENTUM VP, the same gateway architecture applies, with the 3300 XL system functioning as a dedicated machinery protection subsystem feeding alarm states into the main process control loop.

Power supply integrity is equally critical. The 3300 XL proximitor requires a stable -24 VDC supply, typically sourced from a Bently Nevada 3300/20 power supply module or an equivalent DIN-rail mounted industrial power supply with low ripple output. In high-availability installations, redundant power feeds with automatic switchover — using components such as the Phoenix Contact QUINT-PS series or Siemens SITOP PSU300S — ensure that a single power supply failure does not interrupt machinery protection coverage. At the field wiring layer, terminal blocks such as the Weidmüller WDU 2.5 or Phoenix Contact UK 2.5 B provide reliable, vibration-resistant termination points for the probe's integral cable, maintaining signal continuity in high-vibration machinery enclosures.

For HMI and operator interface integration, the System 1 Evolution software platform provides a dedicated machinery health dashboard, displaying gap voltage trends, vibration spectra, and Bode plots derived from the 330705-02-18-10-02-00's signal chain. This data can be exported to historian platforms such as OSIsoft PI or Aspentech IP.21 for long-term trend analysis and predictive maintenance scheduling. In facilities where local HMI panels are required at the machine skid, a Siemens SIMATIC TP700 or Allen-Bradley PanelView 800 can display real-time vibration values via Modbus TCP, providing operators with immediate visual feedback without requiring access to the central control room.

The 330705-02-18-10-02-00 is deployed across a wide spectrum of rotating machinery protection applications in capital-intensive industries where unplanned downtime carries significant operational and financial consequences.

In oil and gas processing and petrochemical plants, this probe is routinely installed on centrifugal compressors, gas turbines, and boiler feed pumps, where continuous radial vibration monitoring is mandated by API 670 and plant safety management systems. The probe's IP67 rating and wide operating temperature range make it suitable for outdoor installations in tropical and arctic climates alike, while its compatibility with the 3300 XL monitor rack ensures seamless integration with existing Bently Nevada infrastructure across multi-train compressor stations.

In power generation — including coal-fired, gas-fired, and combined-cycle plants — the 330705-02-18-10-02-00 monitors steam turbine shaft vibration and axial position, feeding critical protection signals to the turbine control system. Integration with GE Mark VIe or Siemens T3000 turbine control platforms is achieved via the 3300 XL communication gateway, ensuring that vibration trip signals are processed within the turbine's overall protection logic without introducing additional latency.

In water and wastewater treatment facilities, large vertical turbine pumps and centrifugal blowers benefit from continuous proximity monitoring to detect bearing wear and rotor imbalance before catastrophic failure. The probe's robust construction and compatibility with the 3300 XL system's remote monitoring capabilities allow maintenance teams to track machinery health trends from a central SCADA workstation, reducing the need for manual vibration checks and enabling condition-based maintenance scheduling.

In mining and minerals processing, the 330705-02-18-10-02-00 is applied to SAG mill pinion bearings, slurry pump shafts, and conveyor drive motors, where high dust loading, moisture ingress, and mechanical shock are constant environmental challenges. The probe's sealed construction and the 3300 XL system's configurable alarm hysteresis settings allow reliable operation in these demanding conditions, minimizing false trips while maintaining protection sensitivity.

In marine and offshore applications, the probe's compliance with IEC 61511 functional safety requirements supports deployment on LNG carrier compressor trains and offshore platform gas injection systems, where machinery protection systems must meet rigorous SIL 2 or SIL 3 integrity levels.

Q1: Is the 330705-02-18-10-02-00 compatible with existing 3300 XL monitor racks, and does it require recalibration when replacing an older probe? A: Yes. The 330705-02-18-10-02-00 is a direct replacement for earlier 3300 XL series proximity probes of the same tip diameter and cable length configuration. However, because the 3300 XL system uses a matched probe/extension cable/proximitor calibration chain, it is essential to verify that the replacement probe is paired with the correct Bently Nevada extension cable and proximitor model. If the existing extension cable and proximitor are within their service life and have not been physically damaged, the system can typically be returned to service after a gap voltage verification check at the proximitor output — a full system recalibration is only required if any component in the sensing chain is replaced simultaneously. NANKMOS supplies matched component sets on request to simplify field replacement and minimize commissioning time.

Q2: Can this probe be integrated into a redundant vibration monitoring architecture, and what monitor configuration is recommended? A: The 3300 XL platform fully supports redundant probe configurations. For critical machinery where a single probe failure must not result in a loss of protection, two 330705-02-18-10-02-00 probes can be installed 90° apart on the same shaft plane, connected to separate channels of a 3300 XL dual-channel monitor. The monitor can be configured for 1oo2 (one-out-of-two) voting for maximum availability or 2oo2 (two-out-of-two) voting for maximum protection integrity, depending on the machinery's criticality classification under API 670. For SIL-rated applications, the redundant configuration should be validated against the overall safety instrumented function's PFD (Probability of Failure on Demand) calculation, with the 3300 XL system's diagnostic coverage factored into the SIL verification.

Q3: What is the warranty coverage for the 330705-02-18-10-02-00, and what does NANKMOS's pre-shipment testing process include? A: All 330705-02-18-10-02-00 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Prior to shipment, each unit undergoes a functional verification test that confirms gap voltage output linearity across the full measurement range, cable continuity and insulation resistance, and connector integrity. Units that do not meet Bently Nevada's published sensitivity and linearity specifications are quarantined and not shipped. In-stock units are available for same-week dispatch to support urgent maintenance and shutdown requirements. For project orders requiring multiple units, NANKMOS can provide batch test certificates on request to support site acceptance testing documentation.
