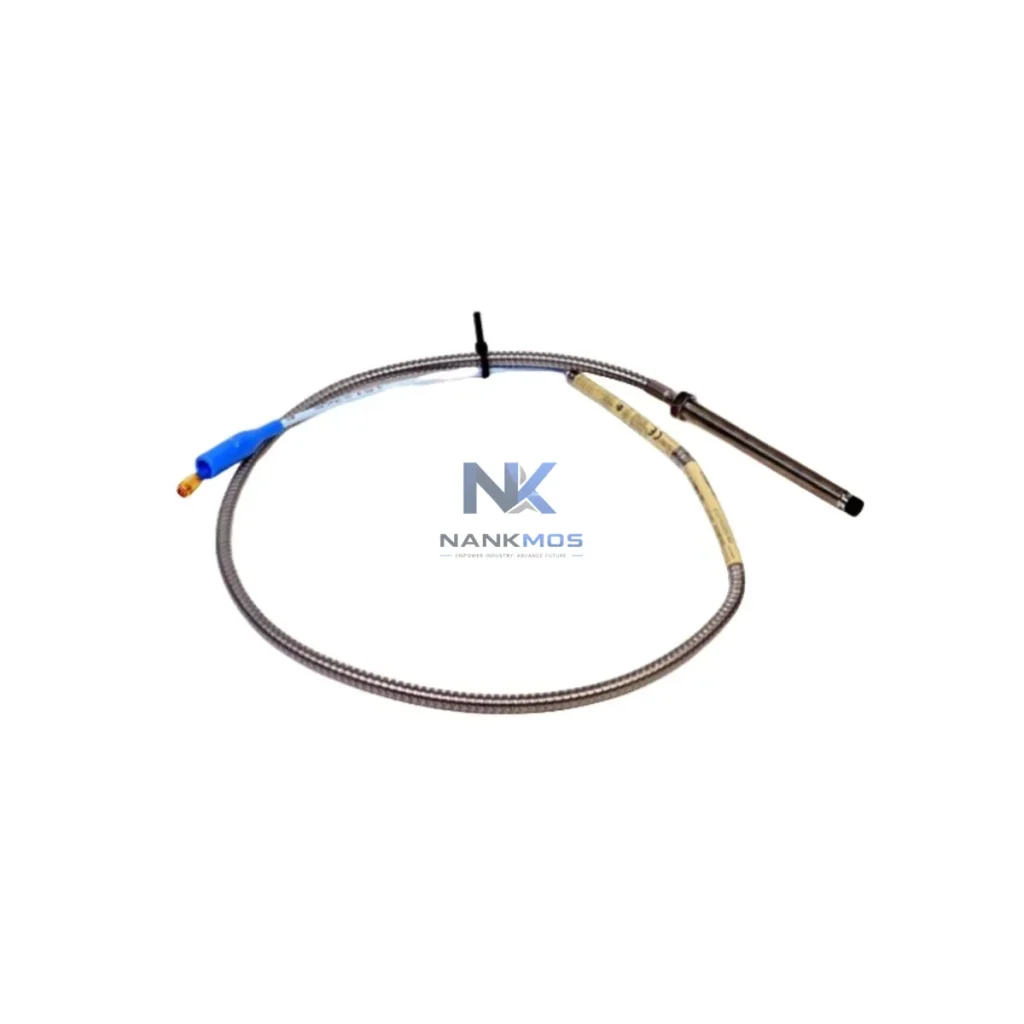

Bently Nevada 330710-00-05-50-02-05 Proximity Probe

Product Details

330710-00-05-50-02-05 Product Description

The Bently Nevada 330710-00-05-50-02-05 is a precision 11mm eddy-current proximity probe from the industry-leading 3300 XL Series, engineered for continuous shaft vibration, radial displacement, and axial position monitoring in rotating machinery. Designed to integrate seamlessly into modern smart factory data architectures, this probe delivers real-time analog signal output that feeds directly into vibration monitoring systems, DCS platforms, SCADA networks, and edge computing gateways — forming the critical first link in a plant-wide industrial data chain.

In high-stakes environments such as turbine halls, compressor trains, pump stations, and motor-driven process lines, the 330710-00-05-50-02-05 provides the raw vibration signal that drives predictive maintenance decisions. Its output connects to Bently Nevada 3500 Series rack-based monitoring systems, where signal conditioning modules convert analog proximity data into digital values transmitted over Modbus RTU, Modbus TCP/IP, or OPC-UA to upstream SCADA and historian platforms. This end-to-end signal path — from rotating shaft to control room dashboard — is the backbone of any connected factory reliability program.

The 330710-00-05-50-02-05 proximity probe sits at the very origin of the industrial data chain. Mounted on a bearing housing or shaft journal, it continuously measures the gap between probe tip and rotating shaft surface, generating a voltage signal proportional to displacement. This analog signal travels through a matched Bently Nevada 330130 extension cable to a 330180 proximitor/driver, which conditions and amplifies the signal before feeding it into a Bently Nevada 3500/40M proximitor I/O module installed in the 3500 Series rack.

Within the 3500 rack, the 3500/20 rack interface module aggregates data from multiple channels — including temperature inputs from Bently Nevada 3500/60 temperature monitor cards and process variable inputs from 3500/70M process variable monitor modules — and transmits the consolidated dataset over Modbus TCP/IP to the plant DCS or SCADA server. Operators viewing a GE Proficy iFIX or Wonderware InTouch HMI screen receive live vibration trend data, alarm states, and machine health indicators in real time.

For facilities deploying edge intelligence, the 3500 rack's serial or Ethernet output can be routed through an industrial edge gateway — such as a Moxa MGate MB3480 Modbus-to-Ethernet converter or a Bently Nevada System 1 data concentrator — enabling cloud-based analytics, remote diagnostics, and AI-driven predictive maintenance without disrupting the existing control network. Vibration data from the 330710-00-05-50-02-05 can be time-stamped, stored in a PI Historian, and visualized on dashboards alongside data from Bently Nevada 3500/42M velocity and acceleration monitors, creating a complete machine health picture across the entire rotating equipment fleet.

In multi-machine architectures, the probe's data stream integrates with Bently Nevada 3500/15 power supply modules and 3500/22M transient data interface cards to capture startup and shutdown transients — critical for identifying resonance issues, critical speed crossings, and bearing wear patterns that steady-state monitoring alone cannot detect. This transient data, combined with steady-state proximity readings, feeds into System 1 software for automated alarm correlation, trend analysis, and maintenance scheduling across turbines, compressors, and motor-driven pump trains.

Protocol fragmentation is one of the most persistent challenges in industrial reliability programs. Many plants operate legacy vibration monitoring systems that output only 4–20 mA analog signals or proprietary serial data, creating data silos that prevent integration with modern SCADA and MES platforms. The Bently Nevada 3300 XL / 3500 ecosystem — anchored by the 330710-00-05-50-02-05 probe — addresses this directly: the 3500 rack supports simultaneous Modbus RTU, Modbus TCP/IP, and OPC-UA output, allowing a single monitoring rack to serve both legacy DCS systems and modern IIoT platforms without protocol conversion middleware.

Remote monitoring gaps are equally critical. In unmanned substations, offshore platforms, or remote compressor stations, operators cannot physically inspect machinery. The 330710-00-05-50-02-05, connected through the 3500 rack's network interface, enables continuous remote vibration surveillance. Alarm thresholds configured in the 3500/20 rack interface module trigger automatic notifications to SCADA alarm management systems, ensuring that bearing failures, rotor imbalance, or misalignment events are detected and escalated before catastrophic failure occurs.

Production line transparency improves dramatically when proximity probe data is correlated with process variables. By combining shaft vibration data from the 330710-00-05-50-02-05 with flow, pressure, and temperature readings from field instruments connected to the same DCS network, maintenance engineers can distinguish mechanical faults from process-induced vibration — reducing false alarms and focusing maintenance resources on genuine equipment health issues. This data correlation capability is the foundation of a truly transparent, data-driven smart factory.

System scalability is built into the 3300 XL / 3500 architecture. Additional probes, temperature sensors, and process variable monitors can be added to the 3500 rack without disrupting existing channels, and the rack's network output scales to support plant-wide historian integration, MES connectivity, and enterprise asset management (EAM) system synchronization — all from a single, standardized monitoring platform.

Q1: What communication protocols does the Bently Nevada 330710-00-05-50-02-05 system support for SCADA integration? The 330710-00-05-50-02-05 probe outputs an analog voltage signal to the Bently Nevada 3500 Series monitoring rack. The 3500 rack's communication modules support Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), and OPC-UA, enabling direct integration with SCADA platforms such as Wonderware, GE Proficy, Ignition, and ABB 800xA without additional protocol converters.

Q2: How is network stability and data continuity ensured in continuous monitoring applications? The 3500 Series rack architecture provides redundant power supply options (via 3500/15 dual power supply modules) and supports watchdog-monitored communication channels. In the event of a network interruption, the rack buffers alarm states locally and resynchronizes with the SCADA historian upon reconnection, ensuring no critical vibration events are lost during transient network outages.

Q3: Can the 330710-00-05-50-02-05 be used for remote diagnostics and predictive maintenance programs? Yes. When connected through the Bently Nevada System 1 software platform or a compatible edge gateway, the probe's vibration data can be accessed remotely via secure Ethernet connection. Trend data, alarm history, and waveform snapshots are available for remote analysis by reliability engineers, enabling condition-based maintenance scheduling without requiring on-site personnel for routine data collection.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this product? All Bently Nevada 330710-00-05-50-02-05 units supplied by NANKMOS carry a 12-month warranty and undergo pre-shipment functional testing to verify probe sensitivity, output linearity, and cable integrity. Units are shipped with full traceability documentation. In-stock units are available for immediate dispatch to support urgent maintenance and replacement requirements.
