Bently Nevada 330750-60-05 Vibration Sensor

Product Details

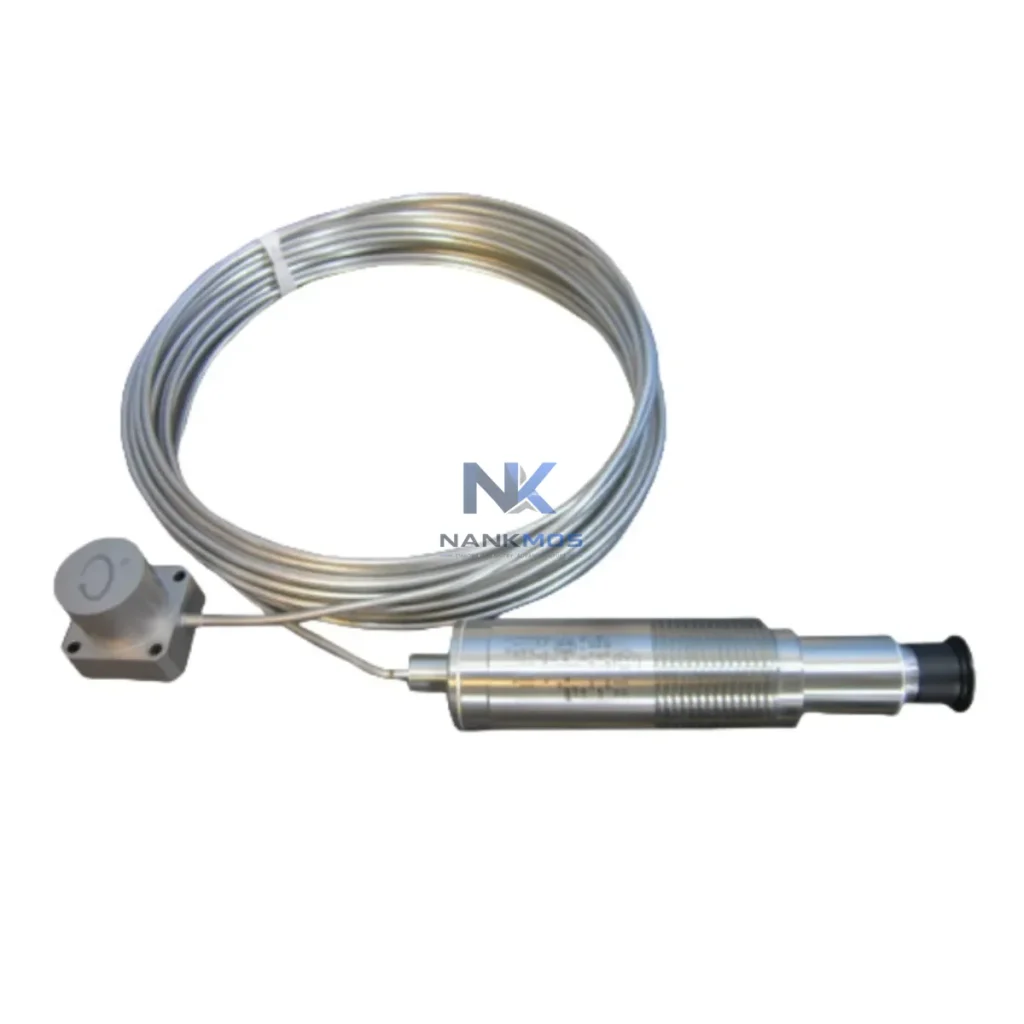

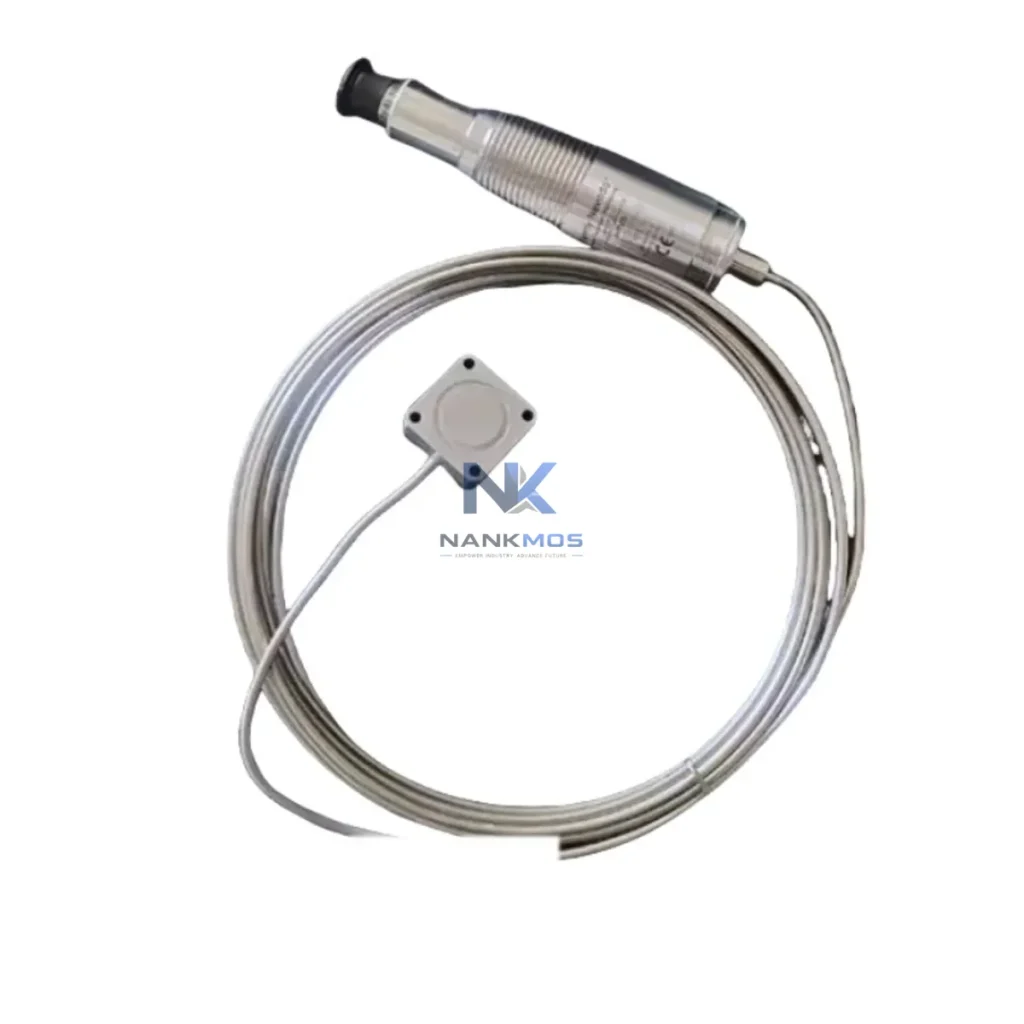

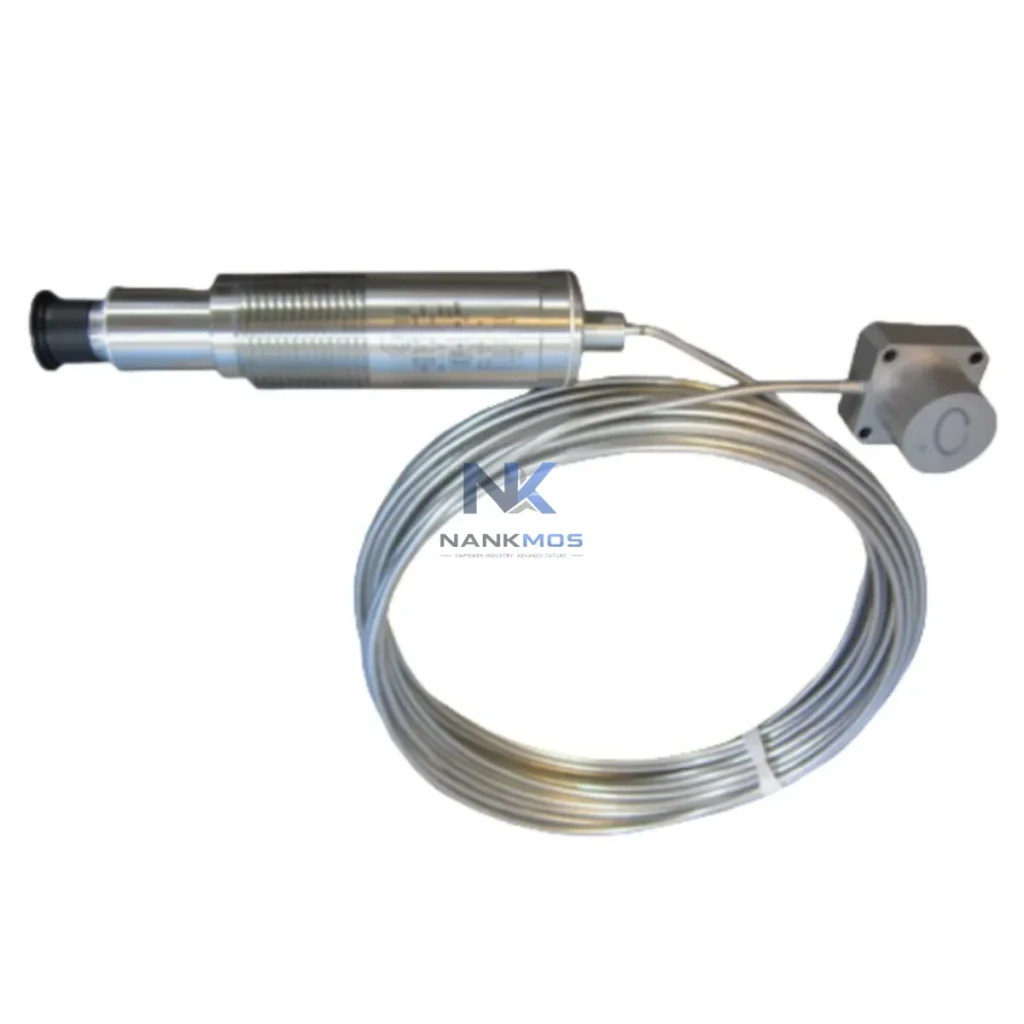

330750-60-05 Product Description

The Bently Nevada 330750-60-05 is a high-performance Velomitor piezo-velocity sensor engineered for seamless integration within the Bently Nevada 3500 Series machinery protection architecture. Designed to deliver accurate, low-noise seismic velocity measurements on rotating and reciprocating equipment, this sensor serves as a critical node in the vibration monitoring layer of industrial control systems. Its ICP-compatible signal output ensures direct compatibility with the 3500/42M Proximitor/Seismic Monitor module, enabling real-time machinery health data to flow reliably into the broader automation and protection platform.

Unlike conventional accelerometers, the 330750-60-05 Velomitor provides a velocity-domain output that simplifies integration with existing 3500 rack infrastructure without requiring additional signal conditioning hardware. This reduces wiring complexity, minimizes potential signal degradation points, and accelerates commissioning timelines on new installations or retrofit projects. The sensor's rugged stainless-steel housing and wide operating temperature range make it suitable for deployment in demanding environments including power generation turbines, compressor trains, pump sets, and gearbox assemblies across petrochemical, oil and gas, water treatment, mining, and marine propulsion applications.

From a control architecture perspective, the 330750-60-05 occupies the field sensing layer and feeds conditioned velocity signals upward through the I/O and monitoring layers. Within a fully configured 3500 rack, this sensor pairs directly with the 3500/42M monitor card, which in turn communicates alarm and trip status to the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway for Modbus RTU, Modbus TCP/IP, or OPC-DA/OPC-UA data delivery to SCADA and DCS platforms. This layered signal flow ensures that machinery protection decisions are made at the rack level while operational data is simultaneously available to higher-level control and historian systems.

System redundancy is a core design consideration when deploying the 330750-60-05 in critical machinery protection applications. The sensor can be installed alongside complementary proximity transducers such as the 3300 XL 8mm Proximity Transducer System or the 330180-91-00 Proximitor to provide multi-parameter monitoring on the same shaft or bearing housing. This multi-sensor approach, supported by the 3500 rack's modular architecture, enables simultaneous radial vibration, axial position, and seismic velocity monitoring — delivering the redundancy and diagnostic depth required by API 670 machinery protection standards.

Engineering integration of the 330750-60-05 into a complete automation platform typically involves coordination across multiple system layers. At the power layer, the 3500/15 Power Supply Module provides regulated DC power to the rack, ensuring stable sensor excitation voltage. At the communication layer, the 3500/92 Communication Gateway bridges the protection system to plant-wide Ethernet networks, enabling the 330750-60-05's velocity data to be consumed by System 1 Evolution software for advanced machinery diagnostics and trending. At the HMI layer, operators can visualize real-time vibration trends and alarm states through integrated SCADA displays or dedicated machinery management workstations running System 1 or equivalent condition monitoring platforms.

For installations requiring expanded I/O capacity, the 330750-60-05 can be deployed across multiple 3500 rack positions using the 3500/20 Rack Interface Module as the system backbone. Additional monitor cards such as the 3500/40M Proximitor/Seismic Monitor or the 3500/50M Tachometer Input Module can be added to the same rack to build a comprehensive, multi-channel protection system without increasing the control cabinet footprint. This modular expandability is a key advantage of the 3500 architecture, allowing engineers to scale protection coverage as machinery trains grow or process requirements evolve.

Pre-shipment testing is performed on every 330750-60-05 unit to verify sensitivity, frequency response, and output linearity against factory specifications before dispatch. Each sensor ships with documentation supporting traceability and installation verification. A 12-Month Warranty is included as standard, covering manufacturing defects and ensuring operational confidence from initial commissioning through the first year of service. In-stock availability supports rapid deployment for both planned maintenance outages and unplanned replacement scenarios, minimizing machinery downtime and protecting production continuity.

The 330750-60-05 Velomitor sensor achieves its full diagnostic value when deployed as part of a coordinated automation platform rather than as a standalone device. Within a typical 3500 Series rack configuration, the sensor interfaces with the 3500/42M Proximitor/Seismic Monitor for signal conditioning and alarm processing. The rack itself is powered by the 3500/15 Power Supply Module, which provides dual-redundant DC power rails to ensure uninterrupted sensor excitation even during power supply maintenance events.

Shaft position and radial vibration data from complementary 3300 XL 8mm Proximity Transducer Systems and 330180-91-00 Proximitor drivers can be combined with the 330750-60-05's seismic velocity output within the same rack, giving protection engineers a complete multi-parameter view of rotating machinery health. The 3500/20 Rack Interface Module serves as the system backbone, coordinating data flow between monitor cards and the communication layer.

At the communication layer, the 3500/92 Communication Gateway exports real-time vibration data via Modbus TCP/IP or OPC-UA to DCS platforms, SCADA historians, and condition monitoring software such as System 1 Evolution. For transient event capture during startup and shutdown, the 3500/22M Transient Data Interface records high-resolution waveform data that supports root-cause analysis and machinery diagnostics. Where tachometer reference signals are required for phase-referenced vibration analysis, the 3500/50M Tachometer Input Module provides synchronized speed tracking across the rack.

In control cabinet installations, the 330750-60-05 field cabling terminates at marshalling panels equipped with signal isolators and terminal modules that protect the monitoring system from ground loops and EMI interference common in heavy industrial environments. For applications requiring integration with safety instrumented systems, the 3500 rack's alarm relay outputs connect directly to SIS logic solvers, ensuring that machinery trip signals are delivered to the safety layer with the determinism and reliability required by IEC 61511 functional safety standards.

Power Generation: Steam and gas turbine protection systems rely on the 330750-60-05 to monitor bearing housing vibration on high-speed rotating machinery. The sensor's wide frequency range captures both low-frequency imbalance signatures and high-frequency blade-pass events, supporting continuous machinery health assessment during baseload and peaking operations.

Petrochemical & Oil and Gas: Compressor trains and pump sets in refinery and upstream processing facilities benefit from the sensor's rugged stainless-steel construction and high-temperature tolerance. Integration with the 3500 rack's Modbus TCP/IP gateway enables vibration data to flow directly into plant DCS systems for unified process and machinery monitoring.

Water Treatment & Mining: Large pump stations and ore processing mills deploy the 330750-60-05 on motor-driven equipment where continuous vibration monitoring reduces unplanned downtime and extends bearing service life. The sensor's ICP output simplifies field wiring in distributed installations where long cable runs between machinery and control rooms are common.

Marine Propulsion & Metallurgy: Shipboard propulsion systems and steel mill rolling lines operate in high-vibration, high-temperature environments where sensor reliability is non-negotiable. The 330750-60-05's pre-shipment testing and 12-Month Warranty provide the assurance required for critical marine classification and metallurgical process applications.

Packaging & Process Control: High-speed packaging lines and continuous process plants use seismic velocity sensors to detect early-stage mechanical degradation on gearboxes, fans, and conveyor drives, enabling condition-based maintenance scheduling that reduces both maintenance costs and production interruptions.

Q1: Is the 330750-60-05 directly compatible with the existing 3500/42M monitor cards in my rack without additional signal conditioning? Yes. The 330750-60-05 Velomitor produces an ICP-compatible voltage output that connects directly to the 3500/42M Proximitor/Seismic Monitor input channels. No external signal conditioner or transmitter is required. The 3500/42M provides the constant-current excitation required by the ICP circuit and processes the velocity signal internally for alarm and trip evaluation. Verify that your 3500/42M firmware revision supports Velomitor input configuration, and confirm channel assignment in the rack configuration software before commissioning.

Q2: Can the 330750-60-05 be used alongside proximity transducers in the same 3500 rack for multi-parameter shaft monitoring? Yes. The 3500 architecture is designed for mixed-sensor configurations. The 330750-60-05 occupies seismic monitor channels on the 3500/42M, while proximity transducers such as the 3300 XL 8mm system connect to Proximitor monitor channels on the same or adjacent cards within the rack. The 3500/20 Rack Interface Module coordinates data from all monitor cards and presents a unified machinery health picture to the communication gateway. This multi-parameter approach is fully consistent with API 670 requirements for comprehensive rotating machinery protection.

Q3: What warranty and supply assurance does NANKMOS provide for the 330750-60-05, and how quickly can replacement units be dispatched for emergency maintenance? Every 330750-60-05 supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and performance conformance to published specifications. Units are held in stock and undergo pre-shipment functional testing before dispatch to verify sensitivity and frequency response. For emergency maintenance scenarios, expedited shipping arrangements are available to minimize machinery downtime. Contact [email protected] or +86 18359268345 to confirm current stock levels and lead times for your specific quantity requirement.
