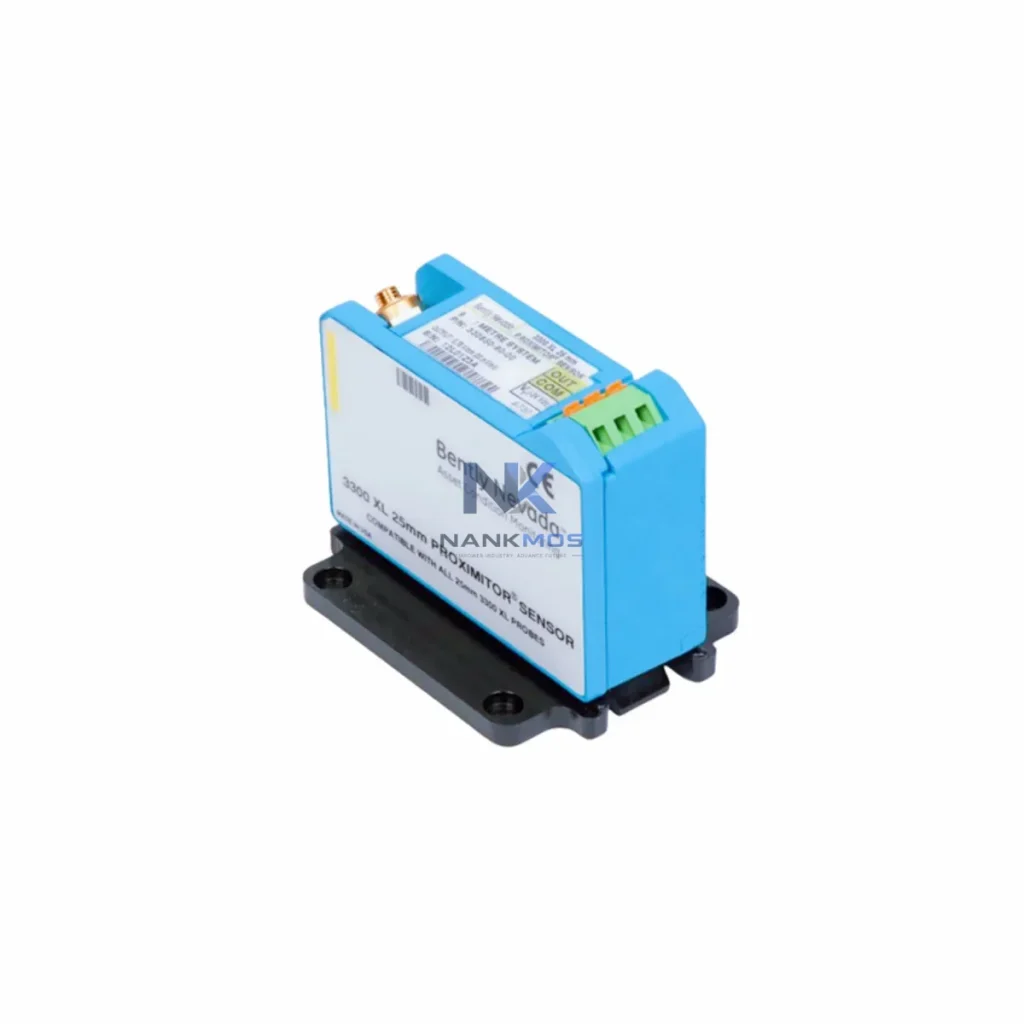

Bently Nevada 330850-91-00 Vibration Monitor

Product Details

330850-91-00 Product Description

The Bently Nevada 330850-91-00 is not a standalone instrument — it is a precision node within a layered machinery protection and process control architecture. Understanding its role requires examining how it interacts with adjacent modules across the control hierarchy.

At the control layer, the 330850-91-00 feeds real-time vibration data to the plant DCS or safety instrumented system (SIS). In a typical refinery or power generation facility, this module operates alongside the Bently Nevada 3500/22M Transient Data Interface, which captures high-resolution waveform data for post-event analysis. The two modules share the same 3300 Series rack backplane, ensuring synchronised sampling and minimal latency between measurement and protective action.

At the I/O and signal layer, the 330850-91-00 accepts inputs from Bently Nevada 330780 proximity transducers and 330130 extension cables, forming a complete eddy-current measurement chain. Signal conditioning is handled internally, eliminating the need for external signal isolators in most installations. Where galvanic isolation is required between the field loop and the control network, a Bently Nevada 3300/20 I/O module or a third-party DIN-rail signal isolator can be inserted without disrupting the measurement chain.

At the communication layer, the 330850-91-00 integrates with the Bently Nevada 3500/92 Communication Gateway, which bridges the proprietary rack bus to Modbus RTU, Modbus TCP/IP, or OPC-DA/OPC-UA for upstream SCADA connectivity. This gateway enables the vibration data collected by the 330850-91-00 to appear as live process variables in platforms such as GE iFIX, Wonderware System Platform, or Emerson DeltaV — supporting Contextual Integration across the full automation stack.

At the power layer, the module draws regulated DC power from the Bently Nevada 3300/15 Power Supply module housed in the same rack. Redundant power supply configurations — using two 3300/15 units in parallel — are strongly recommended for critical machinery protection applications, ensuring uninterrupted monitoring even during a single power module failure.

At the HMI and visualisation layer, vibration trends from the 330850-91-00 are displayed on operator workstations running Bently Nevada System 1 software. System 1 provides vector plots, Bode diagrams, orbit plots, and alarm management dashboards that allow maintenance engineers to distinguish between mechanical looseness, rotor imbalance, misalignment, and bearing defects — all from a single unified interface.

At the protection and relay layer, the module's relay outputs connect to the plant's emergency shutdown (ESD) logic or to a Bently Nevada 3300/55 Relay Module for configurable trip and alarm setpoints. This ensures that when vibration amplitude exceeds the danger threshold, the protective relay fires within milliseconds, isolating the rotating machine before catastrophic failure occurs.

At the maintenance and diagnostics layer, the 330850-91-00 supports in-rack self-test routines and front-panel LED status indicators that confirm channel health, power status, and alarm state without requiring a laptop connection. For deeper diagnostics, the Bently Nevada TDXnet transient data acquisition network can be layered on top of the existing rack infrastructure, capturing full-spectrum vibration data during machine startups and coastdowns for detailed rotor dynamic analysis.

In summary, the 330850-91-00 is the measurement foundation upon which the entire 3300 Series machinery protection system is built. Its compatibility with the 330780 proximity transducer, 3300/15 power supply, 3300/20 I/O module, 3500/22M transient interface, 3500/92 communication gateway, 3300/55 relay module, and System 1 software makes it a fully integrated component — not merely a replacement part.

Power Generation: In gas turbine and steam turbine protection systems, the 330850-91-00 monitors shaft radial vibration on both drive-end and non-drive-end bearings. Paired with axial position monitors and speed sensors in the same 3300 Series rack, it provides the complete vibration signature required by API 670 machinery protection standards. Operators at combined-cycle power plants rely on this module to detect early-stage rotor instability before it escalates to a forced outage.

Petrochemical and Refining: Centrifugal compressors and process pumps in ethylene crackers, crude distillation units, and LNG liquefaction trains operate continuously under high mechanical stress. The 330850-91-00 provides the continuous radial vibration monitoring mandated by API 670 and ISO 10816, feeding alarm and trip signals directly to the plant SIS. Its wide operating temperature range and robust rack-mount design make it suitable for both air-conditioned control rooms and field-mounted junction box installations.

Water and Wastewater Treatment: Large-bore centrifugal pumps and blower trains in municipal water treatment facilities benefit from continuous vibration monitoring to extend mean time between failures (MTBF). The 330850-91-00, integrated with a SCADA system via the 3500/92 gateway, enables remote condition monitoring without requiring on-site personnel for routine checks — reducing operational expenditure and improving asset availability.

Mining and Minerals Processing: Ball mills, SAG mills, and conveyor drive motors in copper, gold, and iron ore processing plants are subject to extreme mechanical loading. The 330850-91-00 provides early warning of bearing wear and structural looseness, allowing maintenance teams to schedule planned shutdowns rather than respond to unplanned failures — a critical advantage in remote mine sites where spare parts logistics are complex.

Marine and Offshore: Shipboard propulsion systems and offshore platform compressor trains require vibration monitoring equipment certified for marine environments. The 330850-91-00, when installed in a climate-controlled equipment room, meets the mechanical robustness requirements for marine applications and integrates with vessel management systems via Modbus TCP/IP through the 3500/92 gateway.

Q1: Is the Bently Nevada 330850-91-00 compatible with both the 3300 Series and 3500 Series rack systems? The 330850-91-00 is designed specifically for the 3300 Series rack chassis and backplane. It is not directly interchangeable with 3500 Series modules, which use a different form factor, connector pinout, and communication bus. If your facility is migrating from a 3300 Series to a 3500 Series architecture, a direct module-for-module replacement is not possible — a full rack and wiring replacement is required. NANKMOS can supply both 3300 Series and 3500 Series modules and advise on migration planning. 12-Month Warranty applies to all supplied units.

Q2: Can the 330850-91-00 be integrated with a third-party DCS such as Emerson DeltaV, Honeywell Experion, or ABB 800xA? Yes. Contextual Integration with third-party DCS platforms is achieved via the Bently Nevada 3500/92 Communication Gateway, which exposes vibration data as Modbus TCP/IP or OPC-DA process variables. These variables can be mapped directly into the DCS historian and alarm management system. For OPC-UA connectivity — required by newer DCS versions — an OPC-UA server licence for System 1 software is required in addition to the gateway hardware. NANKMOS supplies the complete integration stack including gateway, software licences, and configuration support.

Q3: What is the lead time and warranty coverage for the 330850-91-00? NANKMOS maintains in-stock inventory of the 330850-91-00 for immediate dispatch. Standard lead time is 3–7 business days for international shipments, subject to customs clearance. Each unit undergoes pre-shipment functional testing including channel calibration verification and relay output confirmation. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For urgent requirements, expedited shipping options are available — contact [email protected] or call +86 18359268345.
