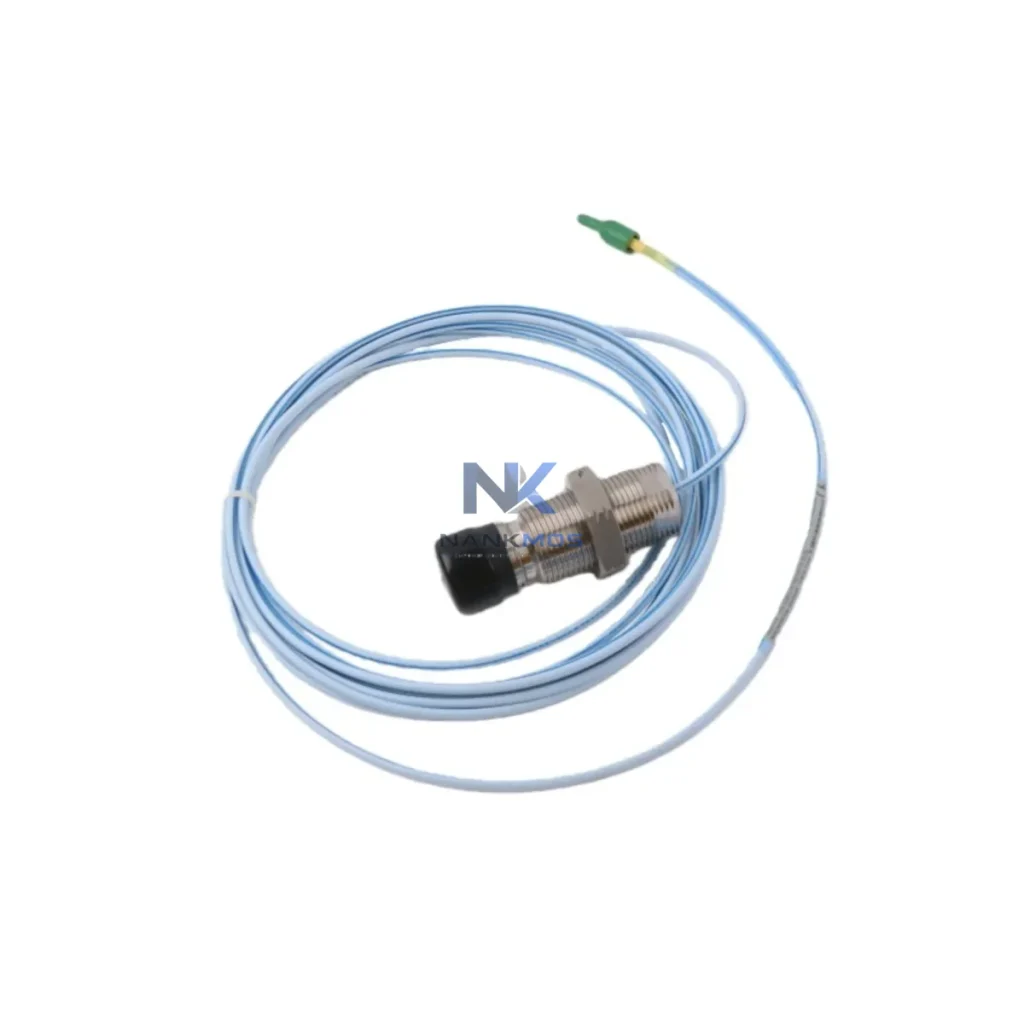

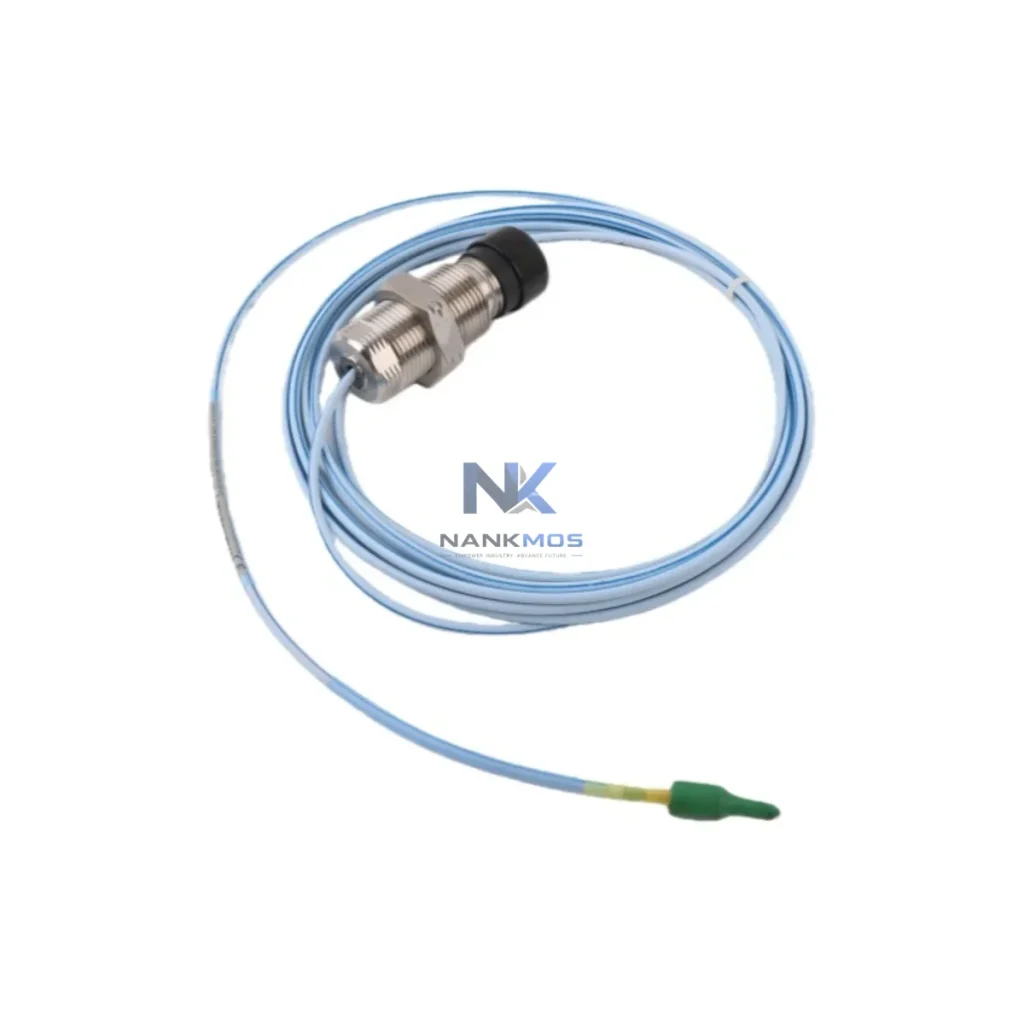

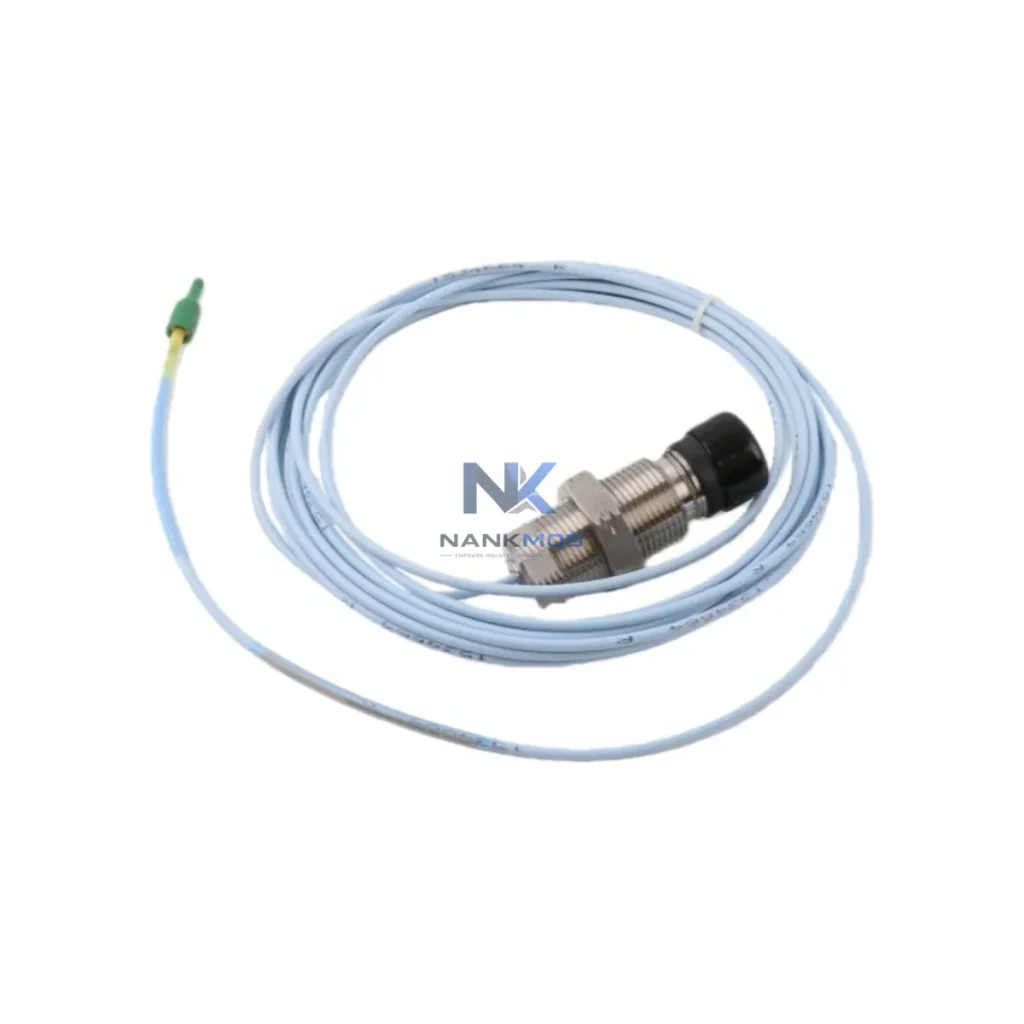

Bently Nevada 330851-02-000-060-50-00-CN Proximity Probe

Product Details

330851-02-000-060-50-00-CN Product Description

The Bently Nevada 330851-02-000-060-50-00-CN is a high-precision proximity probe engineered for the 3300 XL continuous machinery monitoring system. Designed to operate at the intersection of field-level signal acquisition and plant-wide data communication, this probe delivers reliable, real-time vibration and position data across the full industrial connectivity chain — from rotating equipment to SCADA dashboards, HMI panels, and enterprise asset management platforms.

In modern smart factory environments, the integrity of the data link between physical machinery and digital control systems is paramount. The 330851-02-000-060-50-00-CN serves as the critical sensing node in that chain, capturing sub-micron displacement signals from rotating shafts and transmitting conditioned analog outputs to the 3300 XL monitor rack. From there, data flows through protocol gateways — such as the Bently Nevada System 1 software platform or third-party Modbus TCP / OPC-UA communication modules — into SCADA systems, DCS controllers, and cloud-based analytics engines.

The 330851-02-000-060-50-00-CN operates as the sensing origin point in a layered industrial data architecture. At the field level, the probe tip — positioned within 2 mm of a rotating shaft — generates a continuous eddy-current signal proportional to the gap distance. This raw signal travels through the matched extension cable and Bently Nevada 330130-080-01-CN proximitor/driver to the 3300 XL monitor module, where it is conditioned, scaled, and converted into a standardized analog output.

The monitor rack interfaces with a Bently Nevada 3500/22M transient data interface or a dedicated Modbus RTU-to-TCP gateway — such as units from the Moxa NPort or HMS Anybus gateway families — enabling the vibration and position data to be encapsulated into standard industrial Ethernet frames. These frames are then routed across the plant's managed industrial Ethernet switch infrastructure (e.g., Hirschmann RS20 or Cisco IE3400 series) to the SCADA server running platforms such as GE iFIX, Wonderware AVEVA, or Ignition by Inductive Automation.

At the control layer, a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller may subscribe to the OPC-UA data tags published by the Bently Nevada System 1 software, enabling automated protective shutdown logic or load-shedding routines when vibration thresholds are exceeded. Simultaneously, remote I/O modules — such as the Phoenix Contact Axioline or Beckhoff EtherCAT I/O terminals — aggregate auxiliary sensor data (temperature, pressure, flow) from the same machinery train, enriching the dataset available to the edge analytics layer.

At the HMI level, operators interact with real-time trend displays on Siemens TP1500 Comfort panels or web-based dashboards served by the SCADA historian. Alarm events triggered by the 330851-02-000-060-50-00-CN's vibration readings are logged with millisecond timestamps, enabling root-cause analysis and predictive maintenance scheduling. The complete data chain — from probe signal to enterprise ERP — is closed through OSIsoft PI System or similar process historians, which archive every data point for long-term trend analysis, regulatory compliance, and digital twin modeling.

For installations requiring wireless data backhaul, an industrial 4G/5G edge gateway (e.g., Robustel R2000 or Sierra Wireless RV55) can bridge the plant Ethernet segment to cloud platforms such as AWS IoT Greengrass or Microsoft Azure IoT Hub, enabling remote diagnostics and fleet-wide benchmarking across multiple plant sites.

Many industrial facilities operating legacy rotating machinery face a common set of connectivity challenges: vibration sensors that output only analog signals with no native digital protocol, monitor racks that cannot communicate directly with modern SCADA or DCS platforms, and maintenance teams that rely on manual rounds rather than continuous online monitoring. The result is data silos — critical machinery health information that never reaches the control room or the maintenance management system.

The 330851-02-000-060-50-00-CN, deployed within the Bently Nevada 3300 XL ecosystem, directly addresses these gaps. By pairing the probe with a protocol-capable monitor rack and a Modbus TCP or OPC-UA gateway, facilities can bridge the analog-to-digital divide without replacing existing machinery or control infrastructure. The probe's high-resolution signal enables early detection of shaft misalignment, bearing wear, oil whirl, and rotor unbalance — conditions that, if undetected, lead to unplanned downtime and costly repairs.

Remote monitoring becomes straightforward once the data link is established. Maintenance engineers can access live vibration spectra, orbit plots, and alarm histories from any networked workstation or mobile device, eliminating the need for physical presence at the machine. Alarm routing through the SCADA system ensures that threshold violations trigger immediate notifications via email, SMS, or plant PA systems, reducing mean time to respond (MTTR) significantly.

For multi-unit or multi-site deployments, the standardized OPC-UA data model published by System 1 allows a single SCADA instance to monitor dozens of machinery trains simultaneously, with consistent tag naming and alarm logic across all assets. This scalability is essential for facilities planning phased smart factory upgrades, where new assets are progressively connected to the plant network without disrupting existing operations.

Q1: Does the 330851-02-000-060-50-00-CN support direct Modbus or OPC-UA communication?The probe itself outputs an analog signal; digital protocol communication is handled at the monitor rack level. When paired with a Bently Nevada 3300 XL monitor and a compatible gateway module, the system supports Modbus RTU, Modbus TCP, and OPC-UA, enabling seamless integration with SCADA, DCS, and HMI platforms.

Q2: What is the typical communication latency in a 3300 XL networked system?Analog signal acquisition at the probe level is continuous and real-time. Gateway-to-SCADA latency via Modbus TCP or OPC-UA is typically under 100 ms on a properly configured industrial Ethernet network, making the system suitable for protective relay and fast-response alarm applications.

Q3: Can this probe be integrated into an existing PROFIBUS or PROFINET network?Yes, via a third-party protocol converter (e.g., HMS Anybus Communicator or Moxa MGate series). The 3300 XL monitor's analog or serial output is connected to the gateway, which translates the data into PROFIBUS DP or PROFINET IO frames compatible with Siemens TIA Portal and Step 7 environments.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?Every unit is subject to pre-shipment functional verification, including signal output linearity and insulation resistance checks. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. NANKMOS maintains verified stock of the 330851-02-000-060-50-00-CN, with same-week dispatch available for in-stock orders.
