Bently Nevada 330851-04-000-030-10-00-05 Proximity Probe

Product Details

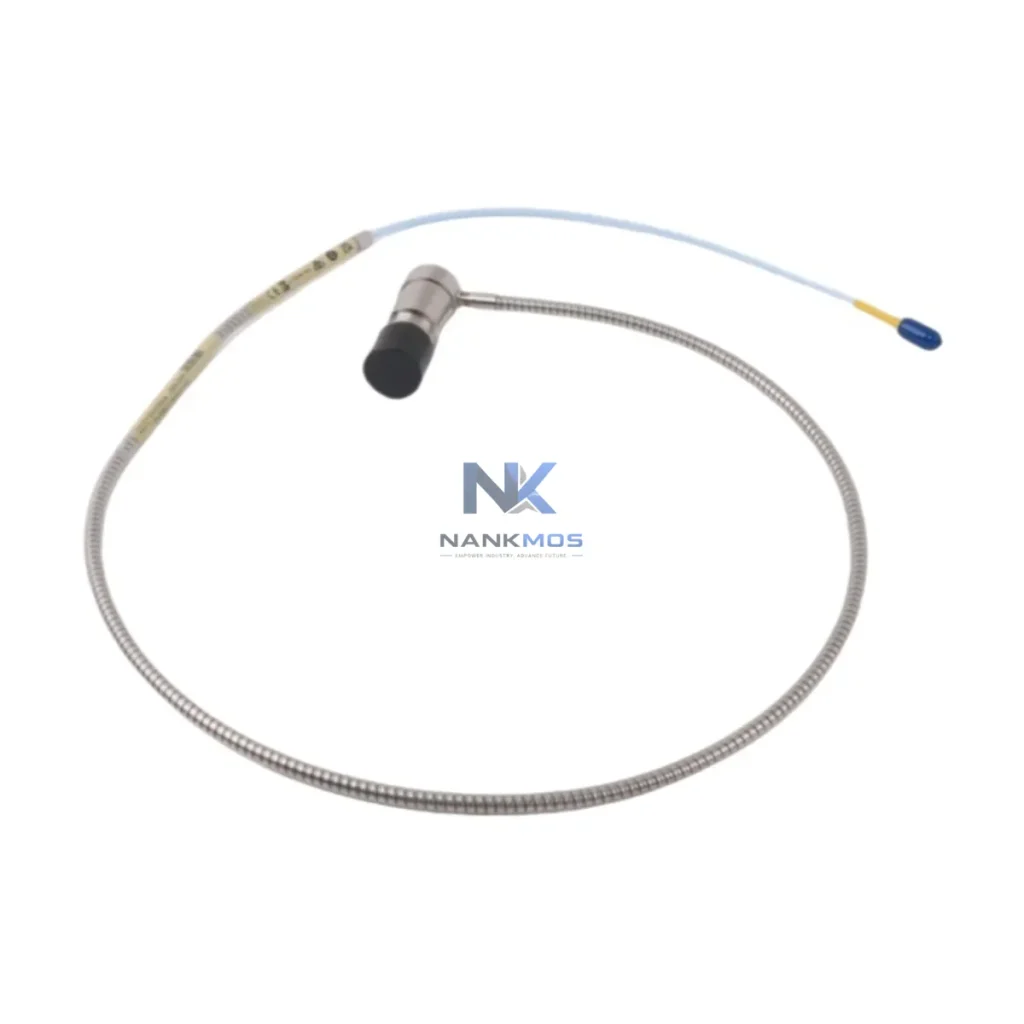

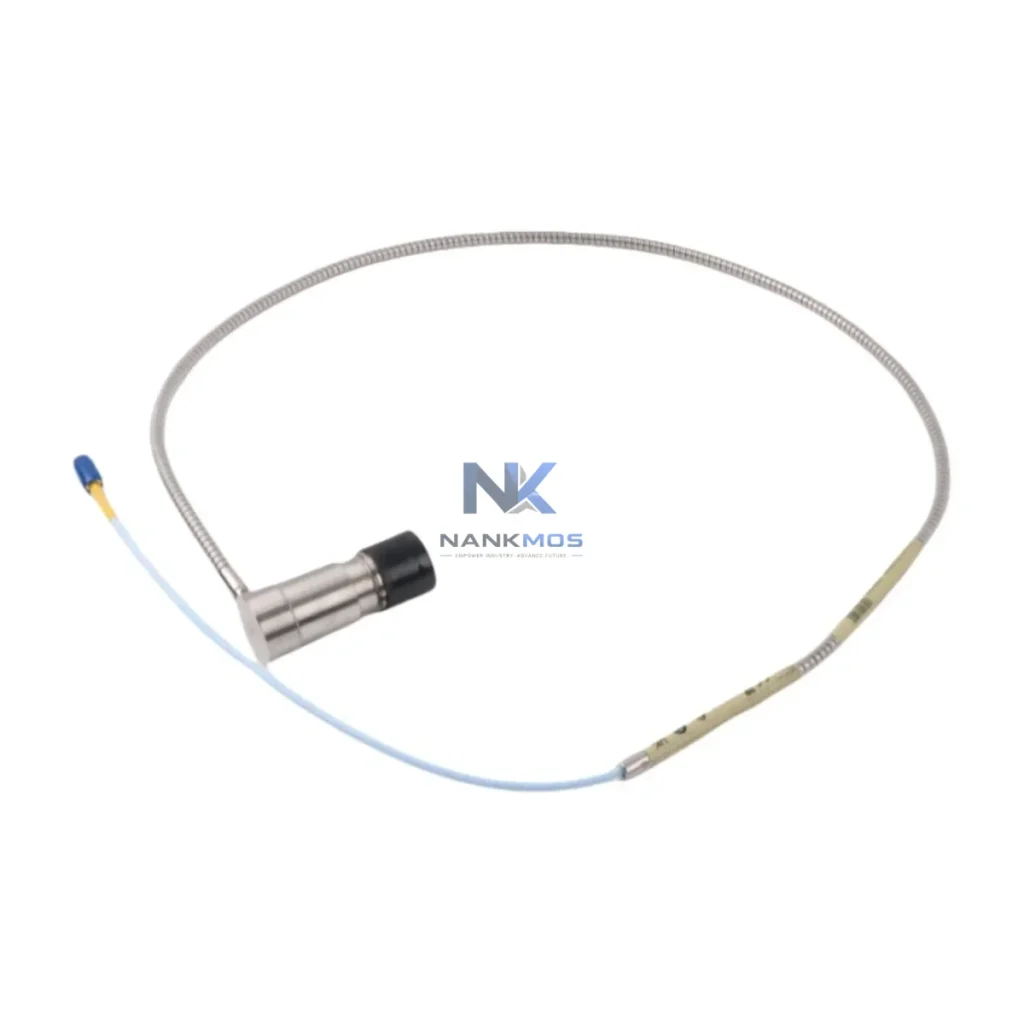

330851-04-000-030-10-00-05 Product Description

The Bently Nevada 330851-04-000-030-10-00-05 is a precision eddy-current proximity probe engineered for the 3300 XL Series machinery protection and condition monitoring platform. Designed to deliver continuous, non-contact shaft displacement and vibration measurements, this probe integrates seamlessly into multi-layer industrial control architectures — from the field sensing layer through to the DCS, SCADA, and safety instrumented system (SIS) layers. Its role in a complete automation ecosystem extends far beyond simple vibration detection: it serves as a critical data source for real-time diagnostics, predictive maintenance scheduling, and system-wide signal integrity.

The 330851-04-000-030-10-00-05 proximity probe does not operate in isolation — it is a foundational sensing element within a layered Bently Nevada 3300 XL machinery protection architecture. Understanding its system context is essential for correct specification, installation, and long-term reliability.

At the sensing layer, this probe pairs directly with the Bently Nevada 330180-91-00 3300 XL 8mm Proximitor® Sensor (driver/oscillator unit), which conditions the raw eddy-current signal into a calibrated DC voltage output. The Proximitor is typically mounted in a junction box or directly on the machinery skid, bridging the probe tip to the monitor rack via a matched extension cable such as the 330130-045-00-00 series.

At the I/O and monitor layer, the conditioned signal feeds into a Bently Nevada 3300/16 or 3300/20 monitor module housed within a standard 3300 XL rack. These monitors process displacement, gap voltage, and dynamic vibration data, generating alarm and danger relay outputs that interface with the plant's safety instrumented system (SIS) or emergency shutdown (ESD) logic. For redundant architectures, dual-probe configurations using a second 330851-series probe on the same shaft journal are standard practice, ensuring no single-point failure in vibration protection coverage.

At the communication layer, the 3300 XL rack communicates upstream to DCS and SCADA platforms via the Bently Nevada 3500/92 Communication Gateway, supporting Modbus RTU/TCP, FOUNDATION Fieldbus H1, and OPC-DA/UA protocols. This enables real-time vibration trend data to be integrated into plant-wide historian systems such as OSIsoft PI or Honeywell Uniformance, supporting condition-based maintenance (CBM) programs without additional signal conversion hardware.

At the power layer, the 3300 XL rack requires a stable -24 VDC supply. Dedicated Bently Nevada 3300/05 Power Supply modules with redundant input capability ensure uninterrupted probe excitation even during plant power disturbances. Proper power architecture — including isolated DC/DC converters and surge protection — is critical to maintaining the probe's linear output range and preventing false alarms caused by supply noise.

At the HMI and visualization layer, vibration data from the 330851-04-000-030-10-00-05 is typically displayed on Bently Nevada System 1 Evolution software or integrated into a plant DCS HMI (e.g., Emerson DeltaV, Honeywell Experion, or ABB 800xA). Operators can monitor shaft centerline plots, orbit diagrams, and trend data in real time, enabling early detection of rotor instability, bearing wear, or misalignment conditions.

At the protection and safety layer, the relay outputs from the 3300 XL monitor connect to the plant's SIS (e.g., Triconex Tricon or Rockwell GuardLogix safety PLCs), triggering automatic machine shutdown when vibration exceeds danger setpoints. This integration ensures compliance with IEC 61511 functional safety requirements for rotating machinery protection in process industries.

At the maintenance and diagnostics layer, the probe system supports in-situ gap verification using a standard DC voltmeter, eliminating the need for machine disassembly during routine checks. Paired with the Bently Nevada TK-3 Proximitor Test Kit, field technicians can verify probe sensitivity, cable continuity, and driver output without interrupting production — significantly reducing planned maintenance downtime.

Power Generation (Gas & Steam Turbines): The 330851-04-000-030-10-00-05 is widely deployed on gas turbine compressor stages and steam turbine LP/HP rotors in power plants. Continuous shaft radial vibration monitoring enables operators to detect rotor bow, blade fouling, and bearing degradation before they escalate to forced outages. Integration with the plant DCS allows vibration alarms to be correlated with process variables such as exhaust temperature, fuel flow, and load — enabling root-cause analysis without additional instrumentation.

Petrochemical & Refinery Compressor Trains: In centrifugal and reciprocating compressor applications, this probe monitors shaft displacement at both drive-end and non-drive-end bearing journals. Paired with a keyphasor probe (e.g., Bently Nevada 330980-50-05), the system provides phase-referenced vibration data essential for balancing, alignment verification, and surge detection in critical service compressors operating under API 670 machinery protection standards.

Water & Wastewater Treatment Pump Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure benefit from continuous proximity monitoring to detect impeller wear, cavitation-induced vibration, and shaft deflection. The 3300 XL system's low-power monitor modules and compact rack format make it suitable for installation in remote pump station control panels with limited space and HVAC conditioning.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject rotating shafts to high radial loads and shock excitation. The 330851-04-000-030-10-00-05's robust IP67-rated probe body and wide operating temperature range make it suitable for the harsh, dust-laden environments typical of mineral processing facilities, where conventional accelerometer-based monitoring may be insufficient for low-speed, high-load shaft monitoring.

Marine & Offshore Propulsion Systems: Shipboard propulsion turbines, main engine crankshafts, and auxiliary generator sets on offshore platforms require continuous shaft monitoring to comply with classification society requirements (DNV, Lloyd's Register, ABS). The 3300 XL system's compact monitor rack and Modbus communication capability integrate directly with vessel automation systems (VAS) and integrated bridge systems (IBS) for centralized machinery health monitoring.

Q1: Is the 330851-04-000-030-10-00-05 compatible with existing 3300 XL racks and 3500 series monitors? The 330851-04-000-030-10-00-05 is a standard 8mm eddy-current probe fully compatible with all Bently Nevada 3300 XL Proximitor Sensors and 3300 XL monitor modules. It is also backward-compatible with 3500 series monitor racks when used with the appropriate 3500/42M or 3500/46M position monitor modules and matched Proximitor drivers. No hardware modification is required for integration into existing rack architectures — only correct gap setting and sensitivity verification during commissioning.

Q2: How does this probe support redundant vibration monitoring architectures, and what is the recommended dual-probe configuration? For API 670-compliant redundant monitoring, two 330851-series probes are installed 90° apart (X and Y planes) at each bearing journal. Each probe connects to an independent Proximitor Sensor and monitor channel, ensuring that a single probe or cable failure does not result in loss of protection. The 3300 XL monitor's voting logic can be configured for 1oo2 or 2oo2 alarm/danger relay activation, providing the flexibility to balance false-trip avoidance with protection integrity depending on machine criticality and process risk tolerance.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for this SKU? All 330851-04-000-030-10-00-05 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, electrical performance within published specifications, and mechanical integrity of the probe body and connector. Each unit undergoes pre-shipment functional testing including gap sensitivity verification, insulation resistance check, and output linearity confirmation before dispatch. For long-term project requirements, NANKMOS maintains dedicated stock allocation for 3300 XL series components to support planned maintenance shutdowns, capital project commissioning, and emergency replacement needs. Contact [email protected] or +86 18359268345 for volume pricing, lead time confirmation, and project-specific supply agreements.
