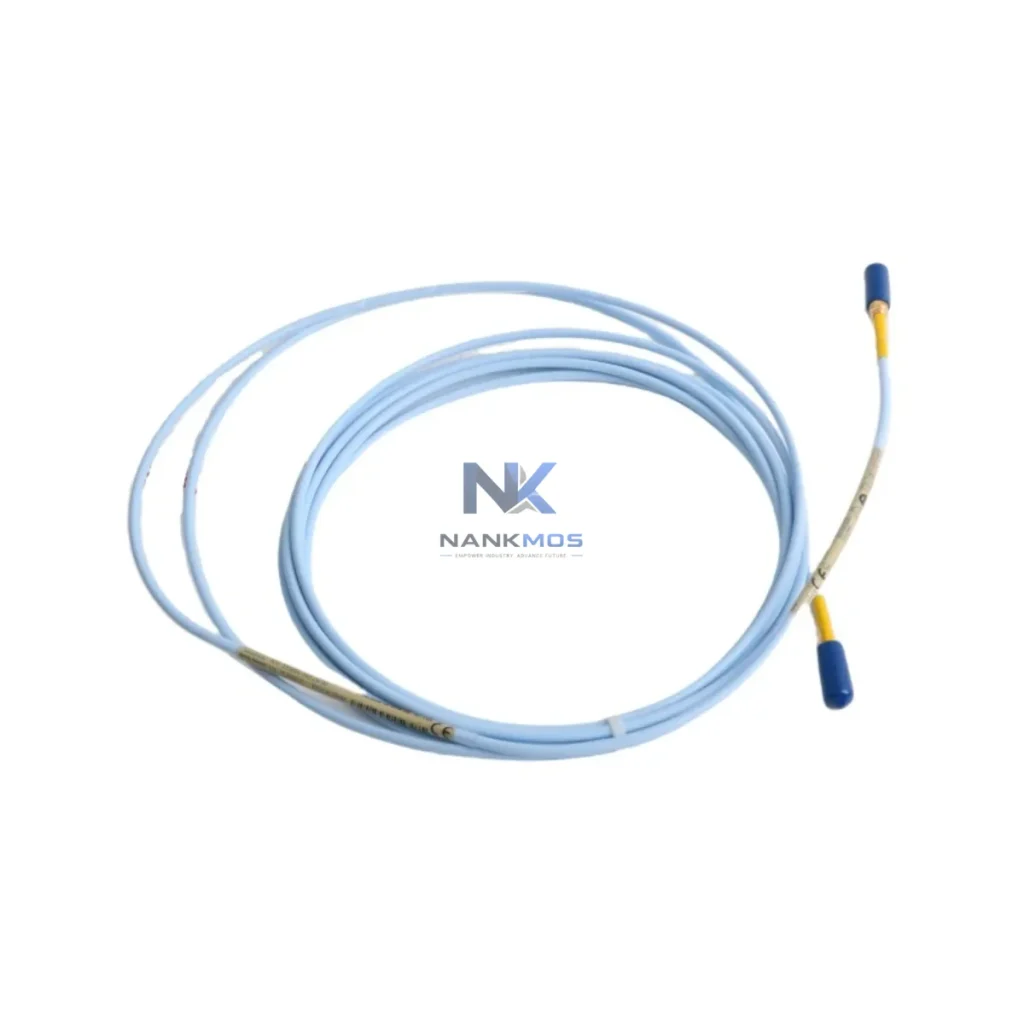

Bently Nevada 330854-040-24-00 Proximity Transducer

Product Details

330854-040-24-00 Product Description

The Bently Nevada 330854-040-24-00 is a precision eddy-current proximity transducer engineered for seamless integration within the 3300 XL Series machinery protection architecture. Designed to deliver continuous, high-fidelity shaft displacement and vibration signals, this transducer serves as the primary sensing element in multi-layer industrial control systems deployed across power generation, petrochemical processing, oil and gas compression, water treatment, mining, and marine propulsion environments. Its system-matched design ensures direct compatibility with Bently Nevada proximitor drivers, monitor racks, and signal conditioning modules, enabling a coherent signal chain from the rotating shaft to the control room.

In modern industrial automation architectures, the proximity transducer is not an isolated component — it is the foundational sensing layer upon which all upstream monitoring, protection, and diagnostic decisions depend. The 330854-040-24-00 is calibrated to operate within the Bently Nevada 3300 XL ecosystem, where it pairs with the 3300 XL 8mm Proximitor System to convert mechanical shaft motion into a precise -24 VDC buffered output signal. This signal is then routed to the 3500 Series Monitoring Rack, where dedicated I/O modules — including the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor — process the data for real-time protection logic, alarm thresholds, and trip relay outputs.

At the communication layer, the 3500 rack interfaces with plant-wide SCADA and DCS platforms via Modbus/TCP, PROFIBUS, or OPC-UA gateways, ensuring that the displacement and vibration data captured by the 330854-040-24-00 is available for contextual integration across the full automation hierarchy — from field-level sensing to enterprise-level asset management. This contextual integration capability is a defining feature of the Bently Nevada architecture, allowing engineers to correlate shaft dynamics with process variables such as load, temperature, and flow in real time.

The 330854-040-24-00 features a 40 mm probe length and a 24-inch (approximately 610 mm) armored extension cable, making it suitable for installations where the proximitor driver must be mounted at a distance from the bearing housing. The probe tip diameter and gap voltage characteristics are factory-calibrated to the standard Bently Nevada scale factor of 200 mV/mil (7.87 V/mm), ensuring interchangeability with other 3300 XL Series transducers without requiring field recalibration of the monitoring system. This plug-and-play compatibility significantly reduces commissioning time during planned maintenance outages or emergency replacements.

From a redundancy and system resilience perspective, the 330854-040-24-00 supports dual-transducer configurations on critical machines, where two probes are mounted 90 degrees apart on the same bearing journal to provide XY vibration vector data. This configuration, when combined with the 3500/40M dual-channel monitor, enables full orbit analysis and early detection of rotor instability, misalignment, and bearing wear — capabilities that are essential for machinery protection in high-availability process environments. The transducer's robust stainless-steel construction and IP67-rated connector ensure reliable performance in high-temperature, high-humidity, and chemically aggressive installation environments.

For power supply and signal integrity, the 330854-040-24-00 operates on the standard -24 VDC supply provided by the Bently Nevada 3300 XL Proximitor, which in turn is powered by the 3500 rack's internal power supply module or an external 3500/15 Power Supply. In safety-critical applications, redundant power supply configurations using dual 3500/15 modules with automatic switchover ensure uninterrupted transducer operation even during power supply maintenance or failure events. This power-layer redundancy is a key element of the overall machinery protection system design.

At the HMI and visualization layer, the vibration and displacement data from the 330854-040-24-00 is displayed on System 1 Evolution software, Bently Nevada's plant asset management and condition monitoring platform. System 1 provides trend analysis, alarm management, and predictive maintenance workflows that allow maintenance engineers to track shaft centerline migration, identify developing faults, and schedule corrective action before unplanned shutdowns occur. Integration with the plant DCS via the 3500 rack's communication gateway ensures that protection trip signals and alarm states are visible on the operator console in real time.

All NANKMOS-supplied Bently Nevada 330854-040-24-00 transducers are pre-shipment tested against factory calibration standards, with gap voltage linearity, scale factor accuracy, and connector integrity verified before dispatch. Each unit is supplied with a 12-Month Warranty covering manufacturing defects and performance deviations from published specifications. In-stock availability ensures rapid fulfillment for both planned maintenance procurement and emergency replacement requirements, minimizing machine downtime and supporting continuous plant operation.

The 330854-040-24-00 proximity transducer achieves its full diagnostic and protection potential when deployed as part of a coherent, multi-layer automation architecture. At the sensing layer, the transducer pairs with the 3300 XL 8mm Proximitor System to condition the raw eddy-current signal into a calibrated DC voltage output. This signal is routed to the 3500 Series Monitoring Rack, where the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor modules provide dual-channel vibration and position monitoring with configurable alarm and trip setpoints.

The 3500 rack's backplane integrates seamlessly with the 3500/15 Power Supply Module, which provides regulated -24 VDC to all connected proximitor drivers and transducers. For high-availability installations, dual 3500/15 modules with automatic failover eliminate power supply as a single point of failure. At the I/O and communication layer, the 3500/22M Transient Data Interface captures high-speed waveform data for advanced diagnostics, while the 3500/92 Communication Gateway Module bridges the monitoring rack to plant DCS and SCADA systems via Modbus/TCP or PROFIBUS protocols.

For temperature and process variable correlation, the 3500/60 Temperature Monitor can be installed in the same rack to provide bearing temperature data alongside vibration measurements, enabling multi-parameter condition assessment. At the HMI and asset management layer, System 1 Evolution software aggregates data from all 3500 rack modules, providing trend visualization, alarm management, and predictive maintenance workflows. Terminal blocks and signal isolators — such as the Bently Nevada 3300 XL Field Wiring Termination Module — ensure clean signal routing from the field to the rack, minimizing noise and ground loop interference in complex control cabinet installations.

Power Generation: In steam turbine and gas turbine protection systems, the 330854-040-24-00 monitors shaft radial vibration and axial position at critical bearing locations. Paired with the 3500/40M monitor and System 1 software, it provides the real-time displacement data required for turbine protection trip logic and long-term rotor health trending.

Petrochemical and Oil & Gas: Centrifugal compressors and pumps in refinery and upstream processing environments rely on continuous shaft monitoring to detect surge, rotor instability, and bearing degradation. The 330854-040-24-00's robust construction and IP67 connector make it suitable for installation in classified hazardous areas where chemical exposure and vibration are constant operational factors.

Water Treatment and Utilities: Large vertical pumps and blower units in water treatment facilities benefit from the transducer's high linearity and stable scale factor, which ensure accurate vibration measurement across varying load conditions. Integration with plant SCADA via the 3500 rack's Modbus/TCP gateway enables centralized monitoring of multiple pump trains from a single operator workstation.

Mining and Minerals Processing: Ball mills, SAG mills, and large fan drives in mining operations generate high vibration amplitudes that demand robust, high-range proximity transducers. The 330854-040-24-00's calibrated output range and armored cable construction provide reliable performance in the high-dust, high-vibration environments typical of mineral processing plants.

Marine Propulsion: Shipboard propulsion systems and auxiliary machinery require compact, corrosion-resistant vibration monitoring solutions. The 330854-040-24-00's stainless-steel construction and sealed connector meet the environmental requirements of marine installations, while its compatibility with the 3500 rack's communication modules enables integration with vessel automation and alarm management systems.

Q1: Is the 330854-040-24-00 directly compatible with existing 3500 Series monitoring racks without additional signal conditioning? Yes. The 330854-040-24-00 is designed for direct integration with the 3300 XL 8mm Proximitor System, which provides the -24 VDC supply and signal conditioning required by the 3500/40M and 3500/42M monitor modules. No additional signal conditioning hardware is required when replacing a like-for-like transducer in an existing 3300 XL / 3500 rack installation. The factory-calibrated scale factor of 200 mV/mil ensures that existing alarm and trip setpoints remain valid after replacement, eliminating the need for system reconfiguration during planned maintenance outages.

Q2: Can the 330854-040-24-00 be used in a redundant dual-transducer XY configuration, and what are the installation requirements? Yes. The 330854-040-24-00 is fully compatible with dual XY configurations, where two transducers are mounted 90 degrees apart on the same bearing journal to provide full orbit analysis capability. Each transducer connects to a separate channel of the 3500/40M dual-channel monitor. Installation requires precise gap setting — typically to achieve a -10 VDC quiescent output — using a calibrated gap tool and a DC voltmeter. The 3500 rack's channel configuration software allows independent alarm and trip setpoints for each XY channel, supporting asymmetric clearance profiles on non-circular bearing housings.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All NANKMOS-supplied 330854-040-24-00 units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, calibration deviations from published specifications, and connector or cable integrity failures under normal operating conditions. Each unit undergoes pre-shipment testing including gap voltage linearity verification, scale factor confirmation, and connector continuity checks before dispatch. In-stock units are typically dispatched within 1–3 business days of order confirmation, supporting both planned maintenance procurement schedules and emergency replacement requirements for critical rotating machinery.
