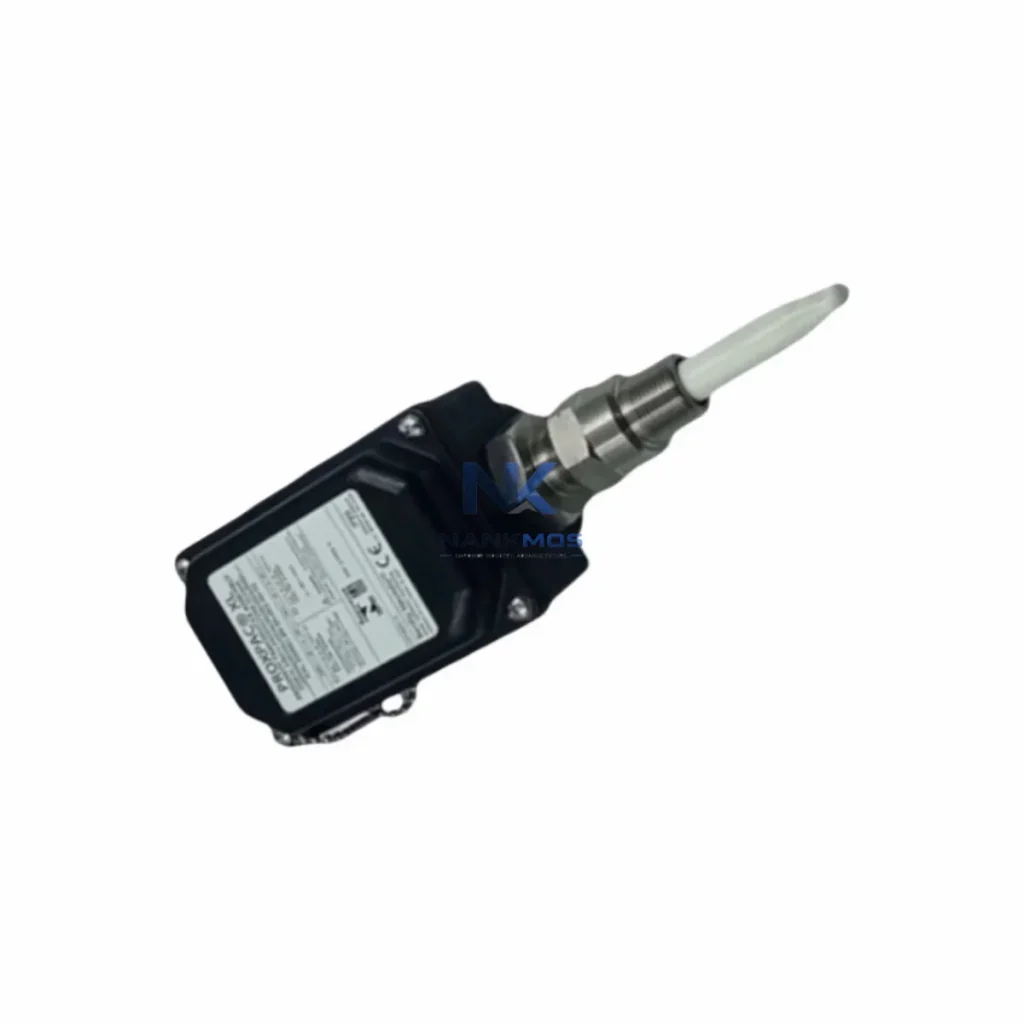

Bently Nevada 330880-28-20-038-00-02 Proximity Transducer

Product Details

330880-28-20-038-00-02 Product Description

The Bently Nevada 330880-28-20-038-00-02 is a precision-engineered proximity transducer assembly designed for seamless integration within the Bently Nevada 3300 XL continuous vibration monitoring platform. As a critical sensing element within the control architecture, this transducer delivers reliable non-contact displacement measurement, forming the foundation of machinery protection and condition monitoring strategies across rotating equipment applications in power generation, petrochemical processing, oil & gas, and heavy industrial environments.

In modern industrial control systems, no component operates in isolation. The 330880-28-20-038-00-02 is engineered to function as part of a layered automation architecture — interfacing directly with the control layer, signal conditioning layer, I/O layer, and communication layer to ensure consistent, high-integrity vibration data flows from the field to the control room without interruption or signal degradation.

The 330880-28-20-038-00-02 proximity transducer is most effective when deployed as part of a complete Bently Nevada 3300 XL monitoring architecture. At the monitor layer, the 3300/16-02-01-01-00-00 16-channel monitor rack provides the signal processing backbone, receiving raw displacement signals from the transducer and converting them into actionable vibration data. The 3300/20-01-01-00 power supply module ensures stable, regulated power delivery to the monitoring rack, eliminating voltage fluctuation that could compromise measurement accuracy.

For signal conditioning and I/O integration, the 3300/55-01-01-00-00-00 I/O module facilitates structured data handoff between the monitoring layer and the plant DCS or PLC. In facilities running Honeywell Experion PKS or Emerson DeltaV, the transducer data is typically routed through a 3500/92-04-01-00 communication gateway, enabling Modbus TCP or OPC-DA protocol translation for SCADA integration. This ensures that vibration trend data from the 330880-28-20-038-00-02 is available in real time at the HMI layer — whether through a Bently Nevada System 1 workstation or a third-party operator interface.

At the protection layer, the transducer signal feeds directly into the 3300/25-01-01-00 thrust position monitor, enabling axial displacement protection for critical turbomachinery. When combined with the 3300/46-01-01-00 keyphasor module, the system gains phase-referenced vibration analysis capability, supporting advanced diagnostics such as orbit plots, Bode plots, and shaft centerline analysis. For redundant monitoring architectures — common in nuclear, LNG, and offshore applications — dual-transducer configurations using matched pairs of 330880-series probes with independent driver circuits provide the fault-tolerant sensing required by API 670 machinery protection standards.

Terminal block assemblies and field wiring accessories, including 3300 XL-compatible junction boxes and shielded extension cables, complete the installation ecosystem. Proper cable routing, grounding, and shield termination are essential to maintaining the signal integrity that the 330880-28-20-038-00-02 is designed to deliver across long cable runs in electrically noisy industrial environments.

Power Generation: In gas turbine and steam turbine applications, the 330880-28-20-038-00-02 monitors shaft radial vibration and axial position, providing early warning of rotor imbalance, misalignment, and bearing wear. Integration with the plant DCS allows automatic load shedding or turbine trip on high-vibration alarm, protecting multi-million-dollar rotating assets.

Petrochemical & Refining: Centrifugal compressors in ethylene, ammonia, and refinery service operate continuously under high-pressure, high-temperature conditions. The 3300 XL transducer system provides the continuous, uninterrupted vibration monitoring required by API 670 and ISO 10816 standards, supporting both online condition monitoring and predictive maintenance programs.

Oil & Gas: Offshore platform and pipeline compressor stations demand monitoring equipment rated for harsh environments. The 330880-28-20-038-00-02's wide operating temperature range and robust construction make it suitable for both topside and subsea-adjacent installations, where signal reliability and long-term stability are non-negotiable.

Water Treatment & Utilities: Large pump stations and blower systems benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation before catastrophic failure. The transducer's DC-to-10 kHz frequency response captures both low-speed and high-frequency vibration signatures relevant to pump health assessment.

Mining & Metallurgy: Ball mills, SAG mills, and large fan drives in mining operations are subject to extreme mechanical loads. Proximity transducer systems provide the shaft displacement data needed to optimize bearing clearances, detect rub conditions, and schedule maintenance during planned shutdowns rather than unplanned outages.

Marine & Shipboard: Propulsion turbines and auxiliary machinery on LNG carriers and naval vessels require vibration monitoring systems that meet DNV, ABS, or Lloyd's Register classification requirements. The 3300 XL platform, anchored by transducers like the 330880-28-20-038-00-02, provides the certified monitoring capability required for class compliance.

Q1: Is the 330880-28-20-038-00-02 compatible with existing 3300 XL monitor racks, and can it be retrofitted without replacing the entire monitoring system? Yes. The 330880-28-20-038-00-02 is fully compatible with all 3300 XL series monitor modules, including the 3300/16, 3300/20, 3300/25, and 3300/46 series. Retrofitting requires only probe and extension cable replacement at the field installation point, with no changes to the monitor rack wiring or configuration. This makes it an ideal drop-in replacement for aging or failed transducer assemblies, minimizing downtime and engineering effort during maintenance windows.

Q2: What installation and commissioning steps are required to ensure accurate vibration measurement after replacing the transducer? After mechanical installation, the transducer gap must be set to the manufacturer-specified nominal gap (typically 50 mil / 1.27 mm for standard steel targets) using a calibrated gap meter. The driver output voltage should be verified at the monitor terminal strip to confirm correct sensitivity (200 mV/mil). System 1 software should then be used to verify channel configuration, alarm setpoints, and trend data continuity. A slow-roll vibration check at low shaft speed confirms baseline signal quality before returning the machine to service.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for ongoing maintenance programs? The 12-Month Warranty covers manufacturing defects, electrical performance deviations from published specifications, and premature component failure under normal operating conditions. NANKMOS maintains dedicated inventory of 330880-series transducer assemblies to support planned maintenance programs, turnaround shutdowns, and emergency replacement requirements. All units undergo pre-shipment functional testing and documentation review before dispatch. For facilities managing multi-unit fleets or long-term service contracts, NANKMOS offers inventory reservation arrangements to ensure supply continuity. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
