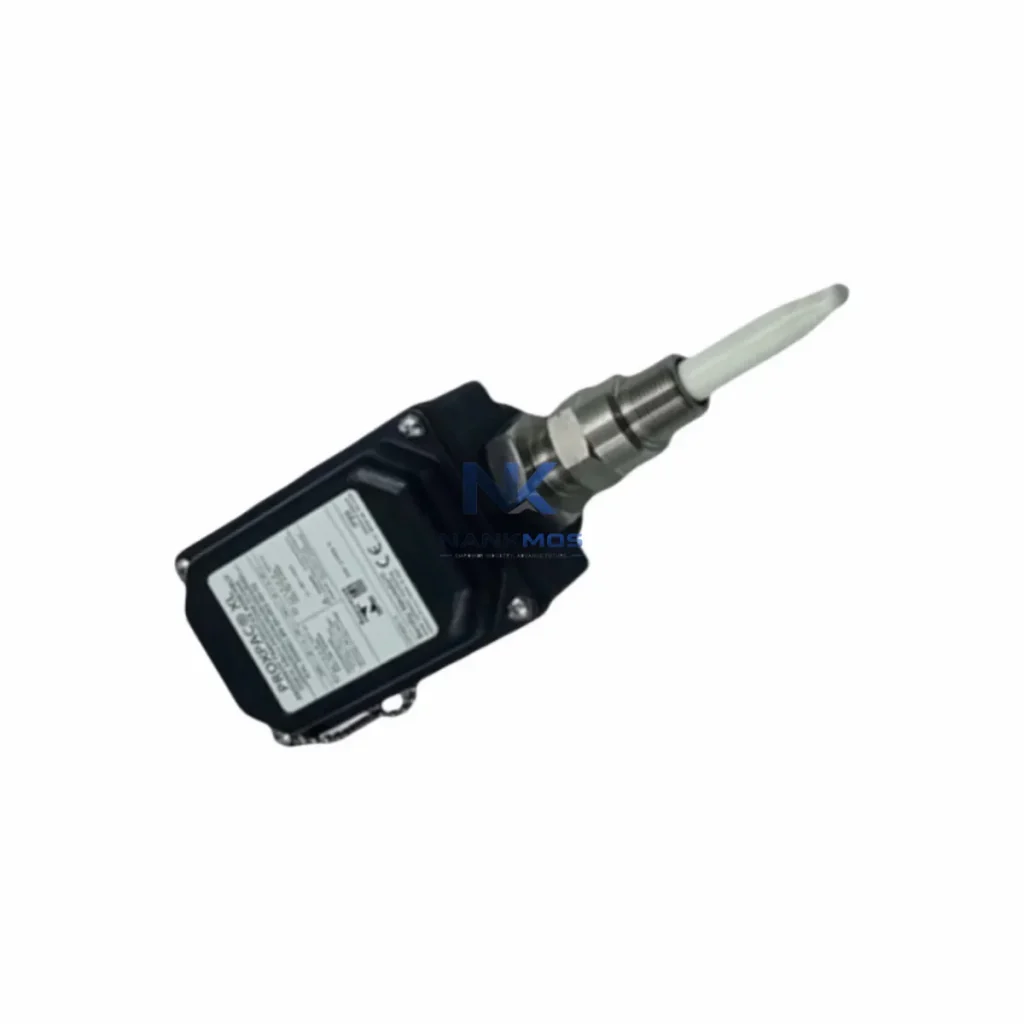

Bently Nevada 330881-28-04-145-03-02 Proximity Transducer

Product Details

330881-28-04-145-03-02 Product Description

The Bently Nevada 330881-28-04-145-03-02 is a precision-engineered proximity transducer designed for seamless integration within the Bently Nevada 3300 XL machinery protection and condition monitoring architecture. As a core sensing element in rotating machinery surveillance systems, this transducer delivers reliable non-contact displacement measurement across a wide range of industrial environments — from turbine protection in power generation to compressor monitoring in petrochemical processing. Its role within the broader control architecture extends far beyond simple signal acquisition: it serves as the foundational data source for vibration analysis, shaft orbit plotting, and machinery health diagnostics that drive plant-wide operational decisions.

Within a complete machinery protection and process automation architecture, the 330881-28-04-145-03-02 transducer operates as the primary sensing node at the field layer, feeding real-time displacement data upward through a structured signal chain. At the monitor layer, the Bently Nevada 3300/16-24-01-01-00-00 16-channel monitor receives and conditions the transducer output, applying configurable alert and danger setpoints for shaft radial vibration, axial position, and eccentricity. The monitor communicates with the plant DCS or safety system via the Bently Nevada 3500/92 Communication Gateway, which supports Modbus, Profibus DP, and OPC protocols — ensuring that vibration data is available to the control layer without latency.

Power integrity for the monitoring rack is maintained by the Bently Nevada 3500/15 Power Supply, which provides redundant 24 VDC rails to all installed monitor modules. For applications requiring full redundancy in critical machinery protection, the system can be configured with dual power supplies and dual communication paths, ensuring no single point of failure exists between the transducer signal and the trip relay output. The Bently Nevada 3500/40M Proximitor / Seismic Monitor serves as the dedicated processing module for proximity transducer inputs in the 3500 series rack, and is fully compatible with 330881-series transducer assemblies when system migration or expansion is required.

At the HMI and software layer, Bently Nevada System 1 Condition Monitoring Software aggregates transducer data from multiple machines across the plant, enabling trend analysis, alarm management, and predictive maintenance scheduling. This contextual integration capability — where a single transducer's signal contributes to fleet-wide machinery health intelligence — is a defining feature of the 3300 XL platform architecture. For field wiring and signal routing, Bently Nevada 330130-series extension cables and 330180-series armored cables provide the interconnect infrastructure between probe, driver, and monitor, maintaining signal integrity across long cable runs in electrically noisy industrial environments.

In applications where the control cabinet also houses PLC-based sequence control, the proximity transducer data can be routed to a Rockwell Automation ControlLogix L7x series controller via the communication gateway, enabling coordinated machinery protection and process control logic within a unified automation platform. Terminal block assemblies and DIN-rail mounted signal isolators — such as the Phoenix Contact MACX MCR-SL series — are commonly deployed in the same cabinet to condition and isolate analog signals before they reach the PLC analog input modules, protecting the control system from ground loops and electrical interference originating at the machine.

The 330881-28-04-145-03-02 proximity transducer is deployed across a broad spectrum of heavy industrial applications where rotating machinery reliability is critical to process continuity and personnel safety.

In power generation, the transducer monitors shaft radial vibration and axial position on steam turbines and gas turbines, providing the early warning data that prevents catastrophic bearing failures and unplanned outages. Combined with the 3300 XL monitor rack and System 1 software, it enables condition-based maintenance strategies that extend turbine overhaul intervals and reduce lifecycle costs.

In petrochemical and refinery environments, the transducer is installed on centrifugal compressors, reactor agitators, and boiler feed pumps — all classified as API 670-compliant machinery protection applications. Its hazardous area certification and wide operating temperature range make it suitable for installation in Zone 1 and Zone 2 classified areas without additional enclosure requirements.

In water and wastewater treatment plants, large vertical pump motors and blower trains are monitored using 330881-series transducer assemblies to detect rotor imbalance, misalignment, and bearing wear before they progress to failure. The ability to integrate transducer data with SCADA systems via the 3500/92 gateway enables plant operators to correlate machinery health with process performance metrics in real time.

In mining and mineral processing, the transducer is applied to SAG mills, ball mills, and large conveyor drive gearboxes, where the consequences of undetected mechanical degradation include both production loss and significant safety risk. The robust construction of the 330881-series probe and armored extension cable ensures reliable operation in the high-vibration, high-contamination environments typical of mineral processing facilities.

In marine and offshore applications, the transducer monitors main propulsion turbines, auxiliary generators, and compressor trains on LNG carriers and offshore platforms, where machinery protection system reliability is a classification society requirement and a condition of operating license.

Q1: Is the 330881-28-04-145-03-02 directly compatible with the Bently Nevada 3500 series monitor rack, or is it limited to the 3300 XL platform? The 330881-series transducer assemblies are natively designed for the 3300 XL platform, which uses the 3300/16 or 3300/20 monitor modules. However, with the appropriate Proximitor driver and signal conditioning, 330881-series probes can also be used with 3500/40M monitor modules in the 3500 rack. It is recommended to verify the driver compatibility and gap voltage calibration range before cross-platform deployment. NANKMOS can provide pre-shipment functional testing to confirm system compatibility for your specific rack configuration.

Q2: What is the recommended installation and commissioning procedure for this transducer in a new machinery protection system? Installation requires setting the probe gap to the manufacturer-specified linear range midpoint (typically 50 mil / 1.27 mm for standard steel targets), verifying the driver output voltage at the monitor input terminals, and configuring alert and danger setpoints in the monitor module according to the machinery OEM's vibration limits. Cable routing should minimize parallel runs with power cables to reduce electromagnetic interference. NANKMOS ships all 330881-series assemblies with full documentation and supports remote commissioning guidance within the 12-Month Warranty period.

Q3: How does NANKMOS ensure inventory availability and long-term supply continuity for the 330881-28-04-145-03-02? NANKMOS maintains dedicated stock of 330881-series transducer assemblies to support both planned maintenance schedules and emergency replacement requirements. All units undergo pre-shipment functional testing including gap sensitivity verification, insulation resistance testing, and cable continuity checks. Each unit is covered by a 12-Month Warranty from the date of shipment, and NANKMOS provides ongoing supply support for legacy Bently Nevada platforms to ensure long-term maintainability of installed machinery protection systems.
