Bently Nevada 330881-28-04-85-03-02 Proximity Transducer

Product Details

330881-28-04-85-03-02 Product Description

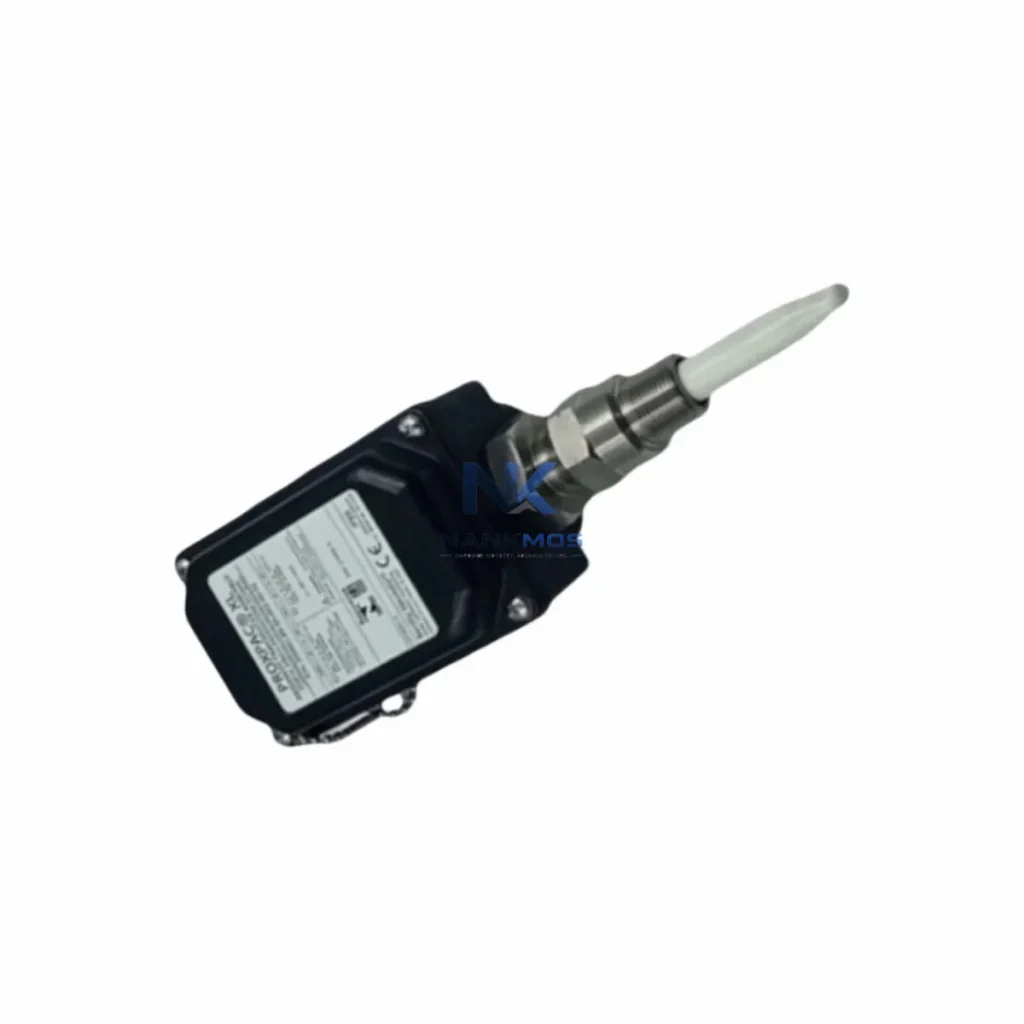

The Bently Nevada 330881-28-04-85-03-02 is a PROXPAC proximity transducer assembly engineered for seamless integration within the Bently Nevada 3300 XL machinery protection and condition monitoring architecture. Designed to deliver continuous, high-fidelity radial vibration and position signals, this transducer assembly serves as a foundational sensing element across the control layer, I/O layer, and signal conditioning layer of modern industrial automation platforms. Its system-matched design ensures electrical compatibility, signal integrity, and long-term reliability in demanding process environments including power generation, petrochemical, oil and gas, rotating machinery, and heavy manufacturing.

Within a complete Bently Nevada 3300 XL machinery protection system, the 330881-28-04-85-03-02 transducer assembly operates as the primary sensing node, feeding calibrated analog signals directly into the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor housed within the 3300 XL rack. The rack itself — typically a 3300/05 Power Supply-equipped chassis — distributes conditioned DC power to all installed monitor cards, ensuring stable bias voltage to the transducer driver circuit and eliminating ground loop interference that could corrupt vibration readings.

Signal continuity from the probe tip through the 330130 Extension Cable and into the 330180 Driver (or the integrated PROXPAC driver in this assembly) is critical for maintaining the linear measurement range required by the 3300 XL architecture. When deployed alongside the 3300/46 Keyphasor Module, the system gains phase-referenced vibration analysis capability, enabling engineers to perform vector-based balancing and orbit plot diagnostics directly from the System 1 Condition Monitoring Software platform without additional signal conditioning hardware.

For applications requiring redundant protection, the 330881-28-04-85-03-02 can be paired with a second transducer channel on the same monitor card, supporting dual-channel voting logic (1oo2 or 2oo2) as defined in the plant's Safety Instrumented System (SIS) design. Integration with the 3500 Series Machinery Protection System is also achievable through signal routing via the 3500/42M Proximitor/Seismic Monitor, allowing legacy 3300 XL sensing infrastructure to feed into a higher-integrity 3500 platform during phased plant upgrades. Communication to the DCS or SCADA layer is facilitated through the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP, and OPC-DA protocols, ensuring that vibration trend data reaches the historian and alarm management system without latency.

At the field wiring level, the transducer cable shield termination at the 3300 XL I/O Terminal Block must follow Bently Nevada's recommended single-point grounding scheme to preserve signal-to-noise ratio across long cable runs in electrically noisy environments such as motor control centers (MCCs) or variable frequency drive (VFD) panels. Proper installation of the 330105 Proximitor Sensor mounting hardware and gap-setting procedure — verified with a digital voltmeter against the -18 VDC nominal output — ensures the transducer operates within its calibrated linear range from initial commissioning through the full service life of the monitored machine.

Power Generation: Steam turbine and gas turbine trains in combined-cycle power plants rely on the 330881-28-04-85-03-02 for continuous shaft radial vibration monitoring at journal bearings. The transducer's wide operating temperature range and robust PROXPAC construction withstand the thermal cycling and high-vibration environment of turbine bearing pedestals, providing the real-time data required by the plant DCS for automatic load shedding and trip logic.

Petrochemical & Oil and Gas: In compressor trains and centrifugal pump applications at refineries and LNG facilities, this transducer assembly supports API 670-compliant machinery protection schemes. Its compatibility with intrinsically safe barriers and Zener diode isolators allows deployment in Zone 1 and Zone 2 hazardous areas without compromising measurement accuracy or system response time.

Water Treatment & Utilities: Large vertical turbine pumps and blower units in municipal water treatment plants benefit from the 330881-28-04-85-03-02's ability to detect early-stage bearing wear through sub-millimeter displacement trending, enabling condition-based maintenance scheduling and reducing unplanned downtime in critical infrastructure.

Mining & Metallurgy: Ball mills, SAG mills, and large conveyor drive motors in mining operations present extreme vibration and contamination challenges. The sealed PROXPAC assembly's resistance to dust, moisture, and mechanical shock makes it a preferred sensing solution for rotating equipment protection in these environments, where early fault detection directly impacts ore processing throughput and safety.

Marine & Shipboard Systems: Propulsion shaft monitoring and auxiliary machinery protection on commercial vessels and naval platforms require transducers that maintain calibration accuracy under continuous vibration and salt-air exposure. The 330881-28-04-85-03-02 meets these demands, supporting integration with shipboard condition monitoring networks and voyage data recorders.

Q1: Is the 330881-28-04-85-03-02 directly compatible with the Bently Nevada 3500 Series monitors, or is it exclusively for 3300 XL systems? The 330881-28-04-85-03-02 is optimized for the 3300 XL architecture and its -18 VDC output characteristic. It can interface with 3500 Series monitors such as the 3500/42M when the monitor's input configuration is set to accept standard Proximitor output levels. For full 3500 Series compatibility, verify the monitor card's input range and gap voltage settings during commissioning. Our technical team can provide application-specific configuration guidance prior to shipment.

Q2: What is the recommended installation and gap-setting procedure for long-term measurement stability? Gap setting should be performed with the shaft stationary, using a calibrated digital voltmeter to achieve the nominal -18 VDC output (corresponding to the midpoint of the linear range, typically 1.0–1.5 mm gap for an 8 mm probe). Cable routing should follow Bently Nevada's shielded cable guidelines, with shield grounded at the driver end only. Annual gap verification is recommended as part of the plant's predictive maintenance program. All units supplied by NANKMOS are pre-tested and shipped with gap-setting documentation to support rapid field commissioning.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory supply for this SKU? The 12-Month Warranty covers manufacturing defects, electrical performance outside published specifications, and premature component failure under normal operating conditions. NANKMOS maintains dedicated inventory of the 330881-28-04-85-03-02 and related 3300 XL system components to support both immediate replacement needs and long-term maintenance contracts. Each unit undergoes functional testing and output verification before shipment. For volume procurement, scheduled delivery agreements, or cross-reference to equivalent PROXPAC configurations, contact our engineering sales team directly.
