330881-28-05-035-01-02 Product Description

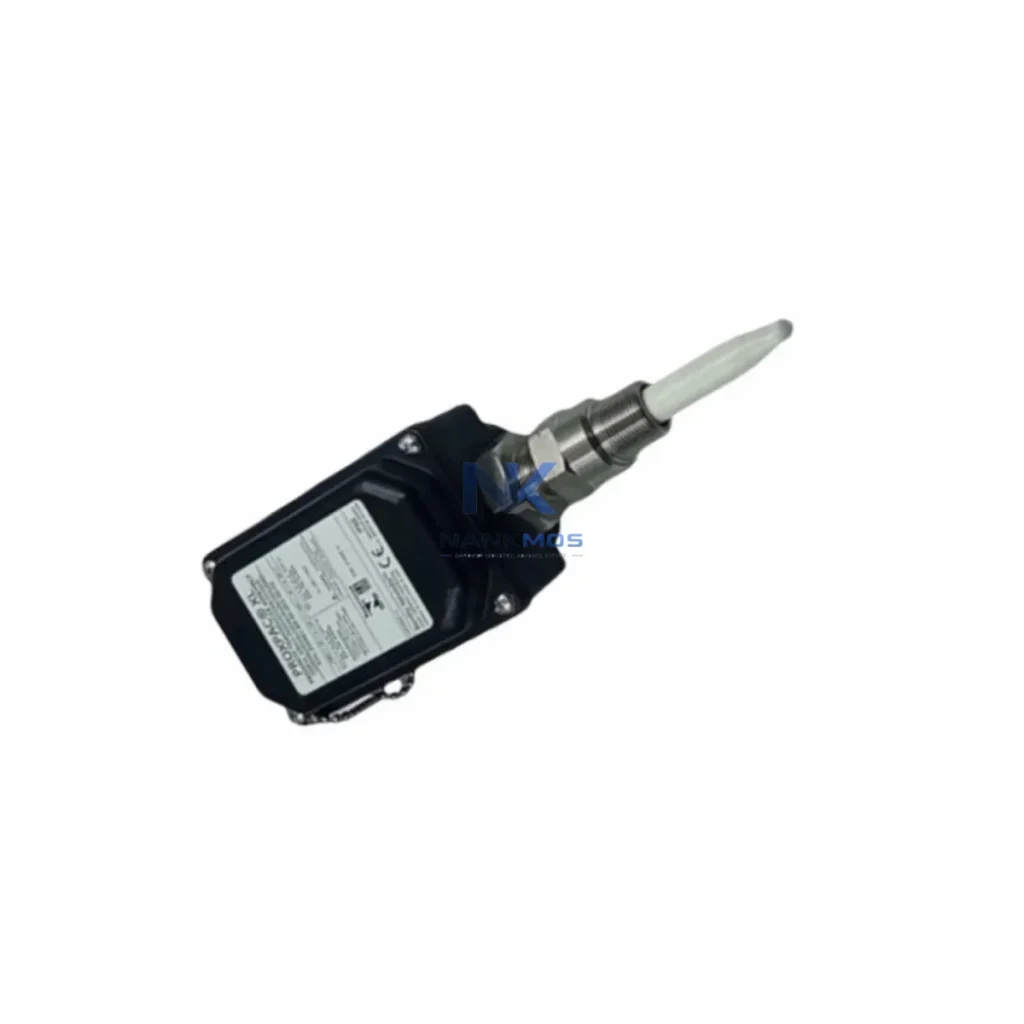

The Bently Nevada 330881-28-05-035-01-02 is a high-precision ProxPac XL proximity transducer assembly engineered for continuous, real-time shaft displacement and vibration monitoring in mission-critical rotating machinery environments. Designed to serve as a foundational node in the industrial data chain, this eddy-current sensing module bridges the gap between raw mechanical signals and the digital intelligence layer of modern smart factories. From signal acquisition at the machine shaft to data visualization on SCADA dashboards, the 330881-28-05-035-01-02 delivers uninterrupted, high-fidelity data flow across every layer of the automation architecture.

In today's connected plant environments, a proximity transducer is far more than a sensing device — it is the first link in a critical data chain. The 330881-28-05-035-01-02 captures analog displacement signals with sub-micron resolution and feeds them directly into the Bently Nevada 3500 Series Machinery Protection System, where signal conditioning, alarm threshold management, and trip logic are executed in real time. From the 3500 rack, conditioned data is transmitted via OPC-UA and Modbus TCP/IP protocols to plant-level SCADA platforms such as GE iFIX, Wonderware System Platform, or Ignition by Inductive Automation, enabling operators to monitor shaft centerline position, dynamic vibration amplitude, and bearing clearance trends from centralized control rooms or remote HMI terminals.

The data journey enabled by the 330881-28-05-035-01-02 begins at the machine shaft, where the eddy-current probe tip generates a continuous analog voltage proportional to the gap between the probe face and the rotating target. This raw signal travels through the matched extension cable to the Bently Nevada 330180 Proximitor Sensor, which conditions and linearizes the output before delivering a clean 4–20 mA or voltage signal to the 3500/40M Proximitor Monitor input card housed in the 3500 rack. The monitor card applies configurable alarm setpoints — Alert, Danger, and Trip — and executes protective relay outputs in under 20 milliseconds, ensuring machinery is safeguarded against catastrophic failure events such as oil whirl, rub, or bearing collapse.

Beyond protection, the 3500 rack's 3500/92 Communication Gateway Module aggregates all channel data and publishes it to the plant network via OPC-UA, making every vibration, position, and phase measurement available to upstream systems. An industrial edge gateway — such as those from Moxa or HMS Networks — can subscribe to this OPC-UA data stream and forward pre-processed analytics to cloud-based asset performance management platforms, enabling predictive maintenance algorithms to detect developing faults weeks before they manifest as alarms. Simultaneously, the Bently Nevada System 1 Software platform ingests this data for long-term trend analysis, orbit plot generation, and automated diagnostic reporting.

For facilities integrating the 330881-28-05-035-01-02 into broader automation architectures, the transducer data can be mapped alongside process variables from Yokogawa CENTUM VP DCS or Emerson DeltaV controllers, correlating shaft vibration with process parameters such as flow rate, pressure, and temperature. This cross-domain data fusion is facilitated by Modbus TCP/IP bridges or OPC-UA aggregation servers, allowing a single SCADA historian — such as OSIsoft PI or Aveva Historian — to store and contextualize all machine and process data in a unified time-series database. Operators at remote HMI stations running Wonderware InTouch or Ignition Perspective can then visualize shaft centerline plots, trend overlays, and alarm event logs in real time, regardless of their physical location.

In multi-machine train configurations — such as compressor-gearbox-motor assemblies — multiple 330881-28-05-035-01-02 transducer assemblies are deployed at each bearing location, with all channels feeding into a common 3500 rack. The rack's internal communication bus synchronizes all channel timestamps, enabling cross-channel phase analysis and full rotor dynamic modeling. This synchronized data architecture is essential for advanced diagnostics such as mode shape analysis and torsional vibration assessment, which are increasingly demanded by API 670 compliance requirements in oil and gas, petrochemical, and power generation facilities.

One of the most persistent challenges in industrial facilities is the existence of data silos — isolated islands of machine information that cannot be accessed, correlated, or acted upon by plant-wide systems. The 330881-28-05-035-01-02 directly addresses this challenge by providing a standardized, protocol-agnostic signal output that integrates seamlessly with both legacy 4–20 mA control loops and modern OPC-UA network architectures. Facilities that previously relied on standalone vibration meters or manual route-based data collection can now achieve continuous, automated monitoring with zero operator intervention.

Protocol fragmentation is another common barrier to smart factory implementation. Many plants operate a mix of Modbus RTU, PROFIBUS, HART, and proprietary vendor protocols across different equipment generations. The 330881-28-05-035-01-02, when paired with the 3500/92 gateway module, outputs standardized OPC-UA data that any modern SCADA or MES platform can consume without custom protocol drivers. This eliminates the need for costly middleware and reduces integration timelines from months to days.

Remote monitoring and diagnostics are increasingly critical as facilities reduce on-site staffing and adopt remote operations models. The 330881-28-05-035-01-02 supports fully remote diagnostic workflows: alarm events are automatically logged with timestamp, channel ID, and measured value; trend data is continuously archived in the historian; and System 1 diagnostic reports can be generated and distributed to engineering teams anywhere in the world. This capability is particularly valuable for offshore platforms, remote compressor stations, and unmanned substations where physical access is costly or hazardous.

Production line transparency — the ability to see exactly what every machine is doing at any moment — is a core requirement of Industry 4.0 initiatives. By integrating the 330881-28-05-035-01-02 into the plant's IIoT data fabric, maintenance teams gain access to real-time KPIs such as overall vibration level, 1X and 2X amplitude trends, and bearing clearance progression. These metrics feed directly into predictive maintenance dashboards, enabling condition-based maintenance scheduling that reduces unplanned downtime by up to 40% compared to time-based maintenance strategies.

System scalability is built into the ProxPac XL architecture. As facilities expand — adding new machines, new production lines, or new monitoring points — additional 330881-28-05-035-01-02 assemblies can be added to existing 3500 racks without reconfiguring the network infrastructure. The OPC-UA namespace automatically accommodates new nodes, and SCADA displays can be updated with drag-and-drop configuration tools, making the system as agile as the business demands.

Every 330881-28-05-035-01-02 unit supplied by NANKMOS undergoes pre-shipment functional verification, including probe gap calibration, output linearity check, and connector integrity test. All units are backed by a 12-month warranty and supported by in-stock inventory for immediate dispatch, minimizing lead times for urgent maintenance and capital project requirements.

Q1: What communication protocols does the Bently Nevada 330881-28-05-035-01-02 support for SCADA integration? The 330881-28-05-035-01-02 outputs a standard analog signal (typically -18 VDC proportional to gap) that interfaces with the Bently Nevada 3500 Series monitor cards. The 3500 rack, via the 3500/92 Communication Gateway, supports OPC-UA and Modbus TCP/IP for digital integration with SCADA, DCS, and historian platforms. This makes the transducer compatible with virtually all modern industrial automation systems without additional protocol converters.

Q2: How does the 330881-28-05-035-01-02 perform in high-noise industrial network environments? The ProxPac XL assembly uses a shielded, matched-impedance cable system that provides excellent immunity to electromagnetic interference (EMI) from variable frequency drives, high-voltage switchgear, and welding equipment. The eddy-current sensing principle is inherently immune to contamination from oil, water, and process gases, ensuring stable, low-noise signal transmission even in the harshest plant environments. Network-level noise immunity is further enhanced by the 3500 rack's differential input architecture and hardware filtering.

Q3: Can the 330881-28-05-035-01-02 be integrated into an existing PROFIBUS or HART network without replacing the entire monitoring system? Yes. While the 330881-28-05-035-01-02 itself outputs an analog signal, the 3500 Series platform supports multiple communication gateway options. For facilities with existing PROFIBUS or HART infrastructure, protocol conversion modules or third-party OPC-UA-to-PROFIBUS gateways can bridge the two networks. NANKMOS technical support can advise on the optimal integration path based on your existing network topology and control system architecture.

Q4: What is included in the 12-month warranty and pre-shipment testing for the 330881-28-05-035-01-02? Every unit supplied by NANKMOS is tested prior to shipment for probe gap sensitivity, output voltage linearity across the full measurement range, and connector pin integrity. The 12-month warranty covers manufacturing defects, premature component failure, and out-of-specification performance under normal operating conditions. Warranty claims are processed with priority turnaround, and in-stock replacement units are available for critical applications requiring zero downtime. Contact [email protected] or +86 18359268345 for warranty support and technical inquiries.
