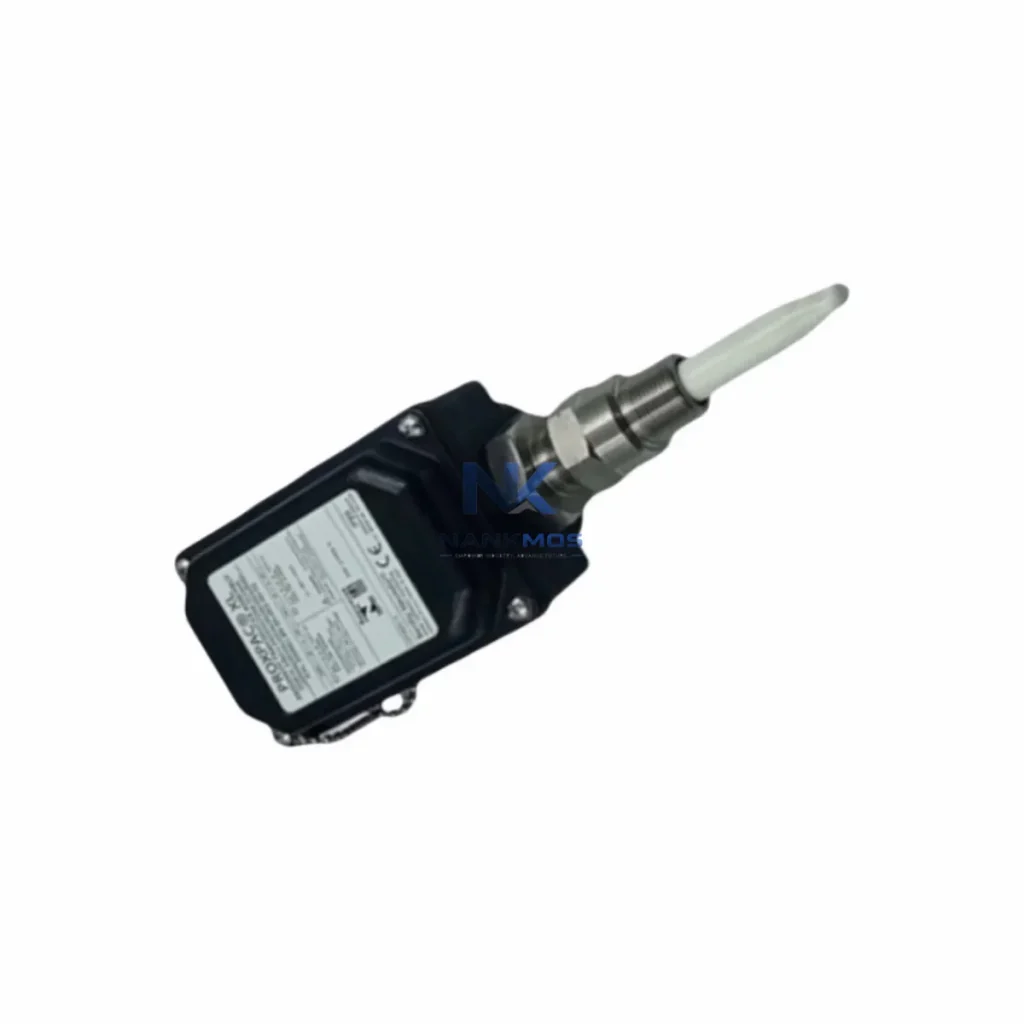

330881-BR-04-70-03-02 Product Description

The Bently Nevada 330881-BR-04-70-03-02 ProxPac XL Proximity Transducer Assembly is a precision eddy-current sensing solution engineered for continuous, real-time vibration and position monitoring in demanding industrial environments. Designed to integrate seamlessly into smart factory data architectures, this transducer assembly serves as a critical front-end node in the industrial data chain — converting mechanical shaft displacement and vibration signals into reliable analog outputs that feed directly into condition monitoring systems, DCS platforms, and SCADA networks.

In modern smart manufacturing facilities, the integrity of the data link between rotating machinery and the control room is non-negotiable. The 330881-BR-04-70-03-02 is purpose-built to anchor that link at the field level, delivering high-fidelity proximity signals that upstream systems depend on for real-time decision-making, predictive maintenance, and automated alarm response.

In a fully connected smart factory, the 330881-BR-04-70-03-02 operates as the primary signal source at the machinery layer. Shaft vibration and displacement data captured by this ProxPac XL transducer travel through a matched extension cable — typically a Bently Nevada 330130 series armored cable — to the Bently Nevada 3500/42M Proximitor I/O Module, which conditions and digitizes the raw proximity signal within the 3500 Series Monitoring Rack.

From the monitoring rack, digitized vibration data is passed via the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus TCP/IP and OPC-DA/OPC-UA protocols, enabling seamless handoff to plant-level SCADA systems such as GE iFIX, Wonderware System Platform, or Emerson DeltaV. At this layer, the data becomes visible to operators through HMI panels — for example, a Siemens SIMATIC TP1500 Comfort Panel or a Rockwell Automation PanelView Plus 7 — where real-time vibration trends, alarm thresholds, and historical waveforms are displayed.

For facilities running distributed control architectures, the analog output from the 330881-BR-04-70-03-02 can also be wired directly into a Yokogawa CENTUM VP DCS I/O card or an ABB 800xA Remote I/O module, allowing the vibration signal to participate in closed-loop control logic alongside process variables from pressure transmitters, flow meters, and temperature sensors. This multi-variable data convergence is essential for advanced condition-based maintenance strategies.

At the network edge, an industrial Ethernet switch — such as a Moxa EDS-510A or a Hirschmann SPIDER series managed switch — aggregates data streams from multiple monitoring racks and field devices, routing them over a redundant ring topology to the plant historian and cloud analytics platform. Edge computing gateways, such as the Advantech WISE-5000 series, can perform local data preprocessing — filtering noise, calculating RMS vibration values, and triggering pre-alarm logic — before forwarding structured datasets upstream via MQTT or OPC-UA to the enterprise MES or ERP layer.

This end-to-end data chain — from the 330881-BR-04-70-03-02 transducer at the shaft, through the 3500 monitoring rack, across the industrial Ethernet backbone, and into the SCADA/historian — forms the backbone of a transparent, data-driven predictive maintenance program. Every millisecond of vibration data captured by this transducer contributes to machine health dashboards, automated work order generation, and long-term reliability analytics.

Protocol Fragmentation: Many industrial sites operate legacy machinery with analog-only outputs alongside modern digital fieldbus networks. The 330881-BR-04-70-03-02, with its standard analog mV/mil output, bridges this gap by feeding into protocol conversion modules that translate the signal into Modbus RTU, PROFIBUS DP, or OPC-UA — eliminating data silos between old and new infrastructure without requiring machinery replacement.

Remote Monitoring and Diagnostics: When a bearing begins to fail on a remote compressor train, operators need immediate, actionable data — not a scheduled inspection report. The continuous analog stream from this ProxPac XL transducer, once digitized and networked, enables remote vibration trending and alarm notification through SCADA dashboards accessible from any authorized workstation or mobile device. Maintenance teams can diagnose developing faults, compare current waveforms against baseline signatures, and dispatch technicians with the right parts before a catastrophic failure occurs.

Production Line Transparency: Integrating the 330881-BR-04-70-03-02 into a plant-wide condition monitoring network gives operations managers real-time visibility into the mechanical health of every monitored asset. Vibration data from turbines, pumps, compressors, and motors is consolidated into a single historian database, enabling cross-asset correlation, OEE (Overall Equipment Effectiveness) calculation, and production loss attribution — transforming raw sensor data into actionable business intelligence.

Alarm Tracking and System Expansion: The 3500 Series rack architecture that this transducer feeds into supports scalable channel expansion. As new machinery is added to the monitoring network, additional I/O modules can be inserted into existing racks without disrupting live channels. Alarm setpoints, danger thresholds, and notification routing are managed centrally through Bently Nevada System 1 software, ensuring consistent alarm governance across the entire monitored fleet.

Q1: What is the communication latency of the 330881-BR-04-70-03-02 in a networked monitoring system? The 330881-BR-04-70-03-02 delivers a continuous analog output with no inherent digital latency at the transducer level. Signal latency is introduced at the monitoring rack's A/D conversion stage (typically sub-millisecond within the 3500 Series rack) and at the network communication layer (Modbus TCP or OPC-UA polling cycles, typically 100–500 ms depending on SCADA configuration). For time-critical vibration events, the 3500 rack's onboard alarm processing operates independently of network polling, ensuring that danger-level alarms trigger relay outputs within microseconds of threshold crossing.

Q2: Is the 330881-BR-04-70-03-02 compatible with third-party DCS and SCADA platforms beyond Bently Nevada's own System 1? Yes. The analog output of this ProxPac XL transducer is a standard industry-compatible signal that can be wired into any DCS or PLC analog input card — including Siemens S7-300/400/1500 series, Rockwell ControlLogix, Yokogawa CENTUM VP, and Honeywell Experion PKS. When routed through the Bently Nevada 3500/92 Communication Gateway, the digitized data is available via Modbus TCP/IP and OPC-DA/UA, making it natively compatible with virtually all modern SCADA and historian platforms.

Q3: How does the system maintain network stability and data integrity in electrically noisy industrial environments? The 330881-BR-04-70-03-02 uses a coaxial cable architecture with the Bently Nevada 330130 series armored extension cable, providing inherent shielding against electromagnetic interference (EMI) from variable frequency drives (VFDs), high-voltage switchgear, and motor starters. At the network layer, managed industrial Ethernet switches with PROFINET or EtherNet/IP support implement VLAN segmentation and redundant ring topologies (MRP or RSTP) to isolate vibration monitoring traffic from general plant network traffic, ensuring data integrity even in high-EMI environments.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every 330881-BR-04-70-03-02 unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing — including output sensitivity check (mV/mil), cable continuity, and connector integrity inspection — to confirm compliance with Bently Nevada factory specifications. Units are shipped with test documentation upon request. For RFQ, lead time confirmation, and technical support, contact [email protected] or call +86 18359268345.
