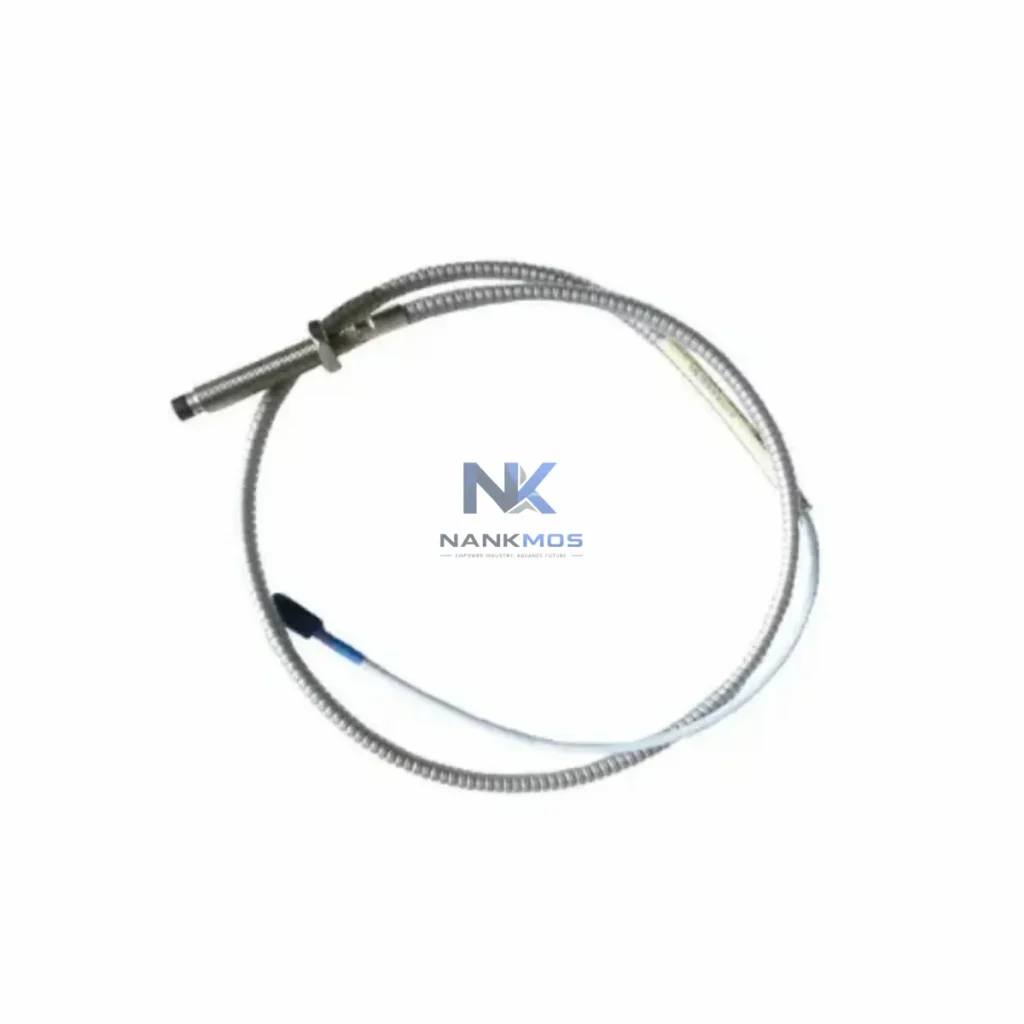

Bently Nevada 330901-00-90-10-01-05 Proximity Probe

Product Details

330901-00-90-10-01-05 Product Description

The Bently Nevada 330901-00-90-10-01-05 is not a standalone sensor — it is a precision sensing node within a fully integrated machinery protection and condition monitoring architecture. Its value is realized only when deployed as part of a coherent system stack, where every layer from the field sensor to the control room contributes to plant reliability and uptime.

At the sensing layer, the 330901-00-90-10-01-05 proximity probe pairs directly with the Bently Nevada 330130 Extension Cable and the 3300 XL 8mm Driver (330180) or the 3300 XL 11mm Driver (330191), forming a complete eddy-current transducer system. The driver converts the probe's impedance change into a calibrated analog voltage signal, which is then routed to the monitoring rack. This three-component transducer chain — probe, extension cable, and driver — must be matched as a system set to maintain the 7.87 V/mm sensitivity specification and ensure API 670 compliance.

At the monitoring and I/O layer, the analog output from the driver feeds into the Bently Nevada 3500/42M Proximitor I/O Module or the 3500/40M Proximitor Monitor, which performs real-time signal conditioning, gap voltage measurement, and alarm/trip processing. These rack-mounted modules reside within the Bently Nevada 3500 Rack (3500/05), a modular backplane system that supports up to 14 I/O modules per chassis. The rack's 3500/15 Power Supply Module provides regulated -24 VDC to all transducer channels, ensuring stable bias voltage across all proximity probe circuits regardless of field cable length or ambient temperature variation.

At the communication and integration layer, the 3500 rack connects to the plant DCS or safety system via the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC DA/UA protocols. This enables the vibration and position data captured by the 330901-00-90-10-01-05 to be transmitted in real time to platforms such as the System 1 Condition Monitoring Software, where trend analysis, alarm management, and predictive maintenance workflows are executed. For plants running Emerson DeltaV or Honeywell Experion, the gateway module provides seamless contextual integration, embedding machinery health data directly into the process control narrative.

At the HMI and visualization layer, operators interact with vibration data through the Bently Nevada 3500/94 Display Module or via System 1 dashboards on plant workstations. Alarm setpoints for radial vibration, axial position, and eccentricity are configured per API 670 guidelines, with independent alert and danger thresholds for each channel. The 330901-00-90-10-01-05, when properly installed and calibrated, delivers the gap voltage baseline from which all dynamic vibration measurements are referenced — making probe installation quality and gap setting accuracy critical to overall system performance.

For redundant architectures, dual-probe configurations are standard on critical machinery such as steam turbine shafts, where two 330901-00-90-10-01-05 probes are mounted 90° apart (X-Y configuration) to capture full orbital motion. Each probe feeds an independent monitor channel, and the 3500/40M supports voted trip logic, ensuring that a single probe failure does not cause a spurious shutdown. This redundancy design is essential for API 670 Category I and Category II machinery protection systems.

Every 330901-00-90-10-01-05 unit supplied by NANKMOS undergoes pre-shipment functional testing, including gap voltage linearity verification, cable continuity check, and sensitivity calibration confirmation. Stock is maintained for immediate dispatch, supporting both planned maintenance outages and emergency replacement scenarios. All units are covered by a 12-Month Warranty from the date of shipment.

Power Generation — Steam and Gas Turbines: The 330901-00-90-10-01-05 is a standard specification component in turbine protection systems at thermal power plants, combined-cycle facilities, and cogeneration units. Installed on HP, IP, and LP turbine shaft journals, it provides the radial vibration and eccentricity data required for safe startup sequencing, load ramping, and trip protection. In gas turbine applications, the probe monitors compressor and turbine rotor dynamics, feeding the 3500 rack with the real-time data needed to protect against surge, rub, and bearing failure events.

Oil and Gas — Upstream and Midstream Compression: Pipeline compressor stations and offshore platform gas compression trains rely on Bently Nevada 3300 NSV transducer systems for continuous shaft monitoring. The 330901-00-90-10-01-05, with its 90 mm probe body and 10 m integral cable, is well-suited for installation in compact compressor bearing housings where access is restricted. Its IP67-rated probe body withstands the hydrocarbon-laden, high-humidity environments typical of offshore and subsea-adjacent installations.

Petrochemical and Refining — Centrifugal Pumps and Expanders: In refinery and petrochemical plant applications, the probe monitors critical rotating equipment including centrifugal pumps, expanders, and agitators. Integration with the 3500/40M monitor and System 1 software enables continuous condition monitoring, reducing unplanned downtime and supporting predictive maintenance programs aligned with ISO 13373 and API 670 standards.

Metallurgy and Mining — Large Drive Trains: Ore processing facilities and steel mills deploy Bently Nevada proximity probe systems on large ball mills, SAG mills, and kiln drive trains. The 330901-00-90-10-01-05 provides the shaft position and vibration data needed to detect bearing wear, misalignment, and unbalance conditions before they escalate to catastrophic failure, supporting the high-availability requirements of continuous process operations.

Water and Wastewater — High-Speed Pumping Stations: Municipal water authorities and industrial water treatment facilities use proximity probe systems on high-speed vertical turbine pumps and centrifugal blowers. The 330901-00-90-10-01-05 integrates with plant SCADA systems via the 3500/92 gateway, providing operators with real-time machinery health data alongside process flow and pressure parameters.

Q1: Is the 330901-00-90-10-01-05 compatible with both the 3300 XL 8mm and 11mm driver systems? The 330901-00-90-10-01-05 is an 8mm proximity probe designed for use with the 3300 XL 8mm driver system (330180 series). It is not interchangeable with 11mm probe systems (330191 series), as the eddy-current field geometry and sensitivity calibration differ between probe diameters. Always verify probe-driver-extension cable compatibility as a matched system set before installation. NANKMOS can supply complete matched transducer system sets on request.

Q2: What are the installation and commissioning requirements for API 670 compliance? API 670 compliance requires that the proximity probe be installed with the correct gap voltage (typically -10 VDC ±0.5 VDC at the nominal sensing gap), verified using a calibrated gap setting tool and a precision micrometer. The probe must be mounted in a non-conductive probe holder or bracket to prevent electrical grounding issues. Cable routing must avoid high-voltage conductors and sources of electromagnetic interference. After installation, a full system calibration check — including sensitivity verification and alarm setpoint confirmation — must be performed and documented before the machine is returned to service.

Q3: What warranty and supply continuity does NANKMOS provide for the 330901-00-90-10-01-05? All 330901-00-90-10-01-05 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including gap voltage linearity, cable continuity, and sensitivity verification. NANKMOS maintains stock inventory for immediate dispatch, supporting both scheduled maintenance outages and emergency replacement requirements. For long-term supply agreements or multi-unit project procurement, contact our technical sales team at [email protected] or +86 18359268345.
