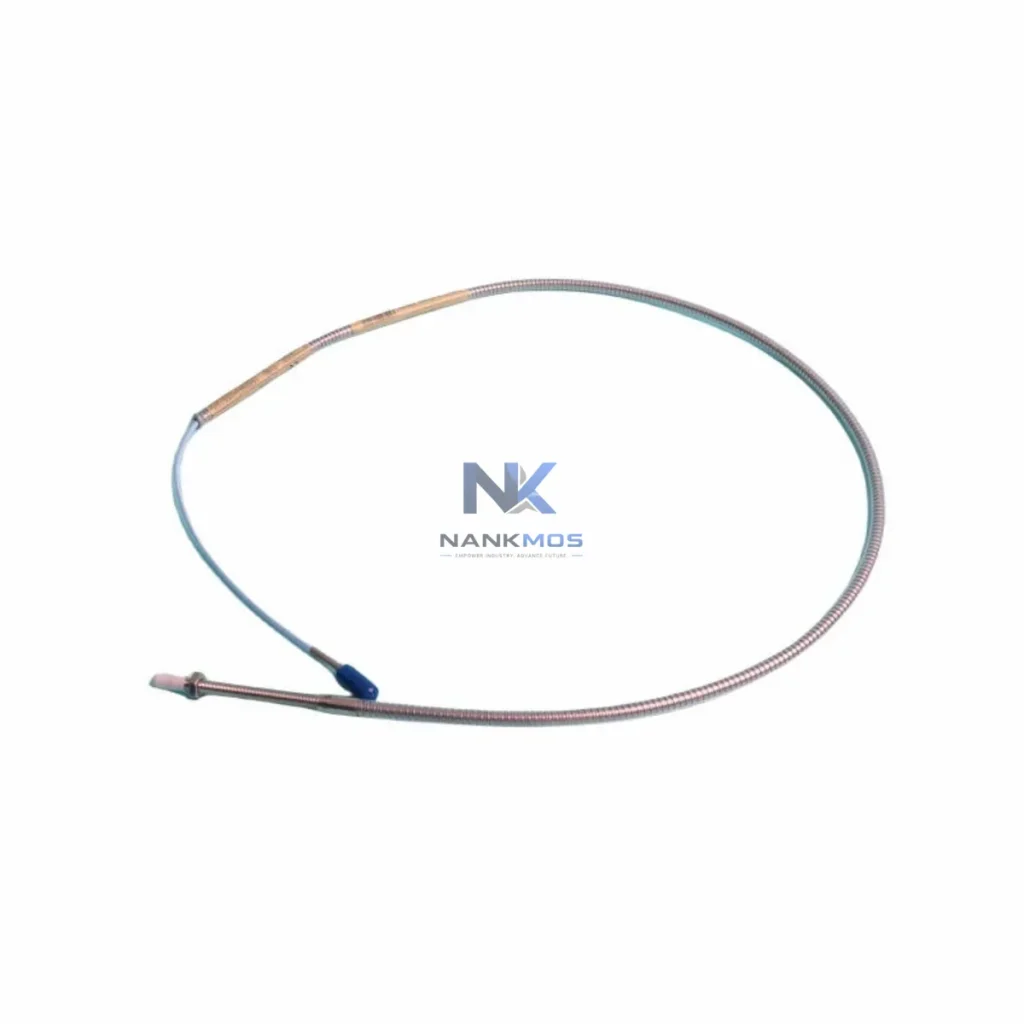

Bently Nevada 330902-00-10-10-01-00 Proximity Transducer

Product Details

330902-00-10-10-01-00 Product Description

The Bently Nevada 330902-00-10-10-01-00 is a precision eddy-current proximity transducer engineered as a core sensing element within the Bently Nevada 3300 XL machinery protection and condition monitoring architecture. Designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion, this transducer delivers the signal fidelity and mechanical reliability demanded by rotating machinery protection systems in power generation, petrochemical, oil & gas, and heavy industrial environments.

Within a complete automation and machinery protection architecture, the 330902-00-10-10-01-00 does not operate in isolation. It functions as the field-level sensing node in a layered system that spans the transducer layer, signal conditioning layer, monitor rack layer, communication layer, and supervisory control layer. Understanding its role across these layers is essential for engineers specifying, commissioning, or maintaining a 3300 XL-based protection system.

The 330902-00-10-10-01-00 transducer is the field-sensing foundation of the Bently Nevada 3300 XL system architecture. Its analog output feeds directly into the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor, which perform real-time signal processing, alarm threshold evaluation, and relay output actuation. For axial position measurement on steam turbines or centrifugal compressors, the transducer pairs with the 3300/25 Thrust Position Monitor, providing the critical gap-voltage signal that determines rotor axial displacement relative to the bearing housing.

Signal integrity from the transducer tip to the monitor card depends on the matched 330130-080-00-00 Extension Cable and the 330180-X0-00 Proximitor Sensor (oscillator-demodulator), which together form the complete 3300 XL transducer system. The Proximitor converts the raw eddy-current impedance change into a calibrated DC voltage output, ensuring the scale factor of 7.87 V/mm is maintained across the full linear range. Any substitution of non-matched extension cables or Proximitor models will compromise system calibration and must be avoided in safety-critical applications.

At the rack level, the 3300 XL monitor cards are housed in the 3300/05 Rack Interface Module chassis, which provides the -24 VDC power rail, backplane communication bus, and relay output wiring infrastructure. The rack interfaces with plant-level DCS or safety systems via the 3500/92 Communication Gateway Module (for 3500 series integration) or through hardwired relay contacts and 4–20 mA outputs for legacy PLC integration. In modern installations, the System 1 Evolution software platform aggregates vibration, position, and process data from multiple 3300 XL racks, enabling fleet-wide condition monitoring, trend analysis, and predictive maintenance scheduling.

For redundant protection architectures — common in API 670-compliant installations on critical rotating machinery — dual transducer installations using two 330902-00-10-10-01-00 units at 90° orientation provide XY radial vibration measurement. This configuration, combined with the 3300/16 Dual Channel Monitor, enables orbit plot generation and precise shaft centerline tracking. In high-availability plants, the 3300/55 Keyphasor Module provides the once-per-revolution reference signal essential for phase-referenced vibration analysis and balancing operations.

Power supply integrity for the 3300 XL rack is maintained by dedicated 3300/10 Power Supply Modules, with redundant supply configurations available for critical service applications. Grounding and shielding practices for the 330902-00-10-10-01-00 installation must follow Bently Nevada's field wiring guidelines to prevent common-mode noise injection, which can manifest as elevated broadband vibration readings and false alarms in sensitive monitoring channels.

Power Generation — Steam Turbine Protection: In combined-cycle and coal-fired power plants, the 330902-00-10-10-01-00 is installed on HP, IP, and LP turbine shaft journals to monitor radial vibration continuously during startup, load transients, and steady-state operation. The transducer's wide frequency response (DC to 10,000 Hz) captures subsynchronous instabilities, blade-passing frequencies, and oil-whirl phenomena that precede bearing failures. Integration with the plant DCS via the 3300 XL relay outputs enables automatic turbine trip on high-high vibration, protecting multi-million-dollar assets from catastrophic damage.

Petrochemical — Centrifugal Compressor Trains: Ethylene crackers, ammonia synthesis loops, and LNG liquefaction trains rely on continuous compressor availability. The 330902-00-10-10-01-00, installed per API 670 requirements, provides the real-time shaft vibration data that operators and condition monitoring engineers use to detect impeller fouling, seal degradation, and rotor imbalance before they escalate to unplanned shutdowns. Paired with the 3300/25 Thrust Monitor, the system also tracks axial rotor position to detect thrust bearing wear and prevent rotor-stator contact.

Oil & Gas — Offshore Platform Rotating Equipment: Offshore gas compression and injection systems demand machinery protection components rated for marine environments and hazardous area classifications. The 330902-00-10-10-01-00's ATEX and FM approvals make it suitable for Zone 1/Division 1 installations, while its stainless-steel construction and high-temperature probe tip rating ensure reliable operation in the elevated ambient temperatures common in offshore equipment rooms and turbine enclosures.

Water Treatment — High-Speed Pump Monitoring: Municipal water treatment facilities operating large centrifugal pumps benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation. The 330902-00-10-10-01-00 provides the non-contact measurement capability needed for high-speed pump shafts where contact-type sensors are impractical, enabling condition-based maintenance programs that reduce unplanned downtime and extend pump service life.

Mining & Minerals Processing — Mill Drive Protection: SAG mills, ball mills, and large conveyor drive systems in mining operations subject rotating equipment to high shock loads and variable speed operation. Proximity transducer-based monitoring systems using the 330902-00-10-10-01-00 provide early warning of bearing wear and shaft misalignment, allowing maintenance teams to schedule interventions during planned shutdowns rather than responding to emergency failures.

Q1: Is the 330902-00-10-10-01-00 compatible with both the 3300 XL and the 3500 series monitor racks? The 330902-00-10-10-01-00 is a 3300 XL series transducer optimized for use with 3300 XL Proximitor sensors and monitor cards. While the eddy-current sensing principle is common across Bently Nevada product families, the scale factor, connector type, and cable matching are specific to the 3300 XL system. For 3500 series monitor racks, the corresponding 3300 XL Proximitor (330180 series) must be used as the interface between the transducer and the 3500 monitor card. Direct connection of the 330902 transducer to a 3500 monitor input without the matched Proximitor will result in calibration errors and unreliable measurements. Always verify system compatibility with the Bently Nevada system architecture documentation before installation.

Q2: What are the key installation and commissioning requirements for the 330902-00-10-10-01-00 in a new machinery protection system? Successful installation requires careful attention to probe gap setting, cable routing, and grounding. The probe tip must be set to the midpoint of the linear range (approximately 1.27 mm / 50 mil gap) using a calibrated gap-setting tool and a DC voltmeter to verify the output voltage corresponds to the expected scale factor. Extension cables must be routed away from high-voltage power cables and properly shielded to prevent electromagnetic interference. The Proximitor sensor must be mounted in an accessible location within the specified cable length from the probe, and the system must be calibrated as a matched set (probe + extension cable + Proximitor) to ensure measurement accuracy. Commissioning should include a full-scale functional test verifying alarm and trip relay operation before the machine is returned to service.

Q3: What does the 12-Month Warranty from NANKMOS cover, and what is the supply lead time for the 330902-00-10-10-01-00? NANKMOS provides a 12-Month Warranty on the 330902-00-10-10-01-00 covering manufacturing defects and functional performance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output linearity, scale factor accuracy, and connector integrity before dispatch. NANKMOS maintains inventory of the 330902-00-10-10-01-00 and related 3300 XL system components to support urgent maintenance requirements and planned project procurement. Standard lead times are significantly shorter than OEM channels, making NANKMOS a reliable source for both emergency replacement and long-term maintenance stock planning. For volume orders, project-specific pricing, or technical pre-sales support, contact [email protected] or +86 18359268345.
