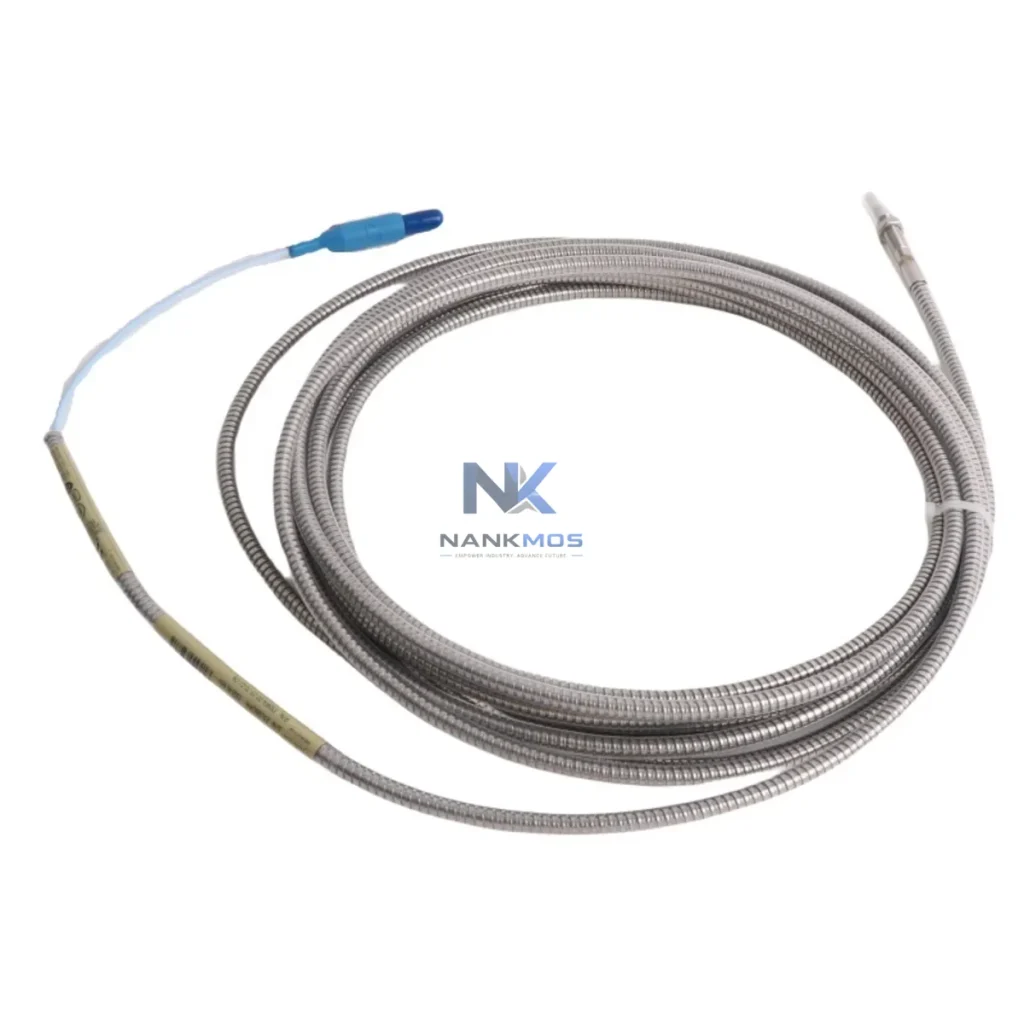

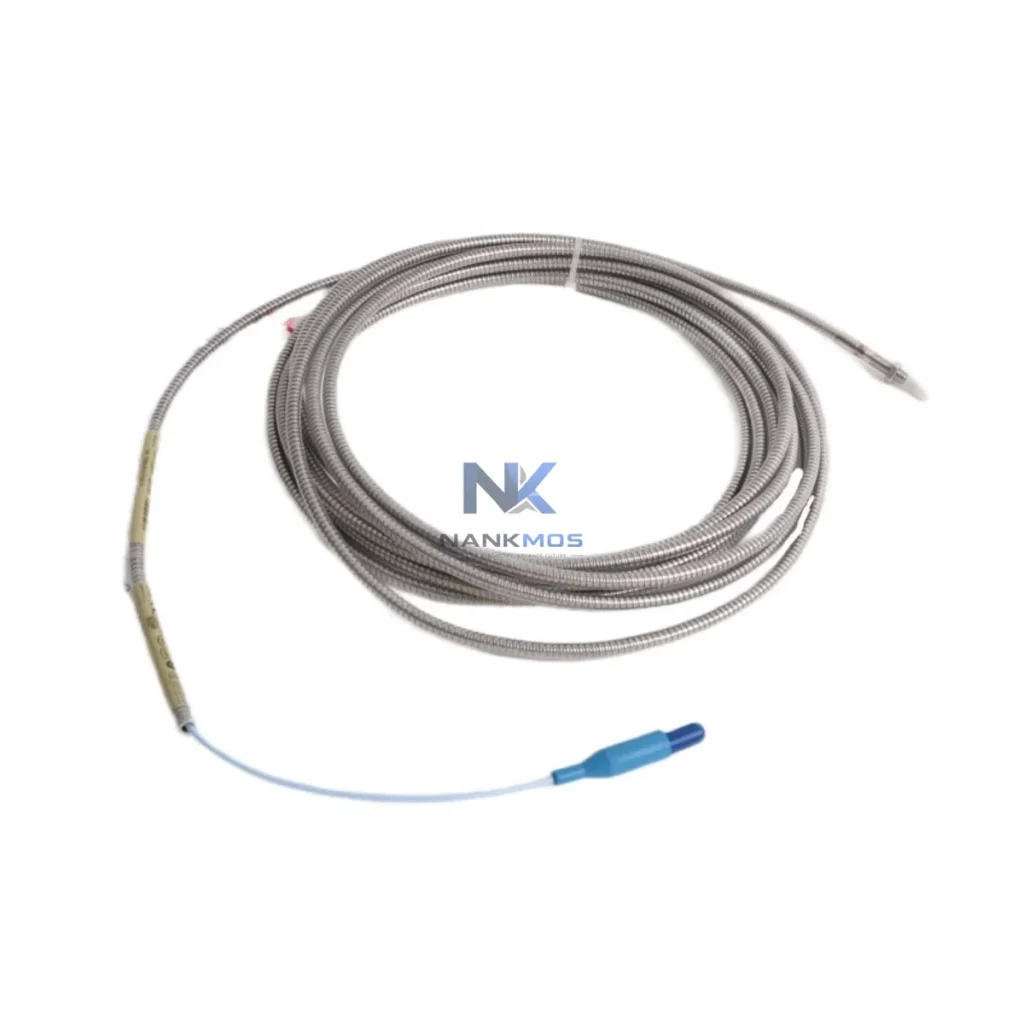

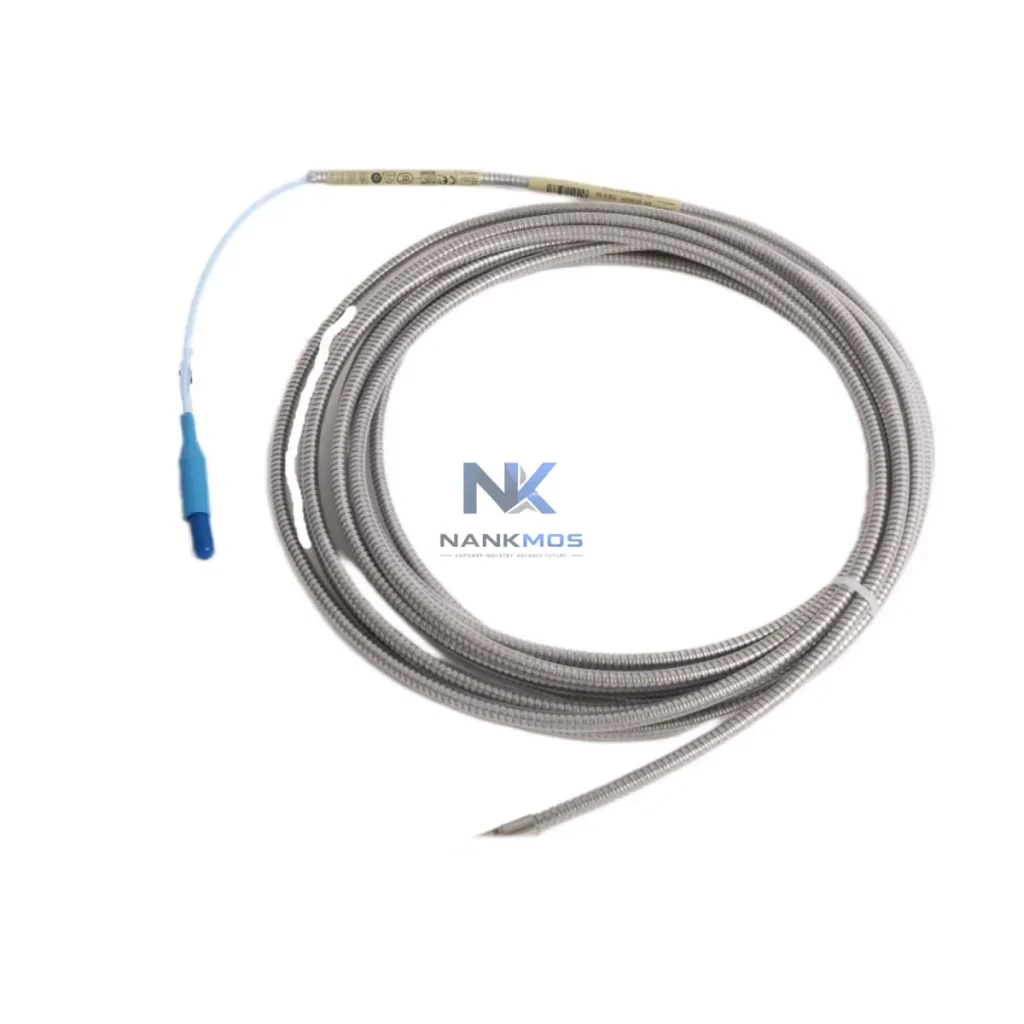

Bently Nevada 330904-00-02-10-02-05/CN Proximity Probe

Product Details

330904-00-02-10-02-05/CN Product Description

The Bently Nevada 330904-00-02-10-02-05/CN is a precision eddy-current proximity probe engineered for seamless integration within the 3300 NSv continuous monitoring architecture. Designed to deliver stable, high-resolution radial and axial displacement signals, this probe serves as the primary sensing element in rotating equipment protection systems deployed across power generation, petrochemical processing, oil and gas compression, water treatment, mining, and marine propulsion environments. Its role within the control hierarchy extends well beyond simple signal acquisition — it anchors the measurement layer that feeds real-time vibration and position data upward through the I/O layer, communication layer, and ultimately into the plant-level SCADA and DCS platforms.

The 330904-00-02-10-02-05/CN operates as the field-level sensing node within a layered Bently Nevada monitoring architecture. Its analog DC voltage output is routed through a matched 330130 or 330180 series extension cable to a dedicated 3300 XL 8mm Proximitor sensor driver (e.g., 330780-50-00), which conditions the raw eddy-current signal into a calibrated displacement voltage. This conditioned signal is then wired into a 3500/40M Proximitor / Seismic Monitor or 3500/42M Proximitor / Seismic Monitor rack card, where it is processed against configurable alert and danger setpoints.

Within the 3500 rack chassis — such as the 3500/01 Rack Interface Module — the monitor card communicates over the rack backplane to the 3500/05 Power Supply Module, ensuring stable −24 VDC delivery to all connected Proximitor drivers. Redundant power configurations using dual 3500/05-01-02-00-00-01 power supply modules are common in critical turbine protection applications, providing uninterrupted measurement continuity during single-supply faults.

At the communication layer, the 3500 rack interfaces with plant DCS and SCADA systems via the 3500/92 Communication Gateway Module, supporting Modbus RTU, Modbus TCP/IP, and OPC-DA protocols. This enables the displacement data captured by the 330904-00-02-10-02-05/CN to be consumed by historian platforms, advanced process control loops, and condition monitoring software such as System 1 Evolution. The System 1 platform aggregates multi-channel vibration, position, and process data into unified dashboards, enabling predictive maintenance workflows and long-term trend analysis across entire rotating equipment fleets.

For keyphasor reference signal acquisition — essential for phase-referenced vibration analysis and balancing — the 330980-XX keyphasor probe is installed in parallel within the same rack architecture, feeding the 3500/25 keyphasor module. This combination enables synchronous sampling, orbit plot generation, and Bode/Nyquist analysis directly within System 1 or compatible third-party condition monitoring platforms.

At the HMI and operator interface layer, the 3500 rack's front-panel display and relay outputs connect to plant alarm management systems, while the 3500/33 16-Channel Relay Module provides configurable trip and alert relay outputs for integration with safety instrumented systems (SIS) and emergency shutdown (ESD) logic controllers. This layered architecture — from the 330904 probe tip through the Proximitor driver, rack monitor card, communication gateway, and System 1 software — ensures complete signal traceability, redundancy, and diagnostic transparency across the full machinery protection hierarchy.

Power Generation: Steam and gas turbines in utility-scale power plants rely on the 330904-00-02-10-02-05/CN for continuous shaft radial vibration and differential expansion monitoring. The probe's high-temperature tolerance at the tip makes it suitable for installation near high-energy bearing housings where ambient temperatures can approach the upper operating limit. Trip logic derived from this probe's signal protects turbine rotors from catastrophic bearing failure during load transients and startup/shutdown sequences.

Petrochemical and Oil & Gas: Centrifugal compressors, expanders, and boiler feed pumps in refinery and LNG processing facilities use the 330904 series probes for API 670-compliant machinery protection. The /CN connector termination simplifies field replacement and calibration verification without disturbing the extension cable routing, reducing mean time to repair (MTTR) during planned turnarounds.

Water Treatment and Mining: Large vertical pumps, induced draft fans, and ball mill drives in water infrastructure and mineral processing plants benefit from the probe's robust construction and wide operating temperature range. In these environments, the 3300 NSv system's compact Proximitor driver footprint allows installation in space-constrained motor control centers and local junction boxes.

Marine Propulsion and Packaging Lines: Shipboard propulsion turbines and high-speed packaging line drives require continuous shaft monitoring to prevent unplanned downtime. The 330904-00-02-10-02-05/CN, paired with the appropriate Proximitor driver and 3500 rack monitor, delivers the measurement stability and signal integrity required for these demanding, vibration-rich environments.

Q1: Is the 330904-00-02-10-02-05/CN compatible with both the 3300 NSv and 3500 series monitoring racks? Yes. The 330904 series proximity probes are designed as system-matched components within the Bently Nevada 3300 NSv transducer system, and they are fully compatible with 3500 series rack monitors when paired with the correct Proximitor driver (e.g., 330780 or 330180 series). The probe, extension cable, and Proximitor driver must be ordered and calibrated as a matched set to ensure the specified 7.87 V/mm output sensitivity and gap voltage linearity across the full measurement range.

Q2: What installation and commissioning steps are required to validate the probe in a live control architecture? Commissioning requires gap voltage verification at the target operating air gap (typically 1.0–1.5 mm for most shaft applications), confirmation of the Proximitor driver supply voltage (−24 VDC ±1 VDC), and a static calibration check against the published gap-versus-voltage curve. The 3500 rack monitor's channel configuration must match the probe/driver system scale factor. System 1 or the 3500 Rack Configuration Software (RCS) should be used to verify alert and danger setpoints, channel tags, and relay assignments before the machine is returned to service.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All 330904-00-02-10-02-05/CN units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, electrical performance within published specifications, and connector integrity. Each unit undergoes pre-shipment functional testing to verify output sensitivity, insulation resistance, and connector continuity before dispatch. In-stock units are typically available for same-week shipment. For volume procurement or project-specific delivery scheduling, contact [email protected] or call +86 18359268345 to confirm current inventory levels and lead times.
