Bently Nevada 330904-00-12-10-02-05/CN Proximity Probes

Product Details

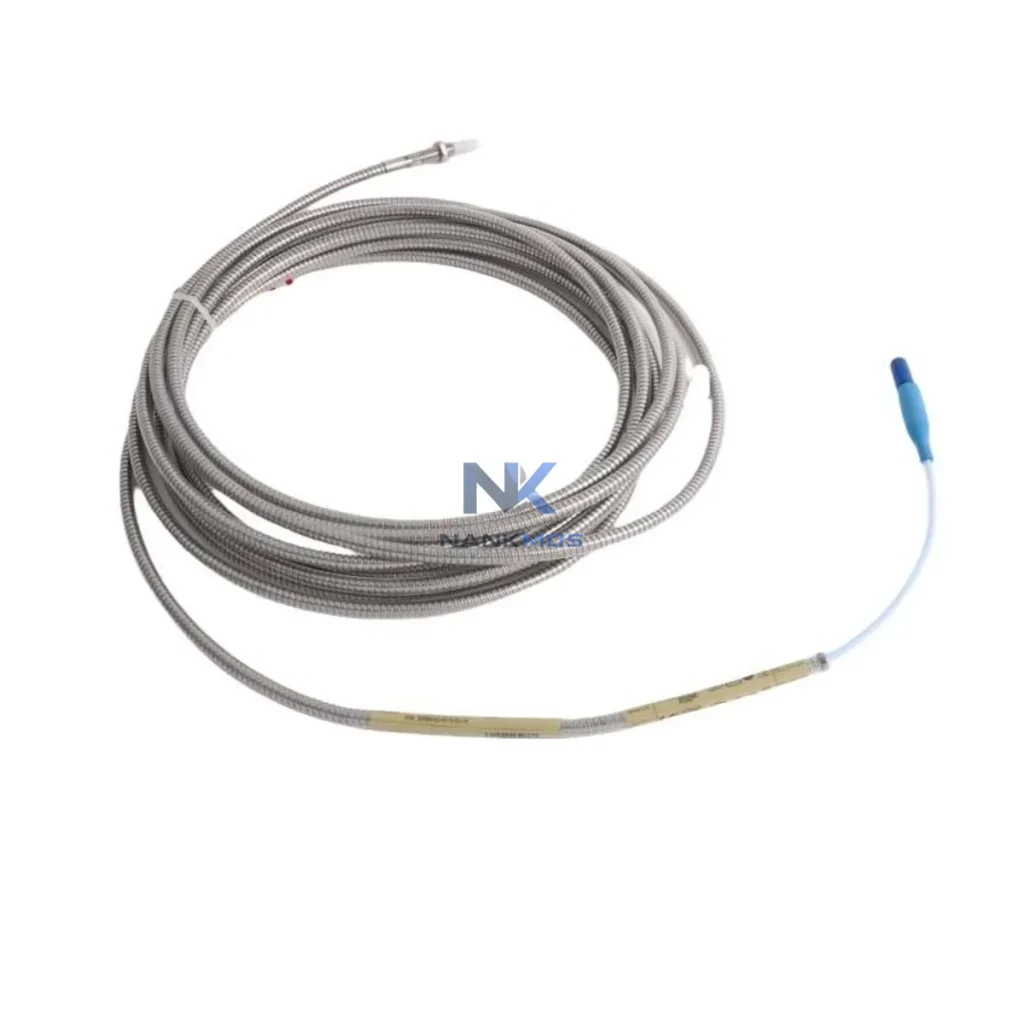

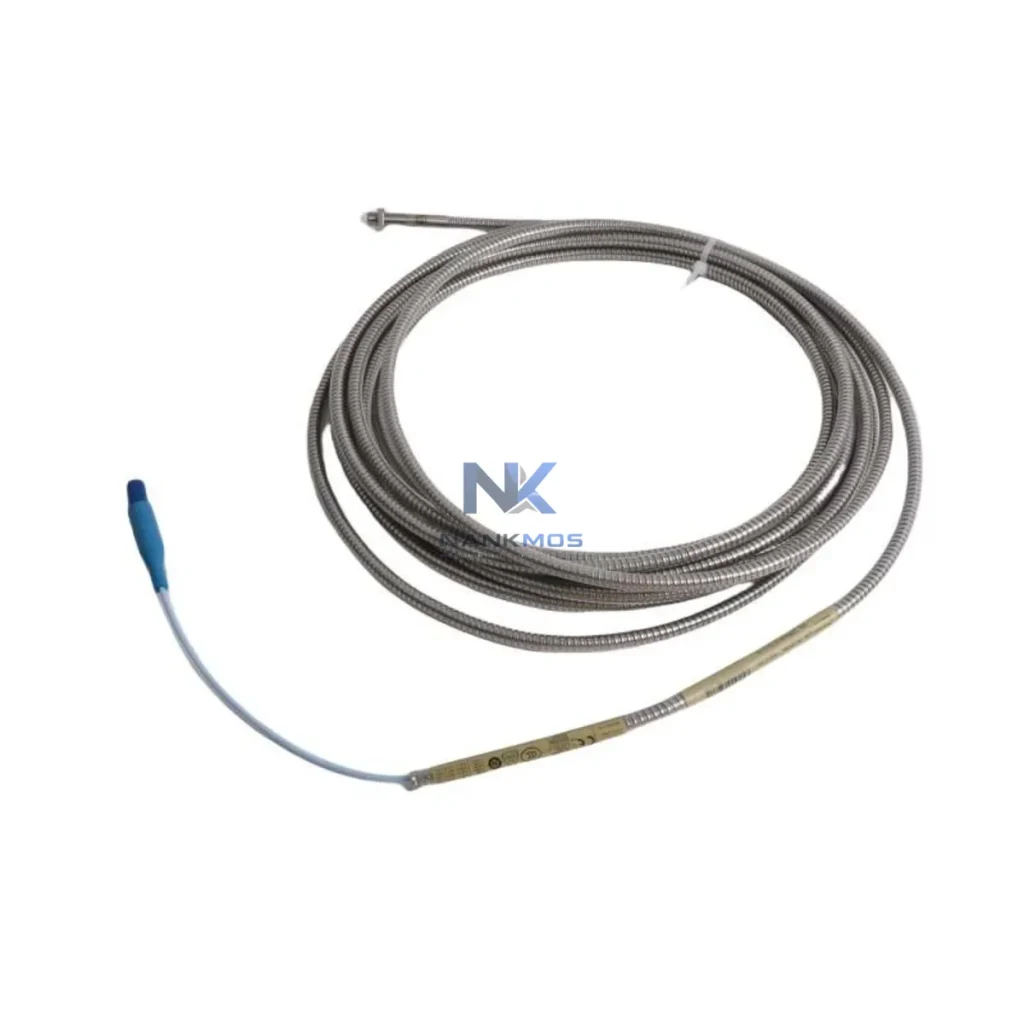

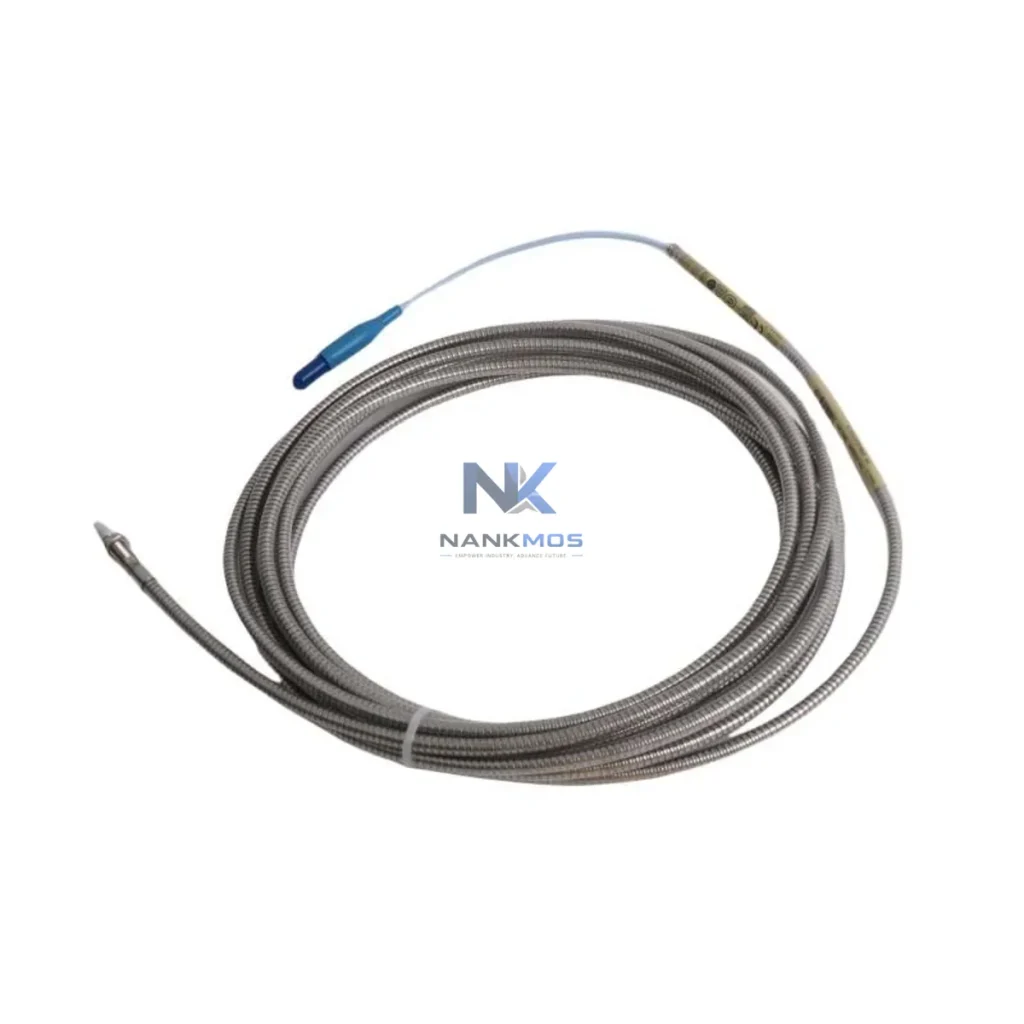

330904-00-12-10-02-05/CN Product Description

The Bently Nevada 330904-00-12-10-02-05/CN is a precision eddy-current proximity probe engineered for seamless integration into the Bently Nevada 3300 NSv vibration monitoring architecture. Designed to deliver continuous, high-fidelity shaft displacement and radial vibration data, this probe serves as the primary sensing element within a layered industrial control system — connecting the physical rotating machinery to the digital monitoring and protection infrastructure that safeguards critical assets across power generation, petrochemical, oil & gas, water treatment, mining, metallurgy, marine propulsion, and process control industries.

Unlike generic sensing components, the 330904-00-12-10-02-05/CN is factory-calibrated and system-matched to operate within the Bently Nevada 3300 NSv proximitor driver ecosystem. This ensures signal linearity, gap voltage accuracy, and scale factor consistency are maintained across the full operating range — eliminating field calibration uncertainty and reducing commissioning time during initial installation or replacement cycles.

Within a complete Bently Nevada 3300 NSv monitoring architecture, the 330904-00-12-10-02-05/CN proximity probe operates as the field-level sensing node at the bottom of the signal chain. Its analog output feeds directly into the 3300/16 Proximitor Sensor or 3300/20 Proximitor Driver, which conditions and amplifies the gap voltage signal before routing it to the 3500/40M Proximitor, Seismic, and Velocity Monitor rack module. The 3500 rack — typically a 3500/01 Rack Interface Module paired with a 3500/05 Power Supply — provides the centralized processing backbone for multi-channel vibration, axial position, and speed monitoring.

For facilities running redundant protection architectures, the probe integrates with dual-channel configurations supported by the 3500/22M Transient Data Interface, enabling simultaneous online monitoring and transient capture without signal interruption. Communication from the 3500 rack to the plant DCS or SCADA layer is handled via the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC-DA protocols — ensuring the vibration data captured by the 330904-00-12-10-02-05/CN is fully accessible to control room operators and historian systems such as OSIsoft PI or Emerson DeltaV.

At the HMI and visualization layer, data from this probe can be displayed in real time through System 1 Evolution software, Bently Nevada's asset condition monitoring platform, which aggregates multi-machine vibration trends, alarm states, and diagnostic waveforms into a unified operator interface. For installations requiring field-level diagnostics without returning to the control room, the ADRE 408 DSPi portable data acquisition system can interface directly with the proximitor output for on-site commissioning and baseline verification.

Power integrity for the sensing chain is maintained by the 3500/15 Power Supply with optional redundant power input, ensuring uninterrupted probe excitation voltage even during grid disturbances. Terminal block assemblies and shielded cable conduit systems complete the installation, with the probe's integral armor-jacketed cable providing EMI rejection in high-noise industrial environments such as motor control centers and variable frequency drive (VFD) cabinets.

Power Generation: Steam turbine and gas turbine shaft monitoring in combined-cycle power plants, where the 330904-00-12-10-02-05/CN provides continuous radial vibration and eccentricity data to the 3500 protection rack, triggering automatic shutdown sequences before bearing damage propagates.

Petrochemical & Oil and Gas: Compressor train monitoring in LNG terminals and refinery units, where API 670 compliance requires eddy-current proximity probes with verified scale factors and hazardous-area certifications. This probe meets those requirements and integrates directly with existing Bently Nevada rack infrastructure.

Water Treatment & Pumping Stations: Large vertical pump and booster station monitoring, where shaft displacement data from the 330904-00-12-10-02-05/CN feeds into predictive maintenance workflows, reducing unplanned downtime and extending mean time between overhauls (MTBO).

Mining & Metallurgy: Ball mill, SAG mill, and crusher drive monitoring in mineral processing plants, where high-vibration environments demand robust probe construction and reliable signal output under continuous heavy-load operation.

Marine Propulsion: Shaft line monitoring on diesel-electric vessels and LNG carriers, where the probe's wide operating temperature range and IP67 rating ensure reliable performance in engine room environments with high humidity and thermal cycling.

Q1: Is the 330904-00-12-10-02-05/CN directly compatible with existing 3300 NSv Proximitor Drivers without recalibration? Yes. The 330904-00-12-10-02-05/CN is factory-matched to the 3300 NSv system scale factor of 200 mV/mil. When paired with a 3300/16 or 3300/20 Proximitor Driver, no field recalibration is required. The system will recognize the probe's output within the expected linear range immediately upon installation, reducing commissioning time and eliminating calibration-related errors during replacement.

Q2: Can this probe be used in a redundant dual-channel 3500 rack architecture, and how does it affect system availability? Yes. The 330904-00-12-10-02-05/CN supports dual-channel redundant configurations when used with the 3500/40M monitor module in a 1oo2 or 2oo2 voting logic arrangement. In this setup, two probes monitor the same shaft journal from offset angular positions, and the 3500 rack processes both channels simultaneously. If one probe or cable develops a fault, the system continues monitoring on the remaining channel without triggering a spurious trip, maintaining plant availability while alerting maintenance personnel to the degraded sensor state.

Q3: What is the warranty coverage and supply assurance for the 330904-00-12-10-02-05/CN? All units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and performance deviations from published specifications. Each probe undergoes pre-shipment functional testing — including gap voltage verification, scale factor confirmation, and cable continuity checks — before dispatch. In-stock units are available for immediate shipment, supporting urgent maintenance requirements and planned turnaround outages without extended lead times.
