Bently Nevada 330904-00-13-10-02-05/CN Proximity Probe

Product Details

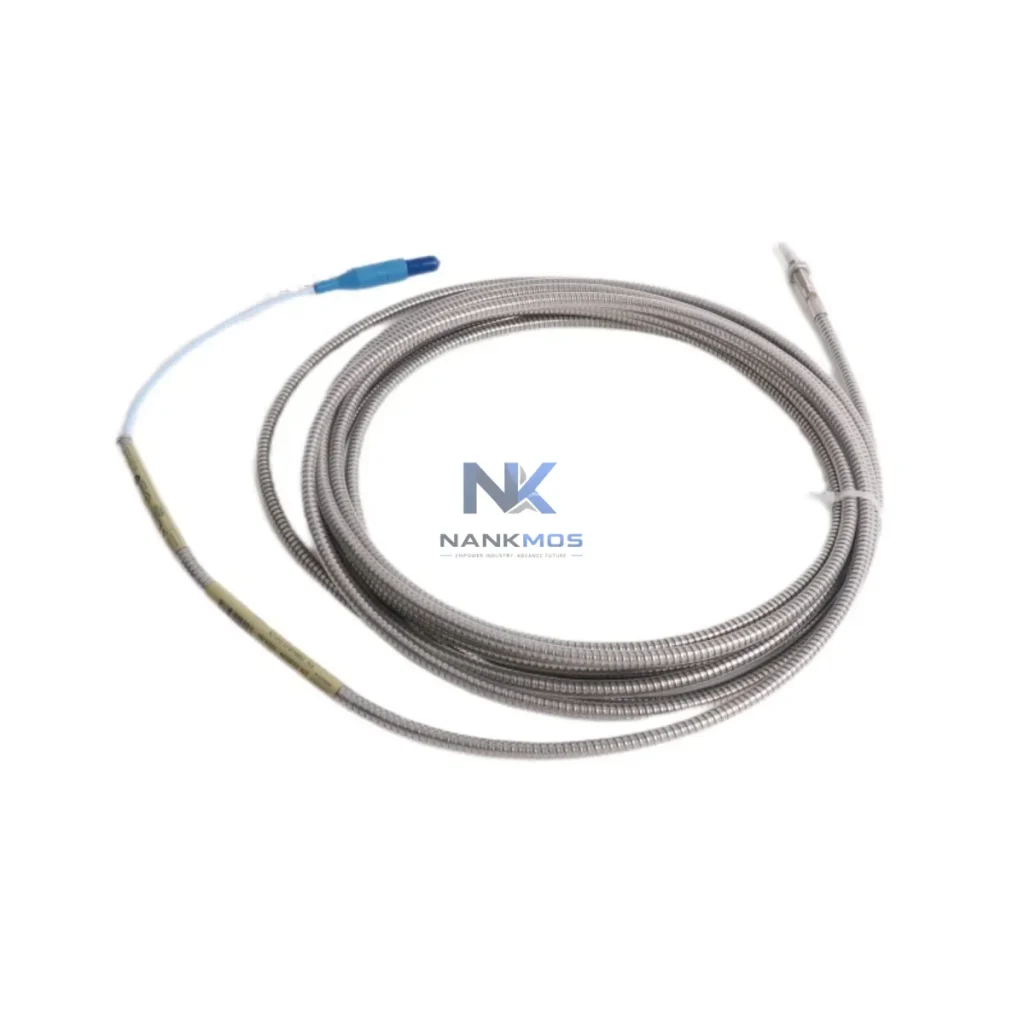

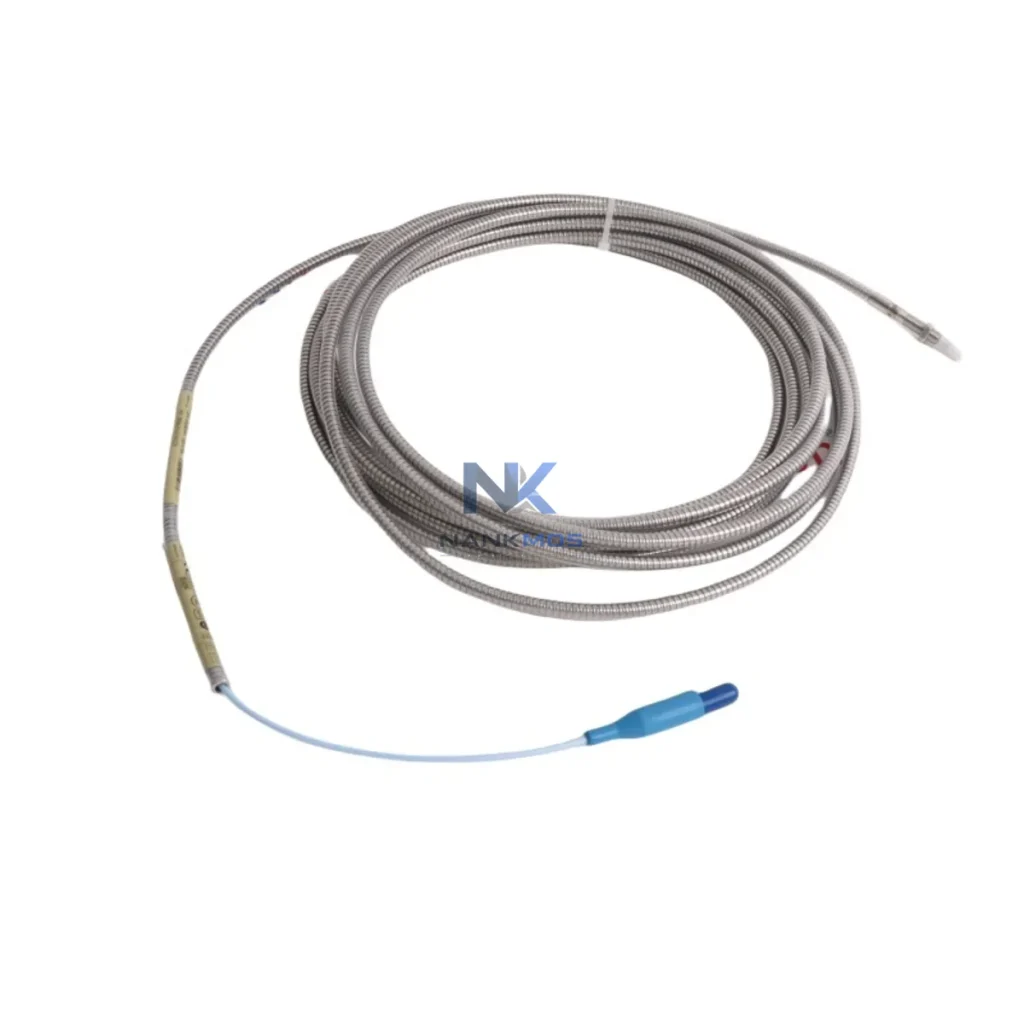

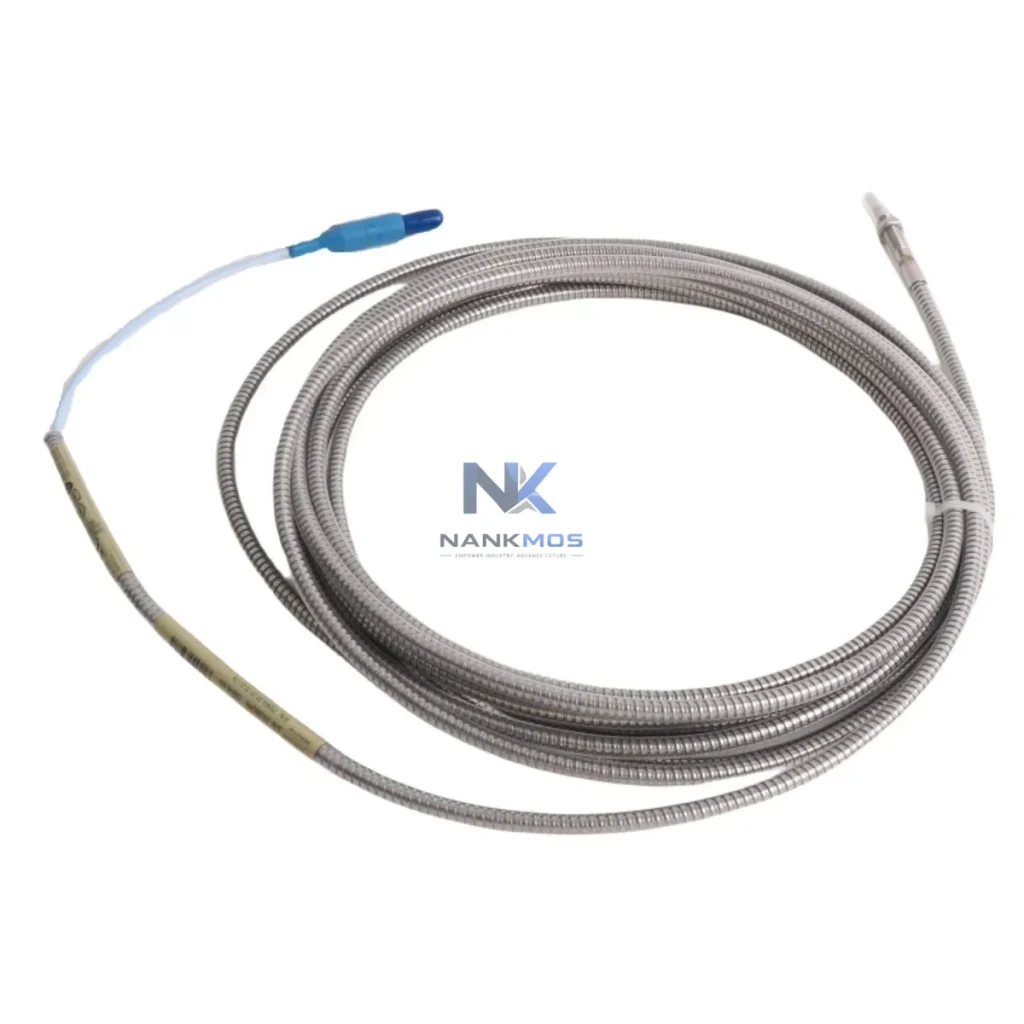

330904-00-13-10-02-05/CN Product Description

The Bently Nevada 330904-00-13-10-02-05/CN is a high-precision eddy-current proximity probe engineered for continuous, non-contact displacement and vibration measurement on rotating machinery. Designed as a core component of the Bently Nevada 3300 NSV (Non-contact Speed and Vibration) monitoring system, this probe delivers real-time shaft position and vibration data that directly supports energy-efficient machine operation, load management, and production line optimization across power generation, petrochemical, oil & gas, water treatment, and marine propulsion facilities.

In modern smart factories, uncontrolled vibration and shaft misalignment are among the leading causes of excessive energy consumption, elevated thermal loads, and unplanned downtime. The 330904-00-13-10-02-05/CN addresses these challenges by providing continuous, high-resolution displacement signals that allow control systems to detect developing faults before they escalate into failures. When integrated with a Bently Nevada 3500/42M Proximitor I/O Module and a 3500 Monitoring Rack, the probe feeds live vibration vectors into the plant's condition monitoring infrastructure, enabling operators to maintain machinery at its optimal operating point and avoid the energy penalties associated with degraded bearing clearances, rotor imbalance, or misalignment.

The probe's 5-metre armored extension cable and the companion Bently Nevada 330180 Proximitor Driver (signal conditioner) form a calibrated measurement chain that outputs a linear -24 VDC proportional signal, directly compatible with 4–20 mA transmitter interfaces, Modbus/TCP gateways, and OPC-UA data servers used in SCADA and DCS environments. This interoperability allows the vibration data to be consumed by Bently Nevada System 1 software for advanced analytics, or forwarded to a plant historian for long-term energy trend analysis and predictive maintenance scheduling.

The 330904-00-13-10-02-05/CN operates as a sensing front-end within a layered automation architecture. Its displacement signal is conditioned by the Bently Nevada 330180 Proximitor Driver, which provides the regulated –24 VDC bias voltage and converts the raw probe impedance change into a clean analog voltage output. This signal is then routed to a Bently Nevada 3500/42M Proximitor I/O Module seated in a 3500 Monitoring Rack, where it is digitized, compared against alarm setpoints, and made available over the rack's communication backplane.

For energy management integration, the digitized vibration data can be forwarded via a 3500/92 Communication Gateway to a plant DCS or SCADA system running on platforms such as Emerson DeltaV or Honeywell Experion. At the control layer, a Rockwell Automation ControlLogix PLC or Siemens S7-1500 PLC can consume the vibration status tags and use them to modulate the speed reference of a connected ABB ACS880 Variable Frequency Drive (VFD) or Siemens SINAMICS S120 servo drive system. By reducing motor speed when vibration levels indicate light-load conditions, the VFD eliminates unnecessary energy consumption and reduces thermal stress on motor windings and bearings.

On the power monitoring side, a Schneider Electric PowerLogic PM8000 Power Monitoring Unit or an ABB M2M Power Meter installed on the motor feeder panel provides real-time kW, kVAR, and power factor data. When correlated with the proximity probe's vibration amplitude trend in Bently Nevada System 1, engineers can identify the precise operating point at which mechanical losses begin to increase energy draw — enabling proactive maintenance scheduling before efficiency degrades. An Allen-Bradley Point I/O module or Siemens ET 200SP distributed I/O node can relay discrete alarm outputs from the 3500 rack to the plant HMI panel, giving operators a unified view of both electrical and mechanical health on a single Wonderware InTouch or Ignition SCADA screen.

For facilities implementing IIoT connectivity, the probe measurement chain can be extended through a Moxa NPort 5150 serial-to-Ethernet gateway or a Bently Nevada TDXnet Data Acquisition Unit, publishing vibration data as OPC-UA nodes directly consumable by cloud-based energy management platforms or on-premise MES systems without additional signal conditioning hardware.

Rotating machinery — compressors, turbines, pumps, fans, and gearboxes — accounts for a significant share of total plant energy consumption. When shaft vibration increases due to bearing wear, rotor imbalance, or misalignment, the mechanical losses translate directly into higher current draw, elevated motor temperatures, and reduced power factor. Left undetected, these conditions compound: a machine running with 50 µm of excess vibration amplitude may consume 3–8% more energy than a well-balanced machine at the same load point, while simultaneously accelerating bearing fatigue and increasing the risk of catastrophic failure.

The 330904-00-13-10-02-05/CN proximity probe breaks this cycle by providing continuous, non-contact shaft displacement measurement with sub-micron resolution. Because the probe never contacts the shaft, it introduces zero mechanical drag and requires no lubrication or periodic replacement under normal operating conditions, keeping maintenance-related downtime and associated production losses to a minimum. The probe's wide operating temperature range (–35 °C to +177 °C) ensures reliable measurement even in high-heat environments such as steam turbine bearing pedestals or gas compressor seal areas, where thermal management is critical to both equipment longevity and energy efficiency.

When deployed as part of a complete 3300 NSV or 3500 rack-based monitoring system, the probe enables a predictive maintenance strategy that replaces reactive, time-based overhauls with condition-triggered interventions. Plants that transition from time-based to condition-based maintenance typically report 10–25% reductions in maintenance labor costs and 5–15% improvements in overall equipment effectiveness (OEE). Higher OEE directly translates to more product output per unit of energy consumed — the fundamental metric of production line energy efficiency.

The probe also supports production line rhythm (takt time) stability. Unexpected machinery trips caused by undetected vibration faults disrupt production schedules, force emergency restarts, and generate energy spikes associated with motor inrush currents and thermal recovery cycles. By providing early warning of developing faults — typically days to weeks before failure — the 330904-00-13-10-02-05/CN allows maintenance teams to schedule corrective actions during planned shutdowns, preserving production continuity and eliminating the energy waste of unplanned restarts.

Every unit shipped from NANKMOS inventory is pre-shipment tested against Bently Nevada factory calibration standards, ensuring that the probe's scale factor and linearity are verified before installation. This eliminates commissioning delays and ensures that the monitoring system delivers accurate vibration data from day one, supporting immediate energy optimization without a calibration run-in period.

Q1: How does the 330904-00-13-10-02-05/CN contribute to measurable energy savings? By providing continuous, high-resolution shaft vibration data, the probe enables operators to detect and correct mechanical inefficiencies — such as bearing wear, rotor imbalance, and misalignment — before they increase energy consumption. When integrated with a VFD control loop via the 3500 rack and a plant PLC, the vibration signal can also be used to optimize motor speed in real time, reducing energy draw during light-load periods. Facilities using condition-based monitoring with Bently Nevada proximity probes typically report measurable reductions in motor energy consumption and maintenance-related downtime within the first 12 months of deployment.

Q2: Is the 330904-00-13-10-02-05/CN compatible with my existing 3300 or 3500 monitoring system? Yes. The 330904-00-13-10-02-05/CN is a standard 3300 NSV series probe and is fully compatible with the Bently Nevada 330180 Proximitor Driver and all 3500 series I/O modules that accept –24 VDC proximity probe inputs, including the 3500/42M and 3500/40M Proximitor I/O Modules. It is also backward-compatible with legacy 3300 series monitoring racks. If you are replacing an existing probe in a running system, no recalibration of the Proximitor Driver is required provided the replacement probe is the same part number.

Q3: What is the recommended replacement and testing procedure? For in-service replacement, de-energize the Proximitor Driver channel, remove the existing probe and extension cable assembly, install the 330904-00-13-10-02-05/CN, and verify the DC gap voltage at the driver output against the target gap specified in the machine's vibration monitoring setpoint documentation (typically –10.0 VDC ± 0.5 VDC for a standard 1.0 mm gap). Confirm alarm and danger setpoints in the 3500 rack configuration software before returning the channel to service. All NANKMOS units are pre-shipment tested and include a calibration verification report.

Q4: What warranty and supply assurance does NANKMOS provide? All Bently Nevada 330904-00-13-10-02-05/CN units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and calibration conformance. Units are held in stock and are available for immediate dispatch, supporting urgent maintenance and shutdown schedules. For bulk procurement or long-term supply agreements, contact our technical sales team to discuss inventory reservation and lead-time guarantees.
