Bently Nevada 330904-00-140-05-02-00 Proximity Probes

Product Details

330904-00-140-05-02-00 Product Description

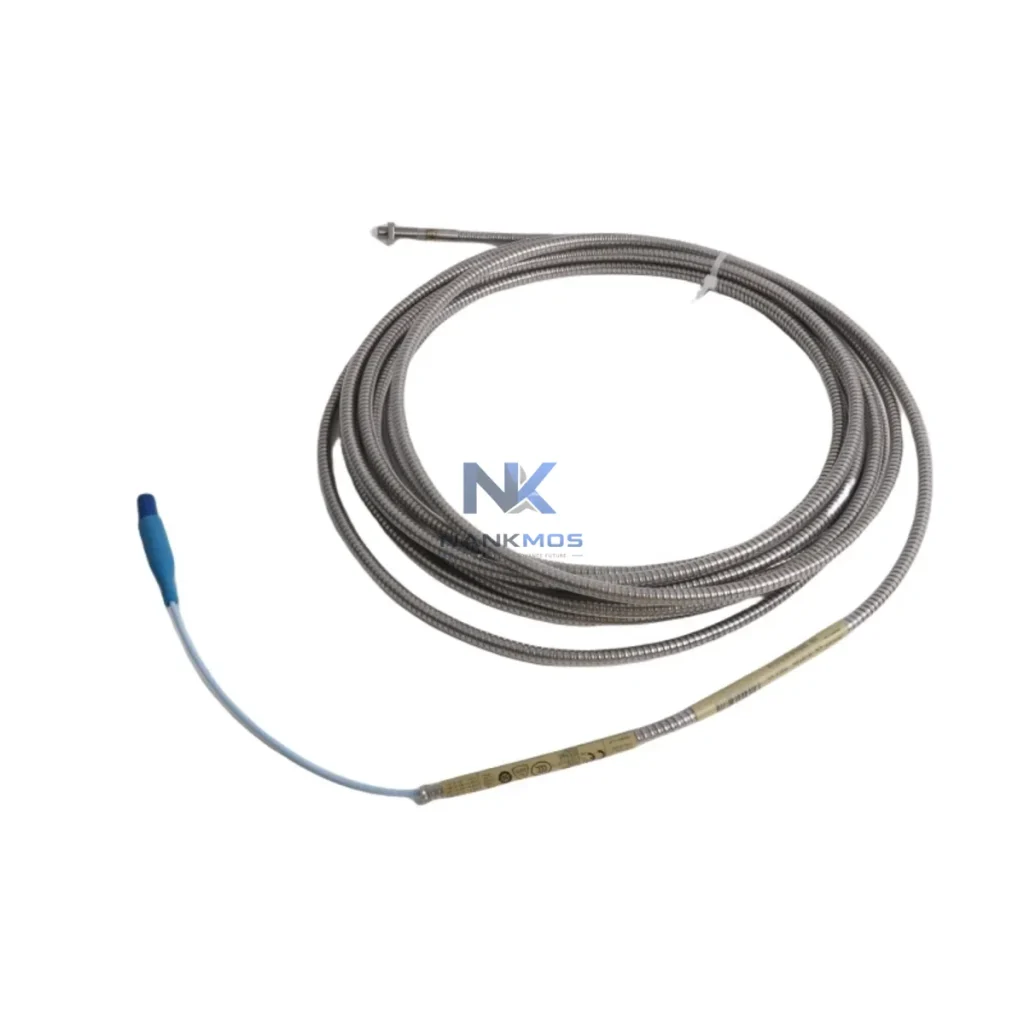

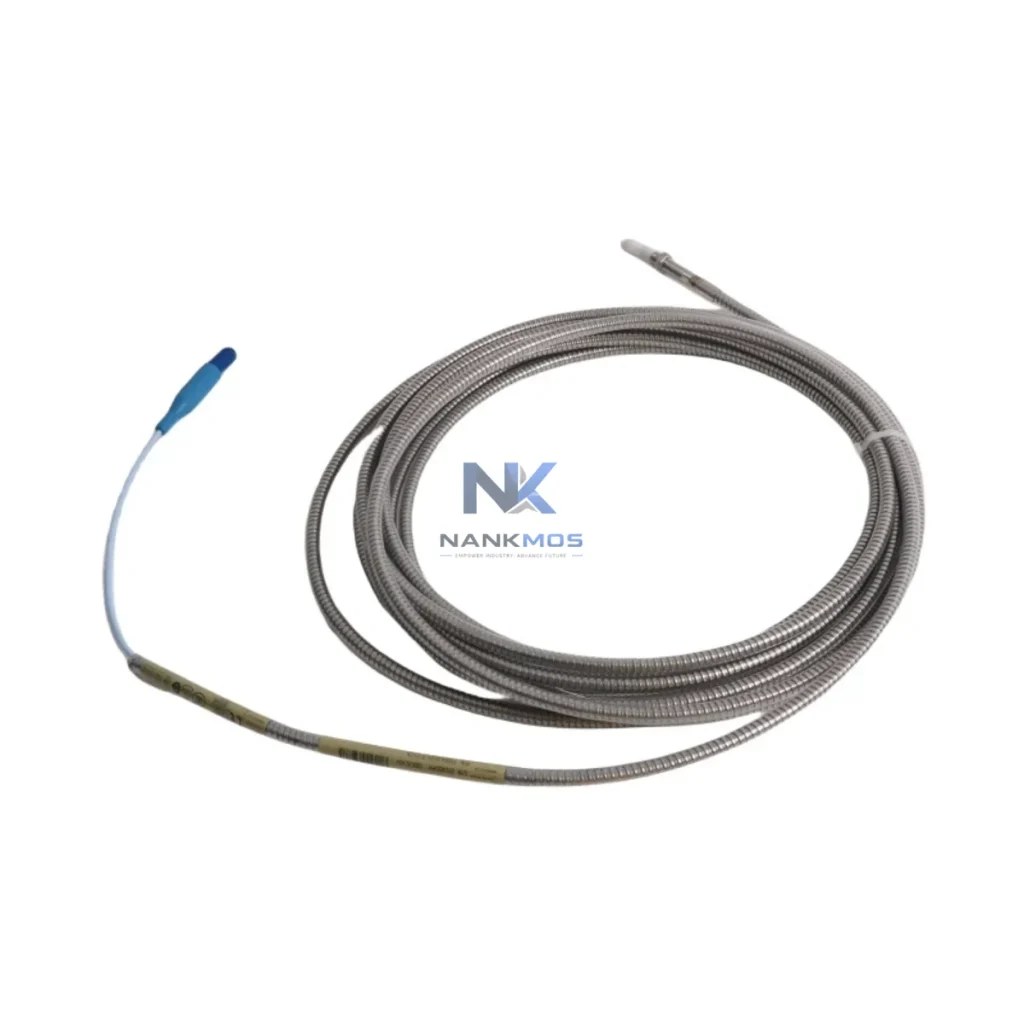

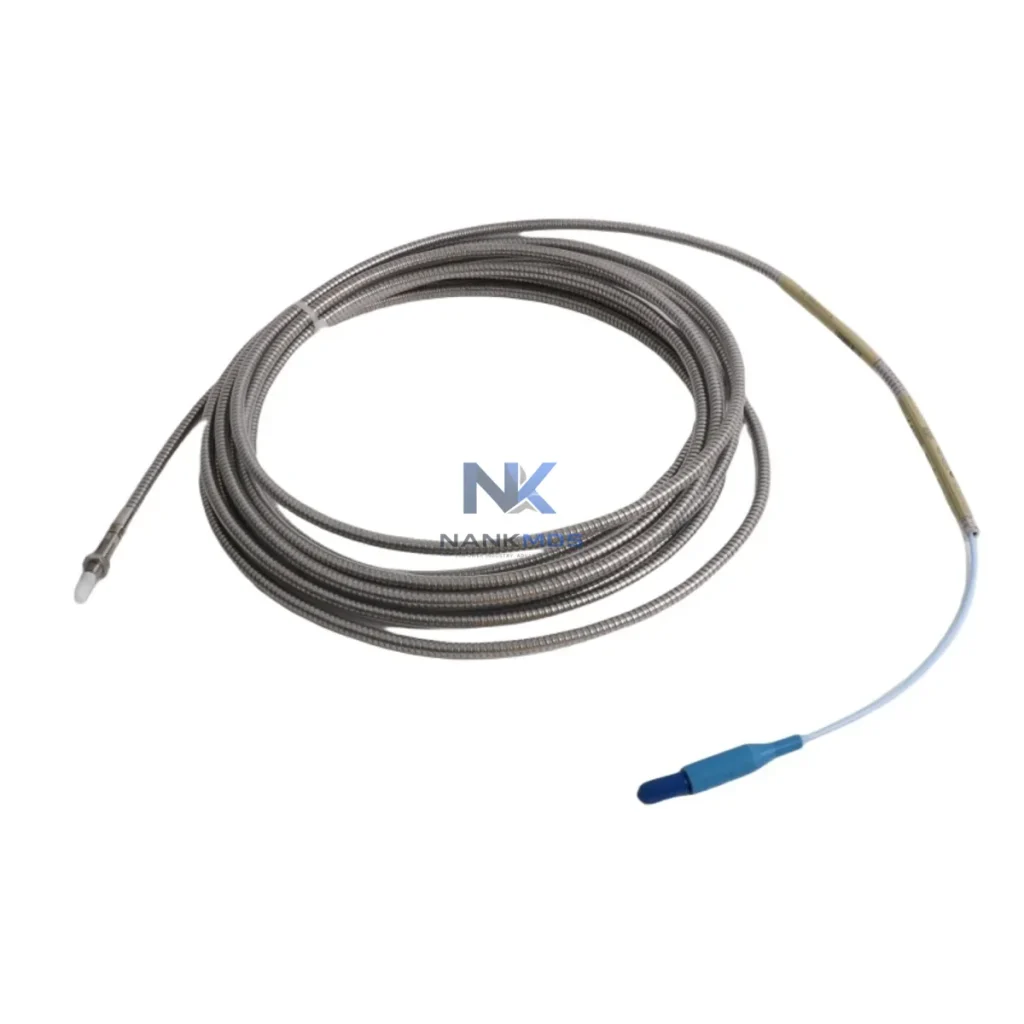

The Bently Nevada 330904-00-140-05-02-00 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 NSV (Non-contacting Vibration) monitoring architecture. Designed to deliver continuous, high-fidelity shaft displacement and vibration data, this probe serves as a foundational sensing element across the full control hierarchy — from field-level signal acquisition through to plant-level condition monitoring and predictive maintenance platforms. Its system-matched design ensures plug-and-play compatibility with the 3300 NSV signal conditioning chain, eliminating calibration uncertainty and reducing commissioning time on new installations and retrofit projects alike.

In modern industrial automation environments, no sensing component operates in isolation. The 330904-00-140-05-02-00 is conceived as an integral node within a layered control architecture, contributing to signal integrity at the I/O layer, supporting redundancy at the monitoring layer, and enabling diagnostic transparency at the supervisory layer. Whether deployed in a turbine protection system, compressor train monitoring rack, or rotating machinery health management platform, this probe delivers the consistent, low-noise output that downstream modules depend upon for accurate alarming, trending, and trip logic execution.

The 330904-00-140-05-02-00 proximity probe achieves its full performance potential when deployed as part of a coherent, system-matched 3300 NSV monitoring architecture. At the signal conditioning layer, the probe pairs directly with the Bently Nevada 330130 extension cable and the 330180 proximitor / oscillator-demodulator, forming a calibrated three-component sensing chain. This chain feeds conditioned analog signals into the 3300/16 or 3300/20 monitor modules, which provide channel-level alarming, OK relay outputs, and buffered outputs for external data acquisition.

At the rack and backplane layer, these monitor modules are housed within the 3300 rack system, which provides structured power distribution and inter-module communication. The 3300/05 power supply module delivers regulated -24 VDC to the probe chain, ensuring stable bias voltage across all operating conditions. For applications requiring enhanced availability, the rack supports redundant power supply configurations, allowing seamless switchover without interrupting vibration monitoring continuity.

At the communication and supervisory layer, the 3300 NSV monitors interface with plant DCS and SCADA platforms via the Bently Nevada 3500/92 communication gateway or through direct Modbus/TCP and OPC-DA/UA integration, enabling real-time vibration data to flow into historian platforms and condition monitoring software such as System 1 Evolution. This Contextual Integration capability allows maintenance engineers to correlate vibration trends with process variables — speed, load, temperature — for root-cause analysis and predictive maintenance scheduling.

For installations requiring higher channel density, the 3300/25 or 3300/55 monitor modules expand the system's I/O capacity without requiring additional rack infrastructure. In turbine protection applications, the proximity probe signal chain integrates with the Bently Nevada 3500 series overspeed detection module and the 3500/42M position monitor, creating a unified protection and condition monitoring platform. Terminal block assemblies and I/O marshalling panels complete the field wiring layer, ensuring clean signal routing from probe tip to monitor input with minimal electromagnetic interference.

Power Generation & Turbomachinery: In gas turbine and steam turbine installations, the 330904-00-140-05-02-00 provides continuous shaft radial vibration and axial position monitoring, feeding trip-critical data to the turbine protection system. Its high-frequency response and low noise floor make it suitable for high-speed rotor applications where early detection of imbalance, misalignment, or bearing degradation is essential for plant availability.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressor trains in petrochemical plants rely on proximity probe arrays to monitor shaft orbit, bearing clearance, and rotor dynamic behavior. The 330904-00-140-05-02-00, integrated within a multi-channel 3300 NSV rack, supports continuous online monitoring across all compressor stages, enabling condition-based maintenance strategies that reduce unplanned shutdowns.

Water Treatment & Pump Stations: Large vertical and horizontal pump installations in water treatment facilities benefit from proximity probe monitoring to detect cavitation-induced vibration, bearing wear, and shaft deflection. The probe's robust construction and wide operating temperature range ensure reliable performance in wet, humid, and chemically aggressive environments.

Mining & Minerals Processing: In grinding mills, crushers, and conveyor drive systems, the 330904-00-140-05-02-00 supports continuous vibration monitoring of critical rotating assets, providing early warning of mechanical faults that could result in costly production interruptions. Its compatibility with the 3300 NSV architecture allows integration into existing plant-wide condition monitoring networks.

Marine & Offshore Propulsion Systems: Shipboard propulsion machinery and offshore platform rotating equipment operate in high-vibration, high-humidity environments where sensor reliability is paramount. The 330904-00-140-05-02-00's sealed construction and wide temperature tolerance make it suitable for marine classification-compliant monitoring installations.

Q1: Is the 330904-00-140-05-02-00 directly compatible with existing 3300 NSV monitor modules and extension cables without recalibration? Yes. The 330904-00-140-05-02-00 is factory-calibrated to the 3300 NSV system standard (7.87 V/mm sensitivity), ensuring direct interchangeability with other 3300-series probes when used with the correct 330130 extension cable and 330180 proximitor. No field recalibration is required for standard steel targets. For non-standard target materials (e.g., Inconel, titanium alloys), a target material correction factor should be applied per Bently Nevada application guidelines.

Q2: How does this probe support redundant monitoring architectures and what are the installation considerations for dual-probe configurations? The 330904-00-140-05-02-00 is fully compatible with dual-probe (XY) radial vibration configurations, where two probes are mounted 90° apart around the shaft to capture the full orbit trajectory. In redundant protection architectures, each probe feeds an independent monitor channel, allowing the system to maintain protection coverage even if one probe or channel fails. Installation requires careful attention to probe gap setting (typically 1.0–1.5 mm for standard steel targets) and bracket rigidity to minimize structural resonance effects on the measurement.

Q3: What warranty coverage and pre-shipment testing does NANKMOS provide for the 330904-00-140-05-02-00, and how is long-term spare parts availability managed? All 330904-00-140-05-02-00 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes functional verification testing — including sensitivity check, gap voltage linearity, and frequency response validation — prior to shipment. NANKMOS maintains dedicated inventory of 3300 NSV series components to support long-term spare parts programs, minimizing lead times for critical replacement orders. For volume procurement or long-term supply agreements, contact [email protected] or call +86 18359268345.
