Bently Nevada 330905-00-09-05-02-CN

Product Details

330905-00-09-05-02-CN Product Description

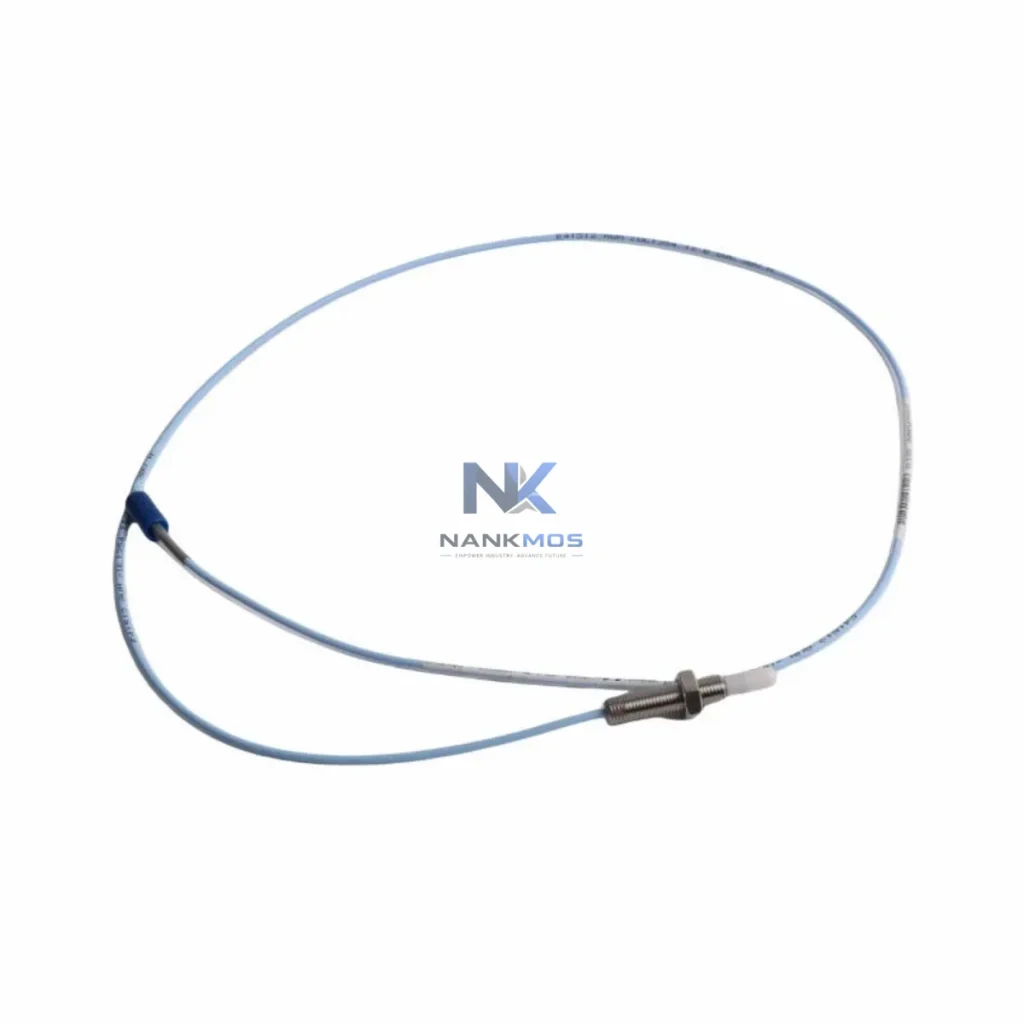

The Bently Nevada 330905-00-09-05-02-CN is a precision eddy-current proximity transducer engineered for the 3300 Series machinery protection and condition monitoring platform. Designed to operate within the demanding data environments of modern smart factories, this transducer serves as a critical front-end sensing node in the industrial data chain — converting mechanical displacement and vibration signals from rotating equipment into high-fidelity analog outputs that feed directly into monitoring racks, protocol gateways, and supervisory control systems.

In today's connected plant architecture, the journey of a vibration signal does not end at the sensor. The 330905-00-09-05-02-CN interfaces with the Bently Nevada 3300 XL 8mm Proximity Transducer System, where its conditioned output is received by a 3500/40M Proximitor I/O Module housed in the 3500 Series monitoring rack. From there, the rack's communication backplane transmits real-time shaft displacement data over Modbus RTU or Modbus TCP/IP to a plant-level SCADA gateway — enabling operators to visualize bearing clearance trends, orbital plots, and alarm states on GE System 1 or third-party HMI platforms without interrupting the protection loop.

This seamless data flow is what distinguishes a legacy vibration sensor from a smart factory asset. The 330905-00-09-05-02-CN, when paired with a Bently Nevada 3500/22M Transient Data Interface, supports high-speed transient capture during machine startups and coastdowns — data that is streamed via OPC-UA to edge computing nodes or historian servers for long-term trend analysis and predictive maintenance scheduling. Integration with Rockwell Automation ControlLogix PLCs or Siemens S7-300/400 controllers is achieved through standard analog input cards or dedicated communication modules, ensuring the transducer's 4–20 mA or voltage output is correctly scaled and mapped within the control logic.

For remote I/O architectures, the signal from the 330905-00-09-05-02-CN can be routed through a Phoenix Contact Axioline or Wago 750 Series remote I/O coupler, converting the analog measurement into a digital Ethernet/IP or PROFINET packet for transmission across the plant network backbone. Industrial-grade managed Ethernet switches — such as those from the Hirschmann MICE or Moxa EDS series — provide the network redundancy and VLAN segmentation required to isolate vibration monitoring traffic from general automation traffic, ensuring deterministic data delivery to the control room.

At the field level, the 330905-00-09-05-02-CN operates alongside complementary components including the Bently Nevada 330130 Proximitor Sensor and 330180 Extension Cable, forming a complete eddy-current measurement chain. The Proximitor driver conditions the raw probe signal, compensating for temperature drift and cable capacitance, before delivering a linearized DC voltage output to the monitoring rack. This conditioned signal is then available for both the protection relay logic within the 3500/20 Rack Interface Module and the data acquisition path feeding the SCADA historian.

Variable frequency drives (VFDs) controlling the motors coupled to monitored shafts can introduce electrical noise into the measurement environment. The 330905-00-09-05-02-CN's shielded cable design and the system's differential input architecture on the 3500/40M I/O module provide effective common-mode rejection, maintaining signal integrity even in electrically noisy environments typical of petrochemical plants, power generation facilities, and offshore platforms. This robustness is essential when the transducer data must traverse long cable runs before reaching the nearest remote I/O node or edge gateway.

All units supplied by NANKMOS are pre-shipment tested against Bently Nevada factory specifications, verifying gap voltage linearity, frequency response, and output impedance before dispatch. Stock availability is maintained to support urgent replacement and planned maintenance windows across global sites. Every 330905-00-09-05-02-CN is backed by a 12-month warranty, covering manufacturing defects and performance deviations from published specifications.

A complete smart factory data chain built around the 330905-00-09-05-02-CN begins at the machine shaft, where the eddy-current probe detects radial displacement with micron-level resolution. The Bently Nevada 330130 Proximitor Sensor conditions this signal and delivers it to the 3500/40M Proximitor I/O Module in the protection rack. The rack's 3500/20 Rack Interface Module aggregates channel data and exposes it via a serial or Ethernet communication port to the plant network.

A Bently Nevada 3500/22M Transient Data Interface captures high-resolution startup and shutdown waveforms, forwarding them via OPC-UA to an edge server running GE System 1 Evolution software. Simultaneously, steady-state vibration values are polled by a Moxa MGate MB3480 Modbus gateway, which converts the serial Modbus RTU stream to Modbus TCP/IP for delivery across a Hirschmann MICE managed industrial switch to the control room SCADA server.

At the PLC layer, a Rockwell Automation 1756-IF16 analog input module in the ControlLogix chassis receives the 4–20 mA representation of shaft gap, enabling the PLC to execute protective relay logic and interlock sequences. HMI panels — such as a Siemens TP1200 Comfort or Weintek cMT Series — display real-time gap voltage, vibration amplitude, and alarm status, giving field operators immediate visibility without accessing the SCADA workstation. For sites requiring wireless data access, a Moxa AWK-3131A industrial Wi-Fi access point bridges the wired Ethernet segment to mobile maintenance tablets running condition monitoring dashboards.

This layered architecture — probe → Proximitor → protection rack → Modbus gateway → managed switch → SCADA/HMI → historian — ensures that every data point generated by the 330905-00-09-05-02-CN is available for real-time alarming, long-term trending, and remote diagnostic review, forming the backbone of a transparent, connected rotating equipment monitoring strategy.

Protocol fragmentation is one of the most common barriers to plant-wide visibility. Legacy vibration monitoring systems using proprietary serial protocols cannot natively communicate with modern Ethernet-based SCADA platforms. The 330905-00-09-05-02-CN, operating within the 3500 Series rack ecosystem, addresses this through rack-level Modbus TCP/IP and OPC-UA gateway options, eliminating the need for custom protocol converters and reducing integration engineering time.

Data silos between the machinery protection system and the process control network are resolved by mapping vibration channel data into standard Modbus register blocks, which any SCADA or DCS platform can poll on a configurable scan cycle. This allows vibration alarm states to trigger process interlocks in the PLC without manual operator intervention, closing the loop between condition monitoring and process control.

Remote monitoring for unmanned or geographically distributed assets — compressor stations, offshore platforms, remote pump skids — is enabled by routing the 3500 rack's Ethernet port through a cellular or satellite router to a cloud-hosted historian. Maintenance engineers can review shaft centerline plots, alarm histories, and waveform data from any location, reducing the need for costly site visits and enabling condition-based maintenance scheduling.

Production line transparency is achieved when vibration data from the 330905-00-09-05-02-CN is integrated into the plant's MES or ERP system via the SCADA historian's REST API or OPC-UA server, correlating machine health with production output and downtime records. Alarm tracking and escalation workflows can be configured in the SCADA platform to notify maintenance teams via email or SMS when vibration thresholds are exceeded, ensuring no alarm event is missed during shift changes.

System expansion is straightforward within the 3300/3500 Series architecture. Additional transducer channels can be added by installing new I/O modules in vacant rack slots, with the rack's communication module automatically exposing new Modbus registers to the SCADA system — no rewiring of the communication infrastructure required.

Q1: What communication protocols does the 330905-00-09-05-02-CN support for SCADA integration? The transducer itself produces an analog DC voltage output. When installed in a Bently Nevada 3500 Series rack equipped with a communication gateway module, the system supports Modbus RTU, Modbus TCP/IP, and OPC-UA, enabling direct integration with SCADA platforms including GE System 1, Ignition, Wonderware, and Siemens WinCC without additional protocol converters.

Q2: How is network stability maintained in electrically noisy plant environments? The 330905-00-09-05-02-CN uses a shielded coaxial cable assembly, and the 3500/40M I/O module employs differential input circuitry to reject common-mode electrical noise from VFDs, motor starters, and high-voltage bus bars. For the Ethernet communication segment, industrial managed switches with VLAN segmentation isolate monitoring traffic from general automation traffic, ensuring deterministic data delivery.

Q3: Can this transducer be integrated with existing Rockwell or Siemens PLC systems? Yes. The analog output from the 3500 rack can be wired directly to a Rockwell 1756-IF16 or Siemens SM 331 analog input module. Alternatively, the rack's Modbus TCP/IP gateway allows the PLC's Ethernet communication module to poll vibration data as standard holding registers, enabling PLC-based interlock logic without additional hardware.

Q4: What pre-shipment testing and warranty coverage is provided? All 330905-00-09-05-02-CN units supplied by NANKMOS are individually tested prior to dispatch, verifying gap voltage linearity across the measurement range, output impedance, and frequency response per Bently Nevada factory specifications. Each unit is covered by a 12-month warranty against manufacturing defects and performance deviations. In-stock units are available for immediate dispatch to support planned maintenance and emergency replacement requirements globally.
