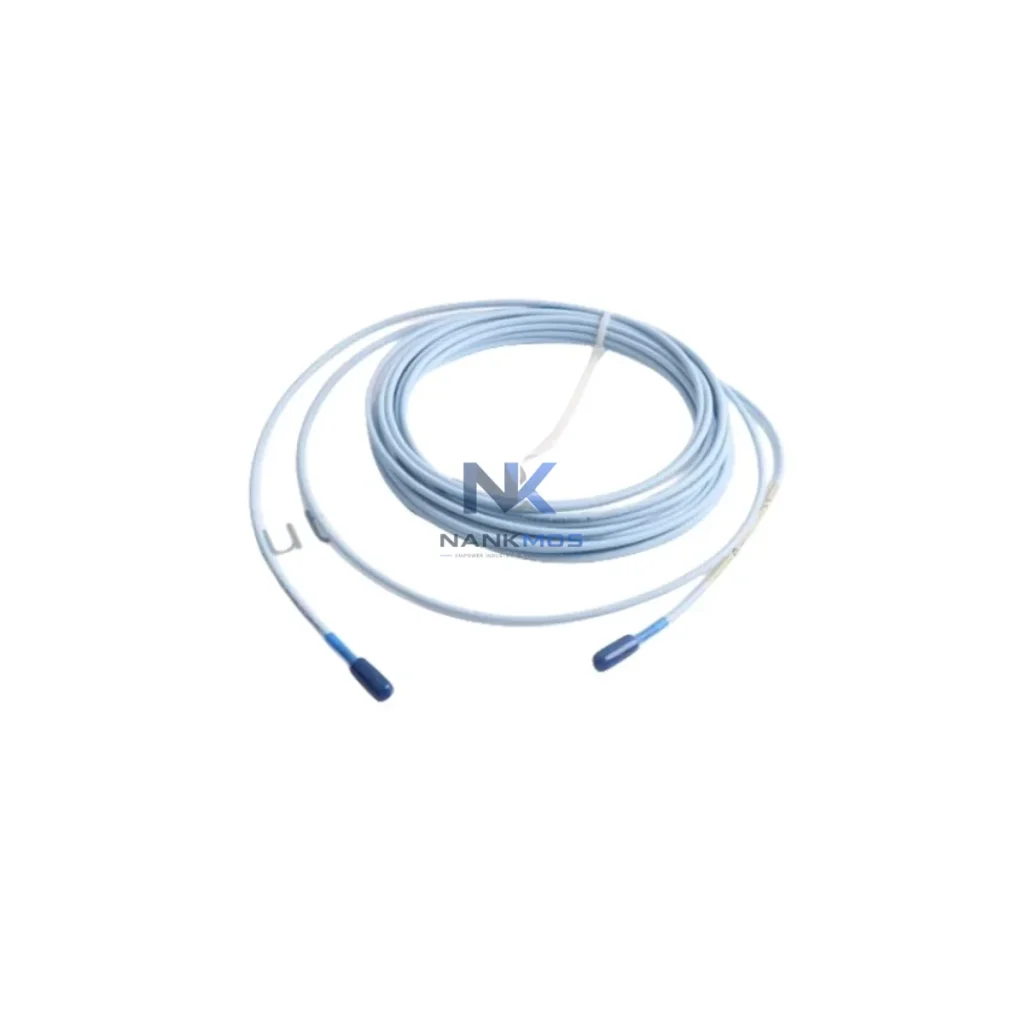

Bently Nevada 330910-01-10-10-02-05 Proximity Probe

Product Details

330910-01-10-10-02-05 Product Description

The Bently Nevada 330910-01-10-10-02-05 is a high-precision eddy-current proximity probe engineered for continuous, non-contact shaft vibration and position measurement in energy-intensive rotating machinery. Designed as a core component of the Bently Nevada 3300 and 3500 Series machinery protection systems, this probe delivers real-time displacement data that enables plant engineers to optimize energy consumption, reduce thermal loading, and maintain stable production line throughput. By providing accurate rotor dynamic feedback, the 330910-01-10-10-02-05 helps eliminate the energy waste associated with undetected imbalance, misalignment, and bearing degradation—conditions that silently inflate power draw and accelerate mechanical wear.

In modern smart manufacturing environments, energy efficiency is inseparable from machine health. The 330910-01-10-10-02-05 integrates directly with the Bently Nevada 3500/42M Proximitor I/O Module, feeding conditioned vibration signals into the 3500 Rack-based protection system. These signals are simultaneously available to plant-level SCADA platforms and DCS controllers, enabling closed-loop energy management strategies that respond dynamically to actual machine load conditions rather than fixed schedules.

The 330910-01-10-10-02-05 proximity probe operates as the sensing front-end of a layered energy-aware automation architecture. Its output feeds the Bently Nevada 3500/42M Proximitor I/O Module, which conditions the raw eddy-current signal into a calibrated voltage proportional to shaft gap. This conditioned signal is then processed by the 3500 Rack's protection cards, which can trigger alarms or initiate controlled shutdowns before a developing fault escalates into a catastrophic failure—and the associated energy surge that accompanies uncontrolled mechanical events.

At the control layer, the probe's data integrates with Rockwell Automation ControlLogix PLCs and Siemens S7-400 PLCs via hardwired relay outputs or digital communication through the 3500 System's Modbus TCP or Ethernet/IP gateway modules. This integration allows the PLC to modulate the setpoints of connected Allen-Bradley PowerFlex 755 variable frequency drives (VFDs), reducing motor speed during low-load periods identified by stable vibration signatures—directly cutting energy consumption without sacrificing process continuity.

On the power monitoring side, the vibration data from the 330910-01-10-10-02-05 complements readings from Schneider Electric PowerLogic ION7650 power quality meters and ABB M2M power monitoring modules. When vibration amplitude trends upward while power draw remains constant, engineers can identify efficiency degradation in rotating equipment before it manifests as measurable energy loss—enabling proactive maintenance scheduling that avoids both emergency repairs and the energy penalties of degraded operation.

The probe also works in concert with Emerson AMS Device Manager and OSIsoft PI System historian platforms, where its time-series vibration data is correlated with energy consumption KPIs. This correlation supports predictive maintenance models that schedule interventions during planned low-production windows, preserving production line rhythm and avoiding the energy-intensive restart cycles associated with unplanned stops. For HMI visualization, the probe's data is typically surfaced through GE iFIX or Wonderware InTouch SCADA screens, giving operators a real-time view of machine health alongside energy consumption dashboards.

In high-throughput manufacturing environments—petrochemical plants, power generation facilities, paper mills, and automotive assembly lines—rotating machinery accounts for the majority of electrical energy consumption. The Bently Nevada 330910-01-10-10-02-05 proximity probe addresses this challenge at the source by providing the continuous, high-resolution shaft position data needed to detect and correct the mechanical conditions that waste energy.

Rotor imbalance, for example, forces electric motors to draw additional current to maintain speed against the oscillating load. A proximity probe monitoring radial vibration at the bearing journal can detect the characteristic 1X vibration signature of imbalance at amplitudes far below the threshold of operator awareness—allowing maintenance teams to schedule balancing during the next planned outage rather than running the machine in a degraded, energy-wasteful state for weeks or months.

Similarly, shaft misalignment between a motor and its driven load generates 2X vibration components that the 330910-01-10-10-02-05 captures with high fidelity. Correcting misalignment not only extends coupling and bearing life but also eliminates the additional power required to overcome the lateral forces imposed by angular or parallel offset—a direct reduction in energy consumption that can be quantified through the plant's power monitoring infrastructure.

For production line rhythm stability, the probe's ability to detect sub-synchronous vibration associated with fluid-film bearing instability (oil whirl and oil whip) is particularly valuable. These instabilities, if left unchecked, can force emergency shutdowns that disrupt production schedules and require energy-intensive restart sequences. By providing early warning through the 3500 Series protection system, the 330910-01-10-10-02-05 enables operators to maintain stable machine operation and predictable production cadence.

All units are maintained in ready-to-ship inventory, pre-tested prior to dispatch, and covered by a 12-month warranty to ensure operational continuity and supply chain reliability for critical production assets.

Q1: How does the 330910-01-10-10-02-05 contribute to measurable energy savings?By detecting mechanical faults such as imbalance, misalignment, and bearing wear at an early stage, the probe enables corrective action before these conditions cause motors and drives to operate at reduced efficiency. Plants that integrate proximity probe data with VFD control loops have documented reductions in motor energy consumption by eliminating the excess current draw associated with degraded mechanical conditions.

Q2: Is the 330910-01-10-10-02-05 compatible with third-party PLC and SCADA systems?Yes. The probe outputs a standard voltage signal via the Bently Nevada Proximitor, which is compatible with any analog input module. The 3500 Series rack additionally supports Modbus TCP, Ethernet/IP, and OPC-UA communication, enabling integration with Siemens, Rockwell, Schneider Electric, and other major automation platforms without signal conversion hardware.

Q3: What is the recommended replacement interval, and are replacement units available from stock?Bently Nevada recommends inspection at each planned maintenance outage, with replacement triggered by sensitivity drift exceeding ±5% of the original calibration or physical damage to the probe tip or cable. Replacement units of the 330910-01-10-10-02-05 are maintained in inventory for rapid dispatch, minimizing the window of unmonitored operation and the associated energy and reliability risks.

Q4: What testing is performed before shipment, and what warranty coverage applies?Each 330910-01-10-10-02-05 unit undergoes pre-shipment functional testing to verify sensitivity, linearity, and output voltage within Bently Nevada factory specifications. All units are supplied with a 12-month warranty covering defects in materials and workmanship, providing assurance of reliable performance throughout the warranty period.
