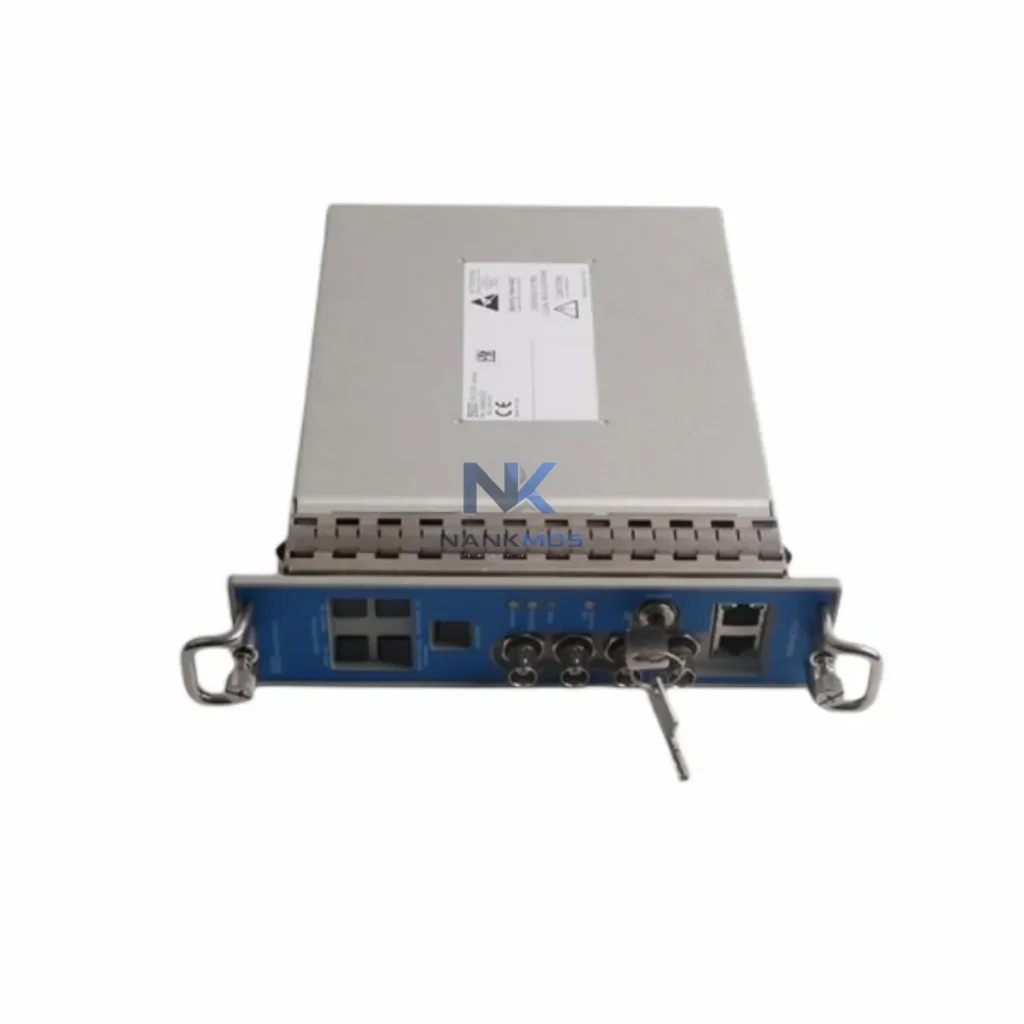

Bently Nevada 3500/23E Transient Data Interface

Product Details

3500/23E Product Description

The Bently Nevada 3500/23E Transient Data Interface (TDI) is a high-performance Ethernet communication module engineered for the 3500 Series Machinery Protection System. Designed to bridge the gap between field-level vibration monitoring hardware and plant-wide digital infrastructure, the 3500/23E enables real-time transmission of transient waveform data, dynamic signal records, and machinery health diagnostics across industrial Ethernet networks using TCP/IP protocol. In smart factory environments where continuous asset visibility is non-negotiable, this module serves as the critical data link between rotating machinery sensors and supervisory control platforms including SCADA, DCS, and historian systems.

Industrial facilities operating gas turbines, steam turbines, compressors, pumps, and large rotating equipment depend on the 3500 Series for machinery protection. The 3500/23E extends that protection capability into the digital domain — converting raw vibration transient data into structured Ethernet packets that can be consumed by Bently Nevada System 1 software, OSIsoft PI historians, and third-party SCADA platforms. This protocol conversion capability eliminates data silos that traditionally existed between the protection layer and the operations technology (OT) network, enabling plant engineers to access full waveform captures, orbit plots, and Bode diagrams directly from their control room workstations or remote monitoring dashboards.

Within a connected factory data architecture, the 3500/23E operates as a gateway node between the 3500 Series rack backplane and the plant Ethernet LAN. Vibration signals collected by proximity probes, accelerometers, and velocity transducers are processed by 3500 Series monitor cards — such as the 3500/40M proximitor monitor or the 3500/42M velocity and acceleration monitor — and the resulting transient datasets are routed through the 3500/23E to upstream systems. Integration with the Bently Nevada 3500/22M transient data interface module and the 3500/05 power supply module ensures the rack operates as a unified, network-ready protection system. The 3500/23E supports simultaneous communication with multiple host systems, allowing both the System 1 condition monitoring platform and a plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV — to receive live machinery data without contention.

The 3500/23E sits at the intersection of machinery protection and industrial data networking, making it a foundational component in any smart factory connectivity architecture built around rotating equipment health. The data flow begins at the sensor layer, where proximity probes and accelerometers mounted on turbine shafts, compressor rotors, and pump impellers generate continuous vibration signals. These analog signals are conditioned and digitized by 3500 Series monitor cards housed in the same rack — including the 3500/40M proximitor monitor for radial vibration, the 3500/42M velocity and acceleration monitor for axial and casing measurements, and the 3500/45 position monitor for thrust and differential expansion tracking.

Once the monitor cards process the raw signals into engineering-unit values and transient waveform buffers, the 3500/23E retrieves this data from the rack backplane and encapsulates it into TCP/IP packets for transmission across the plant Ethernet network. At the network layer, industrial managed switches — such as those from the Hirschmann MACH series or Cisco IE 4000 industrial Ethernet switches — provide the switching fabric that connects the 3500 rack to the plant OT network. VLAN segmentation and QoS policies applied at the switch level ensure that time-critical transient data from the 3500/23E reaches the historian and SCADA servers with minimal latency and without interference from other network traffic.

At the supervisory layer, Bently Nevada System 1 software receives the transient data streams from the 3500/23E and renders them as orbit plots, waveform displays, Bode diagrams, and cascade plots for rotating machinery diagnostics. Simultaneously, the OSIsoft PI data historian archives the time-stamped vibration vectors and alarm states for long-term trend analysis and regulatory compliance reporting. For facilities running a Yokogawa CENTUM VP DCS or an ABB System 800xA distributed control system, OPC DA or OPC UA server interfaces can be configured to relay the 3500/23E data into the DCS process graphics, enabling operators to view machinery vibration levels alongside process variables such as flow, pressure, and temperature on a unified HMI display.

Remote diagnostic capability is a key value driver of the 3500/23E in modern industrial connectivity frameworks. Plant engineers and reliability teams can access live transient waveform data from remote workstations or secure VPN connections without requiring physical presence at the machinery skid. When a vibration alarm triggers on a gas turbine or centrifugal compressor, the 3500/23E ensures that the full transient capture — including the pre-alarm waveform buffer — is immediately available to the System 1 platform for root cause analysis. This capability reduces mean time to diagnose (MTTD) and supports predictive maintenance programs that minimize unplanned downtime across critical rotating assets.

Many industrial facilities operate with fragmented data architectures where machinery protection systems function as isolated islands, disconnected from the broader plant control and monitoring infrastructure. The Bently Nevada 3500/23E directly addresses this challenge by providing a standardized Ethernet TCP/IP gateway that integrates the 3500 Series protection rack into the plant OT network without requiring proprietary communication hardware or custom protocol converters.

Protocol incompatibility is one of the most common barriers to machinery data integration. Legacy 3500 Series installations may rely on RS-232 or RS-422 serial links for data extraction, which limits bandwidth and prevents real-time waveform streaming. The 3500/23E replaces these serial bottlenecks with high-speed Ethernet connectivity, enabling full transient data capture at network speeds compatible with modern SCADA and historian platforms. For sites running mixed-vendor environments — combining Bently Nevada protection racks with Emerson, Honeywell, or Yokogawa control systems — the 3500/23E's TCP/IP architecture provides a vendor-neutral integration path that preserves existing investments while enabling digital transformation.

Production line transparency and alarm traceability are further enhanced by the 3500/23E's ability to timestamp and transmit alarm events with full waveform context. When a high-high vibration alarm occurs on a steam turbine, the 3500/23E ensures that the alarm event, the pre-alarm transient buffer, and the post-trip waveform are all captured and transmitted to the historian and SCADA system simultaneously. This end-to-end alarm traceability supports root cause analysis, insurance documentation, and regulatory compliance reporting — capabilities that are increasingly required in power generation, oil and gas, and petrochemical facilities.

System scalability is built into the 3500/23E's network architecture. As facilities expand their rotating equipment fleets or add new 3500 Series racks, each additional 3500/23E module connects to the existing plant Ethernet infrastructure without requiring dedicated communication servers or additional software licenses. This plug-and-play scalability reduces integration costs and accelerates commissioning timelines for new machinery protection installations.

Q1: What communication protocols does the Bently Nevada 3500/23E support? The 3500/23E supports Ethernet TCP/IP as its primary communication protocol, enabling integration with SCADA systems, DCS platforms, and data historians over standard industrial Ethernet networks. It is compatible with OPC DA and OPC UA server configurations for connectivity to Yokogawa, ABB, Honeywell, and Emerson control systems.

Q2: How does the 3500/23E ensure network stability and data integrity in high-vibration industrial environments? The 3500/23E is designed to operate within the 3500 Series rack, which provides EMI shielding and environmental protection suitable for industrial machinery skids. The module uses buffered transient data transmission to ensure complete waveform records are delivered without packet loss, even during high-alarm events when network traffic may spike.

Q3: Can the 3500/23E support remote diagnostics and off-site monitoring? Yes. The 3500/23E transmits transient waveform data over standard Ethernet, which can be routed through plant firewalls and VPN gateways to remote monitoring centers. Bently Nevada System 1 software supports remote client connections, allowing reliability engineers to access live and historical waveform data from any authorized workstation.

Q4: What warranty and pre-shipment testing does the 3500/23E include? Every 3500/23E unit supplied by NANKMOS includes a 12-Month Warranty covering hardware defects and communication functionality. Each module undergoes pre-shipment functional testing to verify Ethernet connectivity, transient data transmission, and rack backplane communication before dispatch. In-stock units are available for immediate shipment with full documentation.
