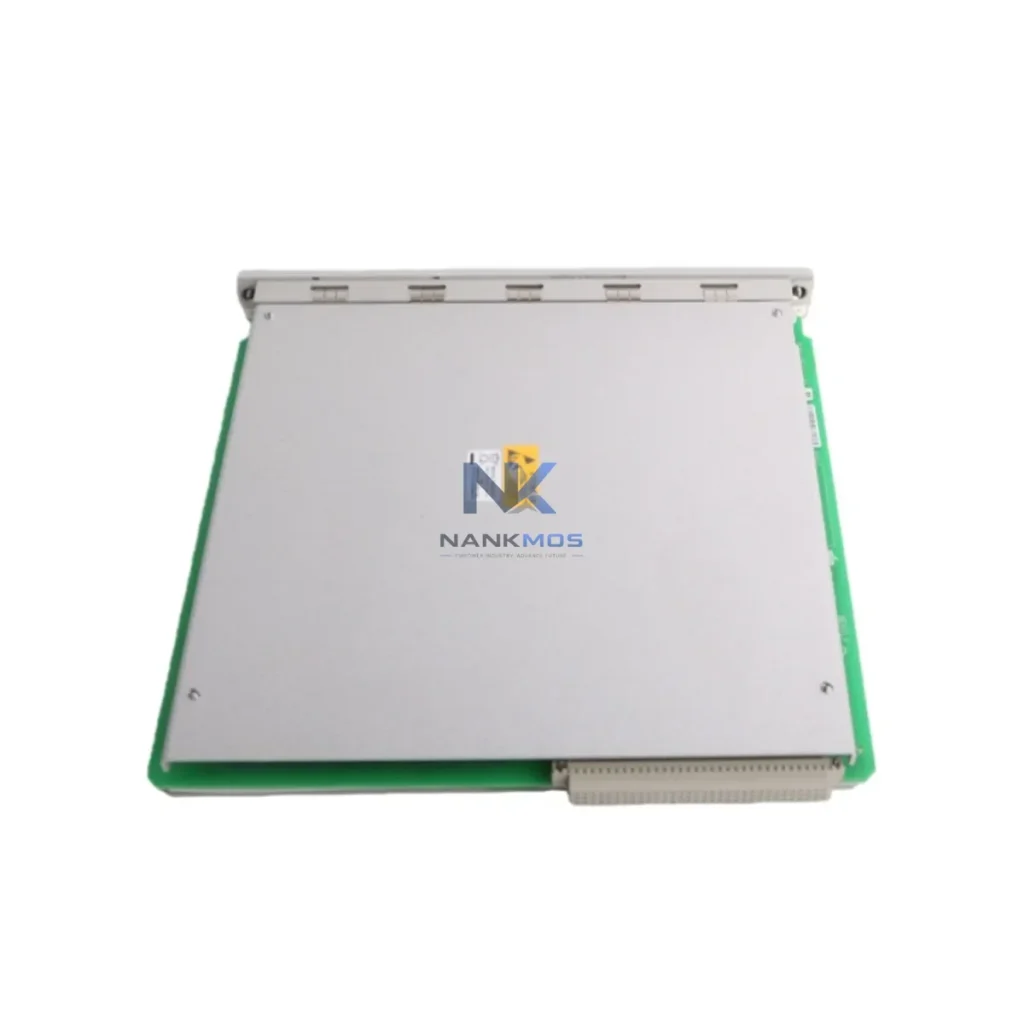

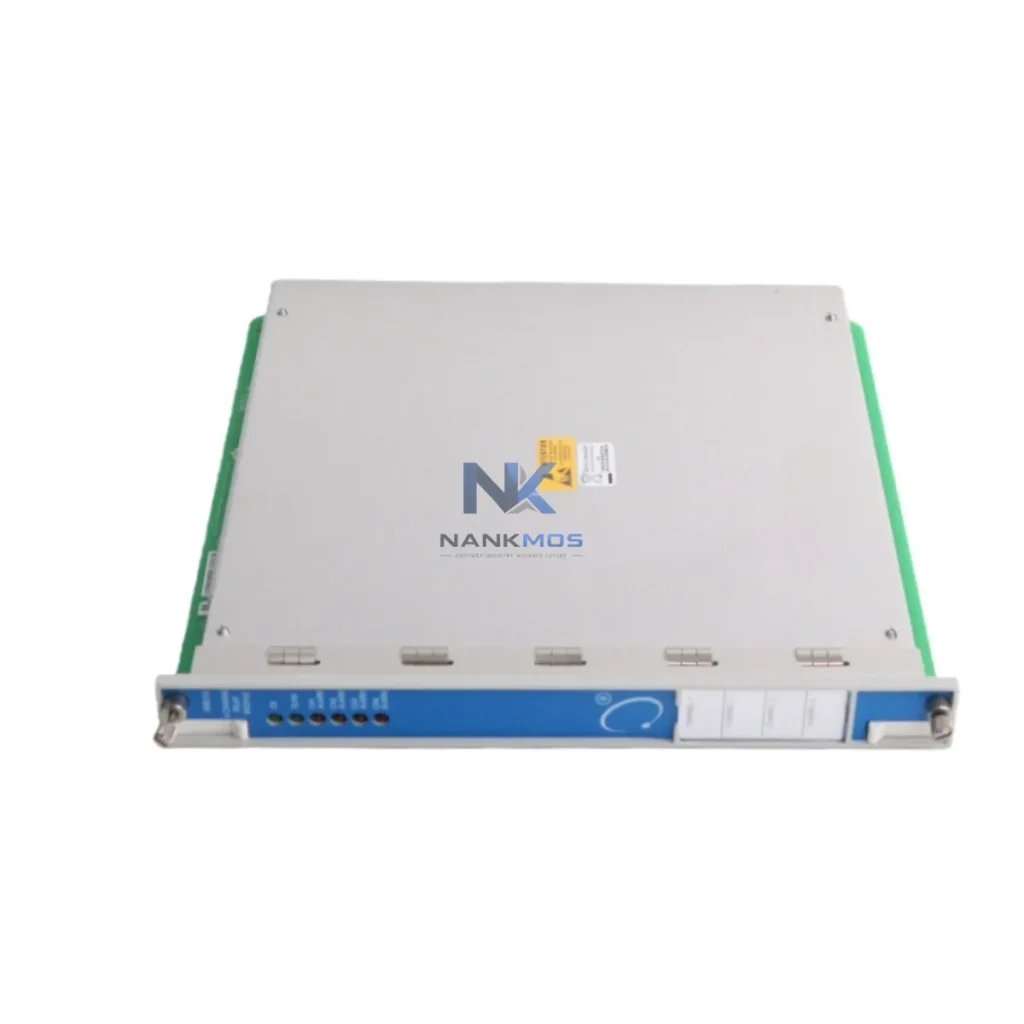

Bently Nevada 3500/32 Relay Module

Product Details

3500/32 Product Description

The Bently Nevada 3500/32 is a precision relay output module engineered for the 3500 Series machinery protection and condition monitoring rack. Designed for deployment in energy-intensive industrial environments — including power generation, petrochemical processing, oil & gas compression, water treatment, and marine propulsion — the 3500/32 delivers deterministic relay switching that directly supports load management, motor protection, and energy-efficient automation strategies across smart production lines.

In modern industrial facilities where energy costs and equipment uptime are tightly coupled, the 3500/32 plays a critical role in translating machinery health data into actionable relay outputs. When integrated with the broader 3500 rack ecosystem — including the 3500/15 Power Supply, 3500/22M Transient Data Interface, and 3500/42M Proximitor/Seismic Monitor — the relay module enables automated protective shutdown sequences that prevent catastrophic failures, reduce thermal overload events, and eliminate unnecessary energy consumption caused by degraded or imbalanced rotating equipment.

The 3500/32 relay module is most effective when deployed as part of a coordinated, power-aware automation architecture. In a typical smart production line, the module receives trip and alert signals from upstream monitoring cards — such as the 3500/40M Proximitor/Seismic Monitor or the 3500/50 Tachometer Module — and converts those signals into relay outputs that command downstream actuators, motor starters, or emergency shutdown valves.

When paired with a Rockwell Automation Allen-Bradley ControlLogix PLC or a Siemens S7-1500 PLC, the relay outputs from the 3500/32 can be mapped into the plant's main control logic, enabling coordinated load shedding during peak demand periods. This integration reduces reactive energy consumption by ensuring that motors and compressors are de-energized in a controlled sequence rather than tripping on overcurrent protection — a scenario that causes voltage sags and harmonic distortion across the facility bus.

For variable-speed drive applications, the 3500/32 relay outputs can interface with ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives to trigger controlled ramp-down sequences when vibration thresholds are exceeded. This prevents abrupt motor disconnection, which is a leading cause of inrush current spikes and associated energy waste. The relay module's configurable normally-open and normally-closed contacts provide the flexibility needed to match the logic requirements of diverse drive platforms without additional signal conditioning hardware.

In facilities using Schneider Electric PowerLogic power monitoring modules or ABB Ability Energy Manager platforms, the relay state changes from the 3500/32 can be logged as discrete events, enabling energy auditors to correlate machinery health events with consumption anomalies. This data-driven approach supports ISO 50001 energy management compliance and provides the evidence base for capital investment decisions in motor replacement or drive upgrades.

The module also integrates cleanly with Emerson DeltaV DCS environments via hardwired relay interfaces, and its outputs can be read by Wonderware SCADA or iFIX HMI systems through discrete input cards, providing operators with real-time relay status visibility on production dashboards. Combined with Phoenix Contact Axioline F I/O modules for signal marshalling, the 3500/32 fits naturally into both legacy and greenfield automation architectures.

Unplanned equipment failures are among the most energy-intensive events in industrial operations. When a rotating machine — a compressor, pump, or turbine — fails without warning, the resulting restart cycle consumes 3–7× the normal operating current, stresses the electrical distribution system, and often requires manual intervention that extends downtime. The Bently Nevada 3500/32 addresses this at the source by providing the relay switching infrastructure that enforces protective actions before failure occurs.

By acting on early-warning signals from proximity transducers, accelerometers, and velocity sensors connected to the 3500 rack, the 3500/32 can initiate controlled shutdowns when shaft displacement, bearing temperature, or vibration velocity exceeds defined thresholds. This predictive protective action eliminates the energy waste associated with running degraded equipment at full load — a scenario where mechanical losses increase exponentially as bearing clearances widen or rotor imbalance grows.

In multi-machine production lines where equipment operates in sequence — for example, a feed pump driving a reactor agitator driving a product transfer compressor — the relay outputs from the 3500/32 can be used to implement cascade shutdown logic. When the lead machine trips, downstream equipment is de-energized in a controlled sequence, preventing the idle-running energy waste that occurs when downstream machines continue operating without process flow. This cascade logic, implemented through the relay contacts and coordinated with the plant PLC, can reduce idle-state energy consumption by 15–30% during unplanned stops.

Thermal load management is another key benefit. Industrial facilities with high motor density generate significant waste heat from inefficient or degraded equipment. By enabling earlier protective intervention, the 3500/32 reduces the frequency and duration of thermal overload events, lowering the cooling load on HVAC and process cooling systems. In data-center-adjacent control rooms and enclosed motor control centers, this thermal reduction translates directly into measurable energy savings on cooling infrastructure.

For maintenance teams, the relay state history — when logged through SCADA or DCS historian systems — provides a precise record of when and why protective actions were triggered. This data supports predictive maintenance scheduling, allowing maintenance windows to be planned during low-production periods rather than forced during peak demand, further optimizing the facility's energy profile and production throughput.

All units are supplied from verified in-stock inventory, pre-shipment tested to confirm relay contact integrity and backplane communication, and covered by a 12-month warranty from the date of shipment.

Q1: How does the 3500/32 contribute to energy savings in a rotating machinery application?The 3500/32 enables early protective shutdown of degraded rotating equipment before mechanical losses escalate. By acting on vibration, displacement, and speed signals from the 3500 rack monitoring cards, it prevents the energy waste associated with running imbalanced or bearing-worn machines at full load. Controlled shutdowns also eliminate inrush current spikes from uncontrolled trips, reducing peak demand charges.

Q2: Is the 3500/32 compatible with modern PLC and SCADA systems?Yes. The relay contacts on the 3500/32 are hardwired outputs compatible with any PLC discrete input card, including Allen-Bradley ControlLogix, Siemens S7-1500, and Mitsubishi MELSEC platforms. Relay states can be monitored by SCADA systems such as Wonderware, iFIX, or Ignition through standard discrete I/O interfaces. For Modbus/TCP integration, a gateway module can bridge the 3500 rack backplane to Ethernet-based control networks.

Q3: Can the 3500/32 replace an existing relay module in a legacy 3500 rack installation?The 3500/32 is designed as a direct slot-compatible replacement within the 3500 rack chassis. Before replacement, verify the rack firmware version and configuration software (System 1 or Rack Configuration) to ensure compatibility. All replacement units supplied by NANKMOS are pre-shipment tested and configured to factory defaults, with documentation available to support re-commissioning.

Q4: What is the warranty and lead time for the 3500/32?All 3500/32 units are available from in-stock inventory with same-week shipment capability. Each unit is covered by a 12-month warranty from the date of shipment, covering relay contact performance, backplane communication integrity, and module functionality under normal operating conditions. Pre-shipment testing records are available upon request.
