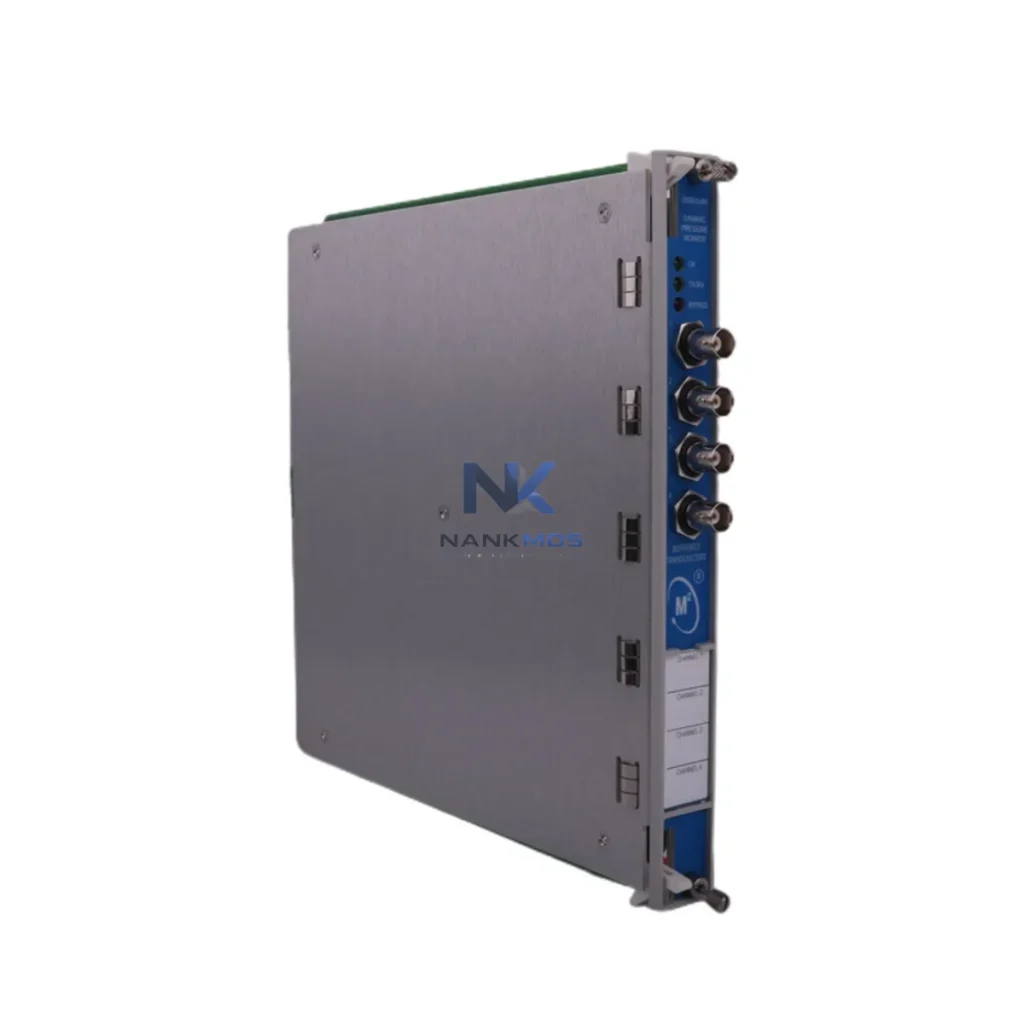

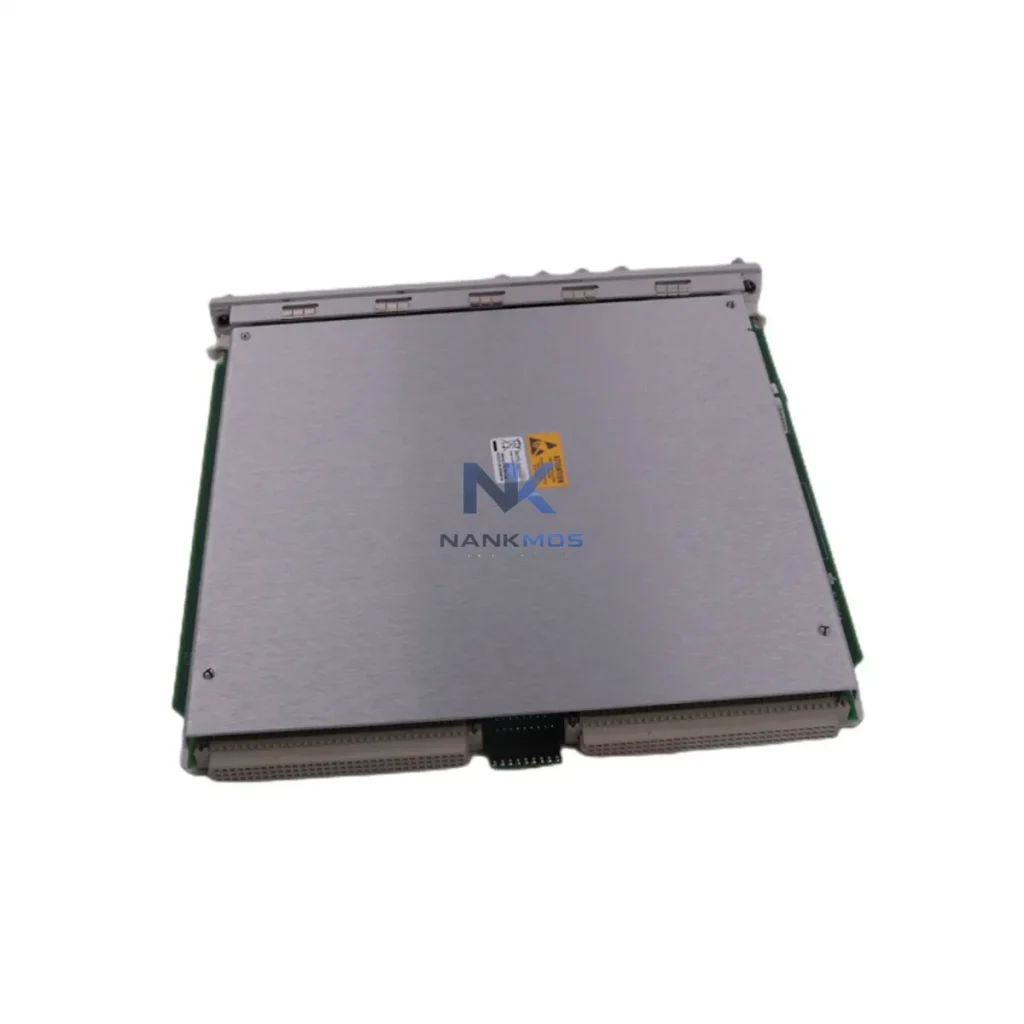

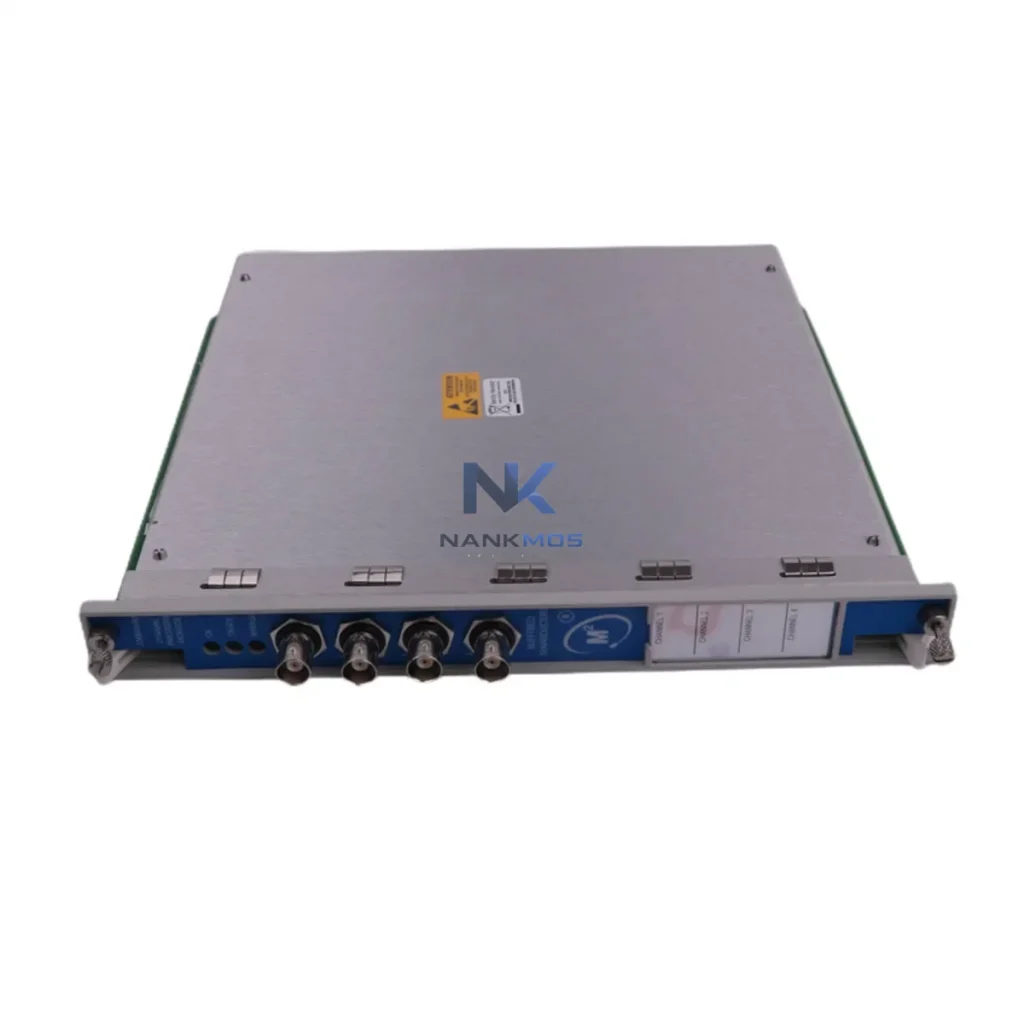

Bently Nevada 3500/64M Dynamic Pressure Monitor

Product Details

3500/64M Product Description

The Bently Nevada 3500/64M is a high-precision Dynamic Pressure Monitor module engineered for the 3500 Series Machinery Protection System — one of the most trusted platforms in rotating equipment monitoring across oil & gas, power generation, petrochemical, and heavy industrial environments. Designed to operate within a fully networked smart factory architecture, the 3500/64M captures dynamic pressure signals from field-mounted sensors, processes them in real time, and transmits structured data across industrial communication networks to SCADA, HMI, and asset management platforms. Its role in the data chain extends far beyond simple measurement: it serves as a critical node in the plant-wide connectivity fabric, enabling continuous condition monitoring, predictive maintenance, and remote diagnostics without interrupting production.

In modern smart factory deployments, the 3500/64M integrates seamlessly into multi-tier network architectures. At the field level, it receives analog pressure signals from dynamic pressure transducers and piezoelectric sensors mounted on compressors, turbines, pumps, and reciprocating machinery. These raw signals are conditioned, digitized, and evaluated against configurable alarm thresholds — all within the 3500 Series rack. The module then communicates processed values and alarm states upstream via Modbus RTU over RS-485 or through the rack's Ethernet-based System 1 gateway interface, feeding real-time data into Bently Nevada's System 1 Evolution software or third-party SCADA platforms such as Wonderware, FactoryTalk, or Ignition SCADA.

The 3500/64M sits at the intersection of physical measurement and digital intelligence. In a typical smart factory data flow, dynamic pressure transducers mounted on reciprocating compressors or centrifugal pumps feed analog signals into the 3500/64M module. The module processes these signals within the 3500 Series rack — alongside companion modules such as the 3500/42M Proximitor/Seismic Monitor for vibration data and the 3500/45 Position Monitor for axial displacement — creating a comprehensive, multi-parameter machinery health profile within a single rack chassis.

The 3500/22M Transient Data Interface module within the same rack aggregates data from all installed monitor modules and transmits it via Ethernet to the System 1 Evolution asset management platform. From System 1, data flows to plant-level SCADA systems through OPC-DA or OPC-UA interfaces, where operators at HMI workstations can visualize real-time pressure trends, waveform data, and alarm histories. In facilities running Siemens S7-series PLCs or Allen-Bradley ControlLogix controllers, Modbus TCP gateways — such as the ProSoft Technology MVI56E-MNET or equivalent industrial protocol converters — bridge the 3500 Series data into the PLC's data table, enabling automated interlock logic based on dynamic pressure alarm states.

For remote monitoring applications, edge gateways such as the Moxa MGate MB3480 or similar RS-485-to-Ethernet converters can extend 3500 Series Modbus data to cloud-based SCADA or IIoT platforms, enabling remote diagnostics from control rooms or engineering offices located off-site. This architecture supports facilities that operate unmanned substations, offshore platforms, or geographically distributed compressor stations where on-site intervention must be minimized. The 3500/64M's alarm relay outputs can also be wired directly to distributed I/O modules — such as the Bently Nevada 3500/33 16-Channel Relay Module — to trigger physical shutdowns or annunciator panels when pressure thresholds are exceeded, closing the loop between digital monitoring and physical protection.

In SCADA-integrated environments, the 3500/64M's data feeds into historian servers such as OSIsoft PI or Wonderware Historian, where long-term pressure trend data supports predictive maintenance models. Maintenance engineers can correlate dynamic pressure signatures with vibration data from the 3500/42M, temperature readings from thermocouple input modules, and flow data from field instruments to build a complete picture of machinery health — all without leaving the control room. This level of data integration transforms the 3500/64M from a standalone monitor into a foundational element of a plant-wide condition monitoring network.

Many industrial facilities face persistent challenges when integrating legacy machinery protection systems into modern smart factory networks. The 3500/64M addresses several of the most common pain points encountered in brownfield automation upgrades and greenfield smart factory designs.

Protocol Fragmentation: Older machinery protection systems often rely on proprietary communication formats that cannot be read by modern SCADA or DCS platforms. The 3500 Series' support for Modbus RTU and Ethernet-based System 1 connectivity provides a standardized data pathway that bridges legacy field instruments with contemporary control infrastructure, eliminating the need for custom protocol translators in most deployments.

Data Silos in Rotating Equipment Monitoring: Without a networked monitor like the 3500/64M, dynamic pressure data from compressors and turbines often remains isolated in standalone recorders or paper-based logs. By connecting the 3500/64M to plant SCADA via Modbus or OPC-UA, operators gain unified visibility across all rotating assets — enabling cross-parameter correlation and faster root-cause analysis during abnormal events.

Remote Monitoring Gaps: Facilities with unmanned or remotely operated assets require reliable, low-latency data transmission to central control rooms. The 3500/64M's network-ready architecture, combined with industrial Ethernet switches and edge gateways, supports continuous remote monitoring with alarm notification via SCADA, email, or SMS — reducing the need for costly on-site inspections.

Production Line Transparency: In smart manufacturing environments, production managers require real-time visibility into equipment health to make informed scheduling and maintenance decisions. The 3500/64M's integration with System 1 Evolution and third-party SCADA platforms provides the data transparency needed to shift from reactive to predictive maintenance strategies, reducing unplanned downtime and extending equipment service life.

Alarm Tracking and Audit Trails: Regulatory compliance in industries such as oil & gas and power generation requires documented alarm histories and response records. The 3500/64M's alarm data, when logged in historian platforms, provides the audit trail necessary for compliance reporting and post-incident analysis.

Q1: What communication protocols does the Bently Nevada 3500/64M support for SCADA integration?The 3500/64M communicates within the 3500 Series rack architecture. At the rack level, the 3500/22M Transient Data Interface provides Ethernet connectivity to Bently Nevada's System 1 Evolution software, which supports OPC-DA and OPC-UA for integration with third-party SCADA and DCS platforms. Modbus RTU over RS-485 is also available for direct integration with Modbus-compatible PLCs and SCADA systems, making the 3500/64M compatible with a wide range of industrial automation infrastructure.

Q2: Can the 3500/64M be integrated into an existing Modbus network without replacing the entire 3500 rack?Yes. The 3500 Series rack's communication architecture allows the 3500/64M to share the rack's Modbus and Ethernet interfaces without requiring hardware replacement. As long as the rack includes a compatible communication gateway module such as the 3500/22M, the 3500/64M's data can be mapped to Modbus registers and accessed by any Modbus master device, including PLCs, RTUs, and SCADA servers.

Q3: How does the 3500/64M support remote diagnostics in unmanned or offshore installations?The 3500/64M's real-time alarm outputs and network-accessible data registers enable remote diagnostics through SCADA platforms connected via industrial Ethernet or cellular/satellite gateways. Alarm states, dynamic pressure values, and waveform data can be monitored continuously from remote control rooms. When integrated with System 1 Evolution, engineers can perform detailed waveform analysis and trend review remotely, reducing the frequency of on-site visits and enabling faster response to developing machinery faults.

Q4: What warranty and pre-shipment testing does the 3500/64M include?All Bently Nevada 3500/64M units supplied by NANKMOS include a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional verification to confirm signal processing accuracy, alarm relay operation, and communication interface integrity before dispatch. Units are packaged in anti-static, shock-resistant materials to ensure safe transit. For bulk orders or project-specific requirements, expedited availability and custom testing documentation can be arranged — contact [email protected] or +86 18359268345 for details.
