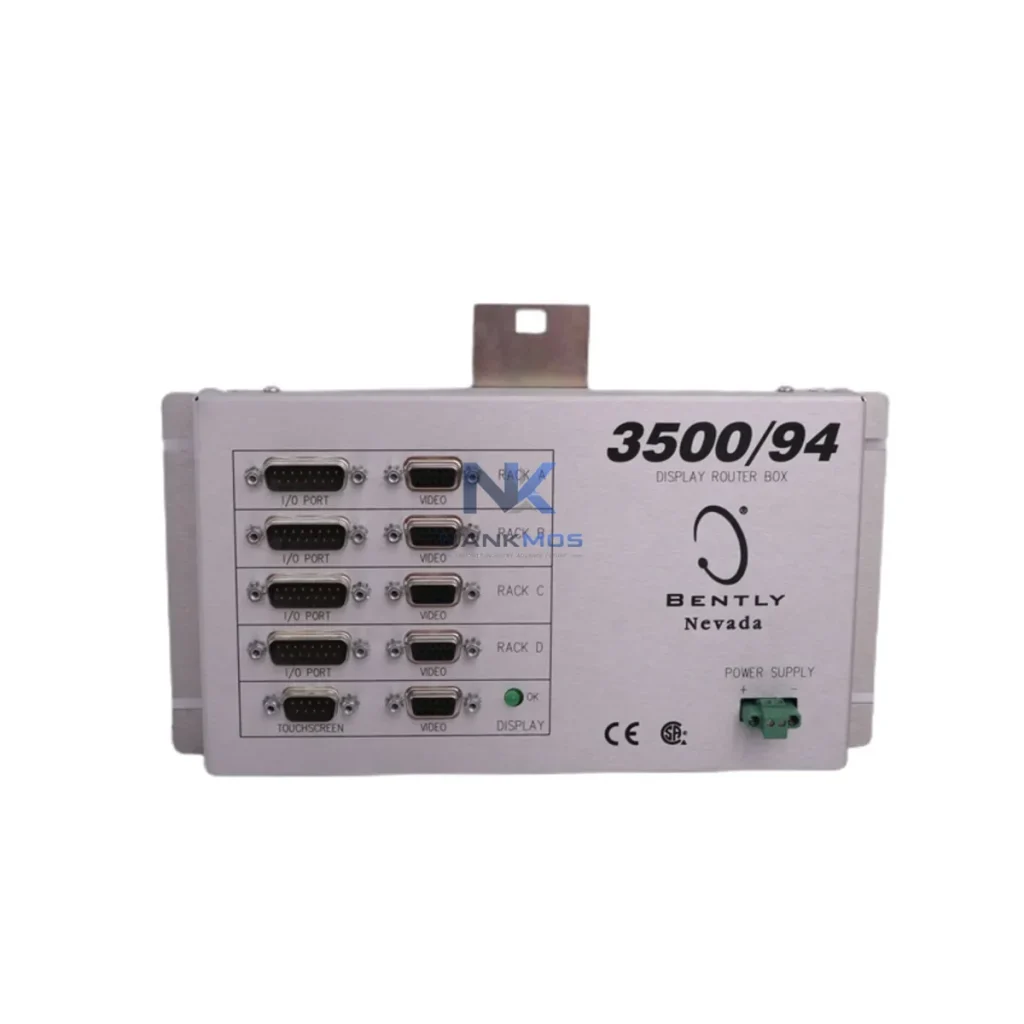

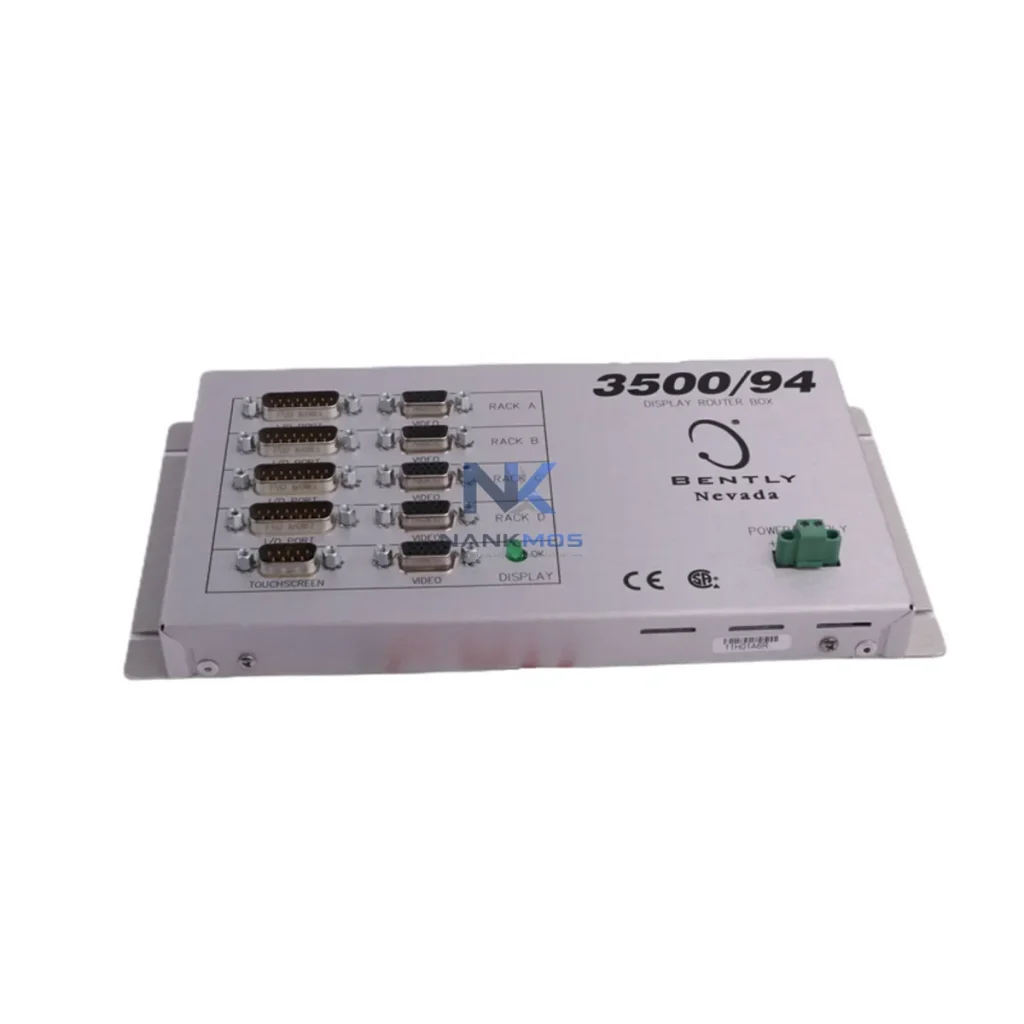

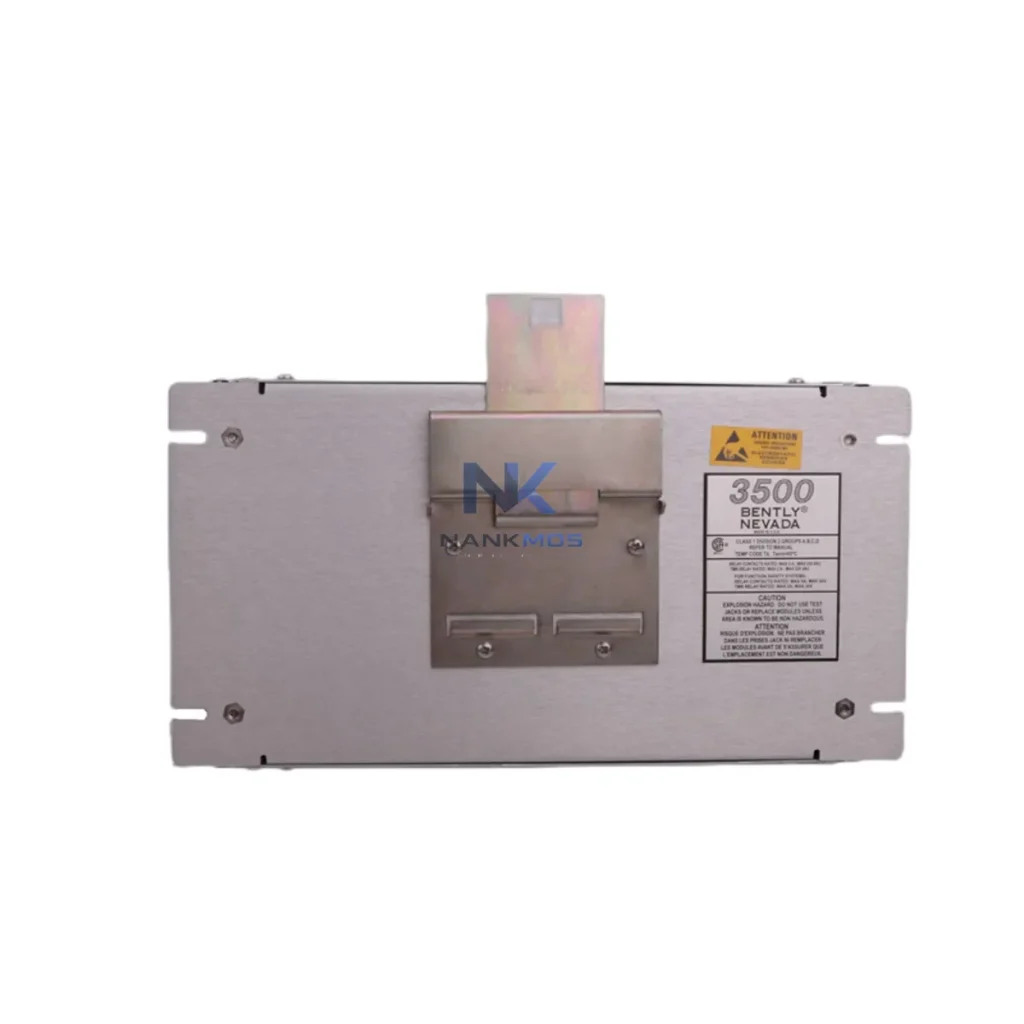

Bently Nevada 3500/94 145988-01 Display Router Module

Product Details

3500/94 145988-01 Product Description

The Bently Nevada 3500/94 145988-01 is a dedicated Display Router Module engineered for seamless integration within the Bently Nevada 3500 Series Machinery Protection System. Designed to route real-time vibration, position, and process variable data from the 3500 rack to operator interface displays and supervisory control platforms, this module serves as a critical communication bridge within the control architecture. Its role spans the intersection of the I/O layer, communication layer, and HMI layer — ensuring that machine health data flows reliably from field sensors to the control room without signal degradation or latency.

In modern industrial automation environments, the integrity of data routing between the machinery protection rack and the operator display is non-negotiable. The 3500/94 145988-01 addresses this requirement by providing a dedicated, deterministic data path that eliminates contention on shared communication buses. When deployed alongside the 3500/20 Rack Interface Module, the 3500/15 Power Supply Module, and the 3500/22M Transient Data Interface, the 3500/94 forms part of a tightly integrated monitoring backbone that supports both continuous online protection and episodic transient capture. This architecture ensures that no single point of failure in the communication chain compromises the protection logic or the operator's situational awareness.

The module is fully compatible with the 3500 Series backplane architecture, supporting hot-swap installation without requiring rack power-down in most configurations. This characteristic is particularly valuable in continuous-process industries — petrochemical, power generation, and offshore platforms — where planned downtime windows are narrow and unplanned outages carry significant operational cost. The 3500/94 145988-01 can be installed or replaced during a brief maintenance window, with configuration restored via the Rack Configuration Utility (RCU) software, minimizing engineering re-commissioning time.

The 3500/94 145988-01 Display Router achieves its full operational value when deployed as part of a complete Bently Nevada 3500 Series rack assembly. A typical high-availability machinery protection architecture for a critical rotating machine — such as a gas turbine, centrifugal compressor, or boiler feed pump — would include the following integrated components working in concert:

The 3500/20 Rack Interface Module provides the primary communication gateway between the 3500 rack and the plant DCS or SCADA system via Modbus TCP or OPC-DA, while the 3500/15 Power Supply Module delivers conditioned 24 VDC power to all rack-resident modules, including the 3500/94. The 3500/22M Transient Data Interface captures high-resolution waveform data during machine startup, shutdown, and trip events, feeding this data through the rack backplane where the 3500/94 routes it to the operator display for real-time visualization. Simultaneously, the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor process radial vibration and axial position signals from Bently Nevada 3300 XL 8mm proximity probes, with their processed outputs available to the display router for trend and bar-graph presentation on the operator console.

For process variable integration, the 3500/50M Tachometer Module provides speed and phase reference signals that are essential for vector-based vibration analysis, while the 3500/60 Temperature Monitor handles thermocouple and RTD inputs from bearing temperature sensors. The 3500/72M Temperature Monitor extends this capability to multi-channel temperature monitoring in larger machine trains. In architectures requiring redundant communication paths, the 3500/94 can be paired with a secondary 3500/20 Rack Interface Module configured in redundant mode, ensuring that display data routing continues uninterrupted even if the primary communication path experiences a fault. This redundancy design is particularly critical in nuclear auxiliary systems, offshore compressor trains, and pipeline booster stations where continuous monitoring is a regulatory requirement.

Beyond the 3500 rack itself, the display router interfaces with plant-level systems including System 1 Evolution (GE/Baker Hughes condition monitoring software), enabling the operator to correlate real-time protection data with historical trend analysis, alarm management, and predictive maintenance workflows. This contextual integration between the hardware protection layer and the software analytics layer is what distinguishes a modern, architecture-aware deployment from a simple point-to-point wiring approach.

The 3500/94 145988-01 Display Router is deployed across a wide range of heavy industrial sectors where rotating machinery protection is critical to operational continuity and personnel safety.

In power generation facilities — including gas turbine power plants, steam turbine generators, and combined-cycle units — the 3500/94 provides operators with real-time vibration and position data at the main control board, enabling immediate response to developing machine faults before protection trip thresholds are reached. The module's deterministic data routing ensures that alarm annunciation latency is minimized, which is essential in fast-transient fault scenarios such as rotor rubs or bearing oil film instability.

In petrochemical and refinery applications, the 3500/94 supports continuous monitoring of critical compressors, pumps, and expanders in hazardous area installations. The module's compatibility with the 3500 rack's SIL-rated protection logic ensures that display routing does not introduce any latency or data corruption that could mask a developing fault condition. Refineries operating under API 670 machinery protection standards rely on the 3500 Series architecture — and by extension the 3500/94 — as the backbone of their rotating equipment health management program.

In offshore oil and gas platforms, where weight, space, and reliability constraints are extreme, the compact form factor of the 3500/94 within the standard 3500 rack chassis allows a full machinery protection and display routing solution to be deployed in a minimal panel footprint. The module's wide operating temperature range and vibration tolerance make it suitable for installation in topside equipment rooms subject to platform motion and environmental extremes.

In water and wastewater treatment plants, the 3500/94 supports monitoring of large vertical turbine pumps and centrifugal blowers, routing vibration and bearing temperature data to SCADA displays for remote operator oversight. In mining and minerals processing, the module is deployed on SAG mills, ball mills, and large slurry pumps, where early detection of bearing degradation or shaft misalignment can prevent catastrophic failures that would halt production for days or weeks.

Q1: Is the 3500/94 145988-01 compatible with all 3500 Series rack configurations, and does it require any specific firmware version?The 3500/94 145988-01 is designed for use within the standard Bently Nevada 3500/05 and 3500/05-01 rack chassis. Compatibility with specific monitor modules and firmware versions should be verified using the Bently Nevada Rack Configuration Utility (RCU) prior to installation. In general, the 3500/94 is compatible with all current-generation 3500 Series monitor modules. If you are integrating this module into an existing rack with legacy firmware, our technical team can assist with compatibility verification prior to dispatch. All units supplied by NANKMOS are tested for basic communication functionality before shipment.

Q2: What is the installation and commissioning procedure for the 3500/94 in a live rack, and how does it affect the 12-Month Warranty?The 3500/94 145988-01 supports hot-swap installation in most 3500 rack configurations, allowing the module to be inserted or removed without powering down the entire rack. After physical installation, the module must be configured using the Bently Nevada RCU software to define the display routing parameters, communication port settings, and data channel assignments. The 12-Month Warranty provided by NANKMOS covers manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of dispatch and remains valid provided the module is installed and operated in accordance with Bently Nevada's published installation and operation manual (I&O Manual).

Q3: What is the lead time and stock availability for the 3500/94 145988-01, and can NANKMOS support urgent replacement requirements?NANKMOS maintains inventory of the Bently Nevada 3500/94 145988-01 to support both planned maintenance schedules and emergency replacement requirements. For urgent requests — such as unplanned machine trips requiring immediate module replacement — please contact our team directly at [email protected] or +86 18359268345 to confirm current stock availability and expedited dispatch options. Standard orders are processed and dispatched within 1-3 business days, with international shipping available to all major industrial regions. Each unit undergoes functional testing prior to dispatch to ensure it arrives ready for installation.
