Bently Nevada 9200-03-01-10-00 Vibration Transducer

Product Details

9200-03-01-10-00 Product Description

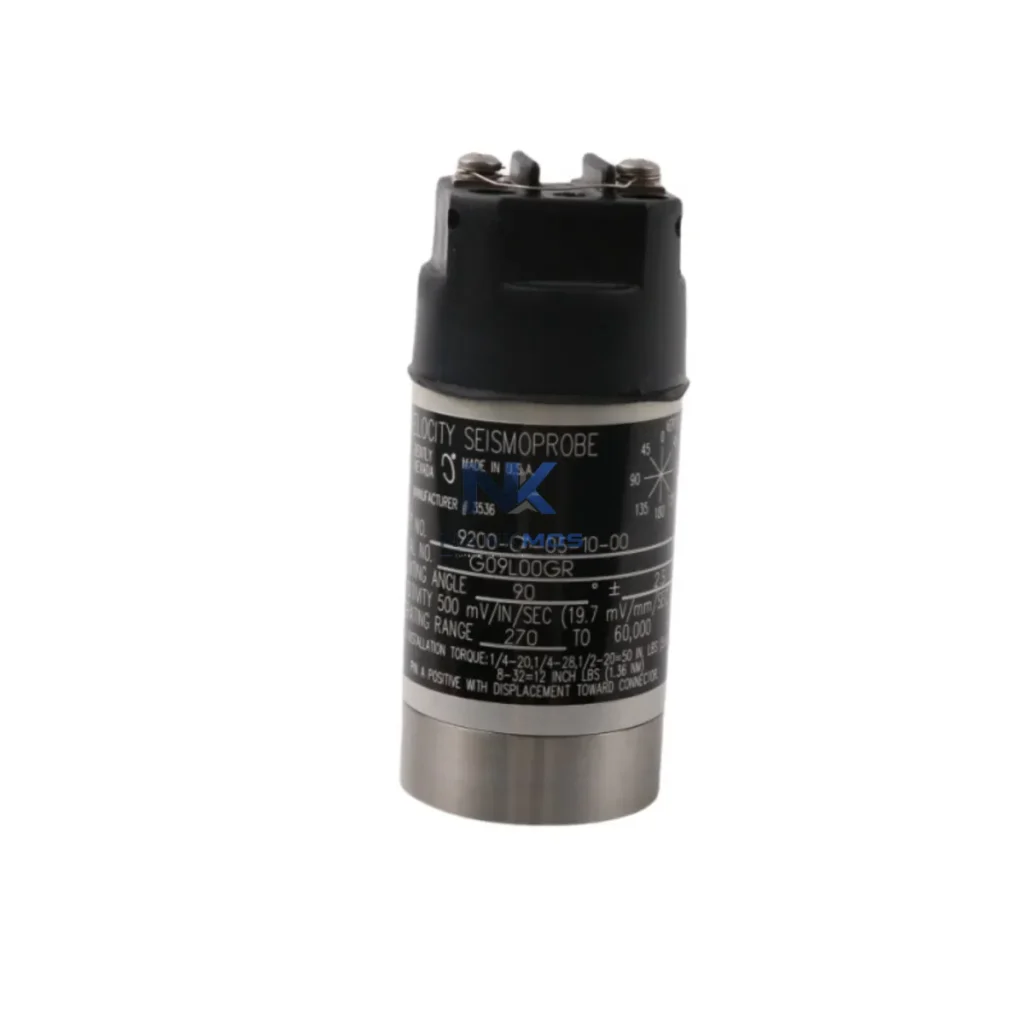

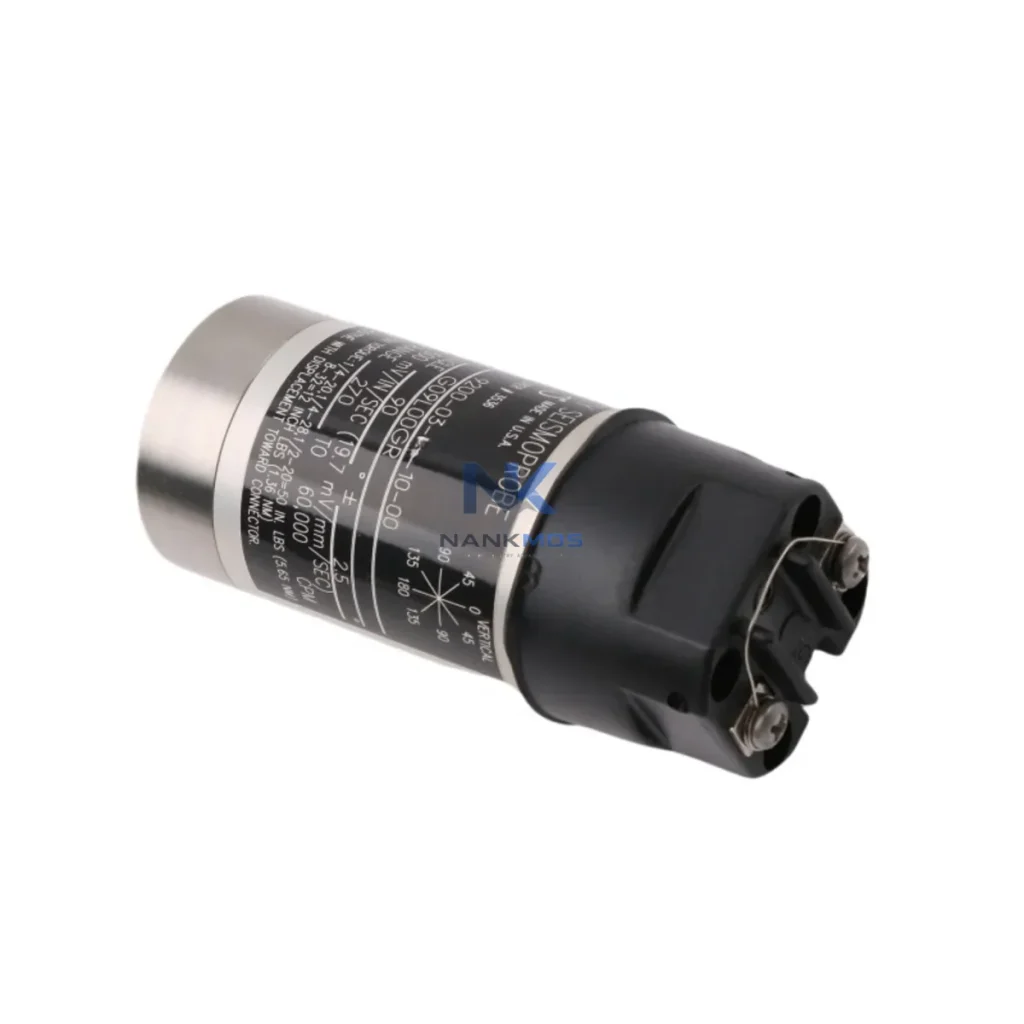

The Bently Nevada 9200-03-01-10-00 is a two-wire, loop-powered vibration transducer engineered for seamless integration within the 9200 Series modular monitoring architecture. Designed to deliver continuous, high-fidelity vibration signals from rotating machinery, this transducer serves as the primary sensing node in a layered industrial control system — bridging the physical measurement layer with the signal conditioning, monitoring, and control layers above it. Its compact form factor, robust electrical design, and compatibility with Bently Nevada's broader ecosystem make it a preferred choice for engineers deploying scalable, redundancy-capable machinery protection systems across power generation, petrochemical, oil & gas, water treatment, mining, and marine propulsion environments.

Within a complete automation architecture, the 9200-03-01-10-00 operates at the sensing layer, feeding calibrated vibration data upward through the signal chain. The transducer's two-wire current loop output (typically 4–20 mA) interfaces directly with 9200 Series signal conditioning modules, which in turn relay processed data to the control and monitoring layers. This architecture ensures signal integrity across long cable runs, minimizes susceptibility to electromagnetic interference, and supports deterministic data delivery — all critical requirements in high-availability industrial environments.

The 9200-03-01-10-00 does not operate in isolation — its value is fully realized when deployed as part of a coherent, multi-layer automation platform. In a typical 9200 Series installation, this transducer feeds vibration data into a 9200 Series signal conditioning module, which normalizes and scales the 4–20 mA signal before passing it to the plant's distributed control system (DCS) or safety instrumented system (SIS). Engineers frequently pair this transducer with Bently Nevada 9200-03-01-00-00 variants for multi-point coverage across a single machine train, ensuring comprehensive radial and axial vibration monitoring without gaps in the sensing layer.

At the control layer, the conditioned vibration signal integrates with Bently Nevada 3500 Series rack-based monitoring systems or third-party DCS platforms via standard analog input cards. In architectures requiring digital communication, the 9200 Series signal conditioners can interface with Modbus RTU or Modbus TCP gateways, enabling vibration data to be transmitted to SCADA platforms and historian servers for trend analysis and predictive maintenance workflows. This contextual integration capability is a defining feature of the 9200 Series ecosystem.

Power supply integrity is maintained through dedicated 24 VDC loop power supplies or DCS-integrated power rails, with surge protection modules recommended at the field junction box level. For installations requiring redundancy, dual-transducer configurations — using two 9200-03-01-10-00 units on a single measurement point — can be implemented with voting logic at the 3500/20 Rack Interface Module or equivalent SIS input card. This redundancy design ensures continuous machinery protection even during single-sensor maintenance events.

HMI integration is achieved through operator workstations running Bently Nevada System 1 software, which aggregates vibration trends, alarm states, and diagnostic data from multiple 9200 Series transducers across the plant. System 1's contextual integration framework allows engineers to correlate vibration signatures with process variables — such as load, speed, and temperature — sourced from thermocouple input modules and speed sensors (proximity probes) installed on the same machine train. This multi-parameter correlation is essential for accurate fault diagnosis and root cause analysis.

At the field wiring level, terminal blocks and marshalling panels provide organized, labeled connection points for the 9200-03-01-10-00's two-wire cable, simplifying commissioning and reducing the risk of wiring errors during installation. For plants with existing HART-capable infrastructure, signal converters can bridge the 4–20 mA output to HART protocol, enabling remote configuration and diagnostics without physical access to the transducer.

Power Generation: In gas turbine and steam turbine installations, the 9200-03-01-10-00 monitors bearing housing vibration on generator sets and auxiliary equipment. Its IP67 rating and wide operating temperature range make it suitable for turbine hall environments where temperature cycling and moisture ingress are common challenges. Vibration data feeds directly into the plant's turbine control system (TCS), enabling automatic load shedding or trip actions when vibration thresholds are exceeded.

Petrochemical and Oil & Gas: Compressor trains, pumps, and agitators in refinery and upstream processing facilities rely on continuous vibration monitoring to prevent unplanned shutdowns. The 9200-03-01-10-00's loop-powered design simplifies installation in hazardous area junction boxes, where minimizing field wiring complexity is a safety and cost priority. Integration with SIS platforms ensures that high-vibration alarm states trigger automated protective actions in compliance with IEC 61511 functional safety requirements.

Water Treatment and Municipal Infrastructure: Large centrifugal pumps and blower units in water treatment plants benefit from continuous vibration monitoring to detect impeller imbalance, bearing wear, and cavitation events before they escalate to failures. The 9200-03-01-10-00's compatibility with standard DCS analog input modules allows seamless integration into existing SCADA architectures without requiring dedicated monitoring hardware.

Mining and Metallurgy: Crushers, conveyors, and mill drives in mining operations are subject to high mechanical loads and harsh environmental conditions. The transducer's robust construction and IP67 protection support reliable operation in dusty, high-vibration environments. Vibration trend data collected over time enables condition-based maintenance scheduling, reducing unplanned downtime and extending equipment service life.

Marine Propulsion: Shipboard propulsion systems and auxiliary machinery require vibration monitoring solutions that can withstand marine environmental conditions, including salt air, humidity, and mechanical shock. The 9200-03-01-10-00's sealed construction and wide supply voltage tolerance make it compatible with marine-grade power distribution systems, supporting classification society requirements for continuous machinery monitoring.

Q1: Is the 9200-03-01-10-00 compatible with third-party DCS platforms and existing analog input infrastructure? Yes. The 9200-03-01-10-00 outputs a standard 4–20 mA two-wire current loop signal, which is universally compatible with analog input modules from major DCS and PLC manufacturers, including Emerson DeltaV, Honeywell Experion, Siemens PCS 7, and Rockwell Automation ControlLogix platforms. No proprietary signal conditioning hardware is required for basic integration, though Bently Nevada 9200 Series signal conditioners are recommended for optimal scaling, filtering, and alarm management within the 9200 Series architecture.

Q2: What redundancy and high-availability configurations are supported for critical machinery protection applications? For critical applications requiring continuous protection during sensor maintenance or failure, dual-transducer configurations are supported. Two 9200-03-01-10-00 units can be installed at the same measurement point, with their outputs connected to separate analog input channels on the monitoring system. Voting logic (2oo2 or 1oo2) can be implemented at the SIS or DCS level to determine alarm and trip actions based on the combined sensor inputs. This architecture is consistent with IEC 61511 and IEC 62061 functional safety design principles and is commonly used in API 670-compliant machinery protection systems.

Q3: What warranty coverage and supply assurance does NANKMOS provide for the 9200-03-01-10-00? All 9200-03-01-10-00 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output signal accuracy, insulation integrity, and connector sealing before dispatch. In-stock availability ensures short lead times for both initial project procurement and emergency replacement requirements. For volume procurement, scheduled delivery programs and consignment stock arrangements are available upon request. Contact [email protected] or +86 18359268345 for supply chain and warranty inquiries.
