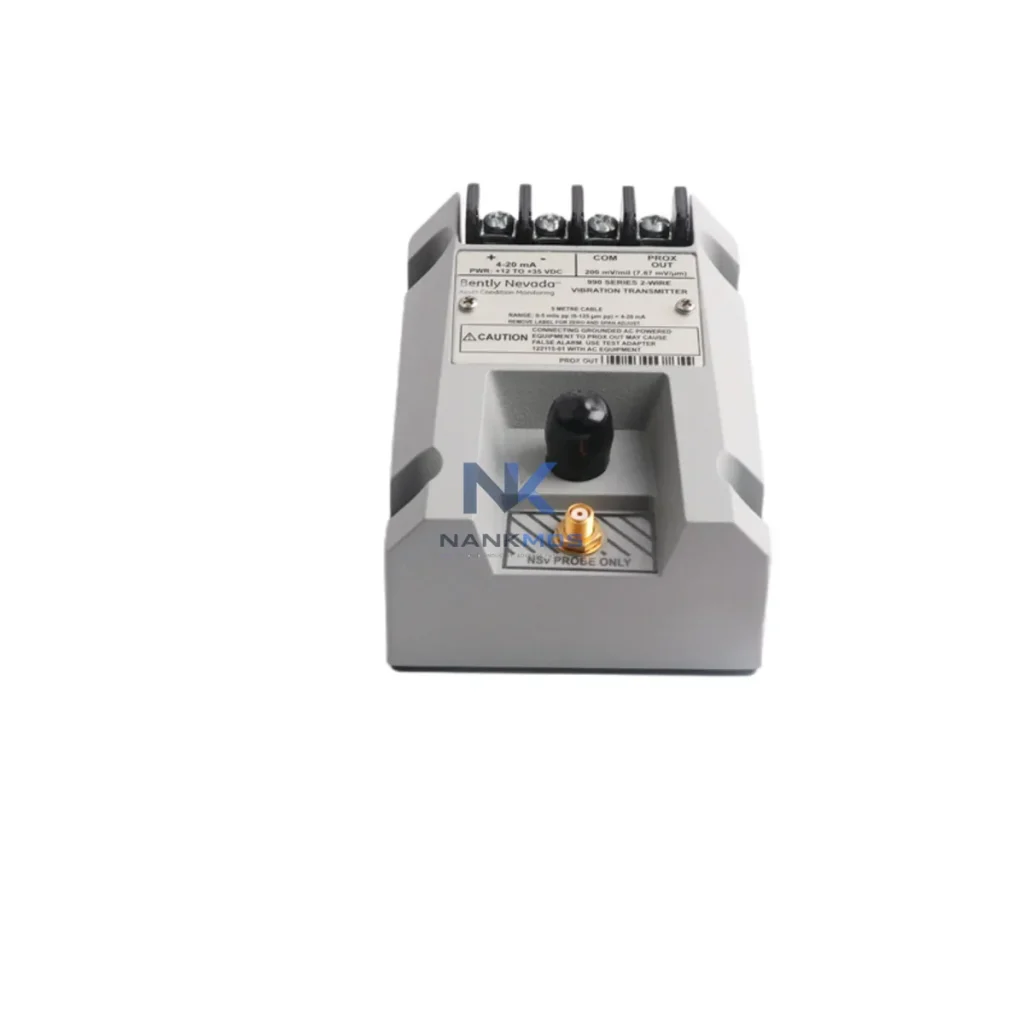

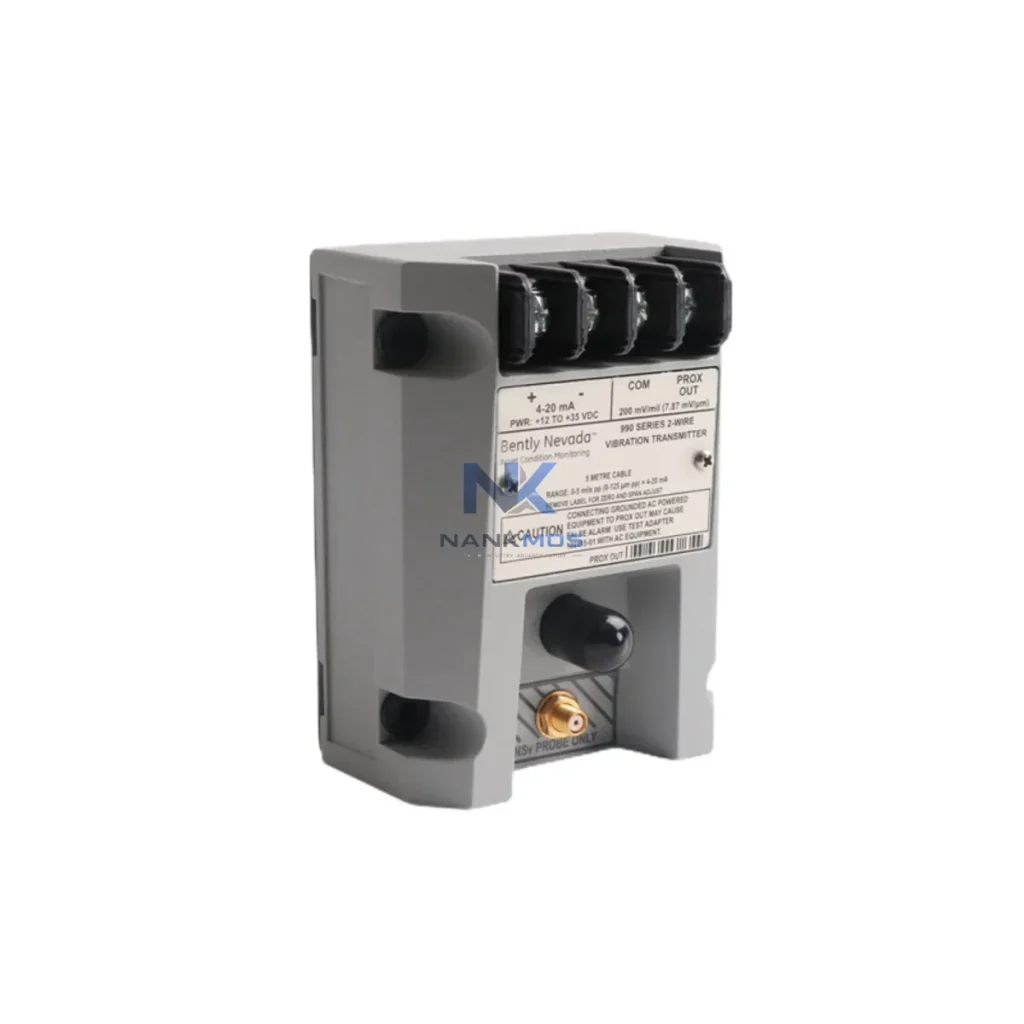

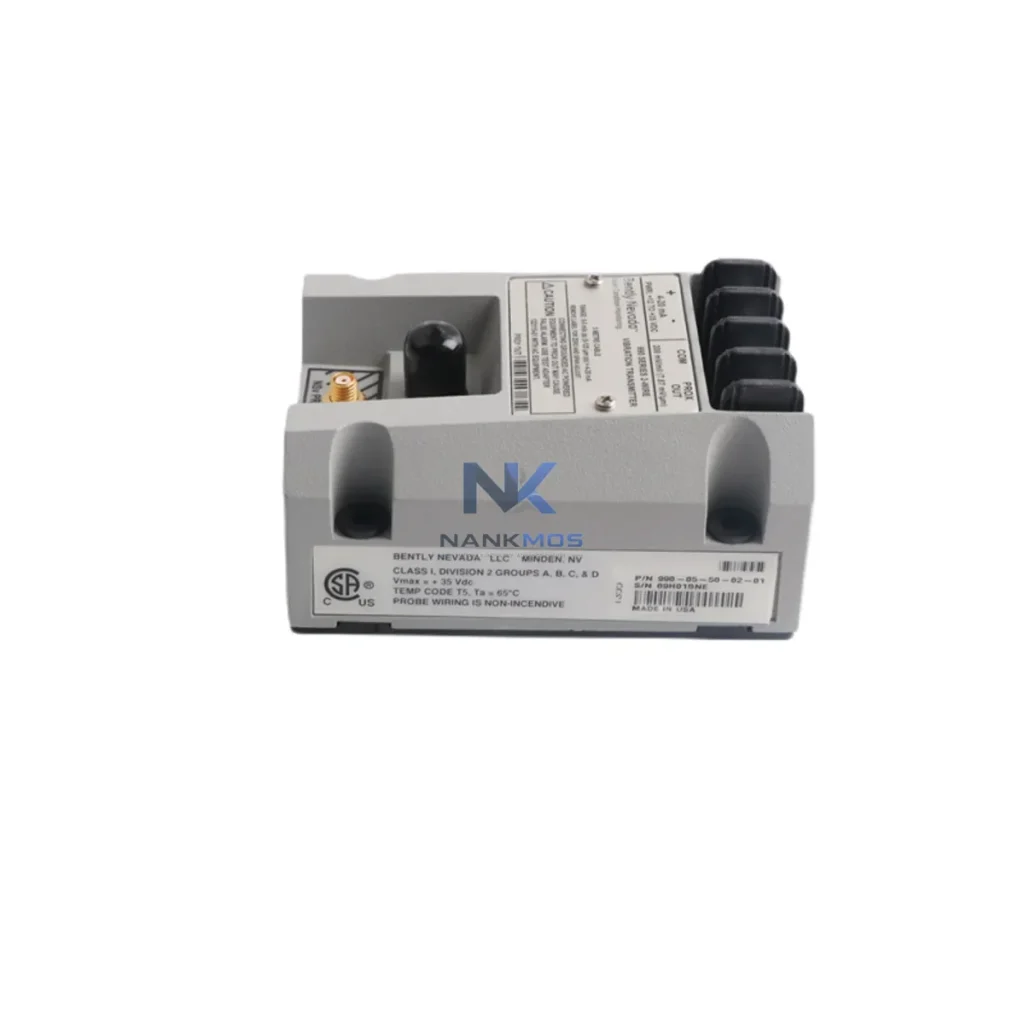

Bently Nevada 990-05-50-02-01 Vibration Transmitter

Product Details

990-05-50-02-01 Product Description

The Bently Nevada 990-05-50-02-01 is a precision vibration transmitter engineered for the 3300 Series machinery protection platform. Designed to deliver continuous, high-fidelity vibration data across the full industrial data chain — from rotating equipment to SCADA dashboards — this transmitter serves as a critical signal-conditioning node in predictive maintenance architectures, smart factory deployments, and distributed condition monitoring networks.

With a calibrated 4-20mA analog output, the 990-05-50-02-01 integrates directly into DCS, PLC, and remote I/O systems without protocol conversion overhead. Its signal is natively readable by Siemens S7-series PLCs, Rockwell ControlLogix platforms, and Schneider Electric Modicon controllers, enabling real-time vibration trending at the controller level. The transmitter's output is equally compatible with Yokogawa CENTUM VP and Emerson DeltaV DCS environments, making it a drop-in solution for multi-vendor automation sites.

In a fully connected smart factory, the 990-05-50-02-01 sits at the signal acquisition layer — the first node in a data chain that ultimately feeds enterprise-level analytics and predictive maintenance platforms. Vibration signals from rotating machinery (pumps, compressors, turbines, motors) are captured by the transmitter and conditioned into a stable 4-20mA loop. This loop feeds directly into Bently Nevada 3300/16 rack-mounted monitors, which perform real-time amplitude analysis and threshold alarming before forwarding structured data upstream.

From the monitor rack, data is routed through Bently Nevada TDXnet communication gateways or third-party Moxa NPort serial-to-Ethernet device servers, converting legacy analog and serial signals into Modbus TCP or OPC-UA streams compatible with modern SCADA platforms. Industrial-grade managed Ethernet switches — such as the Hirschmann RS20 or Phoenix Contact FL SWITCH series — provide the network backbone, ensuring deterministic, low-latency data delivery across the plant floor.

At the control layer, Siemens ET 200SP remote I/O modules aggregate multi-channel vibration data alongside process variables from pressure transmitters, temperature sensors, and flow meters, feeding a unified data model into the PLC. Rockwell Automation 1756-EN2T EtherNet/IP communication modules bridge the PLC layer to the SCADA historian, enabling time-stamped vibration records for trend analysis and compliance reporting.

HMI panels — including Siemens SIMATIC TP1200 Comfort and Weintek cMT series — display real-time vibration amplitude, velocity, and alarm states at the operator station. Simultaneously, edge computing gateways such as the Advantech ADAM-3600 or Moxa UC-8100 series pre-process vibration data locally, applying FFT analysis and anomaly detection before transmitting compressed results to cloud SCADA or MES platforms via MQTT or HTTPS.

This end-to-end architecture — from the 990-05-50-02-01 transmitter through remote I/O, managed switches, PLCs, HMIs, and edge gateways — forms a complete, auditable data chain that supports real-time monitoring, remote diagnostics, and data visualization without gaps or protocol mismatches.

Protocol fragmentation is one of the most persistent challenges on mixed-vendor production lines. The 990-05-50-02-01's universal 4-20mA output eliminates the need for custom protocol adapters when integrating with legacy DCS systems or newer IIoT-ready PLCs. A single transmitter can simultaneously serve a Modbus RTU remote I/O module and a 4-20mA input card on a Yokogawa DCS without signal conditioning middleware.

Data silos between condition monitoring systems and process control networks are resolved by routing the transmitter's output through OPC-UA-capable gateways, making vibration data available to SCADA historians, MES platforms, and ERP systems in a unified namespace. This enables cross-domain correlation — linking vibration anomalies to production throughput drops or energy consumption spikes in real time.

Remote monitoring and diagnostics are supported through the transmitter's stable, drift-resistant output, which allows remote engineers to assess machine health via SCADA trend screens without on-site visits. Alarm thresholds configured in the 3300 Series monitor rack trigger automated notifications through SCADA alarm management systems, reducing mean time to response (MTTR) for critical rotating equipment.

Production line transparency is achieved by integrating vibration data into OEE (Overall Equipment Effectiveness) dashboards, where unplanned downtime events are correlated with vibration exceedance records. This closes the loop between maintenance teams and production planners, enabling data-driven scheduling of predictive maintenance windows.

All units are pre-shipment tested, verified against factory calibration records, and supplied with a 12-month warranty. In-stock availability supports fast deployment for both planned upgrades and emergency replacements on critical production assets.

Q1: Is the 990-05-50-02-01 compatible with Modbus TCP SCADA systems?A: The transmitter outputs a standard 4-20mA analog signal, which connects to any Modbus TCP-capable remote I/O module or analog input card. No additional protocol converter is required for most DCS and SCADA platforms. For direct Modbus TCP integration, pair it with a Moxa ioLogik or similar analog-to-Ethernet I/O gateway.

Q2: What is the maximum cable run length for the 4-20mA output?A: The 4-20mA current loop is inherently noise-resistant and supports cable runs of up to 300 meters with standard shielded twisted-pair cable, making it suitable for large plant floor installations where the transmitter and control room are physically separated.

Q3: Can this transmitter be used in a redundant network architecture?A: Yes. The 990-05-50-02-01 can be wired to dual analog input channels on redundant PLC or DCS I/O modules, supporting hot-standby and fault-tolerant network designs. This is recommended for critical rotating equipment where continuous monitoring is a safety requirement.

Q4: What warranty and post-shipment support is provided?A: Every unit ships with a 12-month warranty covering manufacturing defects and calibration integrity. Pre-shipment functional testing is performed on all stock. For technical support, contact [email protected] or +86 18359268345.
