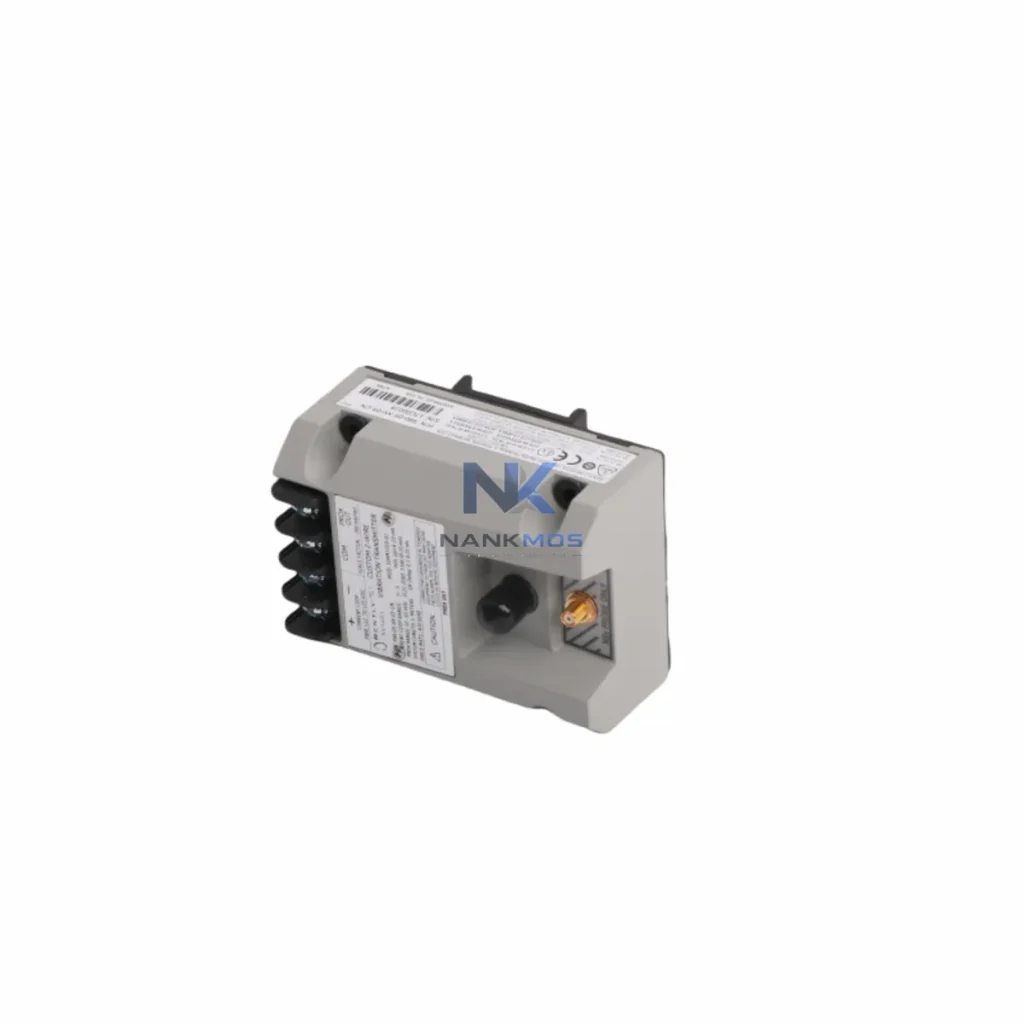

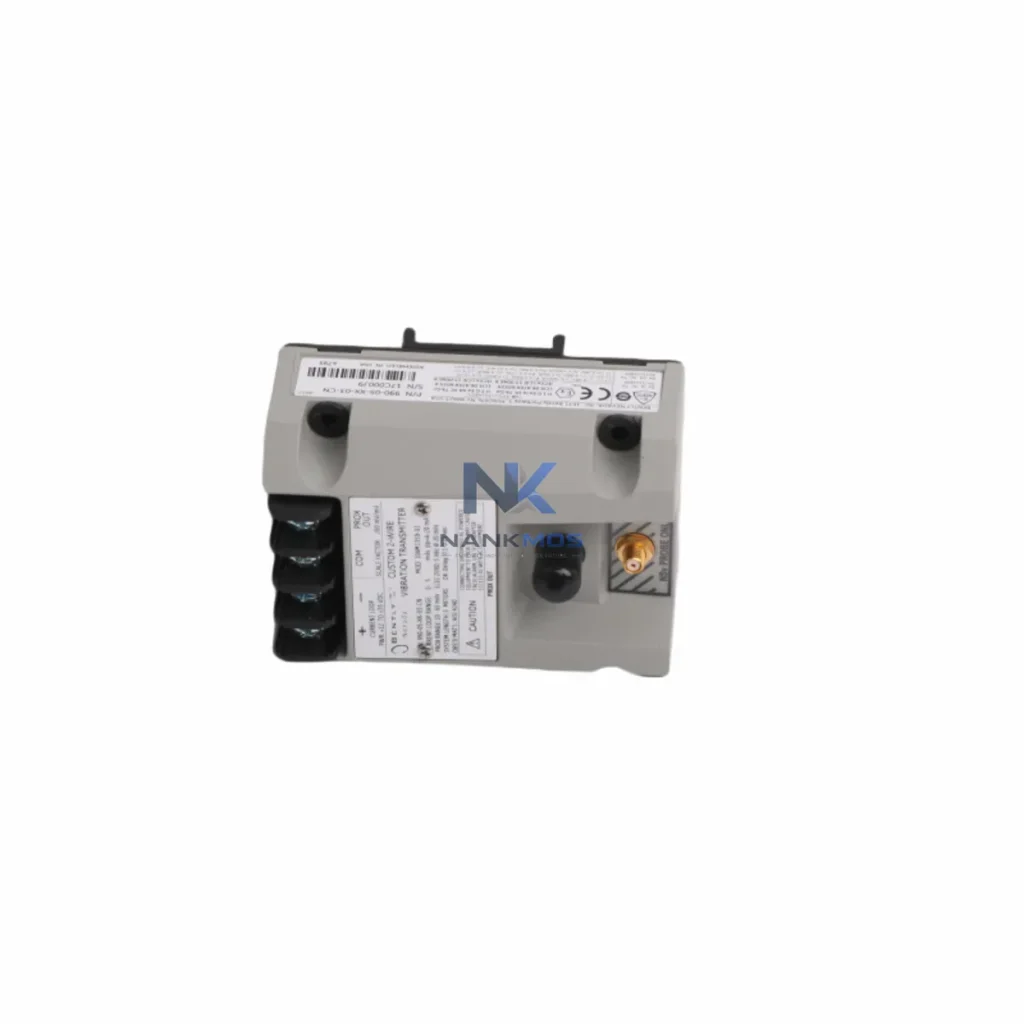

Bently Nevada 990-05-XX-03-CN 104M1359-01

Product Details

990-05-XX-03-CN 104M1359-01 Product Description

The Bently Nevada 990-05-XX-03-CN is a precision vibration monitoring module engineered for seamless deployment within the 990 Series modular condition monitoring architecture. Designed to operate as a core sensing node in multi-channel machinery protection systems, this module delivers continuous, high-fidelity vibration signal acquisition across rotating equipment assets including turbines, compressors, pumps, motors, and gearboxes. Its system-matched design ensures direct compatibility with the 990 Series rack infrastructure, enabling engineers to build scalable, redundant, and diagnostically capable monitoring platforms without signal conditioning compromises or integration overhead.

Within a layered industrial control architecture, the 990-05-XX-03-CN occupies the critical interface between the physical sensing layer and the supervisory control layer. It receives raw transducer signals from proximity probes, accelerometers, or velocity sensors and conditions them into calibrated outputs suitable for direct ingestion by the 3500 Series rack-based protection system, Bently Nevada System 1 software, or third-party DCS and SCADA platforms via standard 4–20 mA or digital communication interfaces. This Contextual Integration capability ensures that vibration data flows uninterrupted from the field device level through to the plant historian, enabling real-time alarming, trend analysis, and predictive maintenance decision-making across the full automation hierarchy.

The module's architecture supports both standalone channel monitoring and coordinated multi-module deployments, making it equally suited to single-machine protection applications and plant-wide condition monitoring networks. Engineers working with Bently Nevada 3500/42M proximity monitor cards, 3500/25 keyphasor modules, 3500/15 power supply modules, and 3500/22M transient data interface modules will find the 990-05-XX-03-CN a natural extension of the same engineering philosophy: deterministic signal paths, hardware-enforced alarm thresholds, and rack-level redundancy without software dependency.

The 990-05-XX-03-CN is most effectively deployed as part of a coordinated Bently Nevada machinery protection platform. In a full 990 Series rack configuration, the module operates alongside the 3500/15 Power Supply Module, which provides regulated, isolated DC power to all rack-resident cards, ensuring that transient grid disturbances do not propagate into the measurement chain. The 3500/20 Rack Interface Module (RIM) manages communication between the rack and the plant DCS or historian, while the 3500/22M Transient Data Interface captures high-speed waveform data during startup, shutdown, and trip events — data that the 990-05-XX-03-CN's continuous monitoring output complements with steady-state amplitude and phase information.

For keyphasor-referenced measurements — essential for shaft speed tracking, 1X/2X vector analysis, and orbit plot generation — the 3500/25 Keyphasor Module provides the phase reference signal that the 990-05-XX-03-CN uses to resolve vibration vectors with sub-degree angular precision. In turbomachinery applications where axial position monitoring is required alongside radial vibration, the 3500/42M Proximitor Monitor and 3500/45 Position Monitor are co-deployed in the same rack, sharing the common backplane and communication bus to deliver a unified machinery health picture to the System 1 software platform.

At the field device level, the 990-05-XX-03-CN interfaces directly with Bently Nevada 3300 XL 8mm Proximity Transducer Systems and 330180 Series Proximity Probes, which are the industry-standard eddy current sensors for non-contact shaft displacement measurement. For high-frequency structural vibration on bearing housings and gearbox casings, Bently Nevada 330400 Series Accelerometers provide the complementary signal path. In installations where signal transmission distances exceed standard cable specifications, Bently Nevada 3300 RAM Extension Cables and junction box assemblies maintain signal integrity between the field transducer and the rack-mounted monitor module.

At the supervisory layer, the 990-05-XX-03-CN's analog outputs integrate directly into Emerson DeltaV DCS and Honeywell Experion PKS analog input cards, enabling plant-wide vibration alarming within the existing process control framework without requiring dedicated vibration monitoring workstations at every operator station. This Contextual Integration approach reduces engineering overhead, simplifies alarm rationalization, and ensures that machinery protection data is available to process operators in the same environment where they manage temperature, pressure, and flow variables.

Power Generation & Turbomachinery: In gas turbine and steam turbine protection systems, the 990-05-XX-03-CN monitors shaft radial vibration on journal bearings, providing continuous amplitude and phase data that feeds both the hardware trip logic and the System 1 predictive analytics engine. Combined with axial position monitors and keyphasor modules in the same 3500 Series rack, it enables complete rotor dynamic characterization during startup, steady-state operation, and controlled shutdown sequences.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressor trains in ethylene, LNG, and refinery service require continuous, uninterrupted vibration monitoring with hardware-enforced trip capability. The 990-05-XX-03-CN's rack-based architecture provides the deterministic response time required by API 670 machinery protection standards, with alarm-to-trip latency independent of software scan rates or network congestion.

Water Treatment & Pumping Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure benefit from the 990-05-XX-03-CN's ability to detect early-stage bearing degradation, impeller imbalance, and cavitation-induced vibration signatures before they escalate to unplanned outages. The module's 4–20 mA output integrates directly into existing SCADA systems without requiring dedicated condition monitoring software at remote pumping stations.

Mining & Mineral Processing: SAG mills, ball mills, and large conveyor drive systems in mining operations generate complex, broadband vibration signatures that require robust, high-dynamic-range monitoring hardware. The 990-05-XX-03-CN's industrial-grade signal conditioning handles the high-amplitude, low-frequency vibration environments characteristic of grinding mill applications while maintaining measurement accuracy for the higher-frequency bearing defect frequencies that indicate impending failure.

Marine & Offshore Propulsion Systems: Shipboard propulsion machinery, including main engines, reduction gearboxes, and shaft line bearings, operates in environments with high ambient vibration, wide temperature swings, and limited maintenance access. The 990-05-XX-03-CN's robust hardware design and rack-based redundancy architecture support continuous monitoring in these demanding environments, with alarm outputs that integrate into the vessel's integrated automation system (IAS) for bridge-level machinery status visibility.

Q1: Is the 990-05-XX-03-CN compatible with existing 3500 Series rack infrastructure, and can it share a rack with 3500/42M and 3500/45 monitor cards? Yes. The 990-05-XX-03-CN is designed for deployment within the 990 Series modular rack architecture, which shares the same backplane communication and power distribution standards as the 3500 Series platform. It can be co-installed in a mixed-card rack alongside 3500/42M Proximitor Monitors, 3500/45 Position Monitors, and 3500/25 Keyphasor Modules without signal interference or address conflicts, provided rack slot assignments follow the Bently Nevada rack configuration guidelines. All units supplied by NANKMOS are pre-tested for rack compatibility and shipped with a 12-Month Warranty covering hardware function and signal accuracy.

Q2: What communication protocols does the 990-05-XX-03-CN support for integration with DCS and SCADA systems, and how is Contextual Integration achieved? The 990-05-XX-03-CN provides standard 4–20 mA analog outputs for direct integration with any DCS or SCADA analog input card, including Emerson DeltaV, Honeywell Experion, ABB 800xA, and Siemens PCS 7 platforms. For digital communication, the module interfaces with the 3500/20 Rack Interface Module, which supports Modbus RTU, Modbus TCP/IP, and OPC DA/UA protocols for historian and SCADA integration. Contextual Integration is achieved by mapping vibration amplitude, phase, and alarm status tags directly into the plant DCS tag database, enabling process operators to correlate machinery health data with process variables in a unified operator interface without switching between separate monitoring applications.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's lead time and inventory availability for the 990-05-XX-03-CN? NANKMOS provides a 12-Month Warranty on all 990-05-XX-03-CN units, covering manufacturing defects, signal accuracy within published specifications, and hardware functional integrity under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing including signal path verification, alarm threshold calibration check, and power supply integrity test before dispatch. NANKMOS maintains stock inventory of the 990-05-XX-03-CN and associated 990 Series components to support urgent maintenance requirements and planned turnaround projects. Standard lead time for in-stock units is 3–7 business days for international shipment. For project quantities or expedited requirements, contact [email protected] or +86 18359268345 for availability confirmation and logistics coordination.
