991-06-50-01-00 Product Description

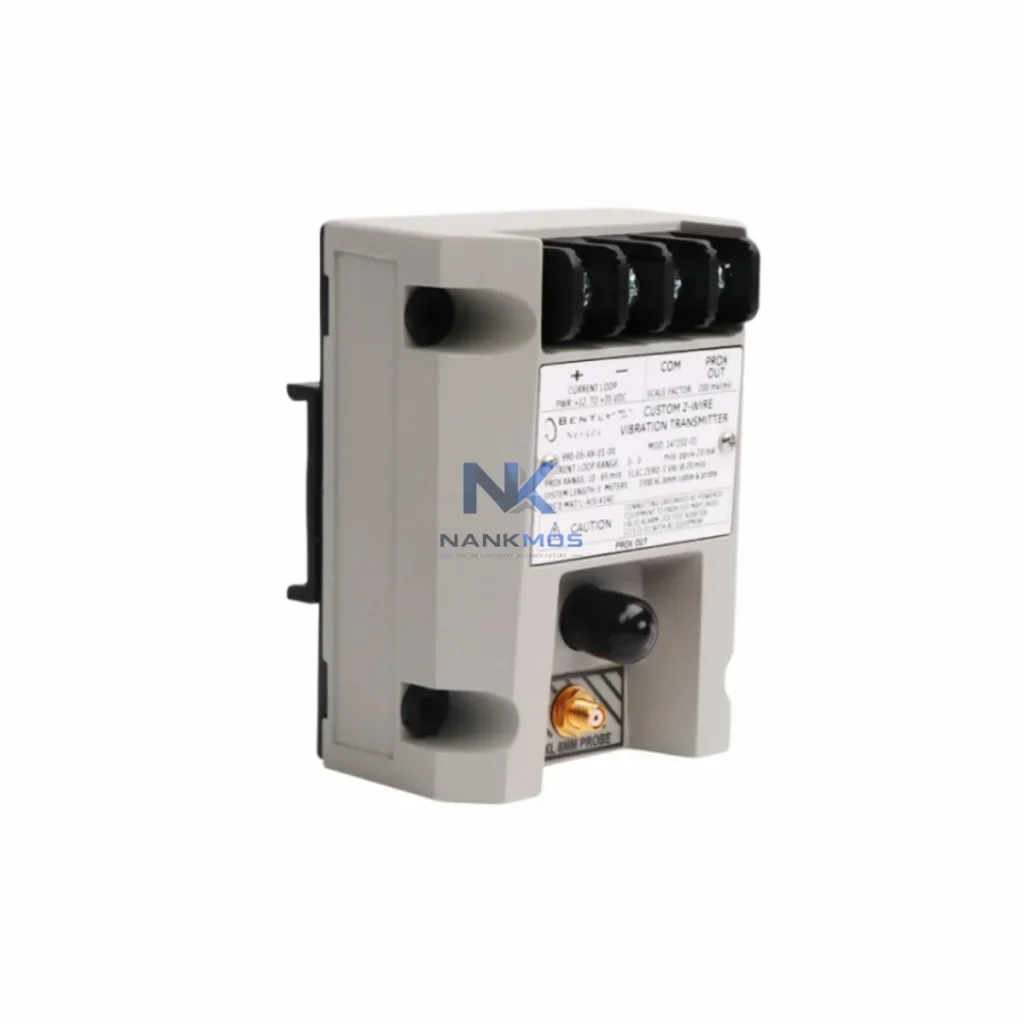

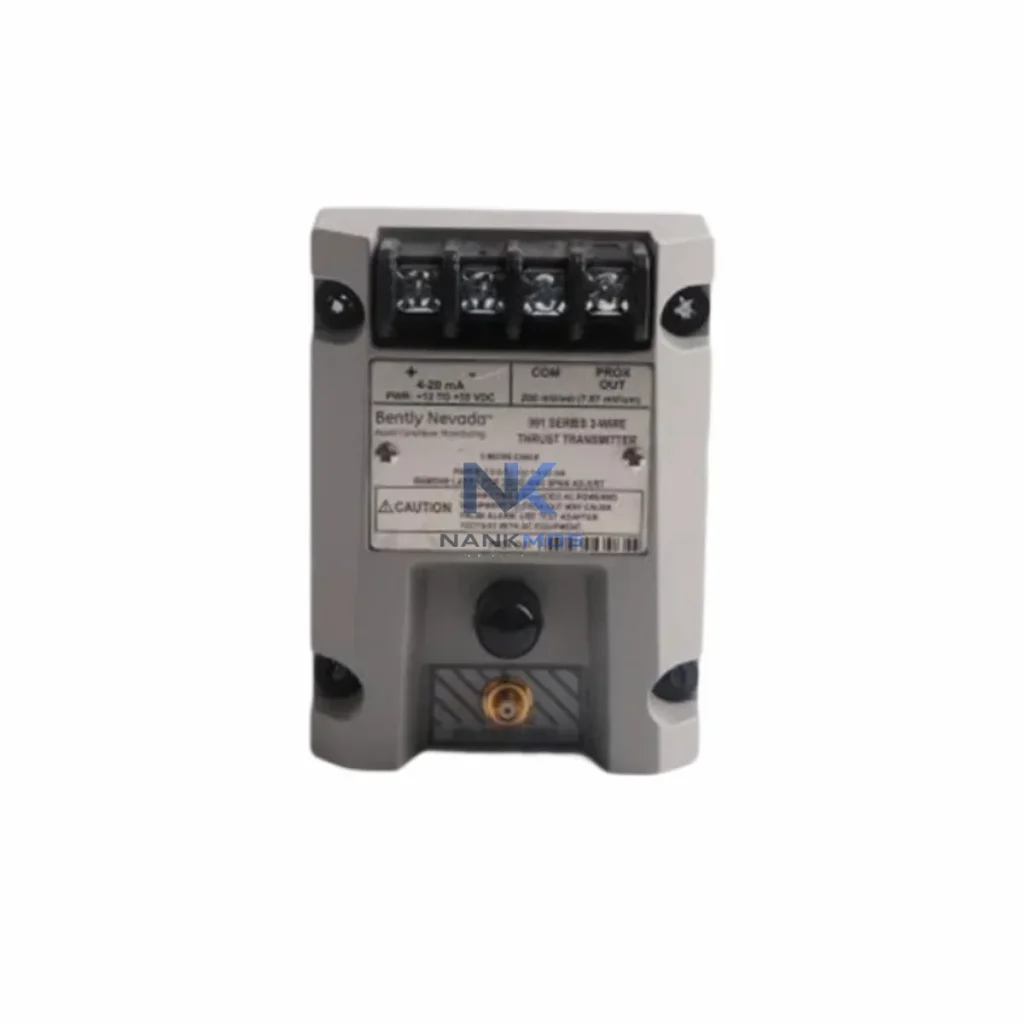

The Bently Nevada 991-06-50-01-00 is a precision-engineered vibration monitoring module purpose-built for deployment within the Bently Nevada 3500 Series Machinery Protection System. Designed to deliver continuous, real-time vibration signal acquisition and processing, this module occupies a critical role in the protection layer of any industrial control architecture — ensuring that rotating machinery assets remain within safe operational envelopes across demanding process environments.

In modern industrial automation architectures, machinery protection is not an isolated function. It is a deeply integrated layer that communicates upward to the control layer, sideways to the I/O and communication layers, and downward to the physical sensing layer. The 991-06-50-01-00 is engineered with this systemic role in mind. Its signal conditioning circuitry processes raw vibration inputs from proximity probes and accelerometers, converts them into calibrated engineering units, and delivers those values to the 3500 rack's backplane for real-time evaluation against user-configured alarm and danger setpoints. This architecture ensures that the protection response — whether a relay trip, a DCS alarm, or a historian event — is both fast and deterministic.

From a control architecture perspective, the 991-06-50-01-00 integrates seamlessly with the broader Bently Nevada 3500 platform. The 3500/22M Communication Gateway Module provides the Modbus TCP or OPC DA/UA bridge that connects the protection rack to the plant DCS or SCADA layer, enabling operators to view vibration trends, alarm states, and diagnostic data from a centralized HMI. The 3500/15 Power Supply Module ensures that the rack maintains stable, conditioned DC power across all installed monitor cards, including the 991-06-50-01-00, even under transient load conditions. The 3500/20 Rack Interface Module coordinates backplane communication between all installed modules, maintaining synchronization of alarm states and configuration data.

At the I/O layer, the 991-06-50-01-00 accepts inputs from Bently Nevada 3300 XL 8mm Proximity Transducer Systems, which are the industry-standard eddy-current sensors for shaft vibration and position measurement on turbines, compressors, pumps, and motors. These transducers feed raw gap voltage and dynamic vibration signals into the monitor, where internal DSP circuitry extracts 1X, 2X, and broadband vibration amplitudes, phase angles, and gap DC voltages. The processed values are then compared against four configurable alarm levels — Alert, Danger, and two user-defined thresholds — enabling layered protection responses that match the criticality of each machine train.

For redundant architecture deployments, the 991-06-50-01-00 supports installation in dual-redundant rack configurations alongside the 3500/92 TMR Safety System, providing triple modular redundancy for SIL-rated protection applications in petrochemical, power generation, and offshore environments. This redundancy capability ensures that a single module failure does not compromise the protection function, maintaining continuous monitoring even during maintenance windows or partial rack failures.

The module's diagnostic capabilities extend beyond simple alarm annunciation. Built-in self-test routines continuously verify the integrity of the signal path from transducer input to backplane output, flagging open-circuit, short-circuit, and out-of-range transducer conditions as Not OK (NOK) states. These diagnostic signals are available both on the front-panel LED indicators and via the rack's communication gateway, enabling maintenance teams to identify and resolve instrumentation faults without interrupting the protection function on adjacent channels.

In layered industrial control applications, the 991-06-50-01-00 serves as the foundational sensing node for machinery health data that flows upward through the automation hierarchy. At the HMI layer, Bently Nevada System 1 Condition Monitoring Software aggregates vibration trend data from multiple 3500 racks across a plant, enabling predictive maintenance workflows that reduce unplanned downtime and extend mean time between overhauls. At the historian layer, OSIsoft PI or equivalent process data historians archive vibration amplitude and phase data at configurable scan rates, supporting long-term trend analysis and regulatory compliance documentation.

Engineering integration of the 991-06-50-01-00 into a new or retrofit control cabinet follows a structured commissioning workflow. The module is installed into a 3500 rack chassis alongside the 3500/15 Power Supply, 3500/20 Rack Interface Module, and the appropriate I/O terminal blocks. Transducer field wiring is terminated at the 3500 I/O module's terminal strip, with shield grounding managed per Bently Nevada's EMC guidelines to minimize noise ingress in high-interference environments such as motor control centers or variable frequency drive (VFD) cabinets. Configuration is performed via Bently Nevada's rack configuration software, where channel parameters, alarm setpoints, transducer types, and communication addresses are defined and downloaded to the module's non-volatile memory.

Long-term maintenance efficiency is a core design principle of the 3500 platform. The 991-06-50-01-00's hot-swap capability allows module replacement without de-energizing the rack, minimizing process interruption during corrective maintenance. Configuration data stored in the rack's non-volatile memory is automatically restored to a replacement module upon insertion, reducing recommissioning time to minutes rather than hours. This feature is particularly valuable in continuous-process industries such as refining, LNG, and power generation, where planned maintenance windows are measured in hours and unplanned shutdowns carry significant financial consequences.

Every 991-06-50-01-00 unit supplied by NANKMOS is sourced from verified supply channels, undergoes pre-shipment functional verification, and is covered by a 12-Month Warranty. This warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement and maintenance teams with the confidence to plan long-term spares strategies around this critical protection module. Stock availability is maintained to support both planned project deliveries and emergency replacement requirements, with expedited shipping options available for critical plant situations.

The 991-06-50-01-00 achieves its full operational value when deployed as part of a complete Bently Nevada 3500 rack assembly. A typical machinery protection rack for a critical compressor train includes the 3500/15 Power Supply Module providing conditioned 24 VDC to all installed cards, the 3500/20 Rack Interface Module managing backplane communication and configuration data integrity, and the 3500/22M Communication Gateway Module bridging the protection system to the plant DCS via Modbus TCP or OPC DA/UA. Multiple 991-series monitor cards — including the 3500/40M Proximitor/Seismic Monitor for radial vibration and the 3500/42M Proximitor/Seismic Monitor for axial position — occupy adjacent rack slots, sharing the common backplane and power infrastructure.

At the field sensing layer, Bently Nevada 3300 XL 8mm Proximity Transducer Systems provide the eddy-current sensing elements that feed raw signals into the 991-06-50-01-00. For temperature monitoring integration within the same control cabinet, 3500/60 Temperature Monitor Modules provide thermocouple and RTD inputs that complement the vibration data with bearing temperature trends, enabling multi-parameter machinery health assessment from a single rack. The 3500/70M Keyphasor Module provides the once-per-revolution reference signal required for phase-referenced vibration analysis, enabling 1X and 2X vector measurements that are essential for balancing and alignment diagnostics.

At the control and SCADA layer, the protection rack interfaces with ABB System 800xA or Emerson DeltaV DCS platforms via the communication gateway, delivering real-time alarm states and vibration amplitudes to the operator HMI. For condition monitoring and predictive maintenance workflows, Bently Nevada System 1 Software aggregates data from multiple 3500 racks across the plant, providing trend analysis, alarm management, and maintenance planning tools that extend the operational life of critical rotating assets.

The 991-06-50-01-00 is deployed across a broad spectrum of industrial sectors where rotating machinery protection is a safety and reliability imperative. In oil & gas and petrochemical facilities, it protects centrifugal compressors, gas turbines, and boiler feed pumps in continuous-process trains where unplanned shutdowns carry multi-million-dollar consequences. In power generation plants — including combined-cycle gas turbine, steam turbine, and hydroelectric facilities — it provides the vibration protection layer for turbine-generator sets operating at speeds from 1,500 to 3,600 RPM, where shaft vibration excursions can cause catastrophic bearing or seal failures within seconds.

In LNG liquefaction and regasification terminals, the module protects the large centrifugal compressor trains that are the heart of the liquefaction process, operating in SIL 2-rated safety architectures alongside emergency shutdown systems. In mining and minerals processing, it monitors the large grinding mills, slurry pumps, and conveyor drive motors that operate continuously in high-dust, high-vibration environments where early fault detection directly reduces maintenance costs and extends equipment life. In marine and offshore applications, the 3500 platform's compact rack design and wide operating temperature range make the 991-06-50-01-00 suitable for shipboard propulsion machinery monitoring and offshore platform compressor protection, where space constraints and environmental severity demand robust, compact instrumentation.

In water and wastewater treatment facilities, the module protects the large centrifugal pumps and blowers that operate continuously in critical service, where vibration-induced failures can disrupt municipal water supply or environmental compliance. Across all these applications, the 991-06-50-01-00 delivers the same core value: deterministic, reliable vibration signal processing that enables the protection system to respond to developing machinery faults before they escalate to catastrophic failures.

Q1: Is the 991-06-50-01-00 compatible with all 3500 Series rack configurations, and can it be mixed with other 3500 monitor modules in the same rack? Yes. The 991-06-50-01-00 is designed for installation in any standard 3500 rack chassis and is fully compatible with the 3500/15 Power Supply, 3500/20 Rack Interface Module, and all other 3500-series monitor cards. Mixed-module rack configurations are standard practice in machinery protection system design, allowing a single rack to monitor vibration, position, temperature, and speed from a common backplane and communication gateway. Rack configuration is managed via Bently Nevada's configuration software, where each module's channel parameters and alarm setpoints are defined independently.

Q2: What communication protocols does the 991-06-50-01-00 support for integration with a plant DCS or SCADA system, and is OPC UA supported? The 991-06-50-01-00 communicates via the 3500 rack backplane to the 3500/22M Communication Gateway Module, which provides the external communication interfaces. The gateway supports Modbus RTU, Modbus TCP/IP, and OPC DA as standard protocols, with OPC UA available on later firmware revisions of the gateway. This architecture means that the monitor module itself does not require individual network configuration — all DCS integration is managed at the gateway level, simplifying network architecture and reducing the number of IP endpoints in the control system.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units if a module fails in service? Every 991-06-50-01-00 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NANKMOS provides replacement unit coordination to minimize plant downtime. For non-warranty emergency replacements, NANKMOS maintains stock inventory to support expedited shipment for critical plant situations. Pre-shipment functional verification is performed on all units prior to dispatch, ensuring that replacement modules arrive ready for immediate installation and commissioning without additional bench testing.
