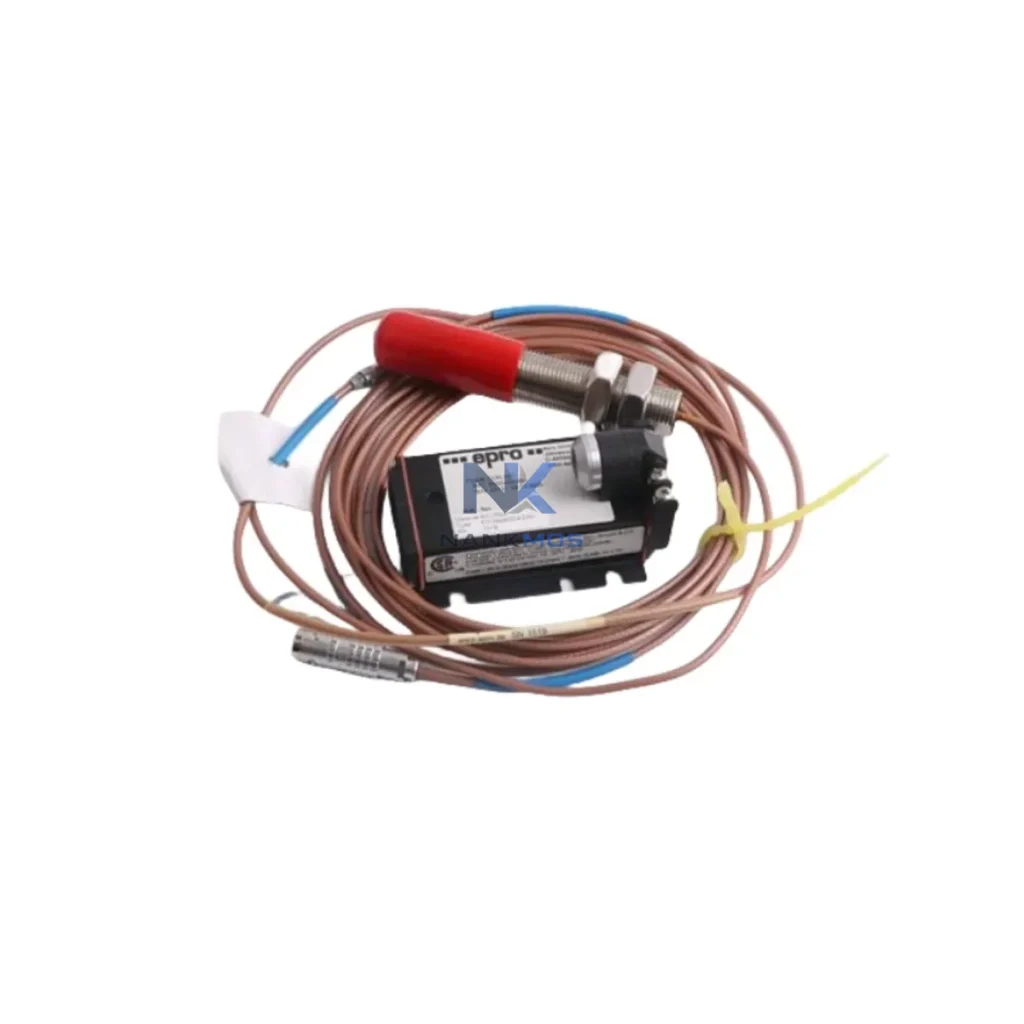

Emerson PR6423/014-110 CON021 Eddy Current Sensor

Product Details

PR6423/014-110 CON021 Product Description

The Emerson PR6423/014-110-CON021 is a precision eddy current sensor from the Epro series, engineered for continuous vibration and proximity monitoring in demanding industrial environments. Beyond its core sensing function, this unit is designed to serve as a critical data node within smart factory architectures — bridging the gap between rotating machinery and the digital control layer. Whether integrated into a turbine protection system, a compressor monitoring rack, or a distributed condition monitoring network, the PR6423/014-110-CON021 delivers reliable, real-time signal output that feeds directly into PLC controllers, SCADA platforms, and HMI visualization systems.

In modern industrial facilities, the value of a sensor is no longer measured solely by its measurement accuracy. The ability to transmit clean, protocol-compatible signals across a plant-wide network — without data loss, latency spikes, or compatibility conflicts — defines its role in the connected factory. The PR6423/014-110-CON021 meets this standard, providing stable analog output that integrates seamlessly with Emerson Epro MMS 6000 series monitors, Bently Nevada 3500 series racks, and third-party condition monitoring systems via standard 4–20 mA or voltage signal interfaces.

In a fully connected smart factory, the PR6423/014-110-CON021 operates as the first link in a multi-layer data chain. The sensor detects shaft displacement or surface vibration at the machine level and transmits a continuous analog signal to the Emerson Epro CON021-compatible driver unit. The driver conditions and amplifies the signal before passing it to an Emerson MMS 6350 or MMS 6110 monitor module, which performs real-time threshold comparison and alarm evaluation.

From the monitor rack, processed vibration data is forwarded via hardwired I/O or fieldbus interface to a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller acting as the site automation backbone. The PLC aggregates data from multiple field instruments — including Emerson Rosemount 3051 pressure transmitters, Yokogawa EJA110E differential pressure sensors, and Phoenix Contact Axioline F remote I/O modules — and routes the combined dataset upstream to the SCADA layer.

At the SCADA level, an Emerson Ovation DCS or a Wonderware System Platform historian receives the vibration trend data alongside process variables from the broader plant network. Industrial Ethernet switches — such as the Moxa EDS-510A or Hirschmann RS20 — provide the managed Layer 2 switching infrastructure that ensures deterministic data delivery across the plant LAN. Edge computing gateways, such as the Advantech ECU-1251 or Moxa UC-8112, can be deployed at the network boundary to perform local data preprocessing, protocol conversion (e.g., Modbus RTU to MQTT or OPC-UA), and buffered transmission to cloud-based analytics platforms.

HMI terminals — including Siemens SIMATIC TP1200 Comfort panels or Weintek MT8102iE units — display real-time vibration waveforms, alarm states, and trend histories sourced from the SCADA historian. Operators can acknowledge alarms, adjust setpoints, and initiate remote diagnostic sessions directly from the HMI interface, with all actions logged to the central data repository for audit and compliance purposes.

This end-to-end data flow — from the PR6423/014-110-CON021 sensor tip to the SCADA dashboard — represents the complete industrial connectivity chain that modern smart factories depend on for predictive maintenance, asset health monitoring, and operational transparency.

Many industrial sites still operate with fragmented monitoring architectures: legacy vibration sensors that output non-standard signals, monitor racks that lack network connectivity, and SCADA systems that cannot access machine-level data without manual intervention. The PR6423/014-110-CON021, when deployed as part of a structured Epro system upgrade, directly addresses these data gaps.

Protocol Fragmentation: Sites running mixed vendor environments — combining Emerson Epro monitors with third-party PLCs or DCS platforms — often face signal compatibility challenges. By using signal converters or Modbus-capable I/O modules at the PLC input stage, the analog output of the PR6423/014-110-CON021 can be digitized and mapped to standard process tags accessible across any SCADA or historian platform.

Data Silos: Vibration data isolated within a standalone monitor rack cannot contribute to plant-wide predictive maintenance programs. Integrating the PR6423/014-110-CON021 output into the site PLC and SCADA network transforms isolated machine health data into a shared operational intelligence asset, visible to maintenance engineers, process operators, and plant managers simultaneously.

Remote Monitoring Gaps: For unmanned or remote installations, the inability to access real-time vibration data without physical site visits creates significant maintenance risk. With proper network integration, the PR6423/014-110-CON021 signal can be routed through an edge gateway to a cloud-based condition monitoring platform, enabling remote diagnostics, alarm notification, and trend analysis from any location.

Production Line Transparency: Connecting vibration monitoring data to the broader MES or ERP layer enables production planners to correlate machine health trends with output quality metrics, scheduling planned maintenance windows before unplanned failures disrupt production targets.

Alarm Traceability: Integrated SCADA alarm management systems can timestamp, categorize, and escalate vibration alarms generated by the PR6423/014-110-CON021 monitor, ensuring that every alarm event is recorded, reviewed, and resolved within defined response time windows — a critical requirement for ISO 55000 asset management compliance.

System Scalability: The Epro PR6423 series supports multi-point monitoring configurations, allowing additional sensor channels to be added to existing monitor racks without rewiring the signal chain. This scalability ensures that the initial investment in PR6423/014-110-CON021 infrastructure can grow alongside expanding monitoring requirements.

Q1: What communication protocols are compatible with the PR6423/014-110-CON021 in a SCADA-connected environment?The PR6423/014-110-CON021 outputs a standard analog signal (4–20 mA or voltage) that is natively compatible with any PLC or DCS analog input module. For digital protocol integration (Modbus RTU, PROFIBUS, OPC-UA), a signal converter or protocol gateway is required between the Epro monitor output and the fieldbus network. This approach is fully supported in Emerson DeltaV, Siemens PCS 7, and ABB 800xA environments.

Q2: How does the PR6423/014-110-CON021 support remote diagnostics and predictive maintenance programs?When integrated into a networked monitoring architecture, the sensor's continuous analog output feeds real-time vibration trend data to SCADA historians and edge computing platforms. Remote diagnostic tools can access this data stream to detect bearing wear, rotor imbalance, and misalignment conditions before they escalate to failure events. All units are pre-shipment tested to confirm signal integrity and output linearity prior to dispatch.

Q3: Is the PR6423/014-110-CON021 compatible with third-party monitor racks and HMI systems?The PR6423/014-110-CON021 is designed for use within the Emerson Epro system architecture, including CON021-compatible driver and monitor assemblies. Its analog output signal is universally compatible with third-party PLC analog input cards, enabling integration with Siemens, Rockwell, Mitsubishi, and Schneider Electric control platforms. HMI compatibility is achieved through standard OPC-DA/UA server connections at the SCADA layer.

Q4: What warranty and supply assurance does NANKMOS provide for the PR6423/014-110-CON021?Every PR6423/014-110-CON021 unit supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional performance. Units are drawn from maintained inventory stock, pre-shipment tested for signal output and connector integrity, and dispatched with full documentation. Global shipping is available to support urgent replacement and maintenance schedules at industrial sites worldwide.
