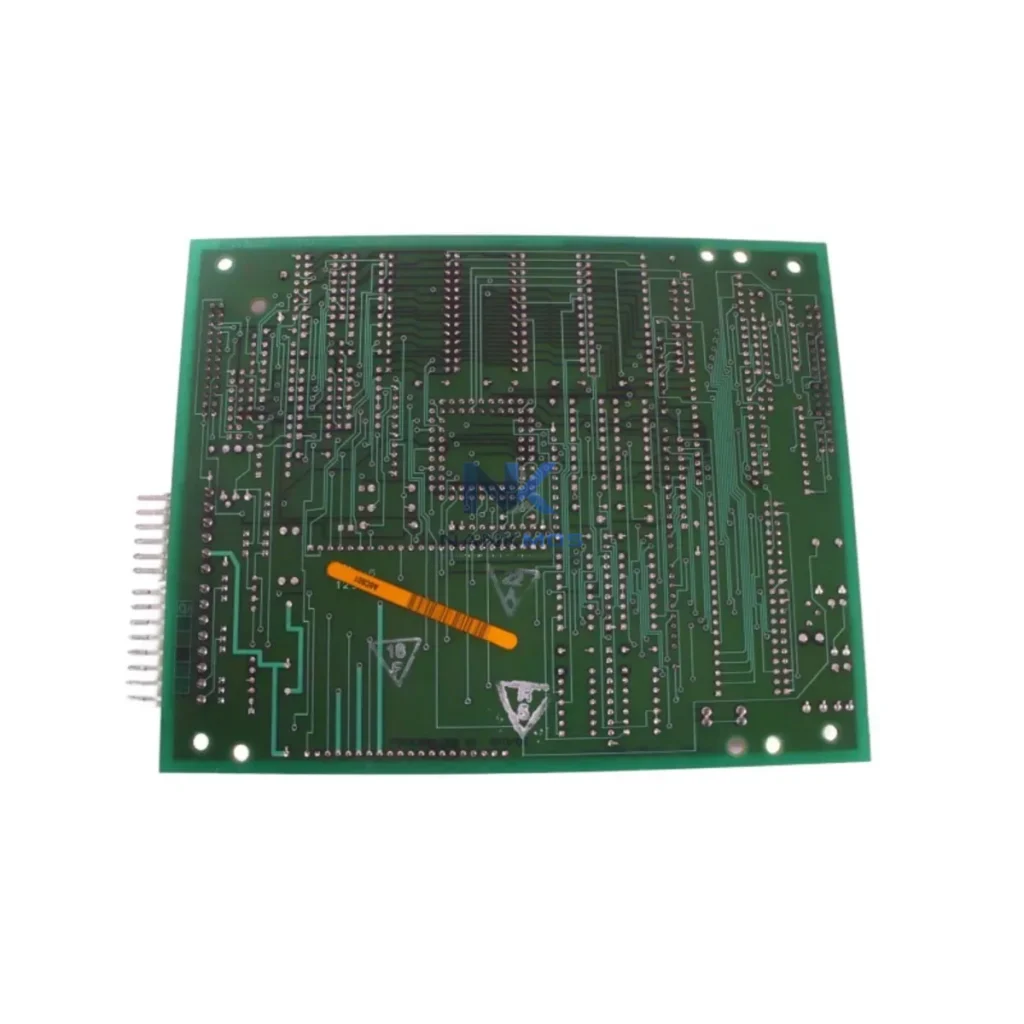

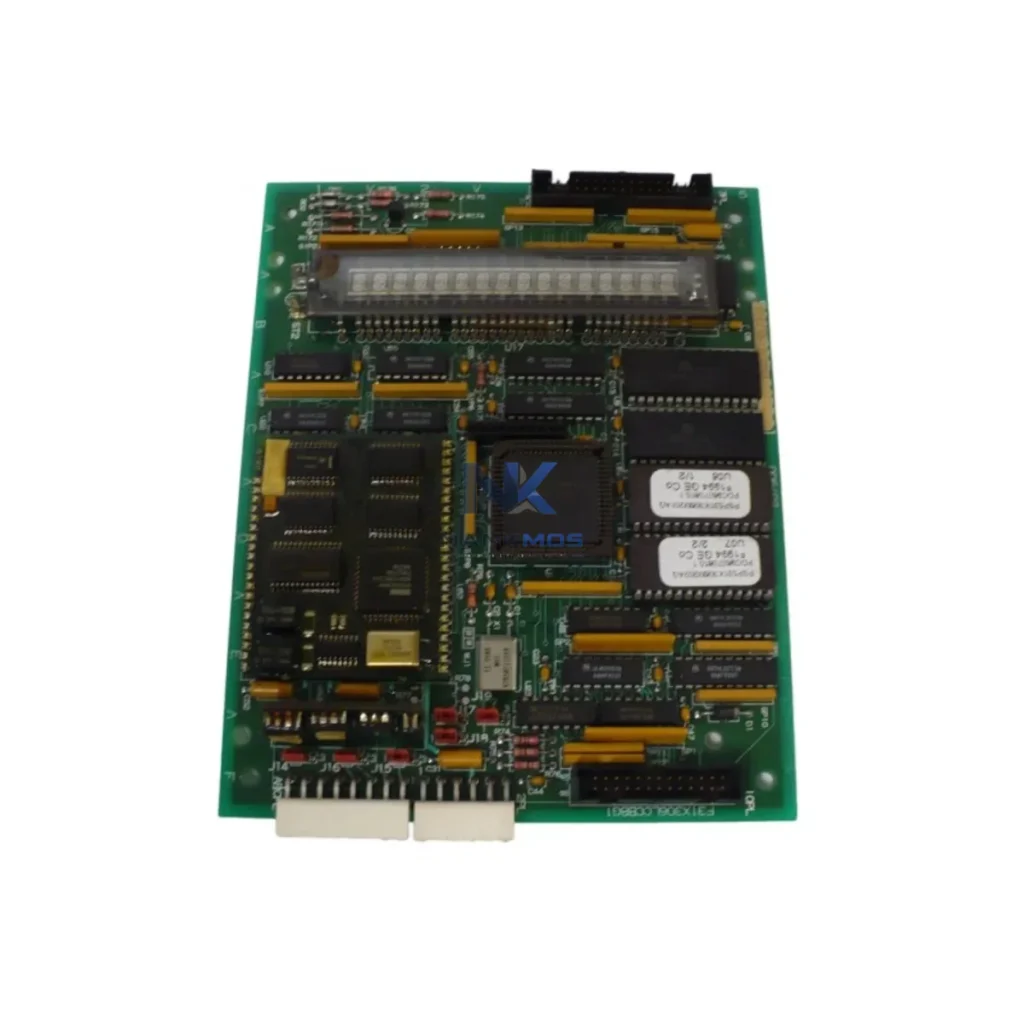

GE 531X306LCCBFM1 Drive Display Card

Product Details

531X306LCCBFM1 Product Description

The GE 531X306LCCBFM1 is a factory-grade Drive Display Card engineered for the GE AF-300 and AF-600 series variable frequency drives (VFDs). Designed for demanding industrial environments, this display interface card serves as the primary human-machine interface layer between the operator and the drive's energy-control logic — enabling real-time monitoring of output frequency, motor current, DC bus voltage, and fault diagnostics without interrupting production cycles. Its role in the energy management chain is direct: by giving operators and control systems immediate visibility into drive operating parameters, the 531X306LCCBFM1 reduces the risk of undetected overloads, inefficient motor operation, and unplanned downtime that collectively inflate energy costs on the production floor.

In a fully integrated energy-aware production line, the GE 531X306LCCBFM1 display card does not operate in isolation. It is the visible interface of the AF-300 or AF-600 VFD, which itself sits at the heart of motor energy control. When paired with a GE Series 90-30 PLC or a GE PACSystems RX3i controller, the drive receives speed reference commands and torque limit signals derived from the PLC's process logic — and the 531X306LCCBFM1 card surfaces those operating states to the operator in real time, closing the feedback loop between the control layer and the human operator.

For facilities running multi-axis motion or coordinated conveyor systems, the AF-600 drive paired with this display card can be networked alongside GE AF-650 GP general-purpose drives and GE AF-910 high-performance servo drives to form a unified drive bus. In such configurations, the display card's fault-code readout becomes a critical diagnostic tool: a fault on one drive axis — visible immediately on the 531X306LCCBFM1 — can trigger a controlled stop sequence in the PLC before cascading energy spikes damage adjacent drive modules or motor windings.

Power quality monitoring is equally important. When the AF-300 or AF-600 drive is installed alongside a GE EPM 7000 Power Monitoring Unit or a compatible Modbus-RTU power meter, the display card's real-time current and voltage readouts can be cross-referenced against the power meter's kWh data to validate drive efficiency at each operating point. This dual-layer monitoring approach — drive-level via the 531X306LCCBFM1 and facility-level via the power monitoring module — supports ISO 50001 energy management system documentation requirements.

On the I/O and communications side, the AF-300/AF-600 drive platform supports integration with GE VersaMax I/O modules for distributed digital and analog signal handling, and with Profibus-DP or DeviceNet communication adapters for fieldbus connectivity. The 531X306LCCBFM1 display card ensures that even when the drive is operating under remote PLC or SCADA command, local operators retain full parameter visibility — a safety-critical requirement in facilities where remote overrides must be auditable at the drive level. For HMI integration, the drive's parameter data can be mirrored to a GE QuickPanel+ HMI or a third-party SCADA workstation via the drive's serial communication port, with the display card serving as the local fallback interface during network interruptions.

The primary energy optimization value of the GE 531X306LCCBFM1 lies in its role as an early-warning and real-time feedback instrument within the drive's energy-control architecture. Variable frequency drives like the AF-300 and AF-600 are already inherently energy-efficient compared to fixed-speed motor starters — by matching motor speed to actual load demand, they eliminate the excess energy dissipated as heat in throttled or bypass-valve systems. However, a VFD operating without a functional display card is effectively a black box: operators cannot verify output frequency, detect current imbalances, or read fault codes without external instrumentation.

By restoring full display functionality, the 531X306LCCBFM1 enables the following energy and operational improvements on the production line:

For facilities managing multiple drive axes — such as multi-pump water treatment stations, multi-zone HVAC systems, or multi-conveyor assembly lines — the ability to read and compare operating parameters across drives via their respective display cards provides a low-cost, high-value energy audit capability without requiring dedicated power analyzers at every motor control center.

Q1: What energy-saving benefit does replacing the 531X306LCCBFM1 display card provide? A faulty or missing display card prevents operators from monitoring drive output parameters, which can lead to undetected overloads, inefficient speed setpoints, and delayed fault response. Replacing the 531X306LCCBFM1 restores full parameter visibility, enabling operators to maintain the AF-300 or AF-600 drive at its optimal energy-efficient operating point and respond to fault conditions before they escalate into costly downtime or motor damage.

Q2: Is the GE 531X306LCCBFM1 compatible with both the AF-300 and AF-600 drive series? Yes. The 531X306LCCBFM1 is designed for the GE AF-300 and AF-600 variable frequency drive platforms. If you are unsure of compatibility with a specific drive revision or firmware version, please contact us with your drive nameplate data and we will confirm fitment before shipment.

Q3: What is the testing and quality assurance process before shipment? Each GE 531X306LCCBFM1 unit is functionally tested prior to dispatch to verify display operation, communication interface integrity, and connector condition. Units are shipped in anti-static protective packaging. All units are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability? The GE 531X306LCCBFM1 is maintained in stock for immediate dispatch. Standard orders ship within 1–3 business days. For bulk procurement or urgent production-line replacement requirements, please contact our team directly to confirm available quantity and expedited shipping options.
