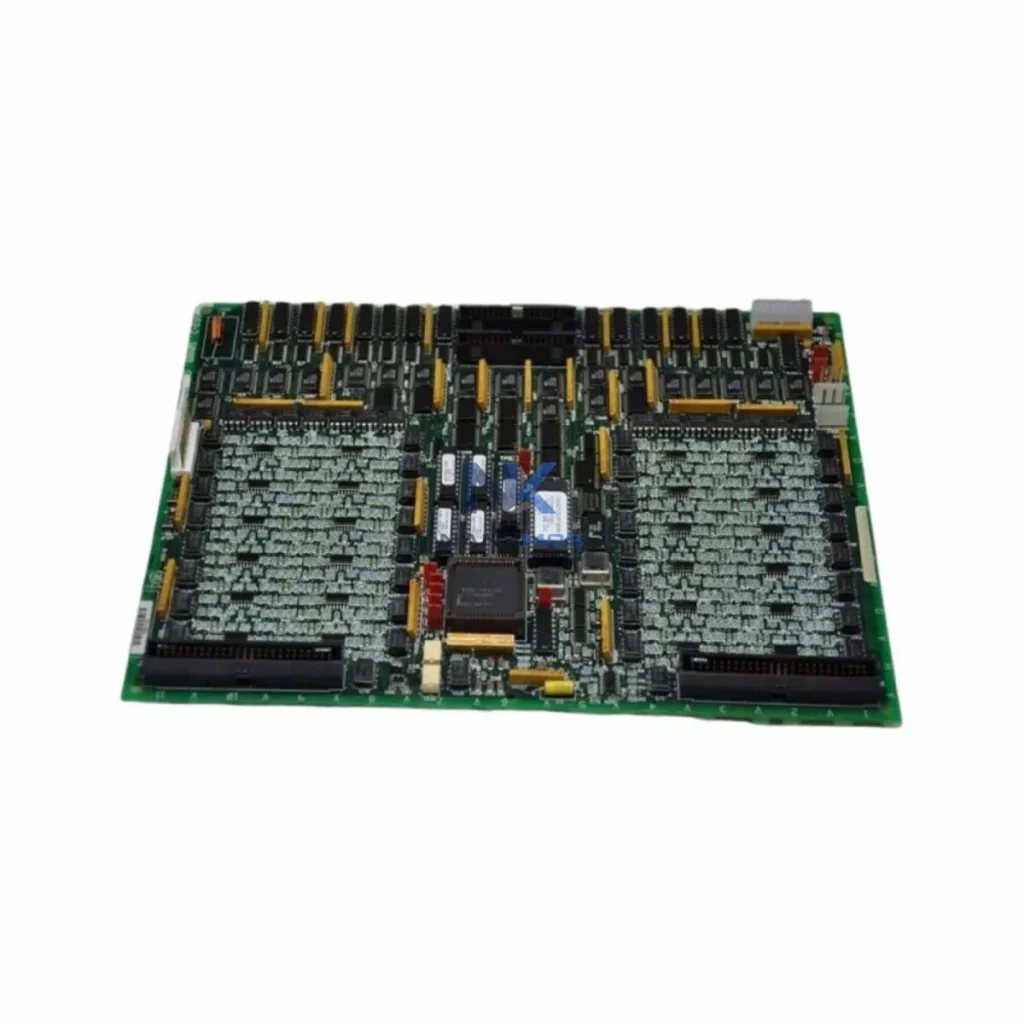

GE DS215TCDAG1BZZ01A/DS200TCDAG1BDB Turbine Control Module

Product Details

DS215TCDAG1BZZ01A/DS200TCDAG1BDB Product Description

The GE DS200TCDAG1BDB is a high-integrity turbine control module engineered for deployment within the GE Mark V Turbine Control System — one of the most widely adopted distributed control architectures in power generation, oil & gas, and heavy industrial environments. Designed to operate as a core component within the Mark V's redundant TMR (Triple Modular Redundancy) control platform, this module delivers deterministic signal processing, robust I/O management, and seamless contextual integration across the full control hierarchy. Whether deployed in a gas turbine, steam turbine, or combined-cycle plant, the DS200TCDAG1BDB provides the architectural consistency and long-term reliability that mission-critical operations demand.

At NANKMOS, every DS200TCDAG1BDB unit is sourced from verified supply chains, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty — ensuring that your engineering team receives a system-ready module that integrates directly into your existing Mark V rack without additional commissioning overhead.

The DS200TCDAG1BDB does not operate in isolation — its value is fully realized when considered within the broader Mark V control architecture. In a typical turbine control cabinet, this module interfaces directly with the DS200TCQCG1BHF (Quad Core Processor) and the DS200TCEAG1BHF (I/O Terminal Board), forming the signal acquisition and processing backbone of the TMR control loop. Power integrity for the entire rack is maintained by the DS200TCPSG1A power supply module, which delivers regulated DC rails to all installed cards including the TCDAG board.

On the communication layer, the Mark V system relies on the DS200TCRAG1AAA (ARCNET Communication Card) to coordinate inter-processor messaging across the R, S, and T control paths — a critical function for maintaining TMR voting integrity. The DS200DSPCH1ADA (Digital Signal Processor) works in tandem with the TCDAG module to handle high-speed analog signal conditioning for thermocouple, RTD, and vibration inputs from the turbine field instrumentation.

For HMI integration, the Mark V platform connects to the GE Cimplicity HMI workstation via the DS200TCPAG1BHF (Plant Communication Card), enabling operators to monitor turbine parameters, acknowledge alarms, and execute control sequences from a centralized interface. In redundant architectures, the DS200TCSBG1ADB (System Base Card) provides the physical backplane interconnect that ensures all TMR modules — including the DS200TCDAG1BDB — share a common timing reference and fault-detection bus.

Expansion of the I/O layer is supported through the DS200TCDAH1BHF and DS200TCDAG1BHF variants, which extend analog input capacity for larger turbine configurations with additional thermocouple or 4–20 mA process inputs. For installations requiring serial communication to third-party SCADA systems, the DS200TCPSG1B serial interface module provides Modbus RTU or RS-485 connectivity without disrupting the primary Mark V control loop.

This layered architecture — spanning the control layer (TCQCG), I/O layer (TCDAG, TCEAG), communication layer (TCRAG, TCPAG), power layer (TCPSG), and HMI layer (Cimplicity) — ensures that the DS200TCDAG1BDB operates within a fully coherent, diagnostically transparent, and maintainable control environment.

Power Generation: In gas turbine and steam turbine power plants, the DS200TCDAG1BDB serves as the primary analog I/O interface for exhaust temperature arrays, compressor inlet conditions, and fuel control valve feedback. Its TMR architecture ensures that a single card failure does not interrupt turbine operation, supporting continuous generation output and grid stability compliance.

Oil & Gas Processing: Upstream and midstream facilities deploy Mark V systems — including the DS200TCDAG1BDB — for compressor train control, where precise speed regulation, surge protection, and anti-surge valve coordination are managed through the module's analog signal channels. The module's tolerance for industrial EMI environments makes it well-suited for offshore platform and pipeline compression station installations.

Petrochemical & Refining: In ethylene crackers, reformers, and fluid catalytic cracking (FCC) units, turbine-driven compressors and pumps rely on Mark V control systems for process-critical speed and temperature management. The DS200TCDAG1BDB's high-channel-density analog input capability supports the dense instrumentation typical of these process environments.

Combined-Cycle Plants: In combined-cycle configurations, the DS200TCDAG1BDB participates in coordinated control between gas turbine, heat recovery steam generator (HRSG), and steam turbine control systems. Its integration within the Mark V TMR framework supports the fast load-following response required for grid-connected combined-cycle operation.

Long-Term Maintenance & Inventory Supply: As the GE Mark V platform enters its extended service lifecycle, maintaining a reliable supply of tested replacement modules such as the DS200TCDAG1BDB is essential for plant operators committed to long-term asset utilization. NANKMOS maintains in-stock inventory of this module, enabling rapid dispatch to minimize turbine downtime during unplanned maintenance events. All units are covered by a 12-Month Warranty and undergo pre-shipment functional verification.

Q1: Is the DS200TCDAG1BDB compatible with both Mark V and Mark Ve control systems? The DS200TCDAG1BDB is designed for the GE Mark V Turbine Control System. Compatibility with the Mark Ve (enhanced) variant depends on the specific rack configuration and firmware revision of the installed system. NANKMOS recommends providing your existing Mark V panel serial number and configuration drawing when inquiring, so our technical team can confirm direct interchangeability or identify the appropriate cross-reference variant such as the DS200TCDAG1BHF or DS215TCDAG1BZZ01A.

Q2: What pre-installation checks are required when replacing a DS200TCDAG1BDB in a live turbine control system? Prior to module replacement, engineers should verify that the replacement unit's hardware revision matches the installed card's revision level, confirm that the Mark V system is in a safe maintenance state (turbine offline or in manual control mode), and document the existing I/O wiring terminations on the associated TCEAG terminal board. After installation, the Mark V diagnostic display should be monitored for card recognition and TMR voting status confirmation before returning the turbine to automatic control. NANKMOS provides pre-tested units to reduce commissioning risk during this process.

Q3: How does NANKMOS support long-term inventory availability and warranty coverage for the DS200TCDAG1BDB? NANKMOS maintains a dedicated inventory of GE Mark V modules, including the DS200TCDAG1BDB, to support plant operators managing aging turbine control infrastructure. Each unit is covered by a 12-Month Warranty from the date of dispatch and has undergone functional pre-shipment testing. For facilities requiring multiple units or scheduled maintenance stock, NANKMOS offers volume procurement support and can coordinate phased delivery to align with planned outage windows. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
