Honeywell 51195153-902 Cable Assembly

Product Details

51195153-902 Product Description

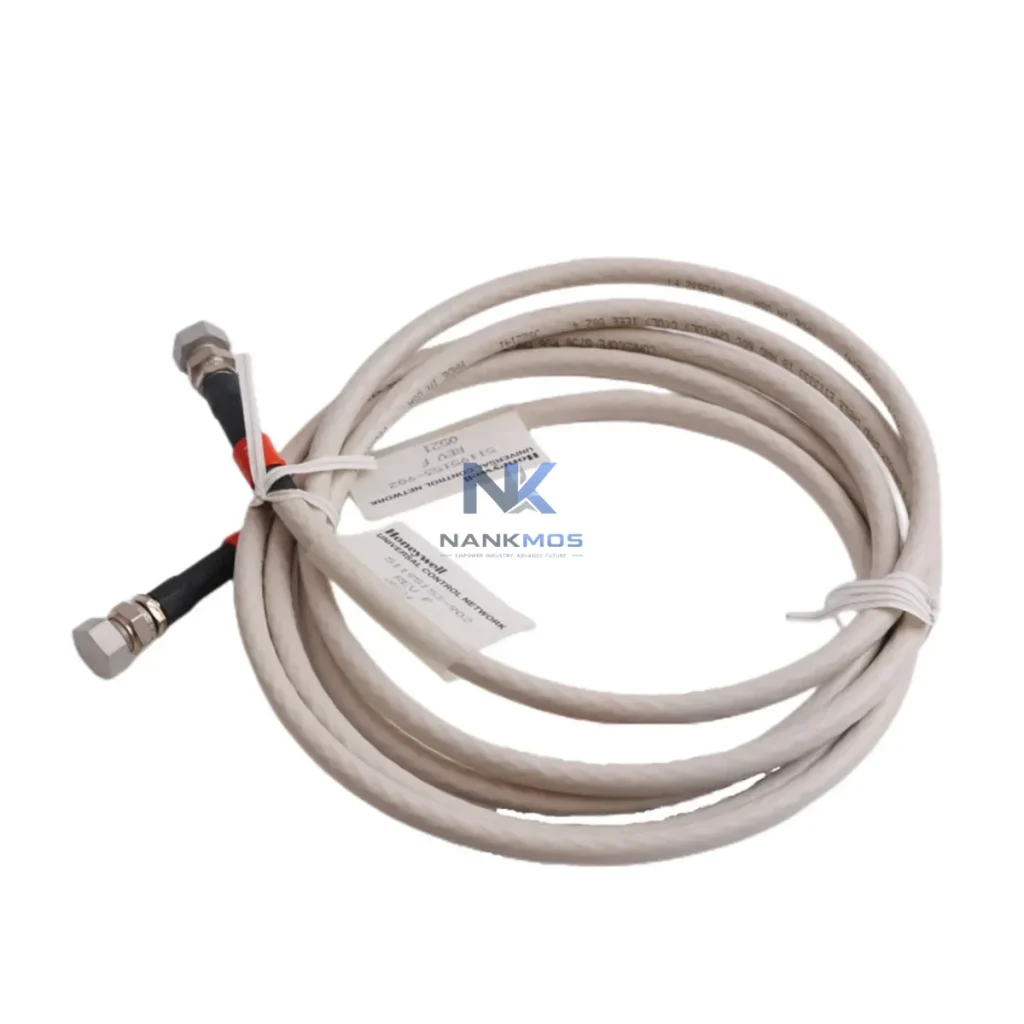

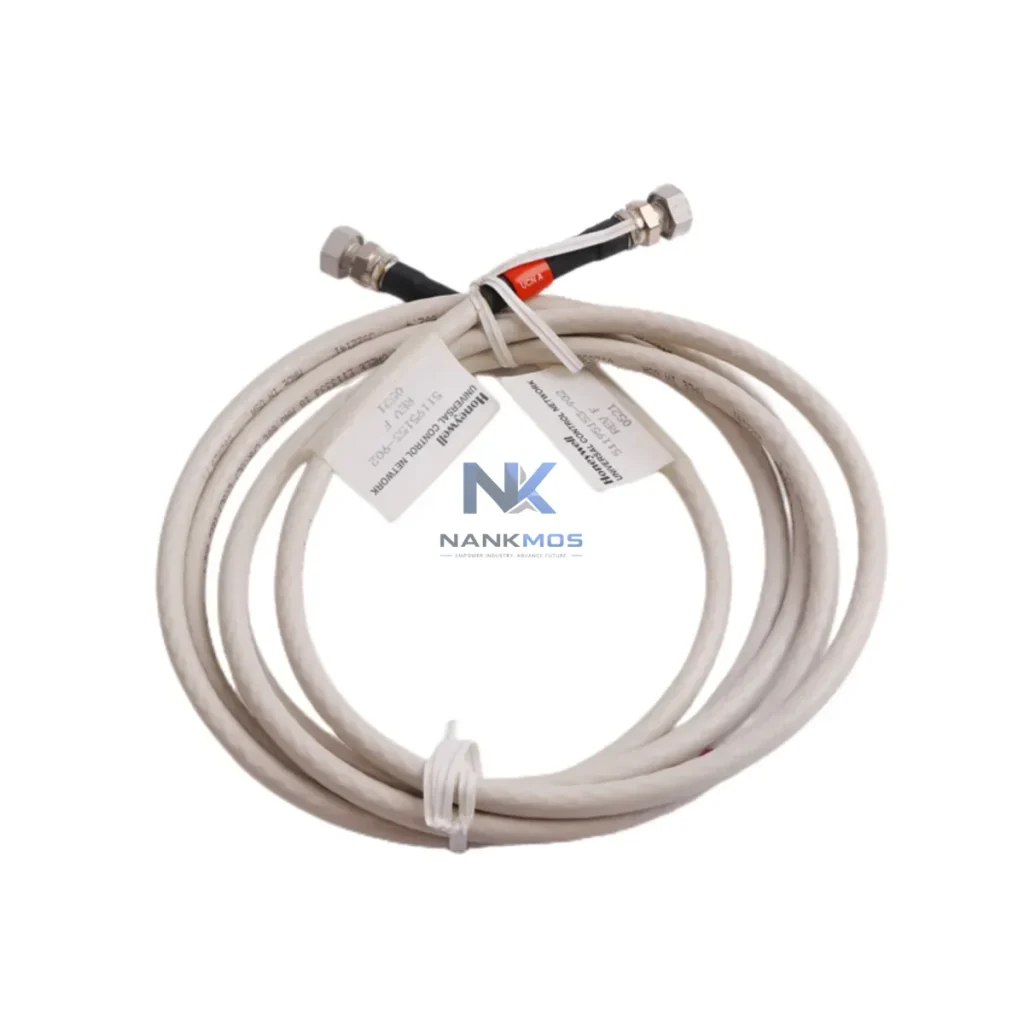

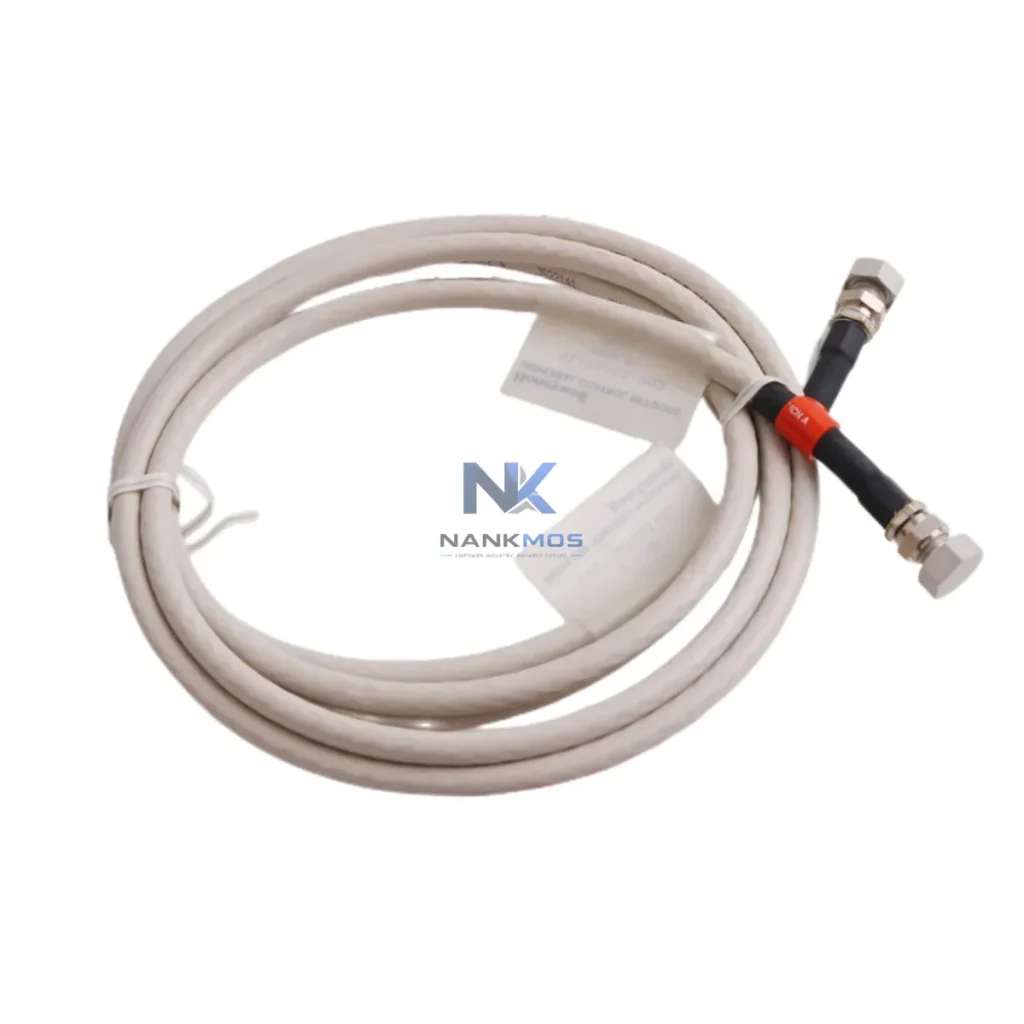

The Honeywell 51195153-902 is a 2.5-metre system-matched Drop Cable Set engineered specifically for the TDC 3000 Distributed Control System and Experion PKS platform. Designed as a direct field-wiring interface between the I/O termination assembly and the controller backplane, this cable assembly eliminates field-fabrication risk and ensures signal integrity across the full span of the control loop. In large-scale DCS installations where wiring consistency directly affects loop commissioning time and long-term diagnostic reliability, the 51195153-902 represents a precision-engineered, drop-in replacement that maintains Honeywell's original electrical and mechanical specifications without compromise.

Within a complete TDC 3000 or Experion control architecture, the signal path begins at the field instrument — transmitter, thermocouple, or final control element — and terminates at the I/O card housed in the Universal Control Network (UCN) or Local Control Network (LCN) cabinet. The 51195153-902 Drop Cable occupies the critical last segment of this path, bridging the termination panel to the I/O module with a pre-tested, shielded assembly that preserves millivolt-level signal accuracy. Any degradation at this junction — whether from oxidised contacts, incorrect gauge, or improper shielding — propagates directly into the controller's analogue input resolution, affecting PID loop stability and alarm response time. Using a factory-assembled, system-matched cable eliminates this class of failure entirely.

The cable is fully compatible with Honeywell's modular I/O architecture, including the 51304485-100 and 51304485-150 series I/O Link modules, the 51401288-100 Analog Input module, and the 51402573-150 series termination assemblies. When deployed alongside the MC-TAIH02 and MC-TAIH12 termination panels, the 51195153-902 ensures that the physical layer of the control loop meets the same specification as the logical layer configured in the Honeywell Control Builder or Station environment. This alignment between hardware and software configuration is essential for accurate loop checkout during commissioning and for reliable fault isolation during maintenance windows.

In redundant controller architectures — where the C200E or C300 controller modules operate in primary/secondary pairs — consistent cable assemblies across both paths are a prerequisite for deterministic failover behaviour. A mismatch in cable impedance or shielding between the primary and redundant I/O paths can introduce asymmetric signal delays that the redundancy manager interprets as a fault condition, triggering unnecessary switchovers. The 51195153-902, used uniformly across both paths, eliminates this source of nuisance trips and supports the high-availability targets required in refinery, power generation, and chemical processing applications.

From a system integration perspective, the 51195153-902 is also relevant in hybrid architectures where legacy TDC 3000 cabinets are interfaced with newer Experion PKS nodes via the Universal Control Network. In these migration scenarios, maintaining original Honeywell cable assemblies in the legacy sections of the cabinet preserves the electrical baseline established during the original FAT (Factory Acceptance Test), reducing the scope of re-validation required for the upgraded sections. Engineering teams managing phased DCS migrations consistently prioritise like-for-like cable replacement to contain the validation boundary and protect the existing process safety case.

Installation of the 51195153-902 follows standard Honeywell field wiring practices: the cable is routed through the cabinet's internal cable management tray, connected to the designated termination block on the I/O assembly, and secured with the factory-supplied locking mechanism. No field crimping or soldering is required. The pre-terminated connectors are keyed to prevent mis-insertion, and the cable jacket is rated for the thermal and chemical environment typical of a DCS marshalling cabinet — operating temperatures from 0°C to 60°C, with resistance to the cleaning solvents and conformal coatings used during cabinet maintenance.

For maintenance engineers managing a large installed base of TDC 3000 or Experion cabinets, stocking the 51195153-902 as a standard spare reduces mean time to repair (MTTR) for I/O-related faults. When a loop fault is traced to the cable assembly — through the Experion Station's diagnostic display or through a point-by-point loop check — a pre-tested replacement cable allows the loop to be restored within minutes rather than hours. This is particularly valuable in continuous process industries where a single offline loop can trigger a production hold or a safety system response.

All units supplied by NANKMOS are sourced from authorised distribution channels, individually inspected for connector integrity and cable continuity, and covered by a 12-Month Warranty against manufacturing defects. Each assembly is shipped with full traceability documentation, supporting the audit requirements of ISO 9001-certified maintenance programmes. Contextual Integration support is available for customers requiring assistance with cable routing, termination mapping, or compatibility verification against specific I/O module revisions.

The 51195153-902 Drop Cable is one component within a tightly integrated Honeywell DCS architecture. In a fully configured TDC 3000 or Experion PKS cabinet, the cable connects the field termination layer to the I/O processing layer, which is populated by modules such as the 51401288-100 Analog Input module and the 51304485-150 I/O Link module. These I/O modules communicate upstream to the C200E or C300 Controller module via the FTE (Fault Tolerant Ethernet) backplane network, which provides the redundant communication path essential for high-availability process control.

Power to the I/O chassis is supplied by the 51195160-100 or 51195160-200 Power Supply module, which conditions incoming AC or DC supply voltage to the regulated DC rails required by the I/O cards and communication modules. The 51304516-150 Redundant Power Supply is typically installed in parallel to ensure uninterrupted power delivery during supply module maintenance or failure. At the field interface, the MC-TAIH02 and MC-TAIH12 termination assemblies provide the marshalling point where field instrument cables are landed before the 51195153-902 Drop Cable carries the consolidated signal bundle to the I/O module.

For operator interface, the Experion PKS architecture integrates the Honeywell Experion Station (ES) or Flex Station as the HMI layer, providing real-time loop display, alarm management, and diagnostic access to every I/O point in the system. Communication between the controller and the HMI layer traverses the Supervisory Control Network (SCN) or the plant's industrial Ethernet backbone, often managed through a Honeywell-qualified industrial Ethernet switch configured for VLAN segmentation and storm control. In installations where legacy TDC 3000 nodes coexist with Experion PKS nodes, the UCN Interface Module (UCNM) bridges the two network generations, preserving the investment in existing field wiring — including assemblies like the 51195153-902 — while enabling access to Experion's advanced diagnostic and historian capabilities.

Refinery & Petrochemical: In crude distillation and hydrocracking units, TDC 3000 and Experion PKS systems manage hundreds of analogue loops simultaneously. The 51195153-902 Drop Cable is used throughout the I/O marshalling cabinets to maintain signal fidelity for temperature, pressure, and flow transmitters feeding the controller's PID loops. Consistent cable assemblies across all loops simplify the loop checkout process during turnaround maintenance and reduce the risk of signal cross-talk in densely wired cabinets.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, Experion PKS systems control boiler combustion, turbine speed, and generator excitation. The reliability of the field wiring layer — including drop cable assemblies — directly affects the availability of the control system during peak generation periods. The 51195153-902 supports the high-availability wiring standard required for generating units operating under grid dispatch obligations.

Chemical & Specialty Process: Batch and continuous chemical processes require precise analogue signal transmission for reactor temperature control, feed ratio management, and product quality monitoring. The 51195153-902 ensures that the signal path from the field transmitter to the Experion controller maintains the resolution and accuracy required for tight process control, supporting both regulatory compliance and product consistency targets.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities using Experion PKS for SCADA integration rely on consistent field wiring to maintain remote monitoring and control of pumping stations, dosing systems, and filtration processes. The 51195153-902 Drop Cable supports the long-term reliability of these installations, where maintenance access is infrequent and cable replacement must be completed quickly to minimise process disruption.

Mining & Minerals Processing: In concentrator plants and smelting operations, DCS systems manage high-temperature process variables and heavy-duty drive systems. The 51195153-902 is used in the I/O cabinets controlling flotation cells, thickeners, and furnace temperature loops, where the cable's shielding performance is critical for rejecting the high levels of electrical noise generated by large variable-speed drives and induction furnaces.

Q1: Is the 51195153-902 compatible with both TDC 3000 and Experion PKS I/O modules? Yes. The 51195153-902 Drop Cable Set is designed for use across the TDC 3000 and Experion PKS platforms, which share a common I/O termination architecture. It is compatible with the 51402573-150 series termination assemblies and the 51304485-100/150 I/O Link modules used in both platforms. For specific revision compatibility, NANKMOS provides Contextual Integration support to verify the cable against your exact module revision and cabinet configuration before shipment.

Q2: Can this cable be used in a redundant I/O architecture without affecting failover performance? Yes, provided that identical cable assemblies are used on both the primary and redundant I/O paths. The 51195153-902 is manufactured to consistent electrical specifications — impedance, shielding continuity, and connector contact resistance — ensuring that both paths present the same electrical characteristics to the redundancy manager. Using matched assemblies on both paths eliminates asymmetric signal delays that could trigger nuisance switchovers in high-availability applications.

Q3: What warranty and support does NANKMOS provide for the 51195153-902? All 51195153-902 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects, covering connector integrity, cable continuity, and shielding performance. Each unit is individually tested prior to shipment and supplied with traceability documentation. Contextual Integration support is available for customers requiring assistance with termination mapping, routing verification, or compatibility confirmation against specific I/O module revisions. Contact [email protected] or +86 18359268345 for pre-sales technical consultation.
