Honeywell 51195199-010 Industrial Network Gateway

Product Details

51195199-010 Product Description

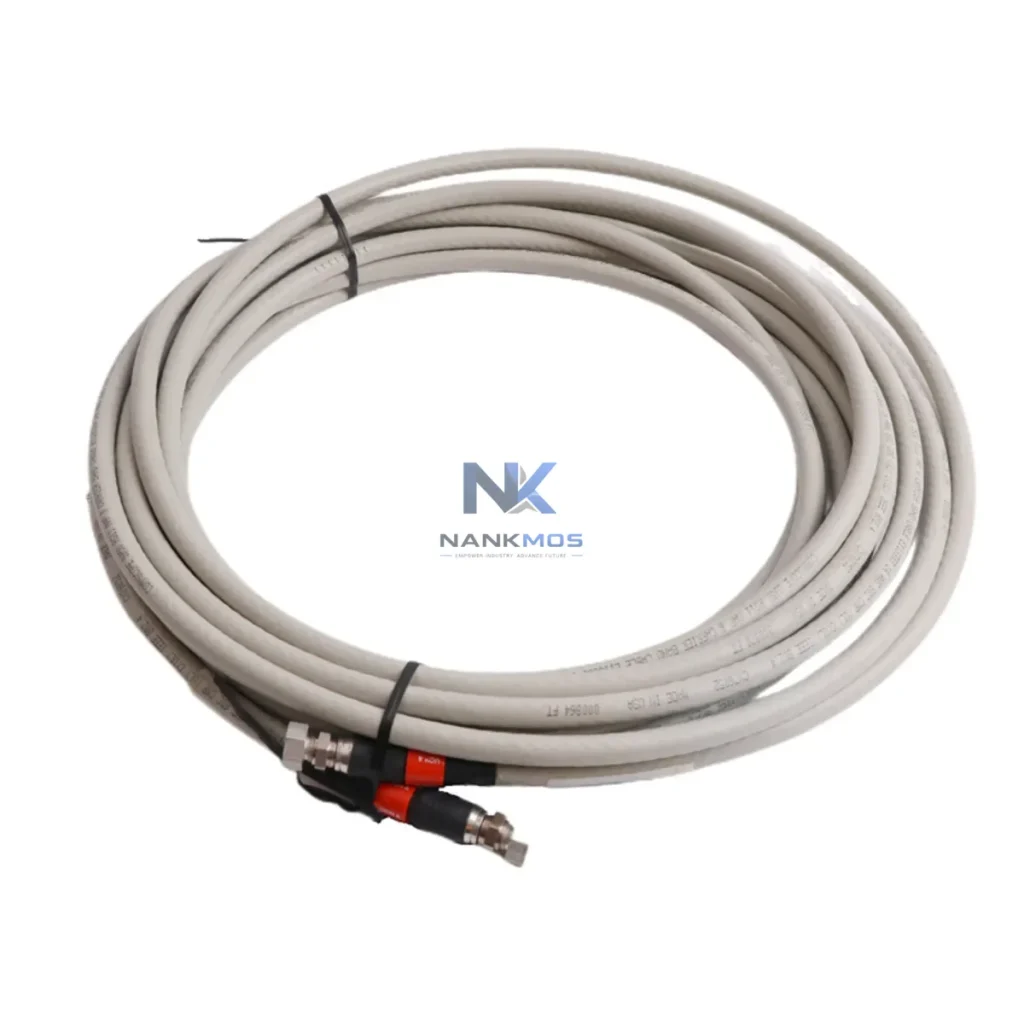

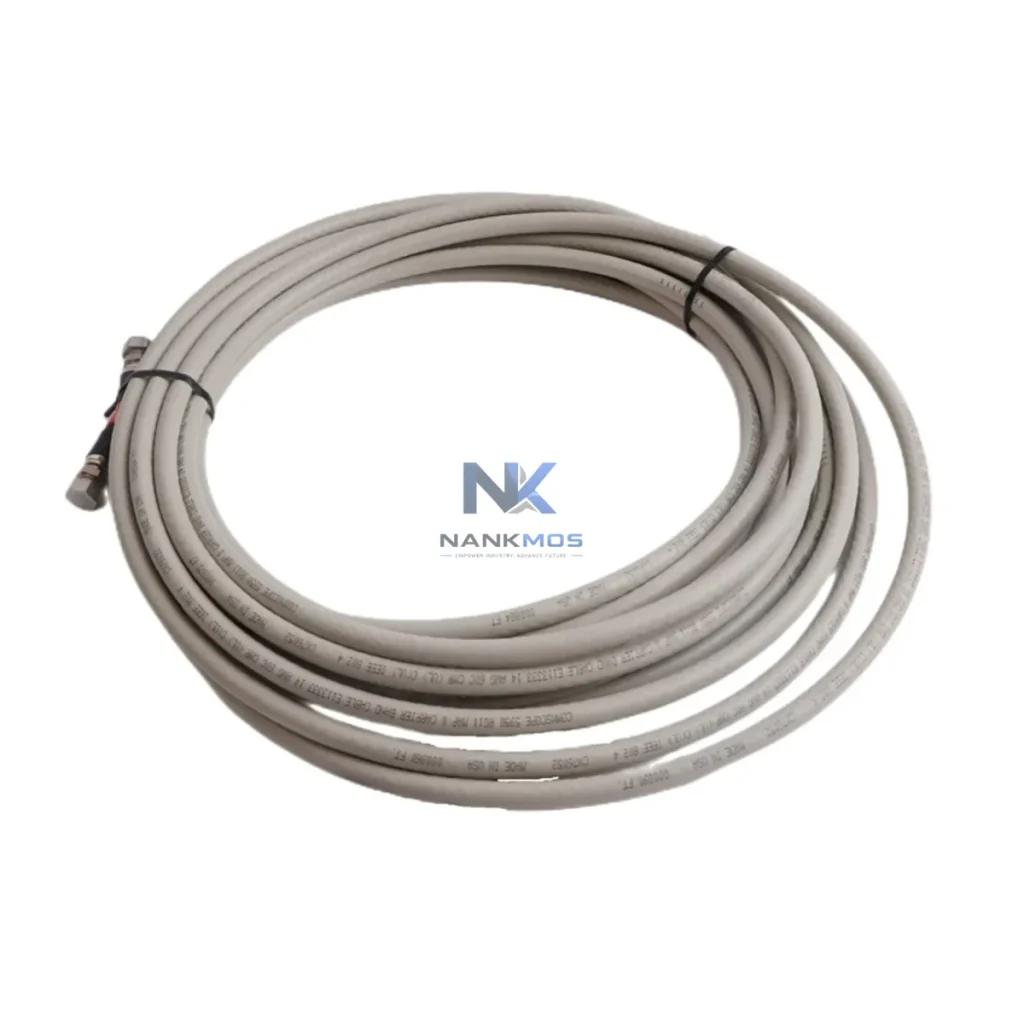

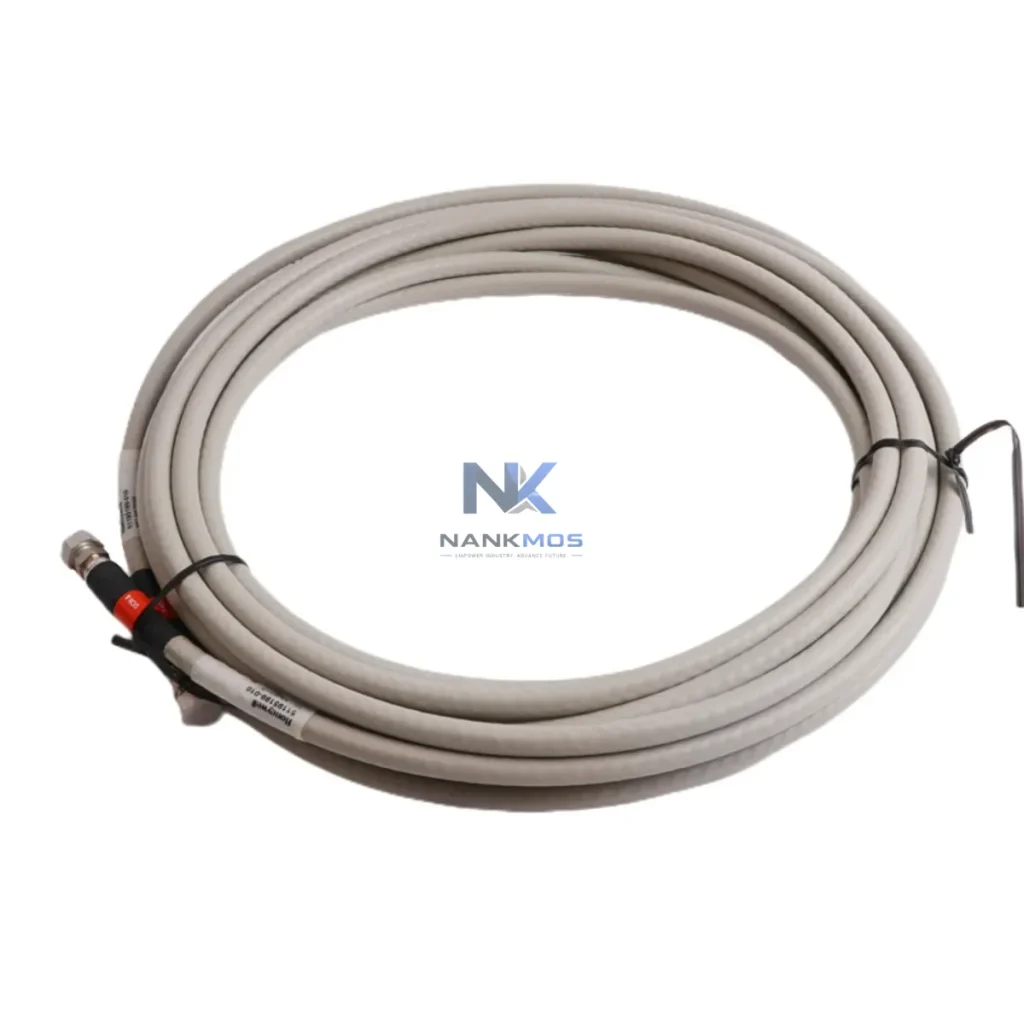

The Honeywell 51195199-010 is a 10-metre LCN (Local Control Network) coaxial drop cable engineered for high-reliability data transmission within Honeywell TDC 3000 and Experion PKS distributed control environments. As the physical backbone of the LCN bus architecture, this cable enables deterministic, low-latency communication between process controllers, I/O link modules, and supervisory systems — forming the critical last-metre connection that keeps smart factory data pipelines intact. In demanding petrochemical, power generation, and continuous-process manufacturing sites, signal integrity at the physical layer is non-negotiable, and the 51195199-010 is purpose-built to deliver exactly that.

Modern industrial facilities are defined by the density and reliability of their data links. From field-level sensors and remote I/O racks through to PLC controllers, HMI workstations, SCADA servers, and enterprise MES platforms, every node in the automation hierarchy depends on a stable, noise-immune physical medium. The 51195199-010 provides the coaxial shielding and impedance characteristics required by the LCN protocol, ensuring that real-time process values, alarm states, and control commands traverse the network without corruption or retransmission overhead.

In a fully integrated smart factory, the 51195199-010 drop cable serves as the physical handshake between the LCN trunk and individual node modules. Consider a typical Honeywell TDC 3000 architecture: field instruments — pressure transmitters, flow meters, and thermocouple inputs — feed analogue signals into Honeywell PM (Process Manager) or HPM (High-Performance Process Manager) controllers via I/O link modules. The HPM communicates upstream over the LCN bus using precisely this type of coaxial drop cable, forwarding real-time process data to the Honeywell Universal Station (US) or GUS (Global User Station) HMI consoles.

From the HMI layer, data is aggregated by the Honeywell Application Module (AM) and passed to Experion PKS server nodes, where SCADA logic, historian archiving, and alarm management are executed. The 51195199-010 ensures that each node drop on the LCN segment maintains the correct 75-ohm impedance and shielding continuity — a prerequisite for the token-passing protocol that governs LCN bus arbitration. Any impedance mismatch or cable degradation at this junction introduces reflections that can disrupt the entire segment, causing missed scans and false alarms across connected controllers.

Beyond the core DCS backbone, modern Experion PKS installations increasingly incorporate edge gateway devices — such as Honeywell's own FTE (Fault Tolerant Ethernet) switches and third-party industrial Ethernet switches — to bridge LCN data into OPC-UA or MQTT streams for cloud-based analytics platforms. The 51195199-010 remains the reliable physical entry point for this data journey: field signal → I/O module → HPM controller → LCN drop cable (51195199-010) → LCN trunk → AM/Application Module → Experion PKS server → SCADA/historian → edge gateway → cloud dashboard. Each link in this chain must be rated for industrial environments, and the 51195199-010 is designed to meet the mechanical and electrical demands of 24/7 continuous-process operation.

For sites running parallel UCN (Universal Control Network) segments alongside LCN, the cable topology becomes even more critical. UCN-to-LCN gateway modules — such as the Honeywell NIM (Network Interface Module) — rely on correctly terminated drop cables at both network boundaries to maintain synchronised data exchange between process controllers and supervisory nodes. Pairing the 51195199-010 with compatible LCN tap assemblies and trunk terminators ensures that the entire segment operates within Honeywell's validated signal budget, supporting scan rates as fast as the LCN protocol allows without introducing latency spikes that would compromise closed-loop control performance.

One of the most persistent challenges in legacy DCS environments is the data island problem: process values exist in the controller but cannot reach the SCADA historian or MES layer reliably because the physical network layer has degraded. Aged or non-OEM coaxial drop cables introduce impedance discontinuities that manifest as intermittent communication faults, spurious alarms, and missed historian writes — all of which erode process transparency and complicate root-cause analysis during incident investigations.

Replacing degraded drop cables with the Honeywell 51195199-010 restores the validated electrical characteristics of the LCN segment, eliminating the reflections that cause node dropouts. This directly addresses protocol incompatibility at the physical layer — the most fundamental form of data gap — and re-establishes the deterministic scan cycle that SCADA and alarm management systems depend on. Once the physical link is restored, operators regain full visibility into process trends, alarm histories, and controller diagnostics through the Experion PKS console, enabling proactive maintenance scheduling rather than reactive fault response.

For sites planning network expansion — adding new HPM controllers, remote I/O racks, or additional HMI nodes to an existing LCN segment — the 51195199-010 provides the standardised drop cable length required to maintain segment integrity during topology changes. Its 10-metre reach accommodates typical cabinet-to-trunk distances in process plant control rooms, and its OEM specification ensures compatibility with Honeywell's LCN tap hardware without requiring field impedance measurement or custom termination work. This simplifies commissioning, reduces integration risk, and supports scalable network growth without disrupting live process control.

Remote diagnostics capabilities in Experion PKS — including network health monitoring, node status polling, and communication fault logging — are only as reliable as the physical medium they traverse. By maintaining OEM-grade cabling throughout the LCN segment, maintenance teams can trust that network diagnostic data accurately reflects controller and I/O module health rather than cable-induced artefacts. This is particularly valuable for sites operating under IEC 61511 functional safety requirements, where spurious diagnostic faults can trigger unnecessary safety instrumented system (SIS) responses.

Q1: What communication protocol does the Honeywell 51195199-010 support, and is it compatible with Experion PKS? The 51195199-010 is a coaxial drop cable designed specifically for Honeywell's LCN (Local Control Network) protocol — a deterministic, token-passing bus used in TDC 3000 and Experion PKS DCS architectures. It is fully compatible with Experion PKS LCN segments and supports all standard LCN node types, including HPM controllers, AM modules, and GUS/US HMI stations.

Q2: How does this cable affect network latency and communication stability on the LCN bus? Using OEM-specification coaxial drop cables maintains the correct 75-ohm impedance across the LCN segment, which is essential for minimising signal reflections and preserving the deterministic scan cycle. Non-OEM or degraded cables introduce impedance mismatches that increase retransmission events and can extend effective scan times, degrading real-time control performance. The 51195199-010 ensures the segment operates within Honeywell's validated signal budget.

Q3: Can the 51195199-010 be used in network expansion projects, and does it support SCADA integration? Yes. The 10-metre length is the standard Honeywell drop cable dimension for LCN tap connections, making it the correct choice for adding new nodes to an existing segment or replacing cables during control room upgrades. Once the physical LCN link is established, all connected nodes — including those feeding data to Experion PKS SCADA servers, OPC-UA gateways, and process historians — benefit from the restored network integrity.

Q4: What quality assurance and warranty coverage is provided for the 51195199-010? Every Honeywell 51195199-010 supplied by NANKMOS undergoes pre-shipment functional testing to verify electrical continuity, impedance conformance, and connector integrity. A 12-month warranty is included as standard, covering manufacturing defects and electrical performance. Global shipping is available with full export documentation, and our technical team can provide installation guidance and compatibility confirmation prior to order.
