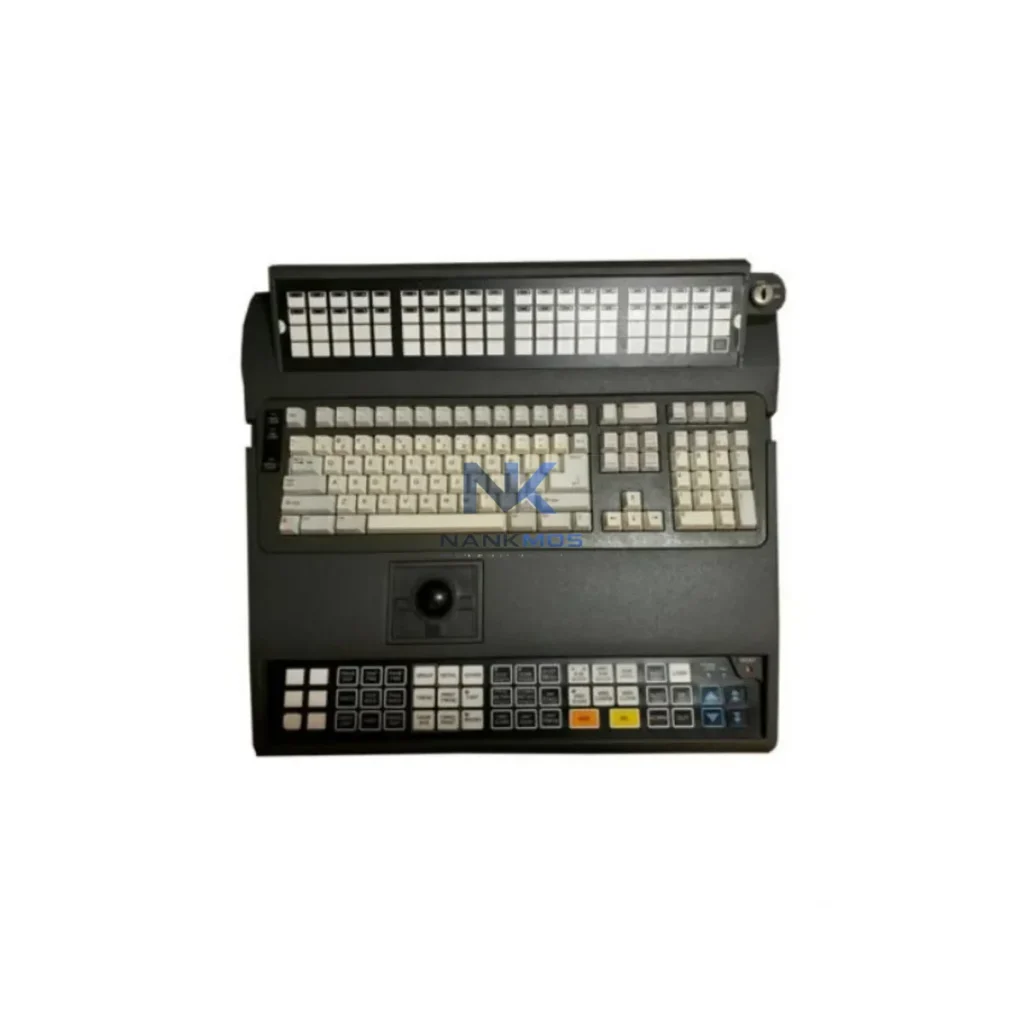

Honeywell 51196694-300 HMI Keypad

Product Details

51196694-300 Product Description

The Honeywell 51196694-300 is a purpose-built HMI keypad module engineered for the TDC 3000 Distributed Control System platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As a critical operator interface node on the Local Control Network (LCN), the 51196694-300 enables real-time command input, process variable acknowledgment, and alarm response directly at the control console, forming an indispensable link in the plant-wide data chain that connects field instruments to supervisory systems.

In a modern smart factory, data integrity and operator responsiveness are inseparable. The 51196694-300 sits at the intersection of human decision-making and automated process control, translating operator intent into LCN-native commands that propagate instantly across the TDC 3000 network fabric. Whether acknowledging a high-pressure alarm from a Honeywell HPM (High-Performance Process Manager), confirming a setpoint change on a regulatory control loop, or navigating between process group displays on a Universal Station (US) or Enhanced Operator Station (EOS), this keypad module ensures that every operator action is captured, validated, and transmitted with the deterministic timing that process-critical environments demand.

The LCN architecture underpinning the TDC 3000 platform is a token-passing, peer-to-peer industrial network operating at 5 Mbps — a design that prioritizes deterministic data delivery over raw throughput. The 51196694-300 integrates natively into this network topology, communicating with Application Modules (AM), History Modules (HM), and Network Interface Modules (NIM) to support a complete data flow from field device to historian. When paired with a Honeywell NIM or a gateway device bridging LCN to Modbus TCP or OPC DA/UA, the operator console becomes a node in a broader IIoT-ready architecture, feeding real-time process data to SCADA platforms, MES layers, and cloud-based analytics dashboards.

Understanding the 51196694-300's role requires mapping the complete data flow of a TDC 3000-based smart factory. At the field level, process transmitters — pressure, temperature, flow, and level sensors — feed analog and digital signals into Honeywell HPM (High-Performance Process Manager) or PM (Process Manager) controllers via I/O termination assemblies. These controllers execute regulatory, cascade, and advanced control strategies, generating process variable data that is broadcast onto the LCN in real time.

The LCN carries this data to every connected node: the 51196694-300 keypad module at the operator console receives display refresh commands and alarm state updates from the Universal Station or Enhanced Operator Station it serves. When an operator presses a function key or enters a numeric setpoint, the keypad translates that physical input into an LCN message directed at the appropriate Application Module (AM) or directly to the HPM controller managing the loop in question. This closed-loop interaction — field sensor → HPM controller → LCN → operator station → 51196694-300 keypad → LCN → HPM — is the heartbeat of process control in a TDC 3000 environment.

For facilities integrating TDC 3000 with modern IIoT infrastructure, a Honeywell Network Interface Module (NIM) or a third-party OPC DA/UA gateway bridges the LCN to Ethernet-based SCADA systems such as Honeywell Experion PKS, Wonderware InTouch, or iFIX. This bridge allows the 51196694-300's operator console to coexist with modern HMI displays, enabling parallel operation where legacy TDC 3000 consoles handle critical loop control while Experion PKS or a web-based SCADA dashboard provides plant-wide visualization and KPI tracking.

Remote I/O expansion — using Honeywell HLAI (High-Level Analog Input) or LLAI (Low-Level Analog Input) modules — extends the HPM's reach to remote field junction boxes, feeding additional process data into the same LCN that the 51196694-300 monitors. Redundant LCN cabling and dual-port NIM configurations ensure that a single cable fault does not interrupt operator visibility, a design principle that the 51196694-300's backplane interface is built to support.

For facilities running parallel Modbus RTU or PROFIBUS DP field networks — common in hybrid automation environments where legacy PLCs coexist with the TDC 3000 DCS — a Modbus-to-LCN gateway or a Honeywell Series C I/O interface card can aggregate data from external controllers and present it on the TDC 3000 operator console, giving the 51196694-300 keypad operator a unified view of the entire plant without requiring a full system migration.

Many process plants operating TDC 3000 systems face a common set of integration challenges as they modernize toward Industry 4.0 architectures. The 51196694-300 HMI keypad, as a native LCN component, directly addresses several of these pain points:

Protocol Fragmentation: Plants running mixed networks — LCN alongside Modbus TCP, PROFIBUS, or HART — often struggle with data silos where field device data visible on the TDC 3000 console cannot be accessed by modern SCADA or MES platforms. By maintaining a fully functional LCN-native operator interface, the 51196694-300 preserves the integrity of the TDC 3000 data layer while NIM or OPC gateway devices handle protocol translation to upper-layer systems, eliminating the need for a full console replacement.

Remote Monitoring Gaps: In large process plants, operators cannot physically be present at every console simultaneously. Integrating the TDC 3000 LCN with an Experion PKS server or an OPC UA aggregator allows remote operators and engineers to monitor the same process variables that the 51196694-300 console displays, enabling remote alarm acknowledgment workflows and reducing response times for off-shift incidents.

Production Transparency: Real-time data from HPM controllers, visible through the 51196694-300 operator interface, can be historized by a Honeywell History Module (HM) and exported to plant historians or MES databases. This creates a continuous audit trail of operator actions, setpoint changes, and alarm events — essential for regulatory compliance in pharmaceutical, food processing, and energy production environments.

System Scalability: As production lines expand, additional HPM controllers, AM modules, and remote I/O racks can be added to the LCN without replacing existing operator consoles. The 51196694-300 keypad continues to function as a valid LCN node, protecting the capital investment in existing console hardware while the control system scales to accommodate new process units.

Q1: Is the Honeywell 51196694-300 compatible with all TDC 3000 operator station configurations?The 51196694-300 is designed for use with TDC 3000 Universal Stations (US), Enhanced Operator Stations (EOS), and Global User Stations (GUS) that use the standard LCN backplane interface. Compatibility depends on the specific console generation and firmware revision. We recommend verifying your station model and LCN node configuration before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: Can this keypad module support integration with modern SCADA or OPC UA systems?The 51196694-300 itself communicates natively over the TDC 3000 LCN. Integration with OPC DA/UA or Modbus TCP-based SCADA systems is achieved through a Honeywell NIM (Network Interface Module) or a compatible OPC gateway that bridges the LCN to Ethernet. Once bridged, process data visible at the 51196694-300 console can be accessed by Experion PKS, Wonderware, iFIX, or any OPC-compliant SCADA platform.

Q3: What testing and quality assurance is performed before shipment?Every Honeywell 51196694-300 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify keypad response, backplane interface integrity, and LCN communication readiness. Units are inspected for physical condition, connector integrity, and firmware compatibility. All units are covered by a 12-month warranty from the date of shipment, with technical support available throughout the warranty period.

Q4: What is the lead time and stock availability for the 51196694-300?NANKMOS maintains ready stock of the Honeywell 51196694-300 to support urgent MRO and planned maintenance requirements. Standard orders are processed and dispatched within 1–3 business days. For large-volume procurement or project-based supply, contact our team at [email protected] or +86 18359268345 to discuss scheduling, pricing, and logistics arrangements.
