Honeywell 51198651-100 SPS5785 Power Supply Module

Product Details

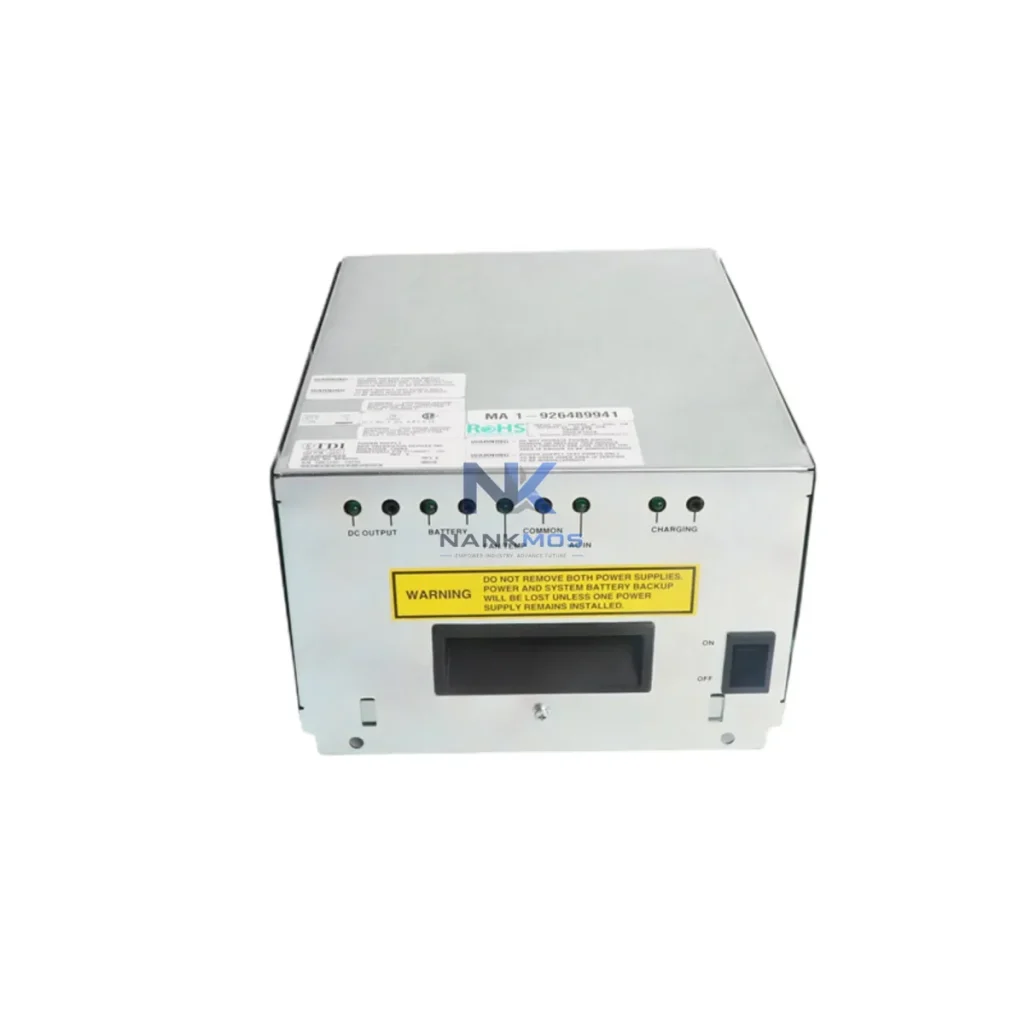

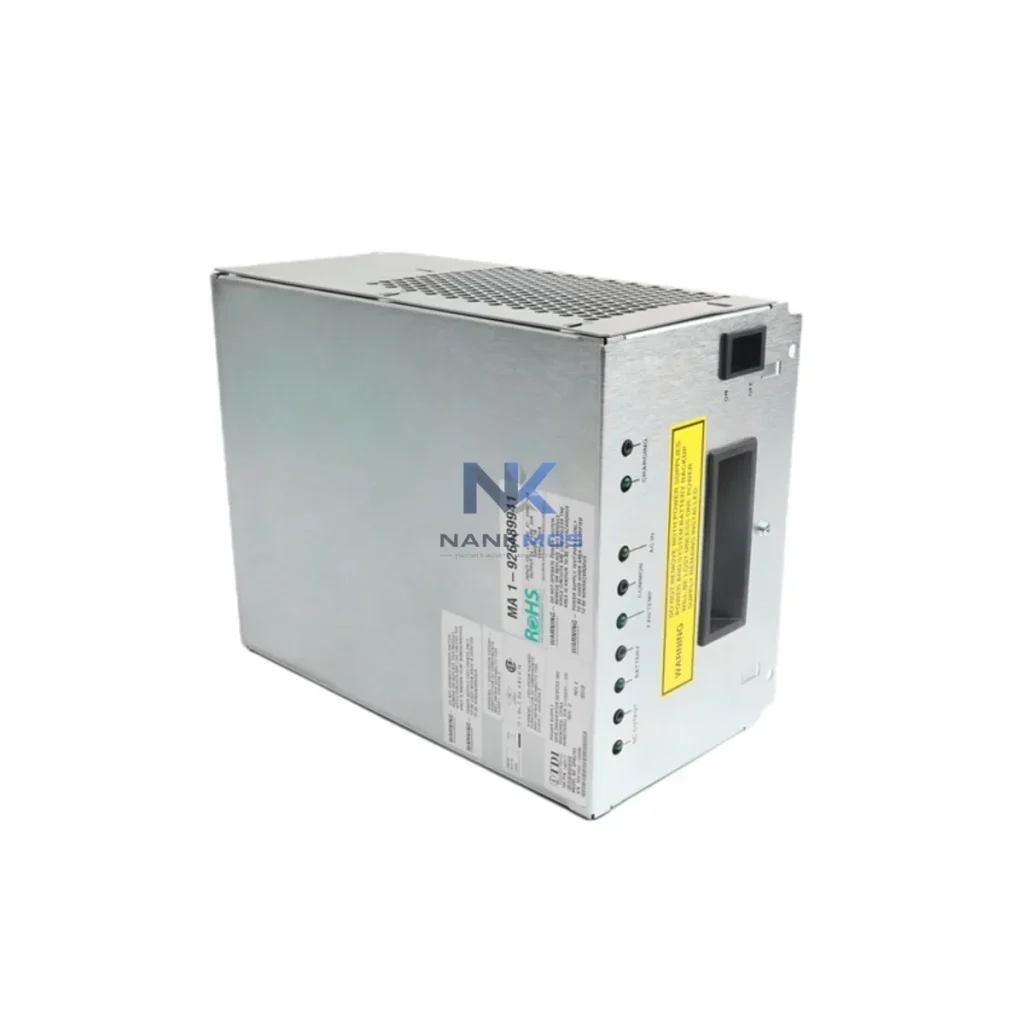

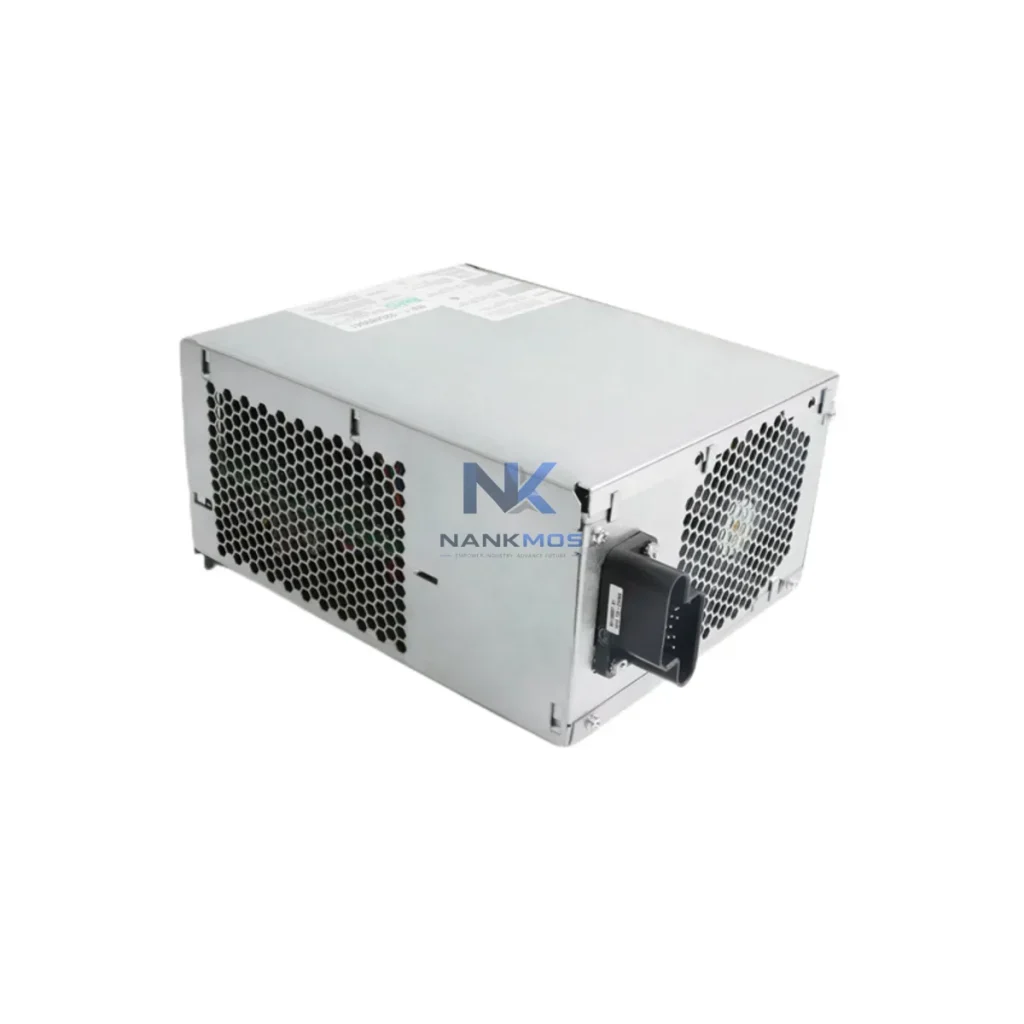

51198651-100 SPS5785 Product Description

The Honeywell 51198651-100 SPS5785 is a high-efficiency, energy-control power supply module engineered for mission-critical distributed control system (DCS) environments. Designed specifically for the Honeywell Experion PKS platform, this module delivers stable, regulated DC power to field controllers, I/O subsystems, and communication infrastructure while actively minimizing energy waste across the production line. Its robust architecture supports continuous industrial operation, making it a cornerstone component in smart factory energy management strategies.

As manufacturing facilities face increasing pressure to reduce energy consumption and carbon footprint, the SPS5785 addresses these demands by maintaining high power conversion efficiency across variable load conditions. Whether deployed in oil and gas processing, chemical manufacturing, water treatment, or discrete assembly lines, this module ensures that downstream automation assets receive clean, stable power — eliminating voltage fluctuations that cause premature component failure and unplanned downtime.

The Honeywell 51198651-100 SPS5785 operates as the power backbone for a tightly integrated automation architecture. In a typical Experion PKS deployment, the SPS5785 supplies regulated 24 VDC to the C300 Process Controller, which orchestrates loop control, sequence logic, and alarm management across the plant. The C300 communicates with field devices via the FTE (Fault Tolerant Ethernet) backbone, and the SPS5785 ensures that this communication infrastructure remains energized without voltage sag during peak load events.

Downstream from the controller, Honeywell IOTA I/O modules — including analog input, analog output, and digital I/O cards — depend on stable power delivery to maintain signal accuracy. Any ripple or dropout in the supply rail directly degrades measurement fidelity, leading to false alarms and unnecessary actuator cycling. The SPS5785 eliminates this risk through its active power factor correction and tight output regulation.

In motor-driven applications, the SPS5785 works alongside Honeywell or third-party variable frequency drives (VFDs) and servo drive systems. While the VFD manages motor speed and torque to reduce energy consumption during partial-load cycles, the SPS5785 ensures that the drive's control card and feedback circuits receive uninterrupted, clean power. This coordination between the power supply module and the drive system is essential for achieving consistent energy savings across pump, fan, and compressor applications.

For energy monitoring, the SPS5785 integrates within systems that include power measurement modules such as the Honeywell HC900 power monitoring I/O or third-party DIN-rail power meters connected via Modbus RTU or PROFIBUS DP. These instruments feed real-time consumption data to the Experion PKS SCADA layer, where energy dashboards and load-shedding algorithms operate. The SPS5785's stable output ensures that these monitoring devices report accurate data without noise-induced measurement errors.

HMI stations — including Honeywell Experion Station or third-party SCADA clients — rely on the same power distribution network. When the SPS5785 is deployed in a redundant configuration alongside a second SPS5785 unit, the system achieves N+1 power redundancy, eliminating the power supply as a single point of failure. This architecture is standard practice in SIL-rated safety instrumented systems and high-availability process control environments.

Communication modules such as the Honeywell FIM4 (Field Interface Module) and Series C I/O Link modules also draw from the SPS5785-powered bus. Maintaining stable power to these modules is critical for preserving HART, Foundation Fieldbus, or PROFIBUS PA device communication — protocols that carry both process data and device health diagnostics used in predictive maintenance workflows.

Deploying the Honeywell 51198651-100 SPS5785 as part of a structured energy optimization program delivers measurable improvements across multiple production KPIs. By providing high-efficiency power conversion, the module reduces the thermal load within control cabinets — a critical factor in hot climates or densely packed panel installations. Lower cabinet temperatures directly extend the service life of adjacent components including relay modules, terminal blocks, and communication cards, reducing maintenance frequency and spare parts consumption.

In production lines where cycle time consistency is paramount — such as automotive assembly, pharmaceutical batch processing, or food and beverage packaging — power supply stability directly influences production rhythm. Voltage instability causes PLC scan time jitter, servo positioning errors, and sensor signal drift, all of which disrupt the production beat. The SPS5785's tight regulation ensures that the control system operates at its designed scan rate without power-induced interruptions.

From an energy management perspective, the SPS5785 supports load profiling strategies when integrated with the Experion PKS energy management application. Operators can monitor the power draw of individual control system segments, identify inefficient operating modes, and implement demand-response strategies during peak tariff periods. This capability transforms the power supply from a passive infrastructure component into an active participant in the plant's energy reduction program.

Predictive maintenance programs benefit from the SPS5785's stable operation as well. When power supply health degrades — indicated by increasing output ripple or thermal drift — the Experion PKS system can generate early warning alarms before a failure occurs. This allows maintenance teams to schedule replacement during planned shutdowns rather than responding to emergency outages, reducing mean time to repair (MTTR) and protecting production throughput.

Every unit supplied by NANKMOS undergoes a full functional test prior to shipment, including output voltage verification, load regulation testing, and thermal inspection. Units are shipped with protective packaging and are accompanied by a test report. In-stock units are available for dispatch within 1–3 business days, supporting urgent maintenance and capital project timelines alike.

Q1: What energy savings can I expect from deploying the Honeywell SPS5785 in my Experion PKS system? The SPS5785 achieves up to 88% power conversion efficiency at full load, compared to older linear power supplies that typically operate at 50–65% efficiency. In a fully loaded Experion PKS cabinet, this efficiency improvement can reduce control system power consumption by 15–25%, lowering both energy costs and cabinet cooling requirements. Actual savings depend on load profile and ambient conditions.

Q2: Is the 51198651-100 SPS5785 compatible with both legacy and current Experion PKS configurations? Yes. The SPS5785 is designed for the Honeywell Experion PKS platform and is compatible with C300 controllers, IOTA I/O chassis, FIM modules, and ACE nodes. It supports universal AC input (85–264 VAC), making it suitable for both 110 VAC and 220 VAC panel installations without hardware modification. For legacy TDC 3000 or PlantScape migrations, consult your system integrator to confirm chassis compatibility.

Q3: What is the recommended replacement interval, and how does NANKMOS support the replacement process? Honeywell recommends proactive replacement of power supply modules every 7–10 years in continuous-duty applications, or when output ripple exceeds specification thresholds. NANKMOS maintains in-stock inventory of the 51198651-100 SPS5785 to support both planned replacements and emergency procurement. All units are tested before shipment and covered by a 12-Month Warranty against manufacturing defects and functional failure. Expedited shipping is available for critical maintenance situations.

Q4: What testing does NANKMOS perform before shipping the SPS5785? Each unit undergoes a multi-point outgoing inspection that includes: output voltage accuracy verification at no-load and full-load conditions, output ripple measurement, input voltage range testing across the full 85–264 VAC specification, thermal performance check, and visual inspection for physical integrity. A test record is maintained for each unit. Units that do not meet specification are quarantined and not shipped. This process ensures that every SPS5785 delivered to your facility is ready for immediate installation and commissioning.
