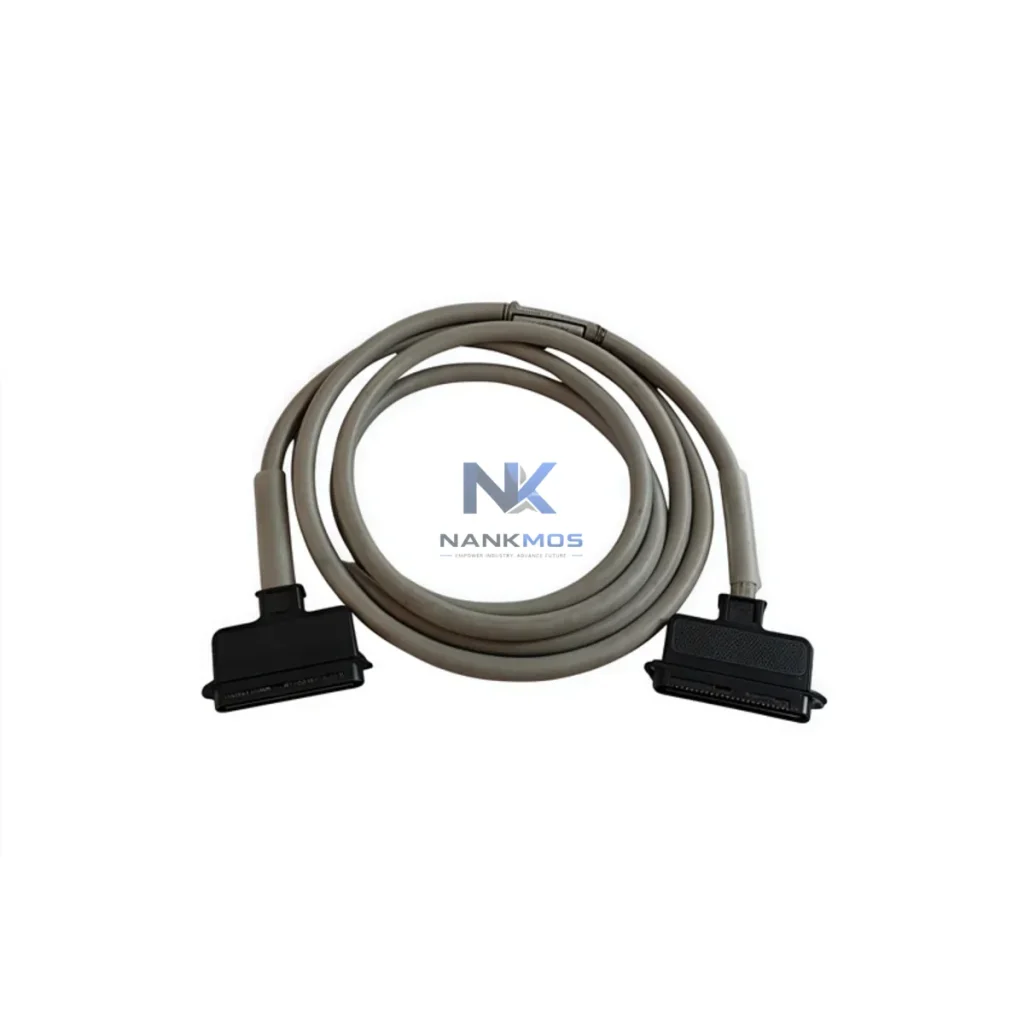

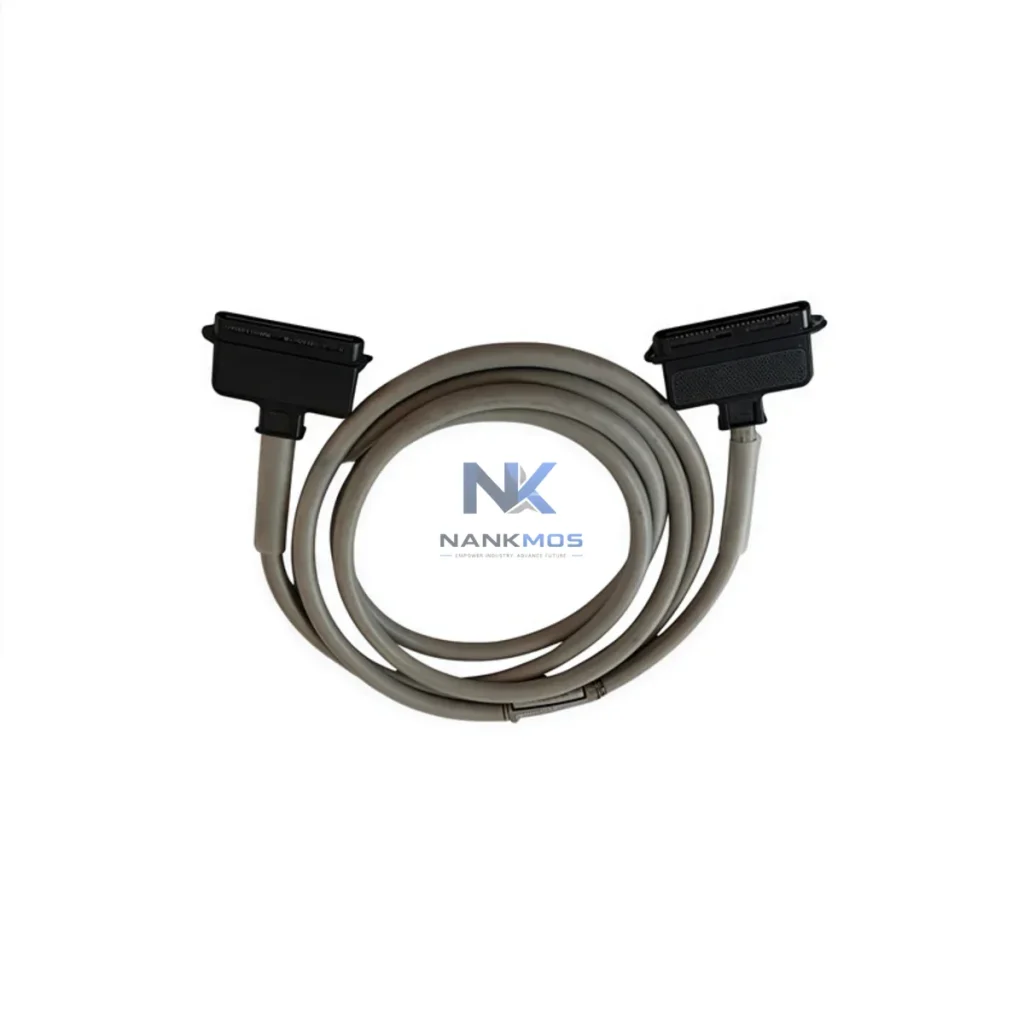

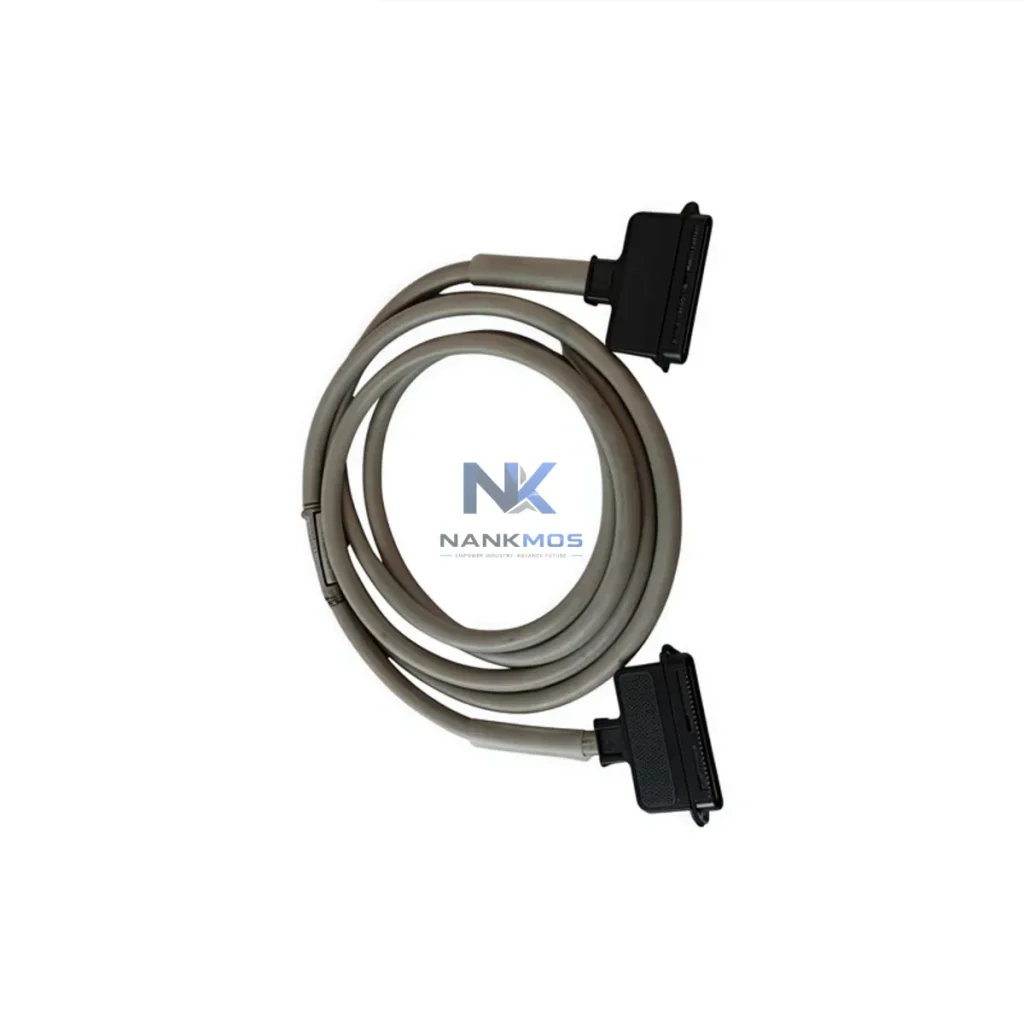

Honeywell 51201420-003 Field Termination Assembly Cable

Product Details

51201420-003 Product Description

The Honeywell 51201420-003 is a UCN (Universal Control Network) Field Termination Assembly Cable engineered for TDC 3000 Distributed Control Systems. In modern smart factory environments, reliable physical-layer connectivity is the foundation of every data chain — from field instruments and remote I/O modules to PLC controllers, HMI panels, SCADA servers, and enterprise MES platforms. This cable assembly provides the critical last-meter connection that ensures UCN protocol signals travel with integrity across the entire automation network, eliminating data gaps that undermine real-time monitoring and remote diagnostics.

Deployed across power generation, petrochemical refining, oil and gas processing, water treatment, and continuous manufacturing facilities, the 51201420-003 supports the UCN bus architecture that underpins Honeywell's TDC 3000 platform. Its precision-terminated connectors and shielded construction maintain signal fidelity even in electrically noisy industrial environments, ensuring that process variables — pressure, temperature, flow, and level — are transmitted without corruption from field transmitters through to the operator workstation and historian database.

In a TDC 3000-based smart factory, the data flow begins at the field level, where sensors, transmitters, and actuators connect to High-Performance Process Manager (HPM) or Advanced Process Manager (APM) controllers via I/O termination assemblies. The Honeywell 51201420-003 cable assembly serves as the physical interface between these I/O modules and the UCN bus, enabling process data to travel upstream through the network hierarchy.

From the HPM controller, process values are broadcast over the UCN coaxial backbone to other network nodes, including the Local Control Network (LCN) gateway, which bridges field-level UCN data to the plant-wide LCN. Operator workstations running Honeywell's GUS (Global User Station) or PHD (Process Historian Database) software receive this data stream in real time, enabling operators to monitor hundreds of control loops simultaneously. The 51201420-003 ensures that this upstream data path starts with a clean, noise-free signal at the termination point.

For facilities integrating TDC 3000 with modern SCADA platforms or OPC-DA/OPC-UA servers, the UCN data chain — anchored by reliable field termination hardware like the 51201420-003 — feeds into Honeywell's Experion PKS migration gateway or third-party OPC bridges, allowing legacy DCS data to appear on modern HMI screens, data historians, and cloud-based analytics dashboards. Remote I/O expansion modules connected via the UCN bus also depend on the integrity of field termination assemblies to maintain deterministic scan times and alarm response latency within the 500 ms thresholds required by process safety standards.

In multi-loop control architectures, the 51201420-003 supports parallel data paths where the same UCN node simultaneously serves regulatory control loops, sequential logic, and data acquisition for energy management systems. Paired with Honeywell's 51304485-100 UCN Coax Cable or 51201399-200 termination resistor assemblies, the complete UCN segment delivers a robust, low-impedance data backbone. Edge gateway devices — such as Honeywell's Uniformance PHD or third-party Modbus/TCP-to-UCN converters — can tap into this network to forward historian data to enterprise ERP and MES systems, completing the vertical integration from field sensor to business intelligence layer.

For facilities running parallel control platforms, the UCN field termination infrastructure also interoperates with Honeywell Safety Manager controllers and Fire & Gas systems through shared LCN backbone segments, ensuring that safety-critical data flows alongside process control data without interference. All components in this chain — from the 51201420-003 cable assembly at the field level to the GUS operator station at the top — are pre-shipment tested to confirm continuity, shielding integrity, and connector seating before dispatch.

One of the most persistent challenges in aging DCS installations is protocol fragmentation: field devices speaking 4–20 mA HART, FOUNDATION Fieldbus, or Modbus RTU cannot natively communicate with UCN-based TDC 3000 controllers without proper termination and signal conditioning hardware. The 51201420-003 addresses the physical-layer portion of this challenge by providing a correctly terminated, impedance-matched cable assembly that prevents signal reflections and data corruption on the UCN bus — a common root cause of intermittent communication faults and spurious alarms.

Data islands are another critical issue: when field termination assemblies degrade or are incorrectly installed, entire I/O clusters drop off the UCN scan, creating blind spots in the SCADA historian and breaking alarm management continuity. Replacing or upgrading to a verified 51201420-003 assembly restores full I/O visibility, enabling operators to track process trends without gaps and ensuring that alarm records are complete for regulatory compliance and incident investigation.

Remote diagnostics capabilities are also enhanced when the physical network layer is reliable. With a properly terminated UCN segment, Honeywell's Asset Manager and Experion migration tools can perform remote device health checks, firmware version audits, and loop performance benchmarking without requiring technicians to physically access field junction boxes. This reduces maintenance costs and supports predictive maintenance strategies aligned with Industry 4.0 objectives.

Production line transparency — the ability to see every control loop's status, setpoint deviation, and output saturation in real time — depends on uninterrupted data flow from field to SCADA. The 51201420-003 contributes to this transparency by ensuring that the foundational physical connection in the UCN data chain is reliable, correctly terminated, and shielded against electromagnetic interference from variable frequency drives (VFDs), motor control centers (MCCs), and high-voltage switchgear commonly found in process plant environments.

Q1: Does the Honeywell 51201420-003 support real-time data transmission with low latency on the UCN bus? Yes. The UCN protocol uses a deterministic token-passing mechanism that guarantees scan cycle times typically between 100 ms and 500 ms per node, depending on network load. The 51201420-003's precision termination ensures that signal integrity is maintained across the full UCN segment, preventing retransmissions that would increase effective latency. This makes it suitable for regulatory control loops where fast, reliable data updates are required.

Q2: Is the 51201420-003 compatible with both legacy TDC 3000 and Experion PKS migration architectures? Yes. The 51201420-003 is designed for TDC 3000 UCN field termination and remains compatible with Honeywell's Experion PKS C300 migration path, where existing UCN I/O modules are retained and connected to the new Experion controller via UCN bridge hardware. The cable assembly's physical and electrical specifications are unchanged across both architectures, making it a direct replacement or upgrade component in migration projects.

Q3: How does this cable assembly contribute to network stability in electrically noisy plant environments? The 51201420-003 incorporates shielded cable construction and precision-matched termination impedance to suppress electromagnetic interference (EMI) from nearby VFDs, transformers, and high-current motor circuits. Proper termination prevents standing waves and signal reflections on the UCN coaxial backbone, which are the primary causes of intermittent communication errors and node dropouts in industrial DCS networks.

Q4: What warranty and pre-shipment testing does the 51201420-003 include? Every Honeywell 51201420-003 unit supplied by NANKMOS includes a 12-month warranty covering manufacturing defects and connector integrity. Each unit undergoes pre-shipment testing for continuity, shielding effectiveness, and connector seating before dispatch, ensuring that the assembly performs to specification from the moment it is installed in the field.
