Honeywell 51308112-008 DCS Cable & Connectivity

Product Details

51308112-008 Product Description

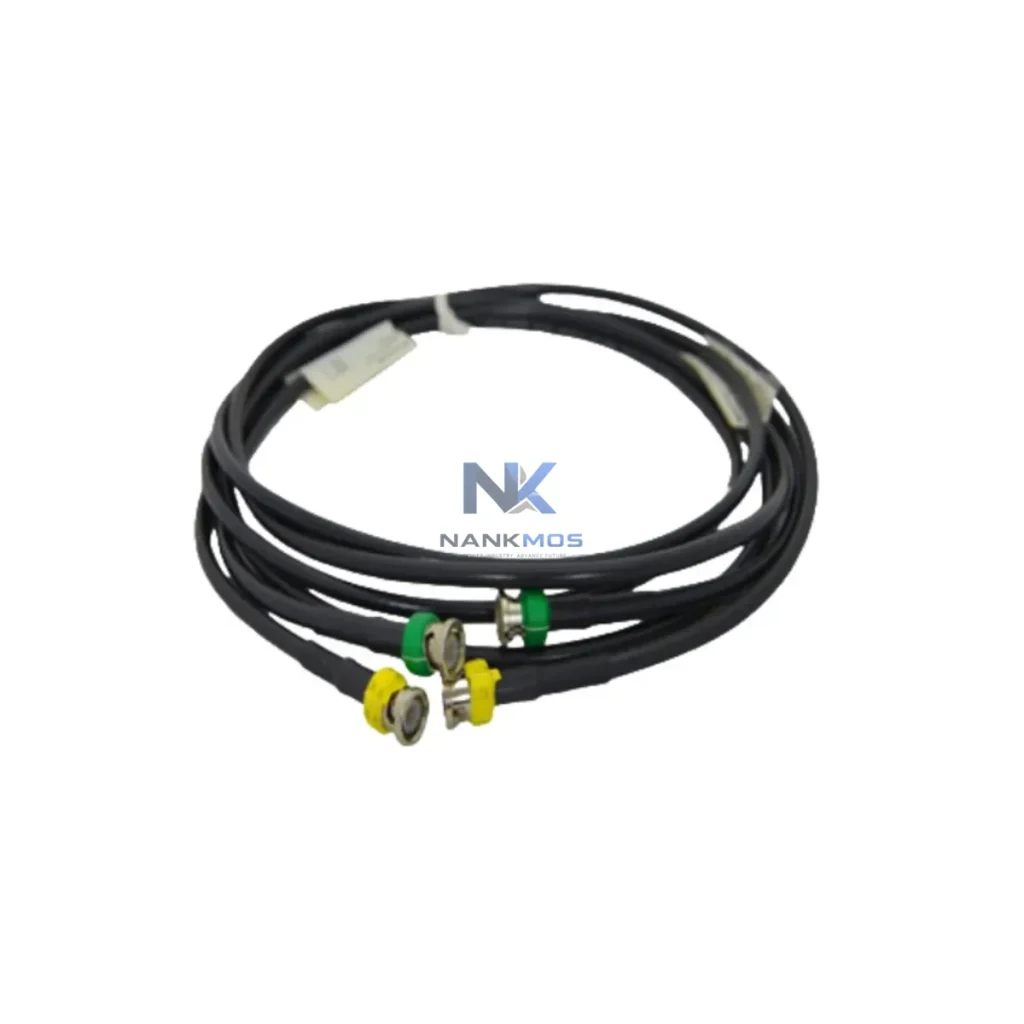

The Honeywell 51308112-008 is a factory-matched Local Control Network (LCN) coaxial cable set engineered specifically for the TDC 3000 Distributed Control System platform. Within a layered industrial control architecture, the physical communication layer is the backbone that determines signal integrity, node synchronization, and overall system determinism. The 51308112-008 is not a generic cable assembly — it is a system-matched component designed to maintain the electrical and timing characteristics that the TDC 3000 LCN demands across its full node topology.

In a complete TDC 3000 control architecture, the LCN serves as the high-speed peer-to-peer network interconnecting Application Modules (AM), History Modules (HM), Universal Stations (US), Network Interface Modules (NIM), and the Global Control Network (GCN) gateway. The 51308112-008 cable set provides the physical medium for this critical data highway, ensuring that control commands, process data, alarm states, and historian records traverse the network without signal degradation, impedance mismatch, or timing jitter that could compromise loop closure or operator visibility.

The 51308112-008 cable set operates at the intersection of every functional layer in the TDC 3000 architecture. Understanding its role requires viewing the system as an integrated whole rather than a collection of isolated modules.

Control Layer: The Application Module (AM) and High-Performance Process Manager (HPM) execute regulatory, advanced, and sequence control strategies. These modules depend on the LCN to exchange setpoints, mode commands, and process variable data with peer nodes in real time. A degraded LCN cable — whether due to impedance mismatch, connector oxidation, or mechanical damage — introduces latency and retransmissions that directly affect loop performance. The 51308112-008, as a system-matched assembly, preserves the signal integrity that AM and HPM modules require for deterministic control execution.

I/O and Field Interface Layer: The Advanced Process Manager (APM) and Logic Manager (LM) aggregate field I/O from transmitters, control valves, and discrete devices. These modules communicate their process data upstream via the LCN. The cable set ensures that I/O scan data arrives at the AM and historian without corruption, supporting accurate PID execution and alarm generation. When paired with Honeywell 51304485-100 or 51304485-150 I/O termination assemblies, the 51308112-008 completes the signal chain from field device to control strategy.

Communication and Gateway Layer: The Network Interface Module (NIM) bridges the LCN to external networks, including Ethernet-based supervisory systems and plant information networks. The GCN Gateway extends connectivity to the Global Control Network, enabling multi-unit or multi-area coordination. The 51308112-008 supports the NIM's ability to maintain continuous, low-latency data exchange between the LCN and these external interfaces, which is essential for MES integration, OPC server connectivity, and historian data forwarding to platforms such as Honeywell PHD.

HMI and Operator Interface Layer: Universal Stations (US) and Honeywell GUS (Global User Station) workstations rely on the LCN for real-time process displays, trend data, and alarm management. Operator response time — a critical safety parameter in process industries — is directly dependent on LCN throughput and cable integrity. The 51308112-008 ensures that display updates, faceplates, and group displays refresh at the rates the TDC 3000 platform was designed to deliver.

Power and Redundancy Layer: TDC 3000 systems in critical applications employ redundant LCN configurations, with dual cable runs providing automatic failover. The 51308112-008 is suitable for both primary and secondary LCN cable runs. When used alongside Honeywell 51190494-100 power supply modules and redundant AM configurations, the cable set contributes to an architecture where no single point of failure can interrupt control or data acquisition.

Protection and Safety Layer: In Safety Instrumented System (SIS) integrated architectures, where the TDC 3000 interfaces with Honeywell FSC (Fail-Safe Controller) or Safety Manager modules, LCN data integrity is a prerequisite for correct safety function monitoring. The 51308112-008 supports the communication paths that allow the DCS to monitor SIS status, display safety loop states on operator stations, and log safety events to the historian.

Maintenance and Diagnostic Layer: The History Module (HM) continuously archives process data, alarm journals, and event logs via the LCN. Maintenance teams rely on this data for root cause analysis, regulatory compliance reporting, and predictive maintenance programs. A reliable LCN cable set is the prerequisite for uninterrupted historian operation. The 51308112-008, supplied with pre-shipment test documentation, simplifies maintenance planning by providing a verified replacement component that can be installed with confidence during scheduled outages or emergency corrective maintenance.

Refining and Petrochemical: TDC 3000 systems remain in active service across crude distillation units, fluid catalytic cracking (FCC) units, and hydrocracker complexes. The LCN cable set supports continuous operation of AM-based advanced control strategies, including multivariable predictive control (MPC) applications that depend on high-frequency process data exchange between the AM and the NIM-connected optimization server.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, TDC 3000 platforms manage boiler combustion control, turbine sequencing, and balance-of-plant systems. The 51308112-008 supports the LCN infrastructure that connects distributed HPM and APM nodes across large physical plant footprints, where cable run lengths and environmental conditions place demands on signal integrity.

Chemical and Specialty Chemicals: Batch and continuous chemical processes require precise coordination between recipe management systems, regulatory controllers, and field devices. The LCN cable set enables the AM-to-AM and AM-to-HM communication that supports batch historian logging, phase transition commands, and interlock coordination across multiple process units.

Pulp and Paper: Paper machine control systems built on TDC 3000 platforms use the LCN to coordinate sheet formation, press section, and dryer section control loops. The 51308112-008 supports the high-availability LCN infrastructure required for continuous machine operation, where unplanned downtime is measured in significant production loss per hour.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operating TDC 3000 systems use the LCN to integrate SCADA interfaces, chemical dosing control, and filtration sequencing. The cable set supports the NIM-to-Ethernet gateway connections that enable remote monitoring and regulatory data reporting.

Mining and Minerals Processing: Concentrator and smelter control systems in mining operations rely on TDC 3000 platforms for flotation circuit control, crusher management, and furnace temperature regulation. The 51308112-008 supports LCN integrity in environments where vibration, dust, and temperature cycling place additional stress on cable assemblies and connectors.

Q1: Is the 51308112-008 compatible with both single and redundant LCN configurations in TDC 3000 systems? Yes. The 51308112-008 is a system-matched LCN cable set suitable for both single-cable and redundant dual-cable LCN topologies. In redundant configurations, identical cable assemblies are used for both the primary (LCN-A) and secondary (LCN-B) runs. The cable's impedance and electrical characteristics are matched to TDC 3000 LCN tap specifications, ensuring that the redundancy switchover — whether triggered by cable fault detection or manual intervention — occurs without data loss or node dropout. NANKMOS supplies matched pairs for redundant installations upon request.

Q2: What pre-shipment testing is performed, and how does the 12-Month Warranty apply to this cable set? Every 51308112-008 unit shipped by NANKMOS undergoes pre-shipment continuity testing and impedance verification to confirm that the cable assembly meets TDC 3000 LCN electrical specifications before dispatch. The 12-Month Warranty covers manufacturing defects, connector integrity, and cable assembly quality from the date of shipment. In the event of a warranty claim, NANKMOS provides replacement or repair with documented test results. Warranty coverage supports maintenance planning by providing a defined support window aligned with typical plant turnaround and spare parts management cycles.

Q3: How should the 51308112-008 be integrated into an existing TDC 3000 LCN during a live system maintenance window? LCN cable replacement in a live TDC 3000 system requires coordination with the system's redundancy architecture. In redundant LCN systems, the secondary cable run can be replaced while the primary remains active, followed by a controlled switchover and replacement of the primary run — minimizing control disruption. In single-cable systems, replacement must be scheduled during a planned outage with all connected nodes placed in manual or local control mode prior to cable disconnection. NANKMOS recommends verifying node addresses, tap positions, and terminator placement against the as-built LCN topology drawing before installation. Post-installation, LCN diagnostic tools within the TDC 3000 system manager should be used to confirm all nodes return to normal communication status before returning loops to automatic control.
