Honeywell C7035A1023 C7035A1064 UV Flame Sensor

Product Details

C7035A1023 C7035A1064 Product Description

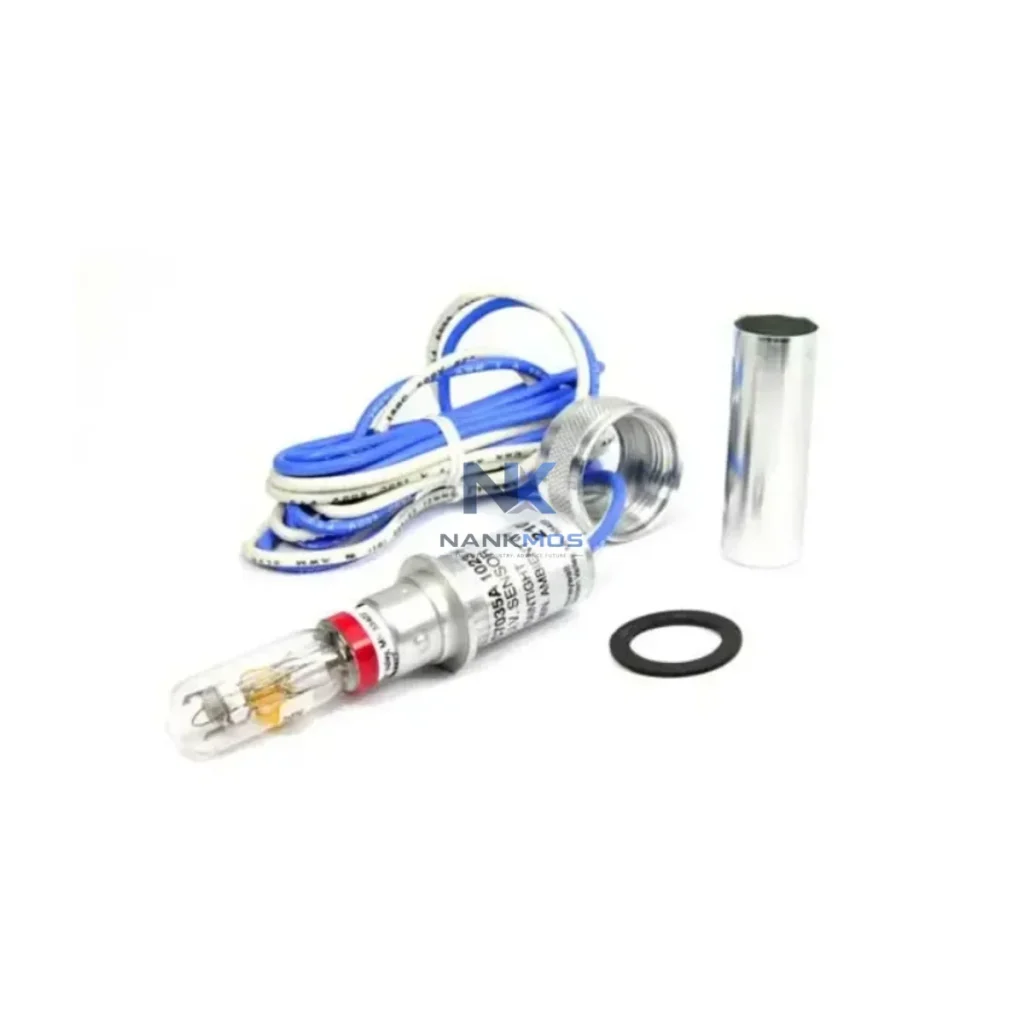

The Honeywell C7035A1023 is a high-reliability ultraviolet (UV) flame sensor engineered for seamless integration into the C7035 Series burner management and combustion control architecture. Designed to operate within Honeywell's proven flame safeguard ecosystem, this sensor delivers precise, real-time flame signal output that anchors the safety and operational continuity of industrial combustion systems. Whether deployed in process heaters, boilers, thermal oxidizers, or multi-burner control panels, the C7035A1023 provides the signal integrity and system compatibility required for demanding control architecture environments.

At NANKMOS, every C7035A1023 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty — ensuring that your control architecture investment is protected from commissioning through long-term operation.

The C7035A1023 does not operate in isolation — it is a critical node within a layered combustion control and industrial safety architecture. Understanding its system role requires examining how it interacts with upstream controllers, downstream actuators, and parallel safety devices across multiple control layers.

At the control layer, the C7035A1023 interfaces directly with Honeywell's RM7800L Burner Controller and RM7840G Relay Module, which serve as the primary flame management logic engines. These controllers interpret the UV sensor's flame signal to execute ignition sequencing, flame proving, and lockout logic. In redundant burner architectures, a secondary C7035A1064 sensor may be deployed in parallel to provide dual-channel flame confirmation, eliminating single-point failure risk in critical combustion loops.

At the I/O and signal layer, the flame signal from the C7035A1023 is routed through Honeywell R7847C Amplifier Modules, which condition and amplify the UV response before it reaches the relay logic. Signal isolation modules — such as those from the Honeywell SOLA series or equivalent DIN-rail signal conditioners — may be inserted in the signal path to protect the controller from electrical noise generated by high-voltage ignition transformers operating in the same control cabinet.

At the power layer, the burner control panel housing the C7035A1023 system typically incorporates Honeywell 24 VAC Class 2 transformers or equivalent DIN-rail power supplies to provide stable, isolated control voltage. Proper power architecture ensures that UV sensor response times are not degraded by voltage fluctuations during ignition events.

At the communication and supervisory layer, the RM7800 Series controllers can be paired with Honeywell S7800A1001 Display Modules or integrated into a Modbus RTU / BACnet gateway to relay flame status, lockout codes, and diagnostic data to a plant DCS or SCADA platform. This enables centralized monitoring of combustion health across multi-burner installations without requiring physical access to each control panel.

At the HMI layer, operators interact with the combustion system through panel-mounted displays or remote SCADA terminals. Flame status from the C7035A1023 is typically visualized as a discrete digital input on the HMI, with alarm annunciation triggered on flame failure or sensor fault. Integration with Honeywell Experion PKS or third-party SCADA systems is achievable through the Modbus gateway layer described above.

At the protection and safety layer, the C7035A1023 works in concert with gas pressure switches, high-limit temperature controllers, and combustion air proving switches to form a complete burner safety interlock chain. Any failure in this chain — including loss of UV flame signal — triggers a controlled burner shutdown and lockout, preventing unburned fuel accumulation and potential explosion risk.

At the maintenance and diagnostics layer, the modular design of the C7035 sensor family allows field replacement without special tooling. Maintenance teams can swap the C7035A1023 in minutes, restoring system availability rapidly. Paired with the Honeywell S7800A Display Module, technicians can read lockout history and flame signal strength directly at the controller, reducing mean time to repair (MTTR) and supporting predictive maintenance programs.

Power Generation & Boiler Plants: In utility and industrial boiler installations, the C7035A1023 provides the UV flame confirmation signal that enables safe light-off and continuous operation of natural gas or fuel oil burners. Its fast UV response time is critical in large-capacity boilers where delayed flame detection can result in significant fuel accumulation and safety hazards.

Petrochemical & Refinery Process Heaters: Process heaters in refineries and chemical plants operate under continuous duty cycles with stringent safety requirements. The C7035A1023's robust UV detection capability, combined with its compatibility with Honeywell's RM7800 relay platform, makes it a preferred choice for fired heater burner management systems (BMS) in these environments.

Thermal Oxidizers & Waste Gas Incinerators: Thermal oxidizer systems require reliable flame presence confirmation to ensure complete combustion of volatile organic compounds (VOCs). The C7035A1023 provides the UV signal integrity needed to maintain regulatory compliance and prevent uncontrolled VOC emissions during burner cycling.

Food & Beverage Processing: Industrial ovens, dryers, and direct-fired heating systems in food processing facilities rely on UV flame sensors for safe, hygienic combustion control. The C7035A1023's compact form factor and reliable signal output support integration into space-constrained control panels common in this sector.

Marine & Offshore Applications: Shipboard boilers and offshore platform heating systems demand flame detection components rated for vibration, humidity, and wide temperature ranges. The C7035A1023's industrial-grade construction supports deployment in these challenging environments, where component reliability directly impacts vessel safety and operational continuity.

Q1: Is the C7035A1023 directly compatible with Honeywell RM7800 Series burner controllers without additional amplifier modules? The C7035A1023 is designed to work within the Honeywell C7035 flame sensor ecosystem and requires a compatible amplifier module — typically the R7847C — to interface with RM7800 Series relay modules. The amplifier conditions the UV sensor's output into a flame signal that the RM7800L or RM7840G can process for ignition sequencing and lockout logic. Always verify the specific amplifier model required for your controller variant before installation.

Q2: Can the C7035A1023 be used in a redundant dual-sensor flame detection architecture? Yes. In safety-critical combustion applications requiring dual-channel flame confirmation, two C7035 Series sensors — such as the C7035A1023 and C7035A1064 — can be deployed in parallel, each connected to independent amplifier and relay channels. This configuration eliminates single-point failure risk in the flame detection loop and is consistent with IEC 61511 functional safety requirements for SIL-rated burner management systems.

Q3: What warranty and supply assurance does NANKMOS provide for the C7035A1023? NANKMOS provides a 12-Month Warranty on all C7035A1023 units. Every unit undergoes pre-shipment functional testing to verify UV response performance before dispatch. We maintain ready stock of C7035 Series components to support urgent maintenance requirements, planned shutdowns, and long-term spare parts programs. For volume procurement or project-specific supply agreements, contact our technical sales team directly.
