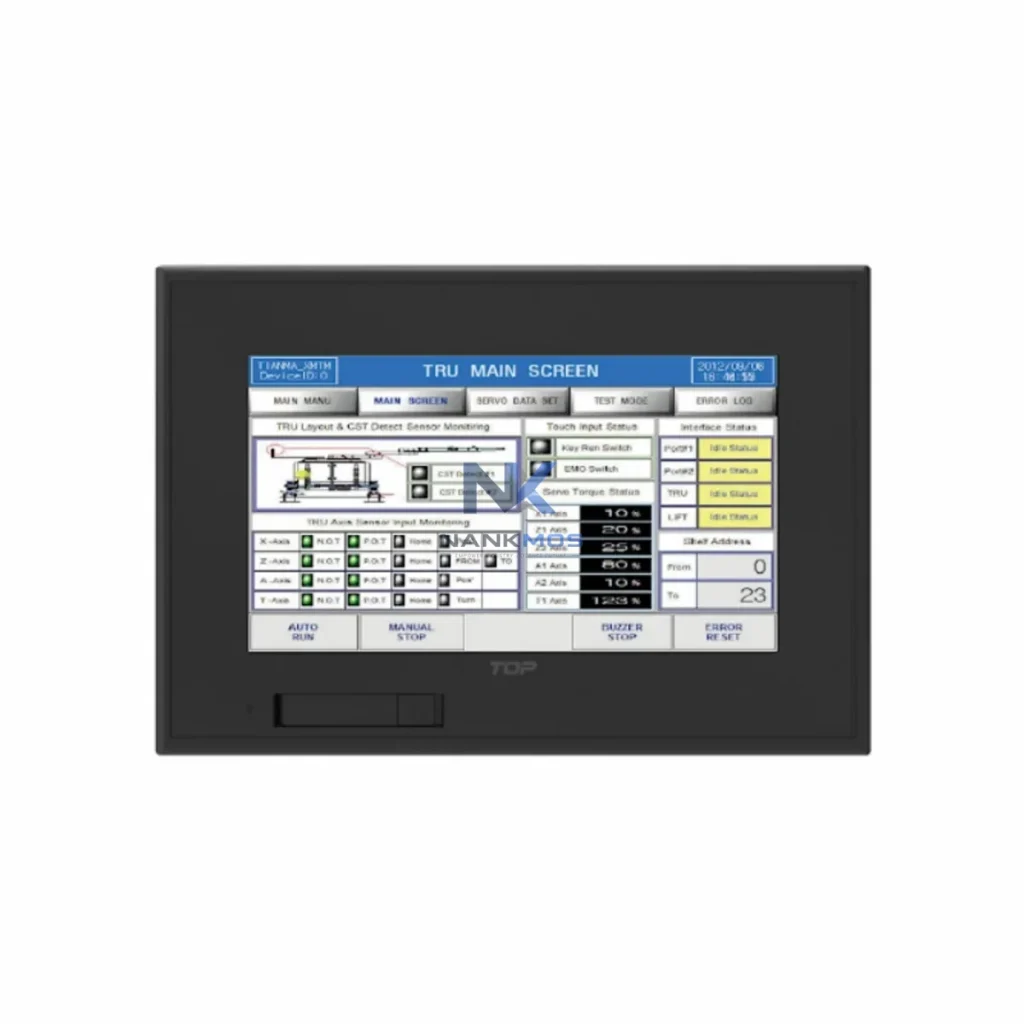

Honeywell TOPRE0700WD HMI Operator Panel

Product Details

TOPRE0700WD Product Description

The Honeywell TOPRE0700WD is a 7-inch widescreen HMI operator panel engineered for seamless integration within the TOPRE Series control architecture. Designed to serve as the primary human-machine interface layer in distributed and centralized automation platforms, the TOPRE0700WD delivers real-time process visualization, operator command execution, and system-level diagnostics across multi-tier industrial control environments. Its architecture-ready design ensures consistent contextual integration with Honeywell's broader automation ecosystem, supporting manufacturing, energy, petrochemical, water treatment, and process control applications where operator interface reliability is mission-critical.

In modern industrial automation, the HMI layer is not a standalone component — it is the convergence point of control signals, process data, alarm management, and operator logic. The TOPRE0700WD is built with this systems philosophy at its core. It communicates directly with TOPRE Series PLCs and controllers, enabling operators to monitor I/O states, adjust setpoints, acknowledge alarms, and execute control sequences without latency or interface ambiguity. Its widescreen display format supports multi-panel layouts, trend graphs, and process flow diagrams that reflect the actual architecture of the plant or system it serves.

From a control architecture perspective, the TOPRE0700WD occupies the HMI layer while maintaining tight coupling with the control layer below. It interfaces with TOPRE Series CPU modules and I/O expansion racks through dedicated communication ports, supporting both serial and Ethernet-based protocols depending on system configuration. This dual-path communication capability ensures that the HMI remains operational even during partial network reconfiguration or maintenance windows, contributing to overall system availability and reducing unplanned downtime.

The panel's contextual integration capability means it can be configured to reflect the logical structure of the automation system it monitors — from individual field device states at the I/O layer, through PLC program execution status at the control layer, up to supervisory data exchange at the SCADA or DCS layer. Operators working with Honeywell TOPRE Series controllers, such as the TOPRE-CPU32 or TOPRE-CPU64 modules, will find the TOPRE0700WD pre-aligned to the tag naming conventions, alarm categories, and communication parameters native to the TOPRE platform, significantly reducing engineering commissioning time.

Signal stability is a defining characteristic of the TOPRE0700WD in demanding industrial environments. The panel is designed to operate reliably in the presence of electrical noise, vibration, and temperature variation typical of control cabinet installations in heavy industry. Its display and touch interface maintain calibration accuracy across extended operating cycles, ensuring that operator inputs are registered correctly even in high-frequency interaction scenarios such as batch process control or continuous production line management.

Modular deployment is another key advantage. The TOPRE0700WD can be integrated into new control cabinet builds or retrofitted into existing TOPRE Series panel installations without requiring structural modifications to the backplane or power distribution architecture. When paired with TOPRE Series power supply modules — such as the TOPRE-PSU24 — the panel draws regulated 24VDC power with built-in surge protection, maintaining stable operation during grid fluctuations or generator switchover events common in remote industrial sites.

For system architects designing redundant control platforms, the TOPRE0700WD supports hot-standby HMI configurations where a secondary panel can assume display and control functions if the primary unit enters a fault state. This redundancy capability, when combined with TOPRE Series redundant CPU modules and dual-ring Ethernet communication switches, creates a fully fault-tolerant operator interface architecture suitable for critical process applications in power generation, offshore platforms, and chemical processing facilities.

Diagnostic efficiency is enhanced through the panel's built-in alarm logging, event history, and system status visualization features. Maintenance engineers can use the TOPRE0700WD to interrogate PLC register states, review I/O module health indicators, and trace communication faults without requiring a separate engineering workstation. This on-panel diagnostic capability reduces mean time to repair (MTTR) and supports lean maintenance strategies in facilities where engineering staff availability is limited.

Long-term maintenance efficiency is supported by the TOPRE0700WD's standardized mounting format and replaceable display assembly. Spare parts availability is maintained through Honeywell's global distribution network, and the panel's firmware can be updated via USB or Ethernet without removing it from the control cabinet. This field-serviceability reduces lifecycle maintenance costs and extends the operational lifespan of the HMI installation beyond typical panel replacement cycles.

Every TOPRE0700WD unit supplied by NANKMOS undergoes pre-shipment functional testing, including display calibration verification, communication port integrity checks, and power input range validation. Units are shipped with full documentation and are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial use conditions. Inventory is maintained in-stock for immediate dispatch, supporting urgent project timelines and emergency replacement requirements.

The TOPRE0700WD achieves its full operational value when deployed as part of a cohesive Honeywell TOPRE Series automation platform. In a typical control cabinet architecture, the panel interfaces directly with the TOPRE-CPU32 or TOPRE-CPU64 central processing modules, which manage program execution, I/O scanning, and communication arbitration across the control rack. The CPU modules communicate with the HMI via Ethernet or RS-485, depending on the distance and topology of the installation.

Digital and analog I/O expansion is handled by TOPRE Series I/O modules mounted on the same backplane as the CPU. Modules such as the TOPRE-DI16 (16-channel digital input) and TOPRE-AO8 (8-channel analog output) feed real-time field data into the PLC program, which the TOPRE0700WD then visualizes for the operator. Signal conditioning between field devices and I/O modules may involve Honeywell or third-party signal isolators to maintain measurement accuracy and protect against ground loops in mixed-voltage environments.

Power distribution within the control cabinet is managed by TOPRE-PSU24 power supply modules, which provide regulated 24VDC to the HMI panel, CPU, I/O racks, and communication modules. In redundant power architectures, dual PSU modules with automatic switchover ensure that the TOPRE0700WD remains powered during primary supply failures, maintaining operator visibility throughout fault recovery sequences.

Communication gateways such as the TOPRE-GW-PROFIBUS or TOPRE-GW-PROFINET extend the platform's connectivity to field devices using industrial fieldbus protocols, enabling the HMI to display data from variable frequency drives, motor protection relays, and intelligent field instruments that communicate via PROFIBUS DP or PROFINET IO. Industrial Ethernet switches with managed VLAN support are used to segment HMI traffic from controller-to-controller communication, improving network determinism and cybersecurity posture.

In applications requiring remote monitoring, the TOPRE0700WD can be paired with Honeywell's SCADA software or third-party OPC-UA servers, allowing plant managers to access real-time process data and alarm histories from engineering workstations or mobile devices without disrupting local operator control. Terminal blocks and marshalling panels within the same cabinet provide the physical wiring infrastructure that connects field cables to I/O module inputs, completing the signal chain from sensor to screen.

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the TOPRE0700WD serves as the primary operator interface for conveyor control, robotic cell coordination, and quality inspection station management. Its fast screen refresh rate and reliable touch response support high-frequency operator interactions in production environments where cycle times are measured in seconds.

Power Generation & Utilities: In thermal power plants and renewable energy facilities, the panel provides operators with real-time visibility into generator excitation states, transformer tap positions, and protection relay status. Its IP65 front panel rating ensures reliable operation in environments with airborne particulates and humidity variations typical of power plant control rooms.

Petrochemical & Refining: Process operators in refinery control rooms use the TOPRE0700WD to monitor distillation column temperatures, pressure vessel levels, and valve actuator positions. The panel's alarm management capabilities support ISA-18.2 alarm rationalization practices, helping operators prioritize responses during process upsets.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the TOPRE0700WD at pump station control panels and filtration system interfaces, where operators manage flow rates, chemical dosing, and UV disinfection sequences. The panel's Modbus TCP communication capability enables integration with remote telemetry units (RTUs) across geographically distributed water networks.

Mining & Metallurgy: In ore processing and smelting operations, the panel withstands the vibration, dust, and temperature extremes of underground and surface mining environments. It interfaces with motor control centers (MCCs) and variable speed drives to provide operators with real-time motor load, speed, and fault status information critical to continuous production operations.

Marine & Offshore: Shipboard automation systems and offshore platform control rooms use the TOPRE0700WD for engine room monitoring, ballast control, and fire and gas detection system interfaces. Its compact widescreen format fits standard marine panel cutout dimensions, and its operating temperature range accommodates the thermal cycling experienced in engine room environments.

Q1: Is the TOPRE0700WD compatible with non-Honeywell PLCs and third-party control systems?A: Yes. The TOPRE0700WD supports Modbus RTU and Modbus TCP protocols, which are widely implemented across PLC platforms from Siemens, ABB, Schneider Electric, Omron, and Mitsubishi. While the panel is optimized for Honeywell TOPRE Series controllers, its open protocol support allows integration into mixed-brand control architectures. Engineering configuration is performed via the TOPRE HMI programming software, where communication drivers are selected and tag mappings are defined to match the target PLC's register structure.

Q2: What is the recommended maintenance schedule for the TOPRE0700WD in continuous 24/7 industrial operation?A: For continuous operation environments, Honeywell recommends annual inspection of the touch screen calibration, communication port connector integrity, and power supply voltage at the panel input terminals. The backlight assembly has a rated operational lifespan of 50,000 hours under normal operating conditions; facilities running 24/7 operations should plan for backlight replacement at approximately 5-year intervals. Firmware updates should be applied during scheduled maintenance windows to incorporate communication protocol improvements and security patches. NANKMOS maintains replacement parts inventory and can supply spare TOPRE0700WD units under the 12-Month Warranty program for defect-related failures.

Q3: How does NANKMOS ensure the quality and operational readiness of TOPRE0700WD units prior to shipment?A: Every TOPRE0700WD unit undergoes a structured pre-shipment test protocol at NANKMOS facilities. This includes power-on functional verification, display pixel integrity check, touch screen response calibration, RS-232/RS-485/Ethernet communication port loopback testing, and input voltage range validation across the full 24VDC operating envelope. Units that pass all test criteria are tagged with a test completion certificate and shipped with original documentation. The 12-Month Warranty covers all manufacturing defects and component failures identified during normal industrial operation, with direct support available through [email protected] or +86 18359268345.
