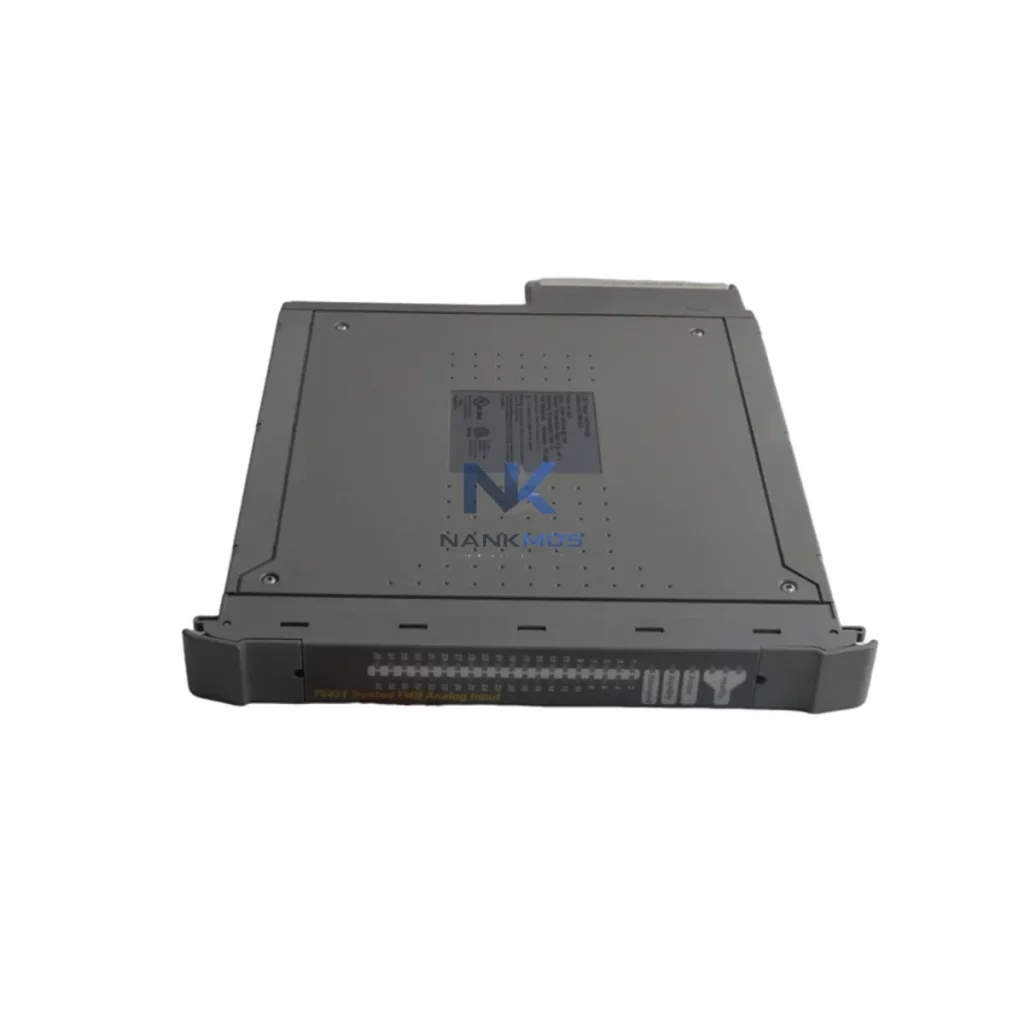

ICS Triplex T8310C Safety PLC Processor Module

Product Details

T8310C Product Description

The ICS Triplex T8310C is a Triple Modular Redundant (TMR) expander processor module engineered for safety-critical, energy-intensive industrial environments. Designed within the ICS Triplex Trusted platform, the T8310C delivers SIL 3-rated process control with a fault-tolerant architecture that eliminates unplanned shutdowns — one of the most significant sources of wasted energy and lost production throughput in modern manufacturing facilities. By maintaining continuous, voted control across three independent processing channels, the T8310C ensures that energy-consuming assets such as compressors, turbines, boilers, and high-voltage motor drives remain under stable, uninterrupted supervisory control at all times.

In smart production lines where energy efficiency is a measurable KPI, the T8310C functions as the decision-making core of the safety instrumented system (SIS). It receives real-time process data from field-level sensors and transmits voted outputs to final control elements, enabling precise load management without sacrificing safety integrity. This architecture directly reduces the frequency of spurious trips — events that force energy-intensive equipment through costly restart cycles and thermal stress sequences. Fewer spurious trips translate to lower cumulative energy consumption, reduced thermal load on downstream equipment, and a more predictable production rhythm.

The T8310C does not operate in isolation — its energy-control value is realized through tight integration with the broader automation ecosystem on the production floor. Within the ICS Triplex Trusted platform, the T8310C works in concert with T8431 and T8451 series digital and analog I/O modules to collect high-resolution process variables including pressure, temperature, flow rate, and motor current draw. These inputs feed the TMR voting logic, which continuously evaluates whether driven assets are operating within their optimal energy envelope.

On the drive side, the T8310C interfaces with variable frequency drives (VFDs) and servo drive systems through hardwired safety outputs and communication gateways. When process conditions indicate reduced load demand — such as off-peak production windows or partial-capacity runs — the safety system can authorize controlled speed reduction on motor-driven equipment, directly cutting kWh consumption without compromising process integrity. This coordinated interaction between the safety PLC and the drive layer is a cornerstone of modern energy management strategy in process industries.

Power monitoring modules installed at the MCC (motor control center) level feed real-time energy consumption data back through the I/O layer to the T8310C's supervisory logic. When combined with a Honeywell Safety Manager or Triconex Tricon CX in a hybrid safety architecture, the T8310C can participate in plant-wide energy balancing schemes that prioritize load shedding on non-critical assets during peak demand periods. HMI stations running on the same control network provide operators with live visibility into energy KPIs, enabling manual override and demand-response actions without bypassing safety interlocks.

Communication modules supporting Modbus TCP and OPC-UA protocols bridge the T8310C's safety domain with the plant's SCADA and energy management system (EMS) layers. This connectivity allows historians to log energy consumption trends at the asset level, supporting ISO 50001 energy management audits and predictive maintenance scheduling. Sensors monitoring vibration, bearing temperature, and insulation resistance on critical rotating equipment feed condition data through the I/O modules, enabling the safety system to flag degraded assets before they enter fault states that trigger high-energy emergency shutdowns.

In continuous-process industries, the relationship between safety system performance and energy efficiency is direct and quantifiable. Every spurious trip on a compressor train or turbine generator initiates a restart sequence that consumes two to five times the steady-state operating energy of the asset. The ICS Triplex T8310C's TMR architecture, with its 2oo3 voting logic and online fault tolerance, is specifically designed to minimize the probability of spurious trips while maintaining the required SIL 3 safety function availability.

Production line rhythm — the consistent, predictable cadence of process operations — is a primary driver of energy efficiency. When safety systems generate nuisance trips, the resulting process interruptions force operators to manually restart equipment, re-establish process conditions, and wait for thermal stabilization before resuming normal throughput. Each of these phases consumes energy without producing output. The T8310C's fault-tolerant design allows a single channel failure to be detected, alarmed, and repaired online without interrupting the safety function, preserving production rhythm and eliminating the energy penalty of unplanned downtime.

Thermal load management is another area where the T8310C delivers measurable value. By maintaining stable control over process variables such as reactor temperature, heat exchanger duty, and furnace firing rate, the safety system prevents the thermal overshoot events that force cooling systems to work harder and longer. Stable thermal profiles reduce the duty cycle of HVAC and process cooling equipment, contributing to facility-wide energy savings that compound over annual operating cycles.

Predictive maintenance integration further extends the energy efficiency benefits of the T8310C platform. By correlating safety system diagnostic data with asset health indicators from vibration sensors and power quality monitors, maintenance teams can schedule interventions during planned low-production windows rather than responding reactively to failures. This shift from reactive to predictive maintenance reduces the frequency of emergency restarts, extends asset service life, and keeps energy consumption within planned budgets.

Every T8310C unit supplied by NANKMOS is fully tested prior to shipment, with functional verification of TMR voting logic, I/O channel integrity, and communication interfaces. Stock is maintained for immediate dispatch, supporting fast replacement in critical safety applications where extended lead times are not acceptable. All units are covered by a 12-month warranty, providing documented assurance of performance reliability for procurement and maintenance planning purposes.

Q1: How does the T8310C contribute to measurable energy savings on a production line?The T8310C reduces energy waste primarily by minimizing spurious trips on energy-intensive assets such as compressors, pumps, and turbines. Each avoided spurious trip eliminates a high-energy restart cycle. Additionally, its stable TMR control enables tighter process variable management, reducing thermal overshoot and the associated cooling energy penalty. Over a 12-month operating period, these savings are typically measurable at the asset and facility level through SCADA historian data.

Q2: Is the T8310C compatible with existing ICS Triplex Trusted chassis and I/O modules?Yes. The T8310C is designed for the ICS Triplex Trusted platform and is compatible with T8000-series chassis and associated T8431/T8451 I/O modules. Integration with third-party safety systems such as Triconex or Honeywell Safety Manager is achievable through communication gateways supporting Modbus and OPC-UA protocols. Compatibility verification against your specific chassis revision and firmware version is recommended prior to installation.

Q3: What is the recommended replacement and testing process for a T8310C in a live safety system?The TMR architecture of the Trusted platform supports online module replacement without de-energizing the safety function, provided the replacement procedure follows the ICS Triplex maintenance manual. NANKMOS supplies each T8310C with pre-shipment functional test documentation. Upon receipt, the module should be bench-verified against the site's acceptance test procedure before installation. The 12-month warranty covers functional defects identified during this process.

Q4: What lead time and warranty terms apply to T8310C orders from NANKMOS?NANKMOS maintains stock of the T8310C for immediate dispatch. Standard lead time is subject to current inventory levels at time of order — contact [email protected] or +86 18359268345 for real-time availability confirmation. All units are supplied with a 12-month warranty covering functional performance under normal operating conditions, with warranty claims processed through NANKMOS directly.
